ICM FS59BNCP RG59 Plenum BNC Size 4 (RED) 25pk

ITEM #: FS59BNCPL4 MFG #: FS59BNCPL4 25PK

Primary Image
ICM Corporation
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$140.98

Our Price:

$129.92

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

FS59BNCPL4 25PK - Overview

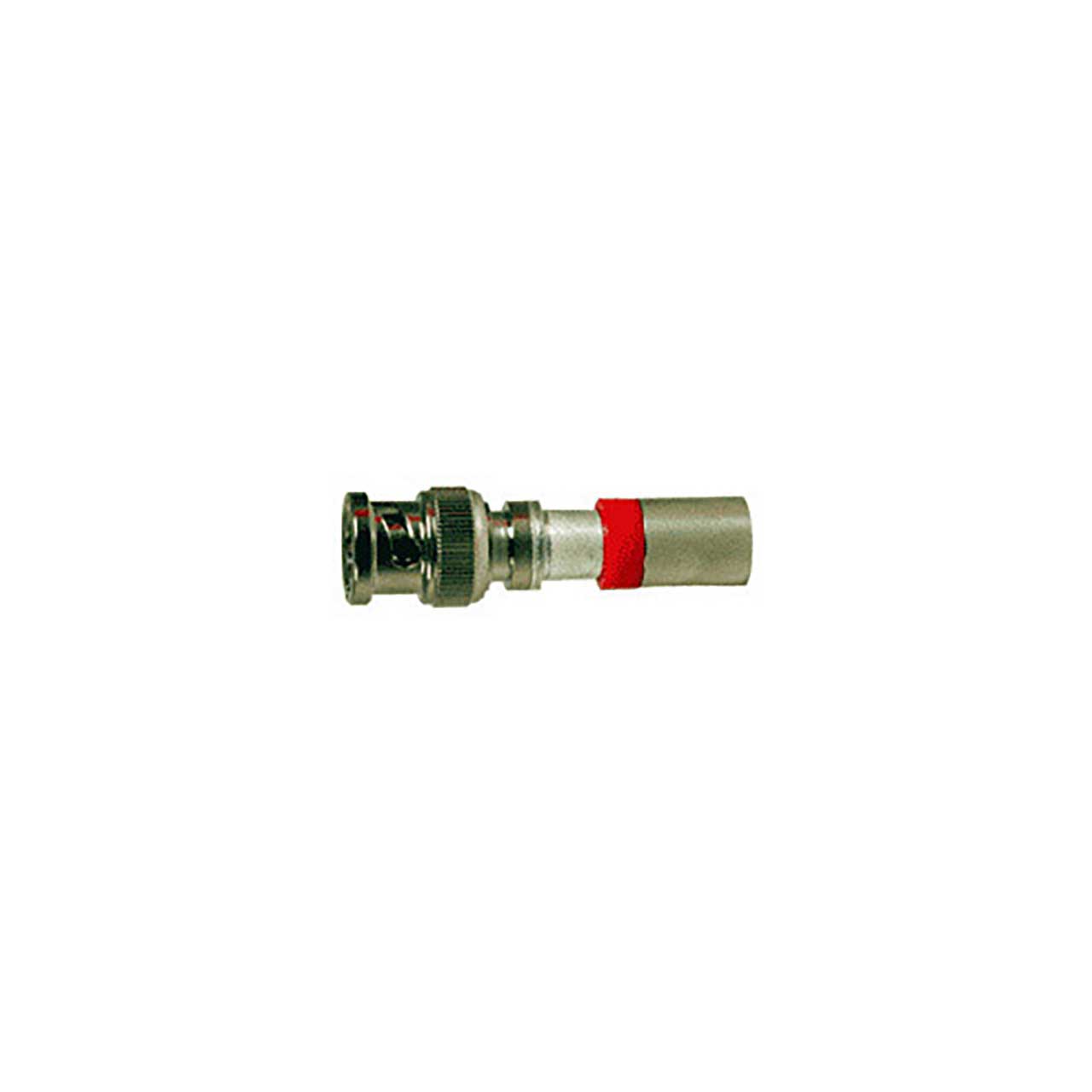

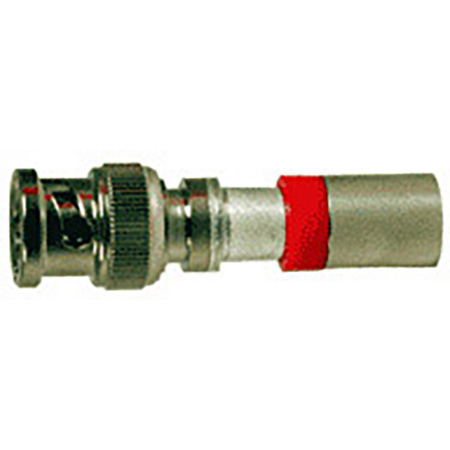

ProSNS RG59 Plenum BNC connector (FS59BNCPL2), non-blind entry with split ferrule design, polymer compression sleeve for easy insertion & lowest possible tool compression force. 25 per Pack

Applications:
CCTV
Security Cameras
Video

  • Features:

    • Environmental Space: Indoor/Outdoor


  • Specifications:

    • General Specifications
    • Nominal Characteristic Impedance: 75 Ohms
    • Return Loss (RL) Frequency [MHz]: ≥-30 dB up to 1 GHz typical
    • Temperature Range: -40° to 140°F (-40° to 60°C)
    • RG Type: 59/U Type
    • EU CE Mark: Yes
    • Suitability - In/Outdoor: Yes
    • Plenum (Y/N): Yes

      Mechanical Characteristics
    • Footprint/Type: Coax
    • Connector Interface Type: BNC
    • Gender: Male - plug
    • Connector Series Name: ProSNS
    • Color Band: Red
    • Locking: No
    • Tool Compatibility: CPLCCT-SLMR or CPSNSCT-596 (compression), PSA59/6 (strip)
    • Termination Type: Compression
    • Cable Center Conductor Diameter Limits: .0317 - .0339
    • Cable Dielectric Diameter Limits: .130 - .157
    • Cable Outer Jacket Diameter Limits: .190 - .220
    • Cable Insertion Force: 20 lbf
