Belden 1694ABHD3 6G-SDI 3-Piece BNC HD Crimp Connector for 1694A/RG6 Cable - Green Band - Each

ITEM #: BL-1694ABHD3 MFG #: 1694ABHD3

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Belden
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$3.15

Our Price:

$3.03

Add to Wish ListLeasing Options
Availability: In Stock
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

1694ABHD3 - Overview

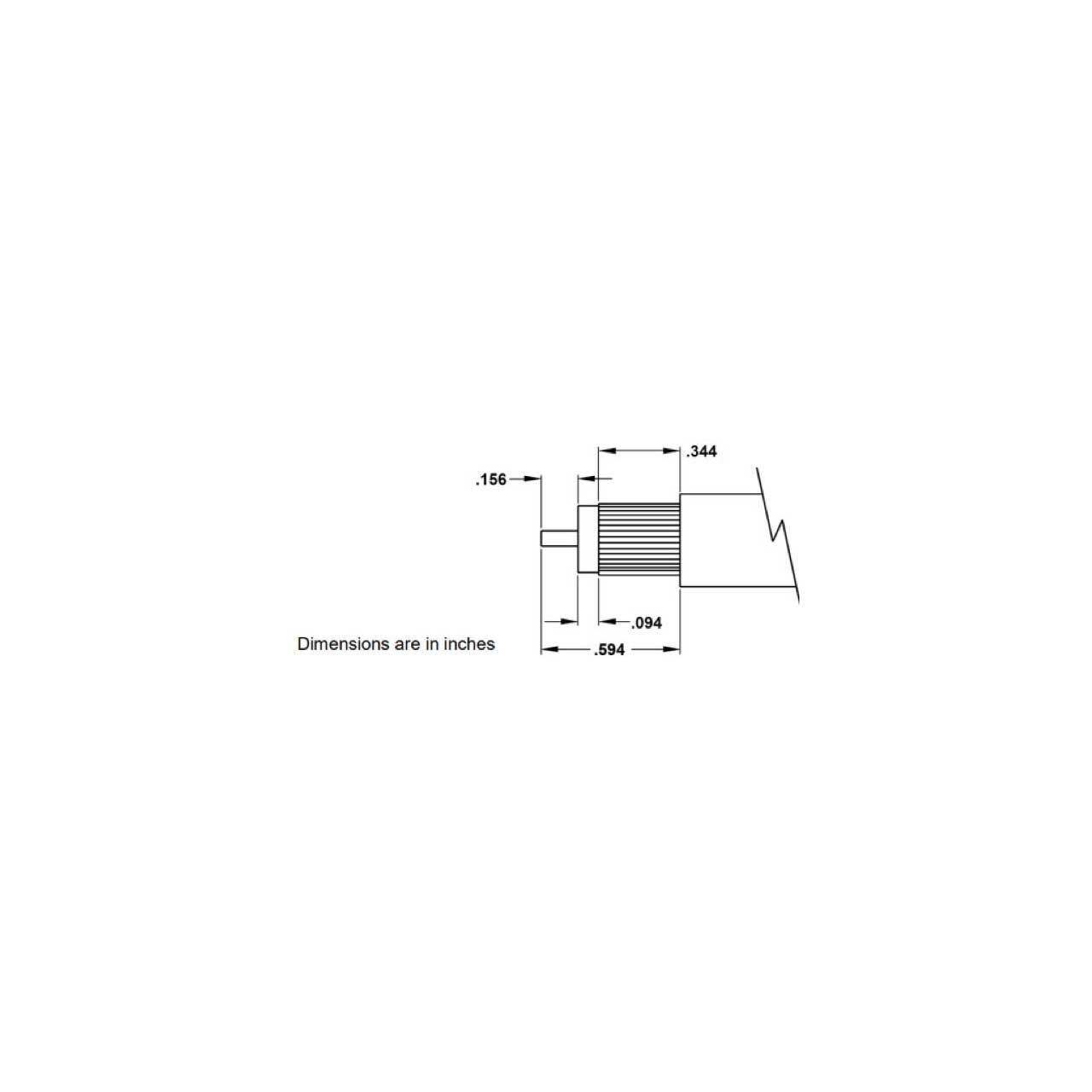

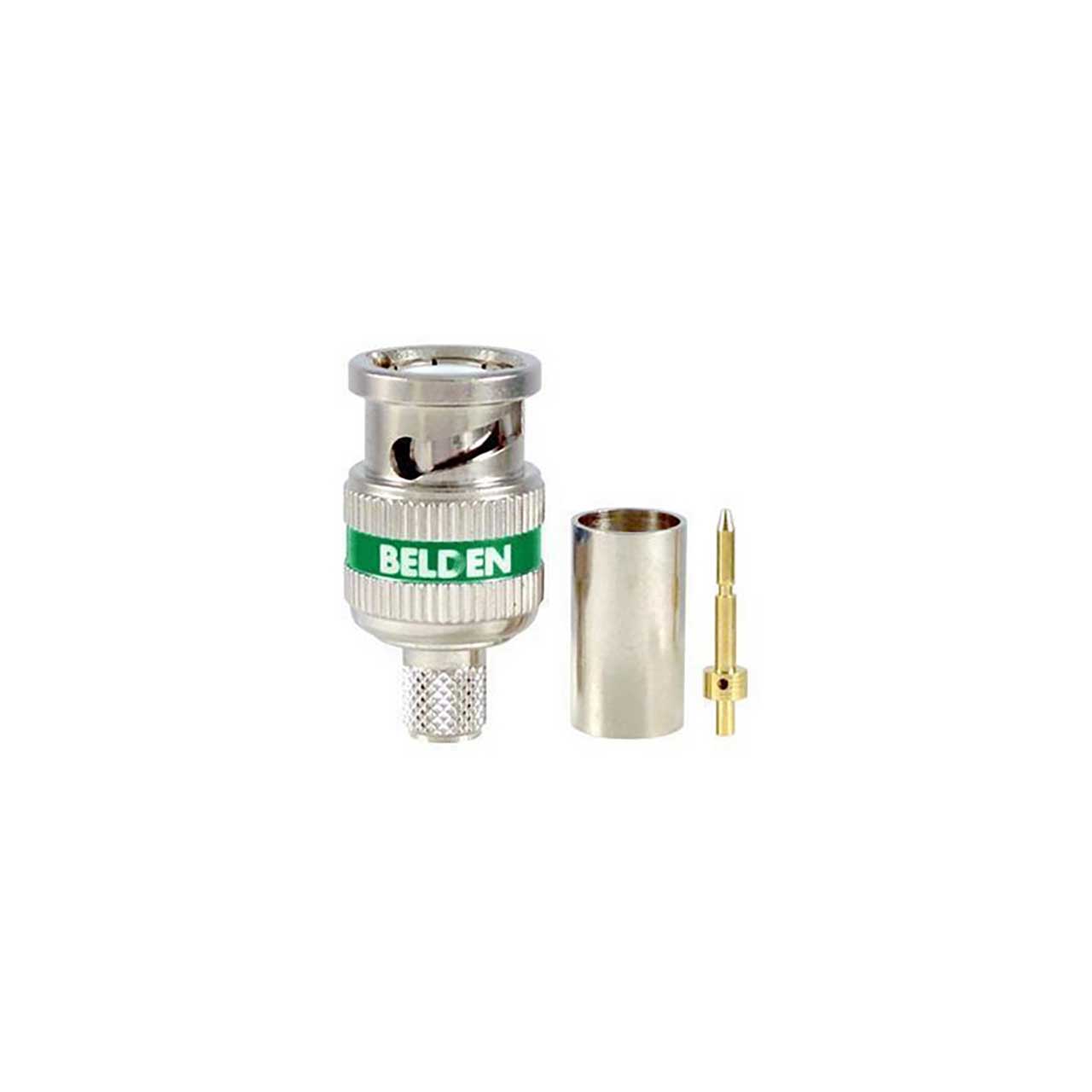

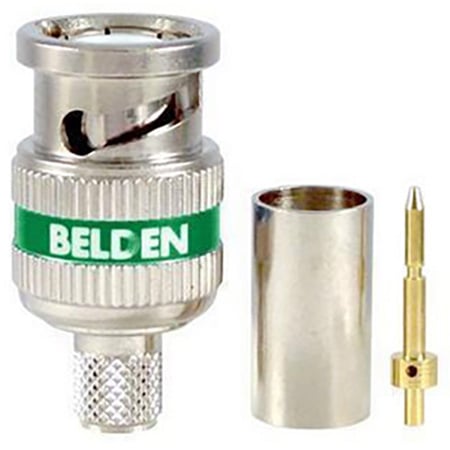

The BL-1694ABHD3 is a single 6G-SDI, 3-Piece Belden BNC Crimp Connector for Belden 1694A Cable.

BNC Connectors from Belden maximize broadcast signal integrity, quality, performance and durability. Rated for 6 GHz broadcast applications this three-piece connector exceeds SMPTE return loss standards, provides excellent headroom and 75 Ohm performance. Long-term durability is ensured through brass construction and patented compression rings with pullout forces that exceed 100 lbs.

Applications
HD-SDI
Video
Digital Video
SMPTE 2081-1 6 Gb/s UHDTV
SMPTE 424M 3 Gb/s HD-SDI 1080P

  • Features:

    • Quick Deployment: A 360-degree, floating-pin basket at the back of the connector makes insertion of the cable center conductor accurate and easy
    • Excellent Holding Strength: Internal 360-degree compression rings eliminate ingress and egress from the back of the connector


  • Specifications:

    • Nut: Brass, Nickel Plated
    • Body: Brass, Nickel Plated
    • Contact: Brass, Gold Plated
    • Insulator: PTFE
    • Nominal Characteristic: Impedance 75 Ohm
    • Return Loss: Frequency [MHz] 5-1485 - Minimum Return (RL) 15 dB
    • Return Loss: Frequency [MHz] 1485-3000 - Minimum Return (RL) 10 dB
    • Return Loss: Frequency [MHz] 3000-6000 - Minimum Return (RL) 7 dB
    • Electrical Characteristics Notes: SMPTE 2081-1 Return Loss or better
    • RG Type: 6
    • Environmental Space: Indoor
    • Footprint/Type: Coax
    • Connector Interface Type: BNC
    • Gender: Male - plug
    • Connector Series Name: HD
    • Color Band: Blue
    • Locking: No
    • Termination Type: Crimp


  • Item Includes:

    • 1694ABHD3 6G-SDI 3-Piece Crimp Connector for 1694A/RG6 Cable - Each


  • Warranty:

    • Limited Lifetime Connector Warranty when partnered with Belden Cable
