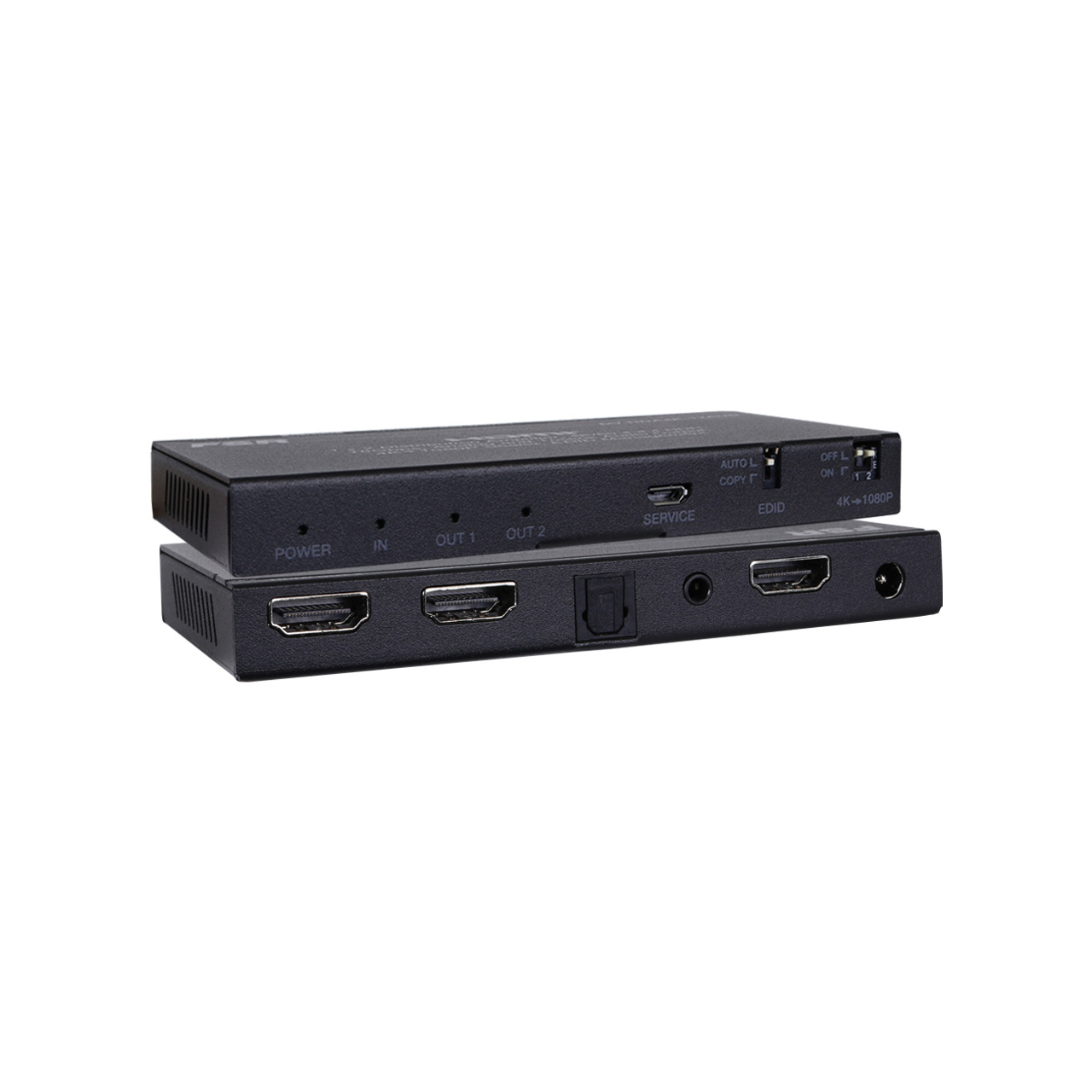

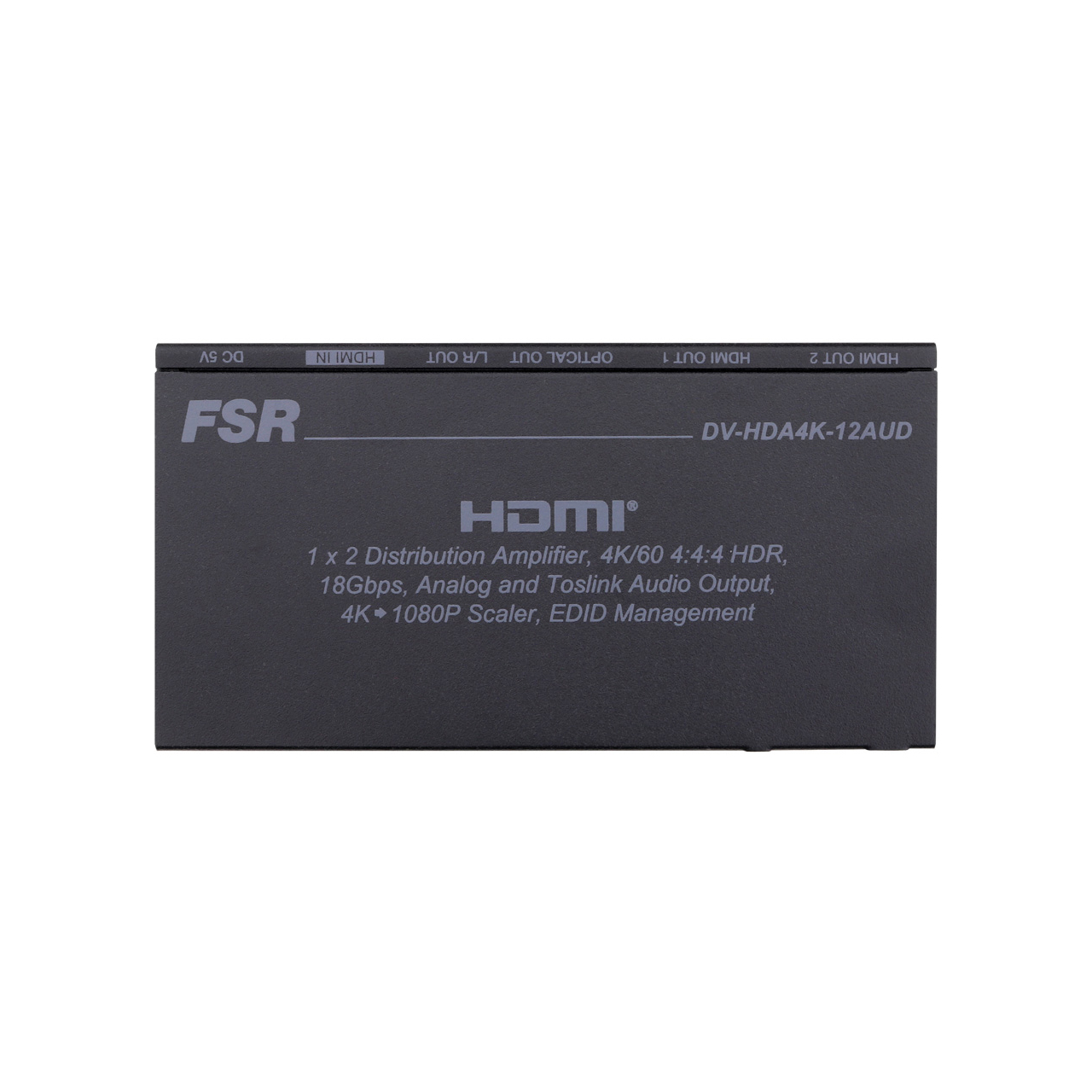

FSR DV-HDA4K-12AUD 4K 1x2 HDMI 2.0 Distribution Amplifier with Stereo Analog Audio Out

DV-HDA4K-12AUD - Overview

4K HDMI 2.0 1x2 HDMI Distribution Amplifier

• Features:

  • Supports 18Gbps video bandwidth
  • HDMI® 2.0b, HDCP2.2/HDCP1.4 compliantSupports video resolutions up to 4K x 2K @ 50/60Hz (4:4:4) HDR
  • Supports S/PDIF digital and analog audio extraction

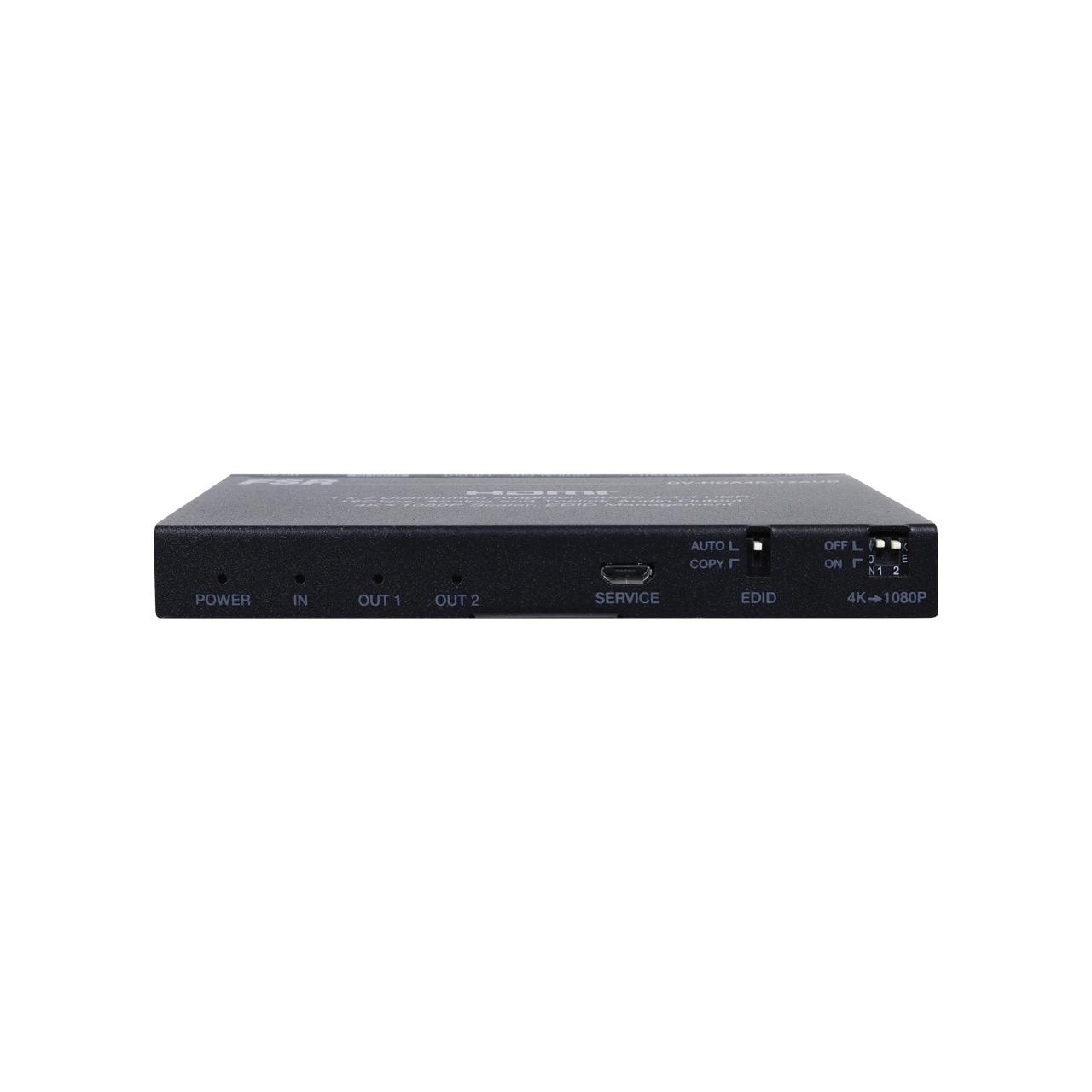

  • Output ports support independent ouput and 4K->1080P down-scaler function via the dip switch settings on device
  • EDID can be set to copy output 1's EDID setting for both outputs or compare both EDID settings and outputs the best resolution


• Specifications:

  • Technical
  • HDMI Compliance: HDMI 2.0b
  • HDCP Compliance: HDCP 2.2 and HDCP 1.4
  • Video Bandwidth: 18Gbps
  • Video Resolutions: 720P50/60Hz, 1080P50/60Hz, 4K2K24Hz, 4K2K30Hz, 4K2K@50/60Hz (4:4:4)
  • Color Depth: 4K60Hz 8-bit, 1080P 12-bit
  • Color Space: RGB, YCbCr 4:4:4, YCbCr 4:2:2
  • HDMI Audio Formats: LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
  • L/R Audio Formats: PCM 2.0
  • Optical Audio Formats: LPCM [2.0/2.1]CH, Dolby 5.1, Dolby True HD, Dolby DD+, DTS 5.1, DTS-ES 6, DTS-HDMA 5.1, DTS HD-HRA 5.1
  • ESD Protection: Human-body Model: ±8kV (Air-gap discharge) , ±4kV (Contact discharge)

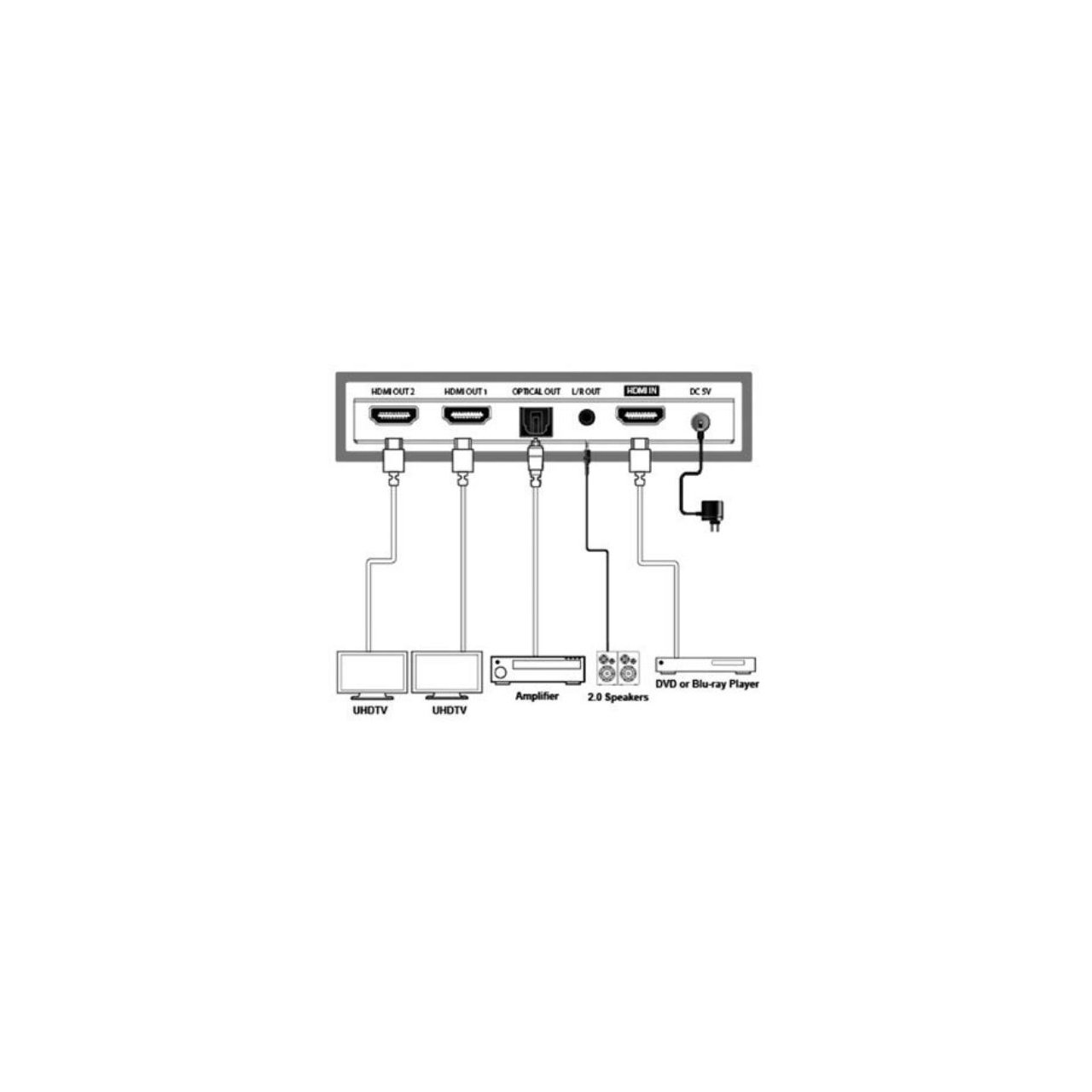

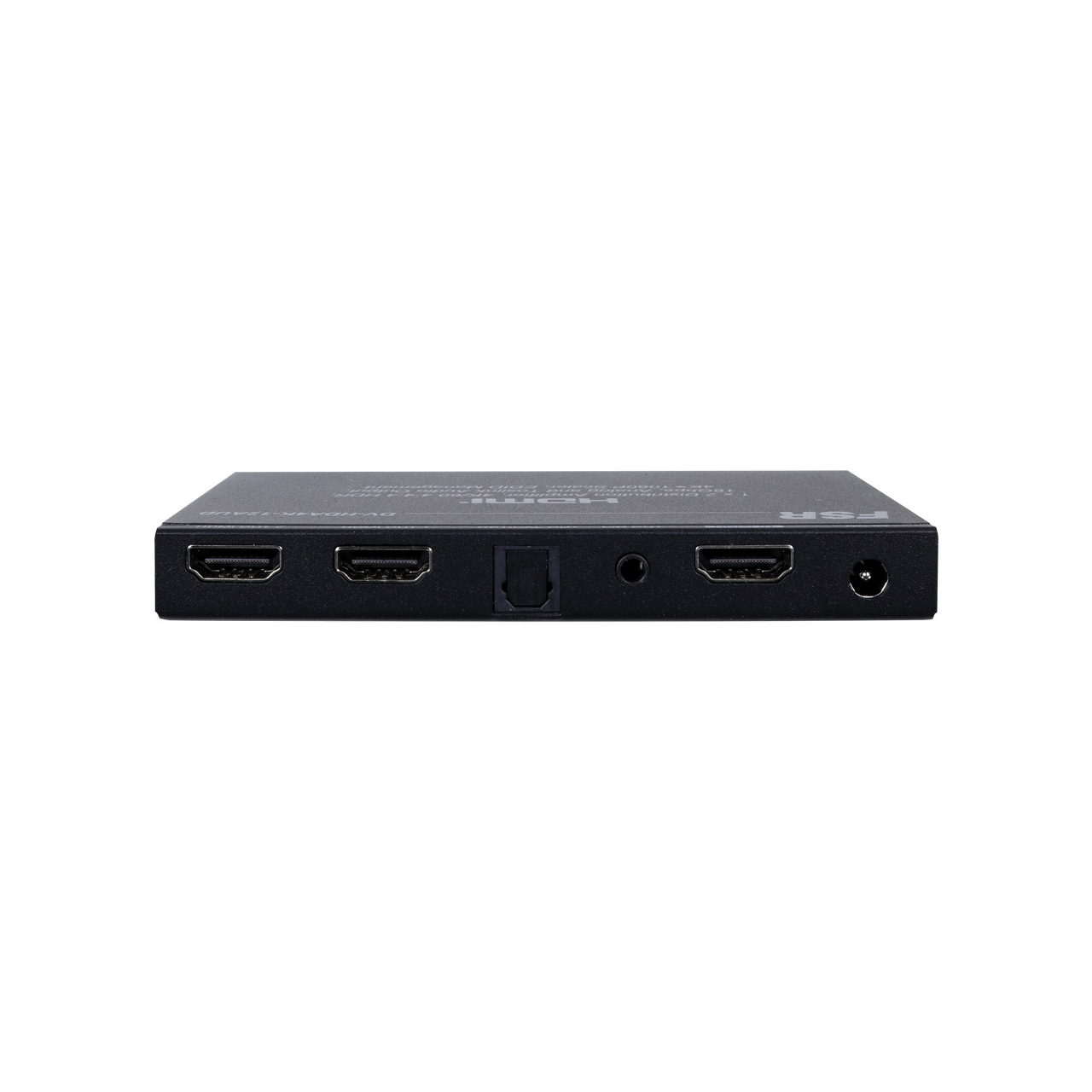

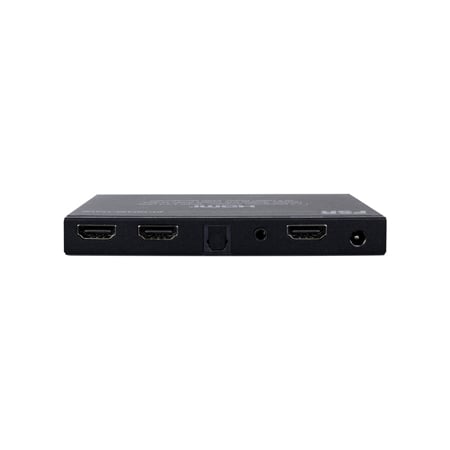

    Connections
  • Input Ports:
    - 1x HDMI Type A [19-pin female]
    - 2x HDMI Type A
  • Output Ports:
    - 1x L/R Audio out [3.5mm Stereo Mini-jack]
    - 1x Optical out [S/PDIF]

    Mechanical
  • Housing: Metal Enclosure
  • Color: Black
  • Dimensions:
    - DV-HDA4K-12AUD - 4.75" (120mm) x 2.46" (62.5mm) x .55" (14mm)
    - DV-HDA4K-14AUD - 7.15" (180mm) x 2.46" (62.5mm) x .55" (14mm)
  • Weight:
    - 0.72lbs (166g) (DV-HDA4K-12AUD)
    - 0.92lbs (227g) (DV-HDA4K-14AUD)
  • Power Supply:
    - Input: AC100~240V 50/60Hz
    - Output: DC5V/1A (US/EU standards, CE/FCC/UL certified)
  • Power Consumption:
    - 2.8W (max) (DV-HDA4K-12AUD)
    - 3.5W (max) (DV-HDA4K-14AUD)
  • Operating Temperature: 0°C ~ 40°C / 32°F ~ 104°F
  • Storage Temperature: -20°C ~ 60°C / -4°F ~ 140°F
  • Relative Humidity: 20~90% RH (non-condensing


• Item Includes:

  • 1x 1x2 HDMI 2.0 Splitter
  • 1x 5V/1A Power Adapter
  • 1x User Manual
