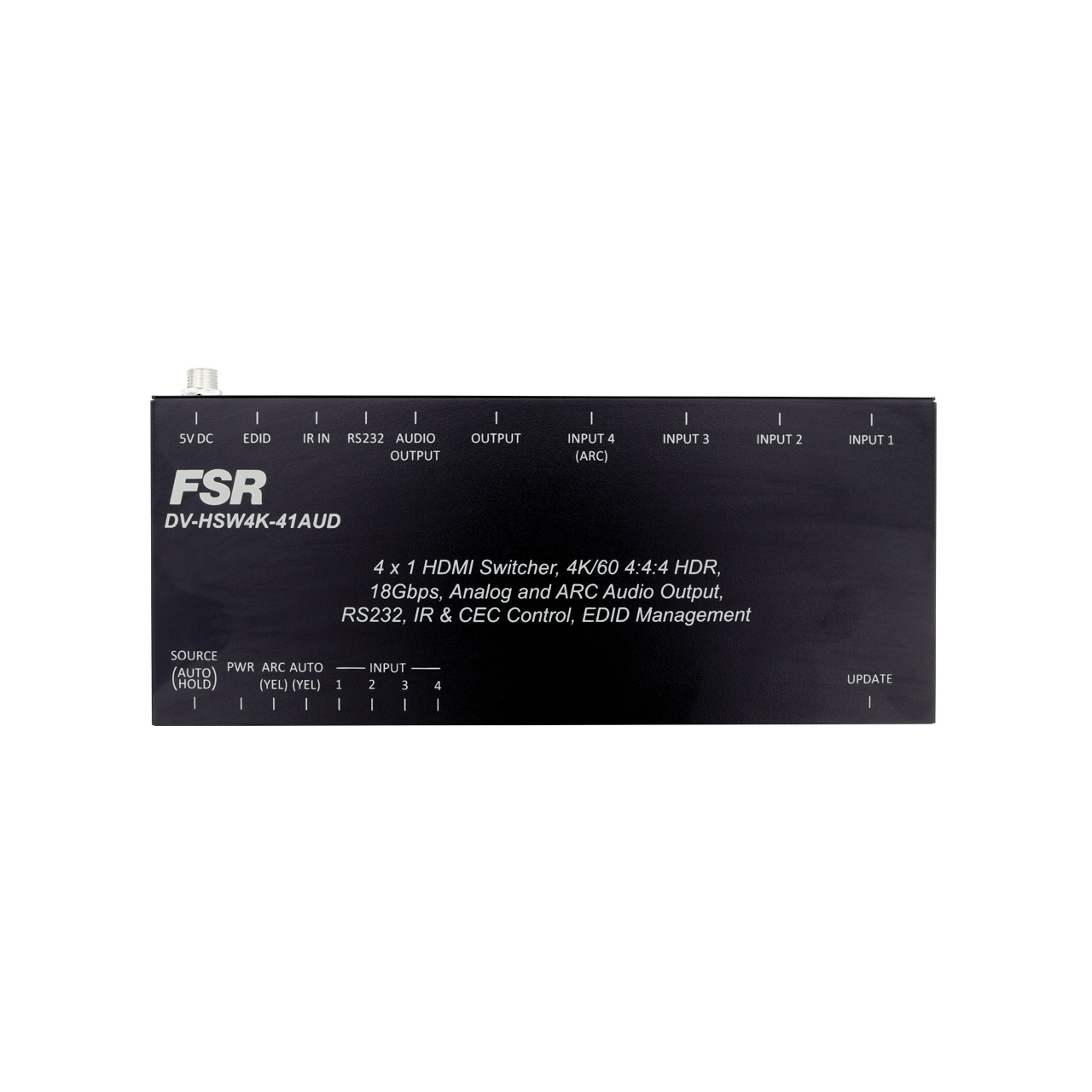

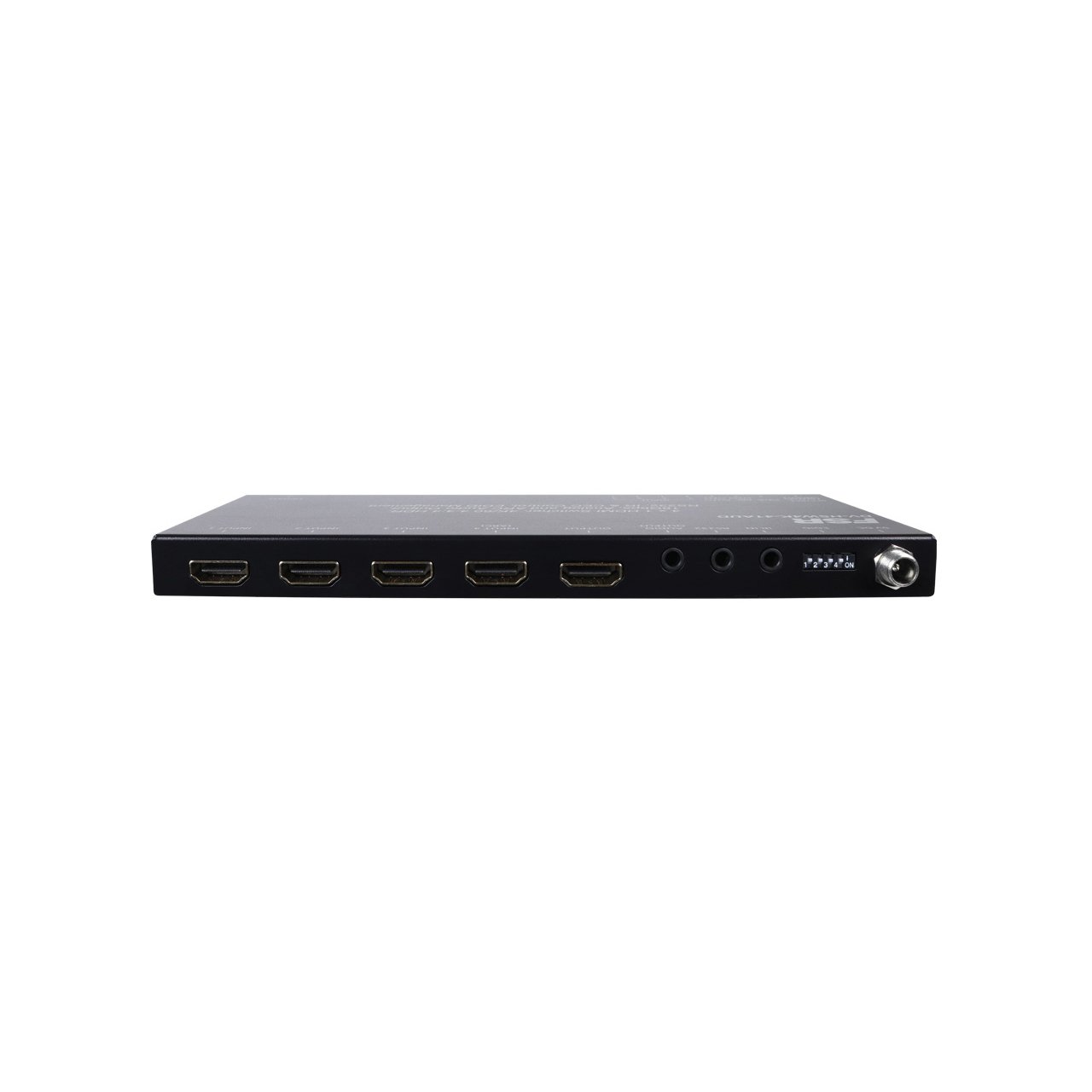

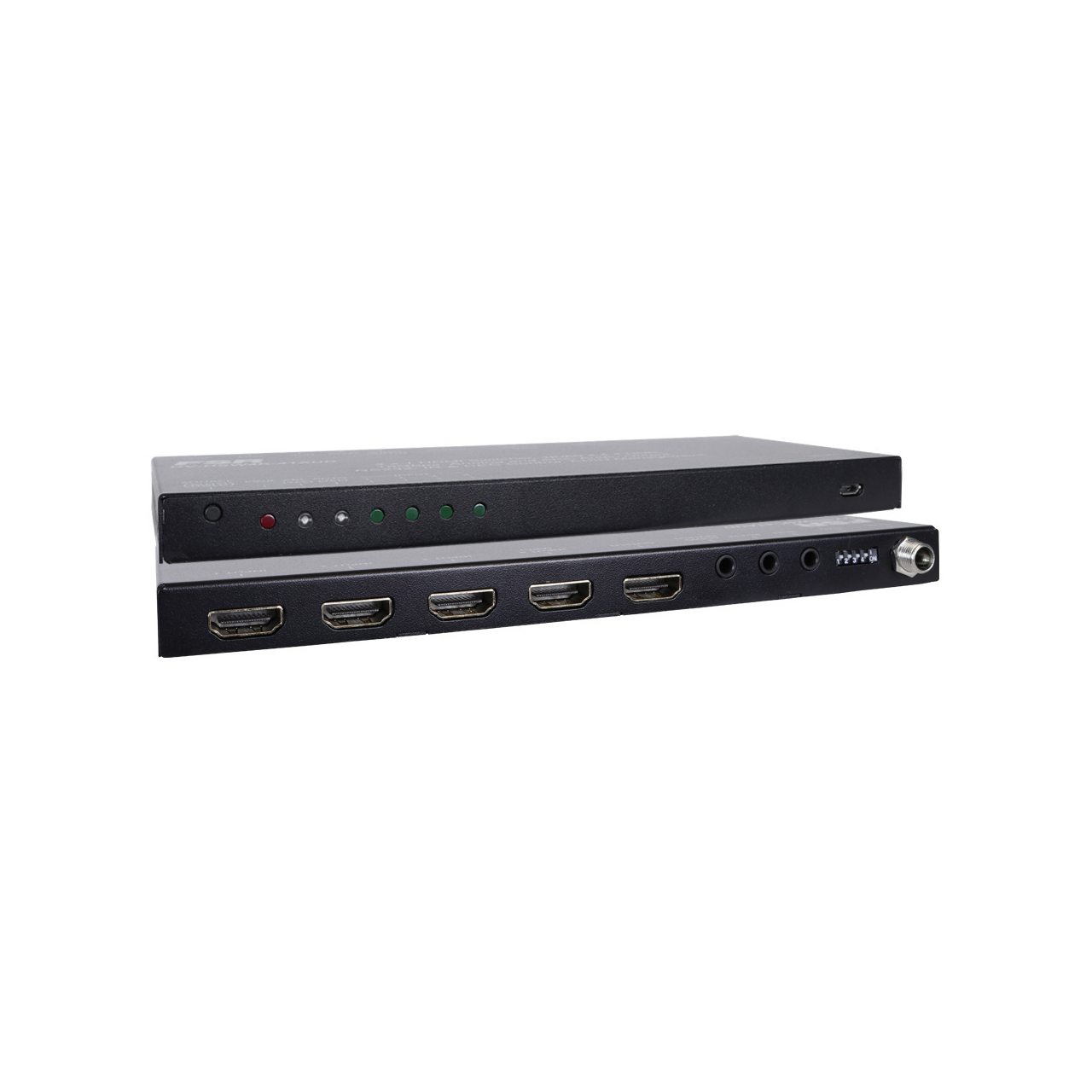

The FSR DV-HSW4K-41AUD is an ultrathin auto switcher with four HDMI® video inputs and one HDMI® output. Use this unit anywhere you need up to four HDMI® devices selected individually to a single display. This switcher supports HDMI® video resolution up to 4K@60Hz 4:4:4 HDR and multichannel audio. Besides passing EDID information from the display, there are multiple built-in EDID settings to simplify an installation. The switcher will de-embed digital stereo audio to provide an audio source for an audio system. The switcher also supports an audio return channel (ARC) for transmitting audio back to the HDMI® input port from the connected display.

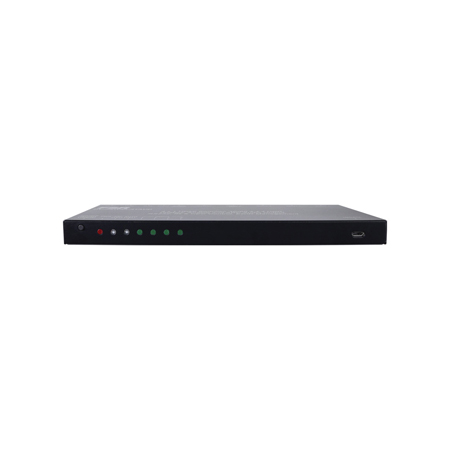

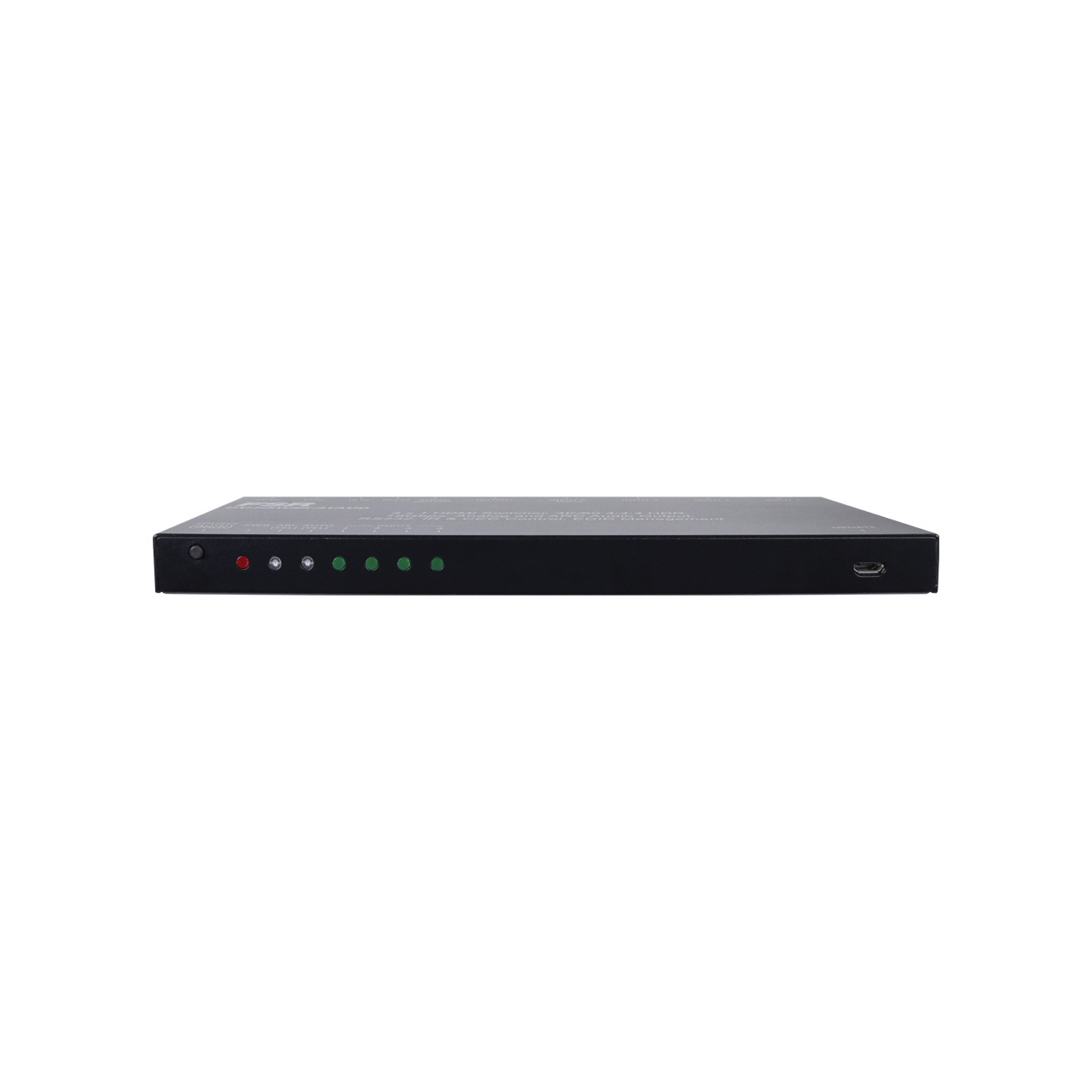

In auto-switch mode, it switches to an HDMI® input as soon as a new source is connected. The switcher will select the first source on the lowest numbered input when the active input is removed. The switcher may also be controlled via RS-232, IR with the included remote, or from the source button on the front of the unit.

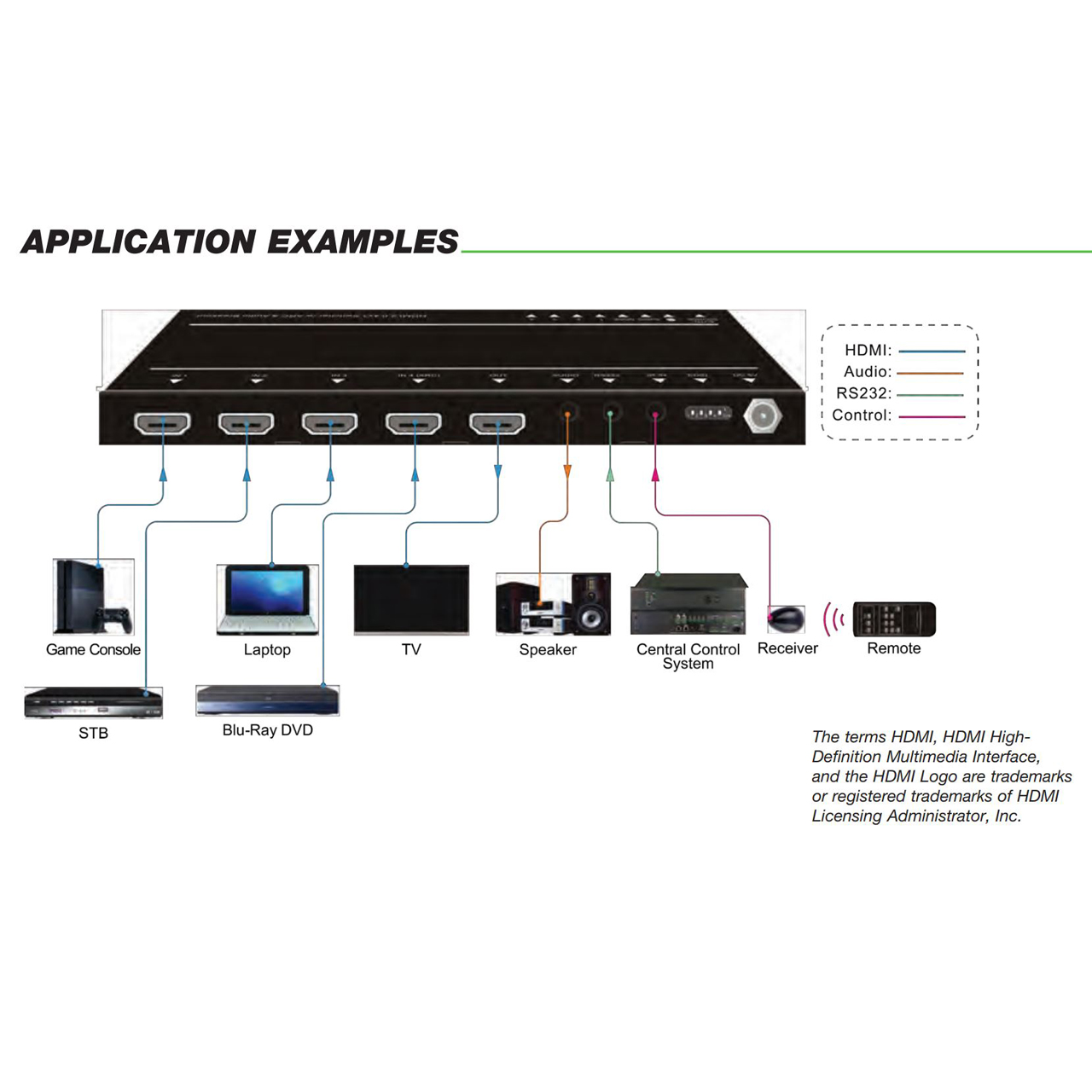

The perfect switcher for use in conference rooms, multi-purpose rooms, collaboration areas, classrooms, home theaters, and digital signage.
