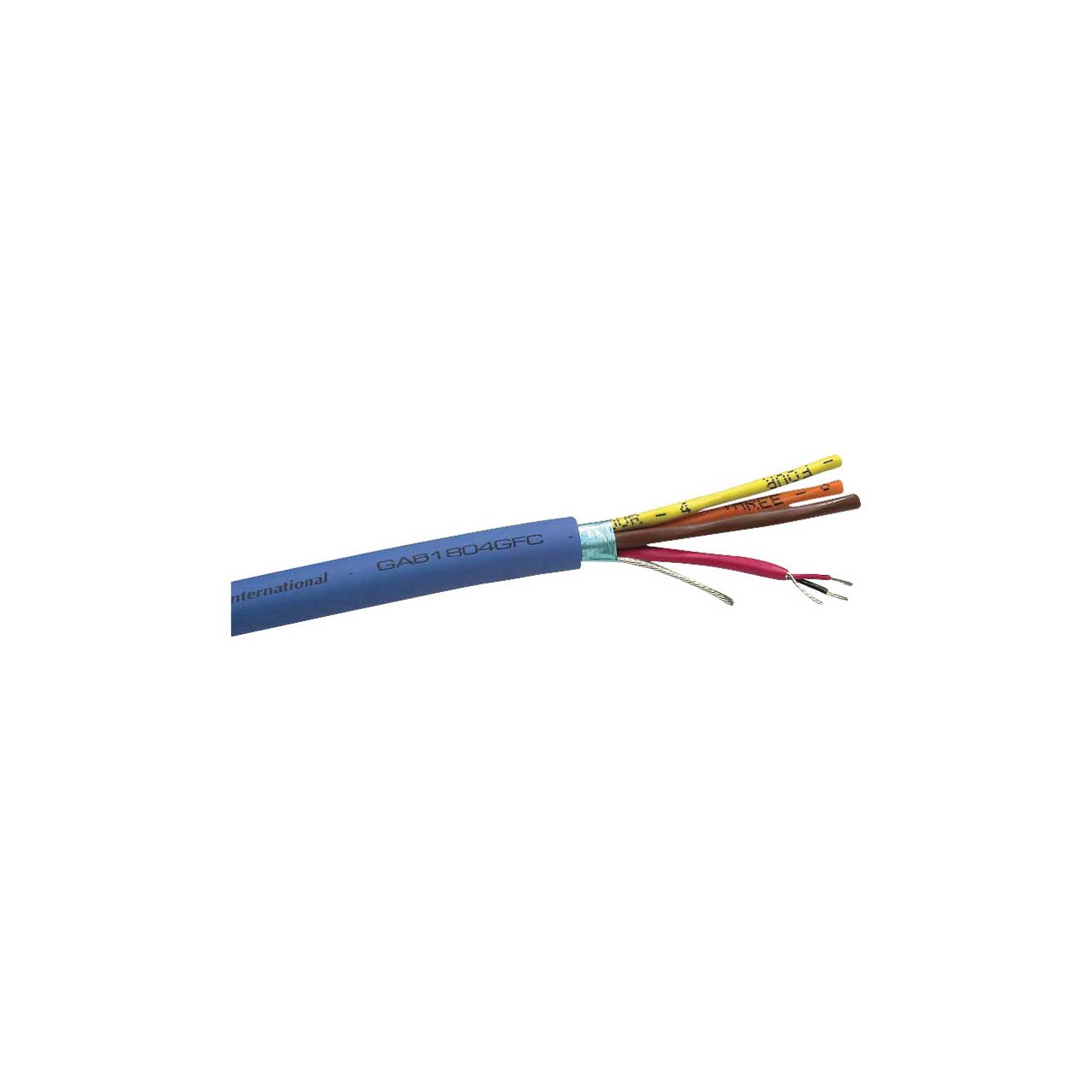

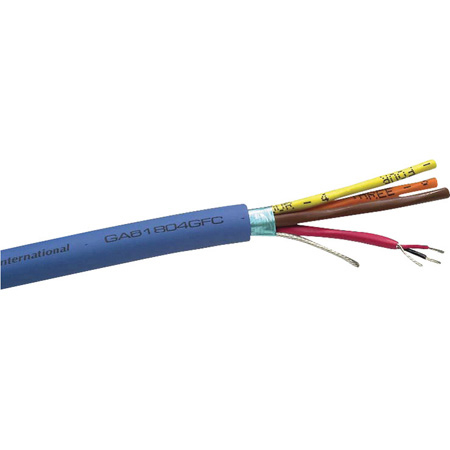

Gepco GA61804GFC Gep-Flex Multipair 22 AWG Mic or Line Level Balanced Analog Audio Cable 4 Pair 1000 Foot Roll

ITEM #: GA61804GFC-1000 MFG #: GA61804GFC-1000

Primary Image
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$3,080.00

Our Price:

$2,028.32

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
  • Shipped truck freight.


GA61804GFC-1000 - Overview

Gepco Gep-Flex Multipair 4 pair 22 AWG Mic or Line Level Balanced Cable 1000 foot roll. The original Gepco Brand multi-pair cable, the GA618 series multi-pair, was designed for low noise and attenuation and is durable, easy to terminate and UL listed. A high-grade polyethylene dielectric minimizes high-frequency attenuation, while excellent process control and tight pair twistingachieve superior noise rejection. Color coded and alphanumerically printed pairs facilitate easy channel identification, and the riser rated Gepco Brand GEP-FLEX master jacket is both flexible and easy to pull through conduit. The 22-gauge conductors offer the lowest DCR available in any of the Gepco Brand multi-pair products, making the GA618 series ideal for extendeddistance runs of mic level signals.

  • Features:

    • Low Attenuation & Crosstalk
    • Flexible
    • Easy to Terminate
    • Microphone or Line Level Balanced Analog Audio
    • Studio Interconnect, Portable Snakes or Permanent Installation
    • Ideal for Extended-Distance Runs
    • Polyethylene Dielectric
    • Individually Shielded & Jacketed Pairs
    • Color Coded & Alphanumeric Pair Identification
    • Additional Overall Foil Shield
    • All-Weather GEP-FLEX Master Jacket
    • CMR Riser Rated

  • Specifications:

    • Nominal OD 0.400"
    • Conductors: 22 AWG (7x30) Stranded TC
    • Insulation/Color Code: PE, 0.010" Wall/Red & Black
    • Pair Shield:100% Foil
    • Pair Drain: 22 AWG (7x30) Stranded TC
    • Pair Jacket (Type, OD)/ Color Code: PVC, 0.140"/Black
    • Overall Shield: 100% Foil
    • Overall Common Drain: 16 AWG (19x29) Stranded TC
    • Master Jacket: Riser GEP-FLEX TPE, Blue
    • UL Type: CMR

  • GTIN:

    0612825394198
