Gep-Flex Multipair 4 pair 22 AWG Mic or Line Level Balanced Cable - Per Foot

ITEM #: GA61804GFC MFG #: GA61804GFC

Primary Image
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$3.08

Our Price:

$2.38

Availability: In Stock
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.


GA61804GFC - Overview

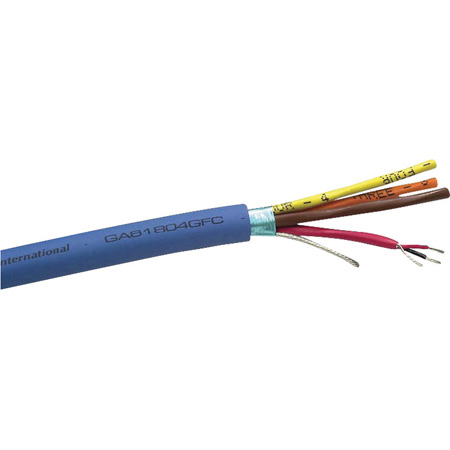

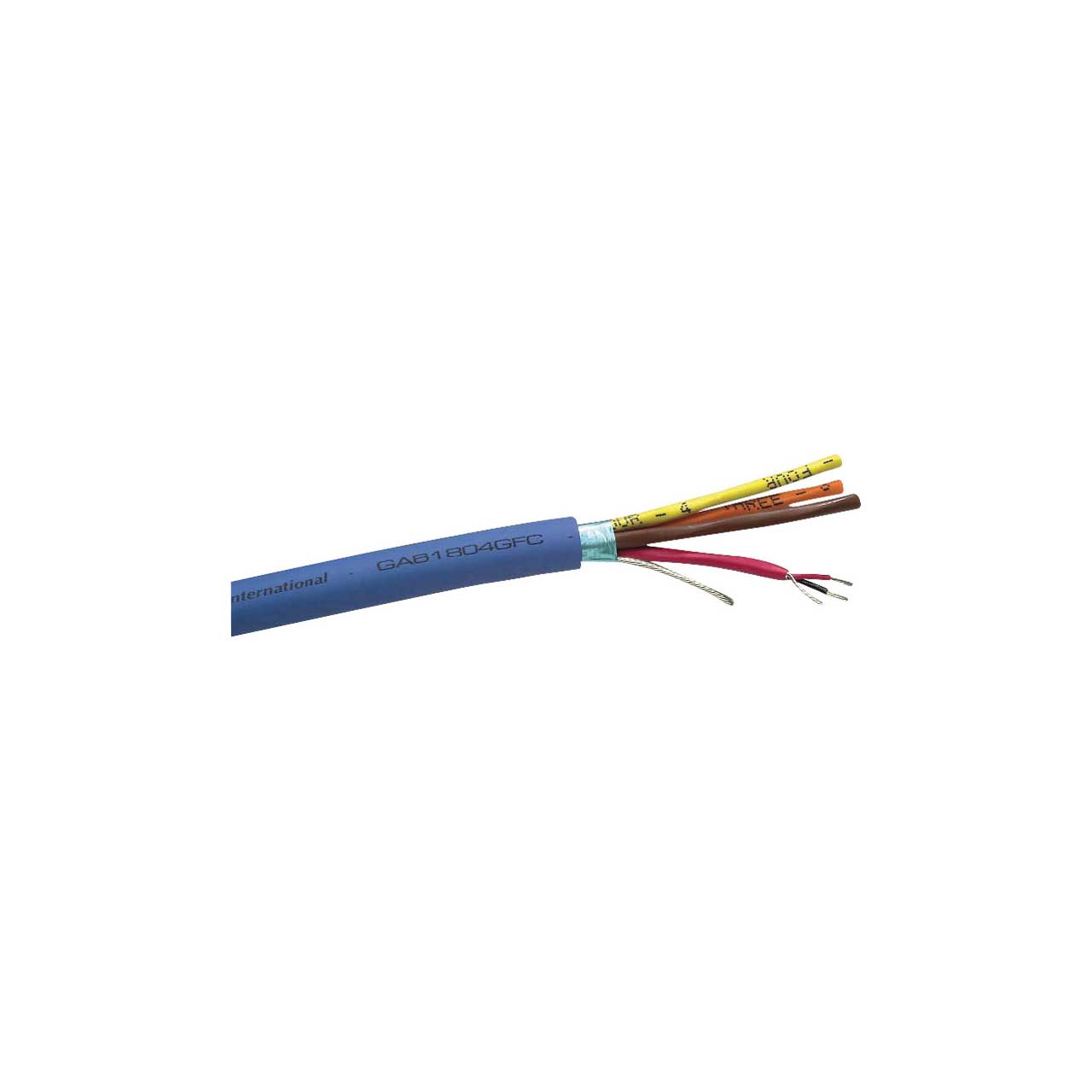

Gep-Flex Multipair 4 pair 22 AWG Mic or Line Level Balanced Cable sold by the foot. The original Gepco Brand multi-pair cable, the GA618 series multi-pair, was designed for low noise and attenuation and is durable, easy to terminate and UL listed. A high-grade polyethylene dielectric minimizes high-frequency attenuation, while excellent process control and tight pair twistingachieve superior noise rejection. Color coded and alphanumerically printed pairs facilitate easy channel identification, and the riser rated Gepco Brand GEP-FLEX master jacket is both flexible and easy to pull through conduit. The 22-gauge conductors offer the lowest DCR available in any of the Gepco Brand multi-pair products, making the GA618 series ideal for extended distance runs of mic level signals.

  • Features:

    • Low Attenuation & Crosstalk Flexible Easy to Terminate Microphone or Line Level Balanced Analog Audio Studio Interconnect, Portable Snakes or Permanent Installation Ideal for Extended-Distance Runs Polyethylene Dielectric Individually Shielded & Jacketed Pairs Color Coded & Alphanumeric Pair Identification Additional Overall Foil Shield All-Weather GEP-FLEX Master Jacket CMR Riser Rated

  • Specifications:

    • Nominal OD 0.400" Conductors: 22 AWG (7x30) Stranded TC Insulation/Color Code: PE, 0.010" Wall/Red & Black Pair Shield:100% Foil Pair Drain: 22 AWG (7x30) Stranded TC Pair Jacket (Type, OD)/ Color Code: PVC, 0.140"/Black Overall Shield: 100% Foil Overall Common Drain: 16 AWG (19x29) Stranded TC Master Jacket: Riser GEP-FLEX TPE, Blue UL Type: CMR


GA61804GFC - Required Accessories
