Gepco GA72408GFC Gep-Flex Multipair 24 AWG Mic or Line Level Balanced Analog Audio Cable 8-Pair 1000 Foot

ITEM #: GA72408GFC-1000 MFG #: GA72408GFC 1000

Primary Image
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$5,195.00

Our Price:

$3,419.36

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
  • Shipped truck freight.


GA72408GFC 1000 - Overview

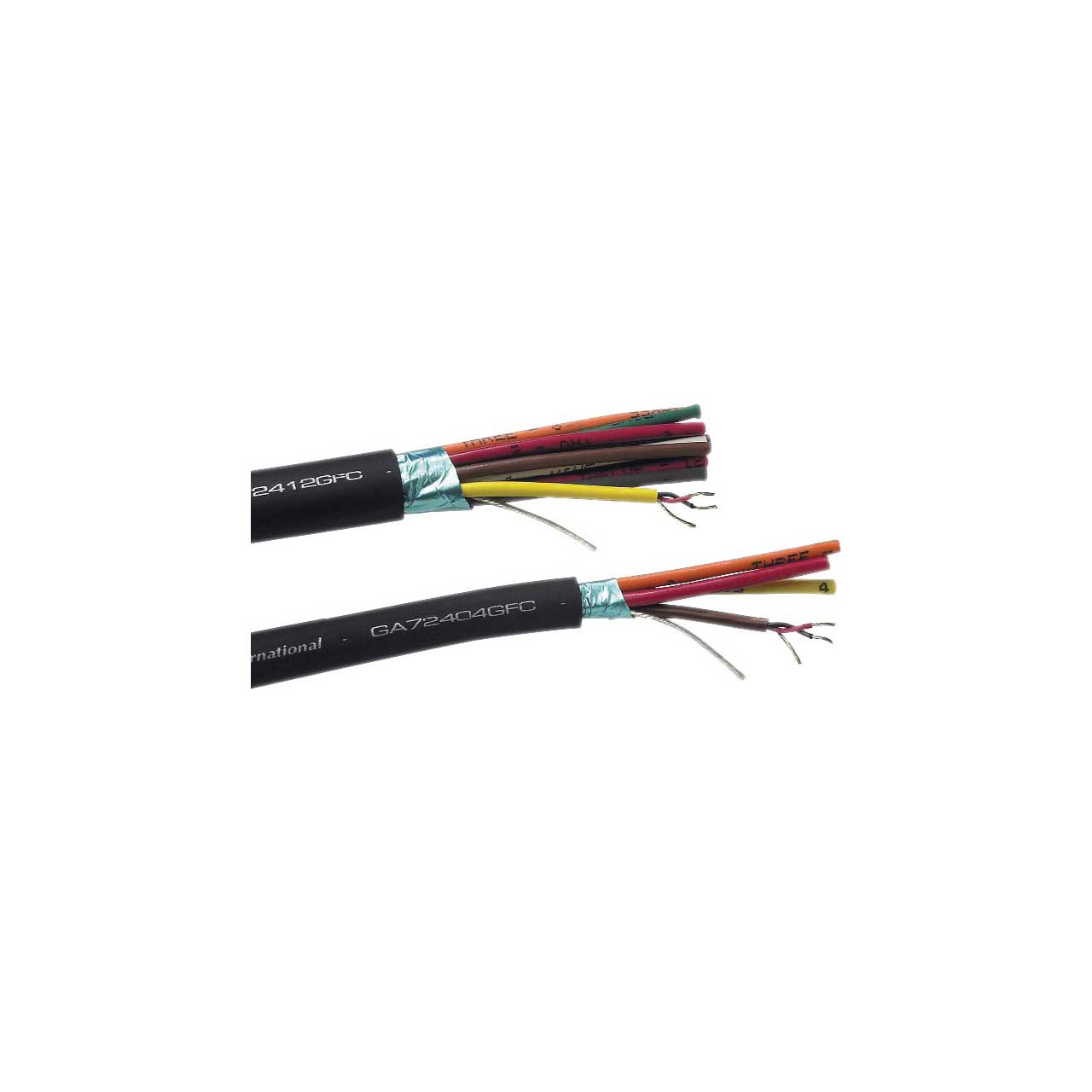

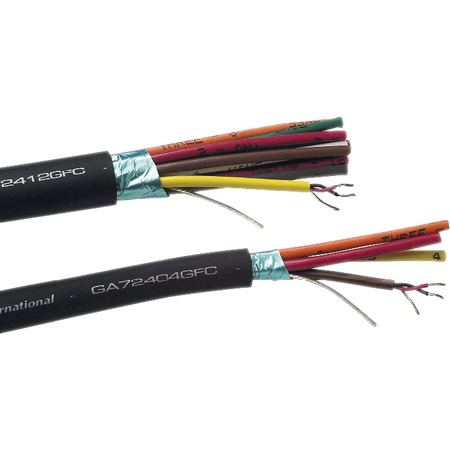

A thin-profile version of the Gepco Brand easy-strip multipair, the GA724 series was designed for low noise and attenuation and is durable, easy to terminate and UL listed. A high-grade polyethylene dielectric minimizes high frequency attenuation, while excellent process control and tight pair twisting achieve superior noise rejection. Color coded and alphanumerically printed pairs facilitate easy channel identification, and the GEPFLEX master jacket is both flexible and easy to pull through conduit. The 24-gauge conductors are easier to terminate while still maintaining low DCR. The GA724 series is ideal for cable assemblies, patchbay wiring or portable snakes.

  • Features:

    • Ideal for Patchbay Wiring & Multi-Pin Cable Assemblies Microphone or Line Level Balanced Analog Audio Studio Interconnect, Portable Snakes or Permanent Installation Low Attenuation & Crosstalk Flexible Easy to Terminate Polyethylene Dielectric Individually Shielded & Jacketed Pairs Color Coded & Alphanumeric Pair Identification Additional Overall Foil Shield All-Weather GEP-FLEX Master Jacket CM Rated

  • Specifications:

    • Nominal OD: 0.500" Conductors: 24 AWG (7x32) Stranded TC Insulation/Color Code: PE, 0.008" Wall/Red & Black Pair Shield: 100% Foil (Bonded) Pair Drain: 24 AWG (7x32) Stranded TC Pair Jacket (Type, OD) / Color Code: PVC, 0.115"/Black Overall Shield: 100% Foil Overall Common Drain: 20 AWG (19x32) Stranded TC Master Jacket: Riser GEP-FLEX TPE, Black UL Type: CM

  • GTIN:

    0612825388913


GA72408GFC 1000 - Required Accessories
