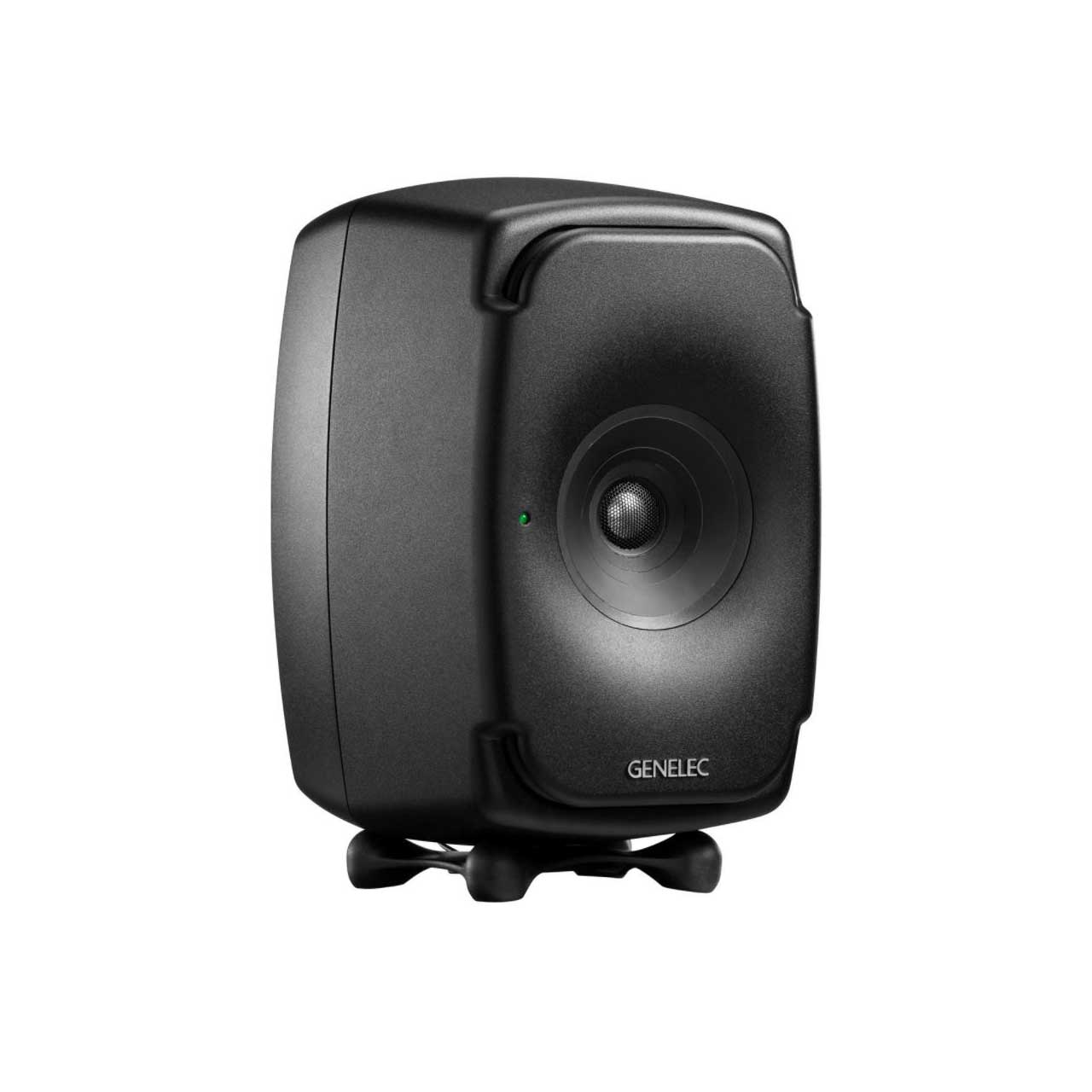

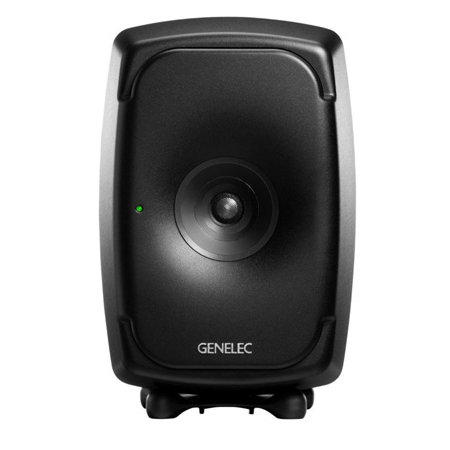

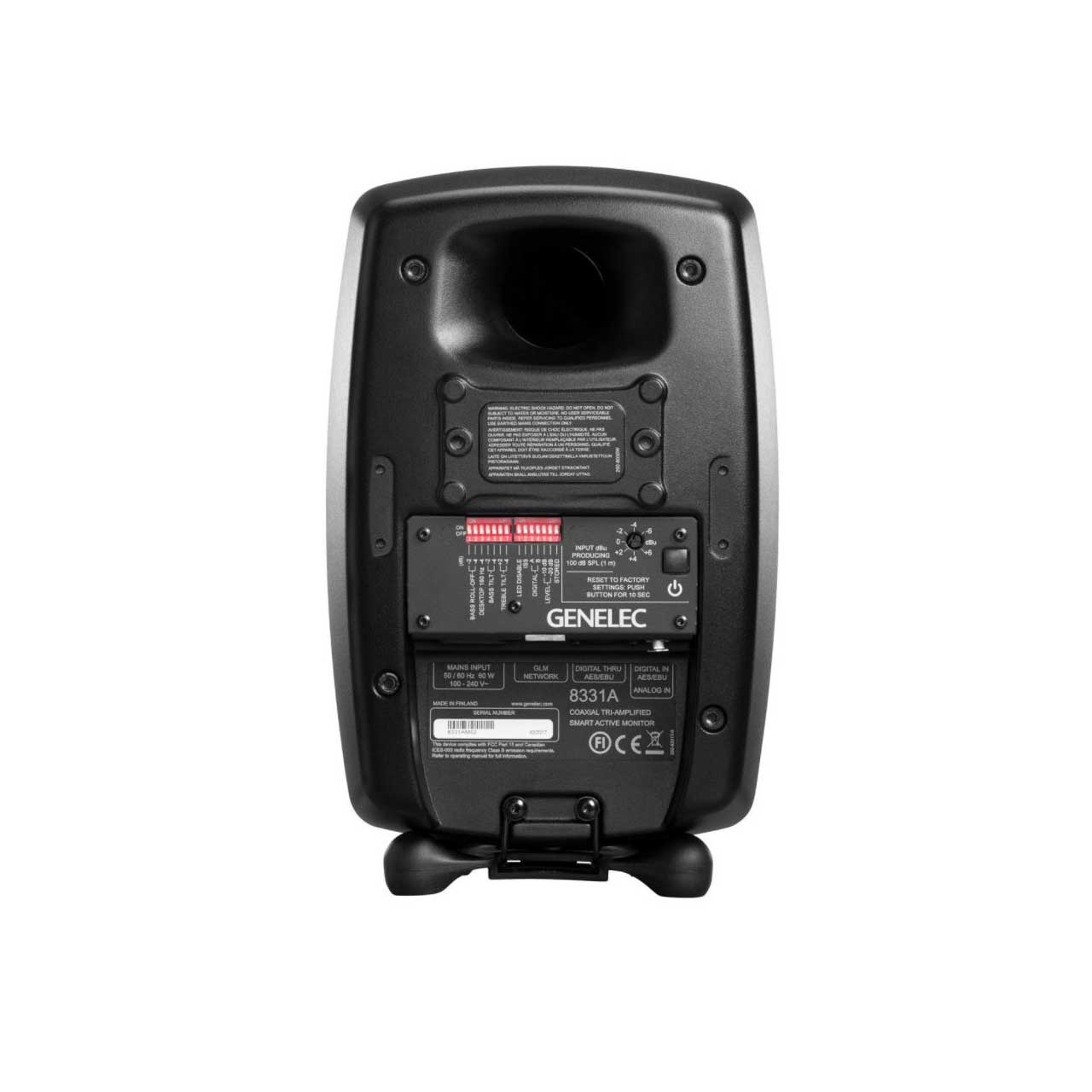

Genelec 8331A SAM Three-Way Point Source Studio Monitor - 60W - Black Finish

ITEM #: GNC-8331AM MFG #: 8331AM

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

List Price:

$2,695.00

Our Price:

$2,450.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.


8331AM - Overview

A 2018 NAMM Show TEC Award Winner!
For applications calling for extraordinary imaging, extended frequency response, short to medium listening distance or long, fatigue-free working hours, The 8331 studio monitors (The Ones) are in an elite league of their own. All being ultimate point source monitors, they combine a number of unique Genelec innovations with sustainable manufacturing, but without a single compromise on sound.

The Ones not only promote faster and more consistent production decision making, but also longer listening time than traditional loudspeakers, because unnatural imaging, a main contributor to listener fatigue, is minimized. Dispersion is controlled over an unusually wide frequency range thanks to the large integrated waveguide (DCW) with the hidden dual woofers; and orientation may be either horizontal or vertical. Their looks are striking too, either way you turn them.

The final touch when positioning mics, mixing or mastering is the most demanding. For such critical tasks, even when performed in small rooms or in ultra near field applications, 8331 offers an outstanding solution where none existed before. With the latest SAM technology included, 8331 always makes the best of the room and monitor placement. Use the Genelec GLM application and its auto-calibration function, based on experience from thousands of studios around the world, to compensate for detrimental room influence and delay, regardless if you work in mono, stereo or immersive formats.

  • Features:

    • Smart Active Monitor (SAM) Systems
    • Minimum Diffraction Coaxial (MDC) Driver Technology
    • Acoustically Concealed Woofers (ACW) Technology
    • Directivity Control Waveguide (DCW) Technology
    • Minimum Diffraction Enclosure (MDE) Technology
    • Reflex Port Design
    • Protection Circuitry
    • Intelligent Signal Sensing (ISS) Technology
    • Optimized Amplifiers
    • Active Crossovers
    • Iso-Pod Stand
    • Versatile Mountings

  • Specifications:

    • System
    • Lower cut-off frequency, -6 dB: < 45 Hz
    • Upper cut-off frequency, -6 dB: > 37 kHz
    • Accuracy of frequency response, ± 1.5 dB: 58 Hz - 20 kHz
    • Maximum short term sine wave acoustic output on axis in half space, averaged from 100 Hz to 3 kHz at 1 m: ≥ 104 dB SPL
    • Maximum long term RMS acoustic output in the same conditions with IEC weighted noise (limited by driver protection circuit) at 1 m: 99 dB SPL
    • Maximum peak acoustic output per pair in a listening room with music material at 1 m: 110 dB
    • Self generated noise level in free space at 1 m on axis (A-weighted): ≤ 0 dB
    • Harmonic distortion at 85 dB SPL at 1 m on axis (Freq.): 50 - 100 Hz: < 2 %; > 100 Hz: < 0.5 %
    • Bass Driver: Dual 5 1/8 x 2 5/8 in oval cones
    • Midrange Driver: 3 1/2 in) cone (coaxial)
    • Treble Driver: 3/4 in) metal dome (coaxial)
    • Weight 15 lb
    • Dimensions without IsoPod (H x W x D): 12 x 7 1/2 x 8 3/8 Inch
    • Dimensions with IsoPod stand (H x W x D): 11 1/4 x 7 1/2 x 8 3/8 Inch
    • Color: Black

      Amplifier
    • Bass amplifier short term output power: 72 W
    • Midrange amplifier short term output power: 36 W
    • Treble amplifier short term output power: 36 W
    • Amplifier system THD at nominal output: <0.05%
    • Mains voltage: 100-240 VAC 50/60 Hz
    • Power consumption: ISS active: < 0.5 W; Idle: 4 W; Full output (short term): 60 W

      Signal Processing
    • Analog signal input connector XLR female, balanced 10 kOhm: pin 1 gnd, pin 2 non-inverting, pin 3 inverting
    • Maximum analog input signal: +24.0 dBu
    • Analog input sensitivity (100 dB SPL at 1 m): -6 dBu
    • Analog input sensitivity control: Adjustable from +36 to -6 dBu
    • Digital signal input connector XLR female 110 Ohm: AES/EBU Single Wire
    • Digital signal output / Thru connector XLR male 110 Ohm: AES/EBU Single Wire
    • Digital audio input: Word length: 16 - 24 bits; Sample rate: 32 - 192 kHz
    • Digital input sensitivity (100 dB SPL at 1 m): -30 dBFS
    • Digital input maximum attenuation: 42 dB
    • Control network: Type: Proprietary GLM network; Connection: 2 RJ45, CAT5 cables
    • Crossover frequencies: Bass/Mid: 500 Hz; Mid/Treble: 3kHz
    • GLMTM software frequency response adjustment: Parametric notch filters: 16; Shelving filters: 2 LF and 2 HF

  • Item Includes:

    • 1x Genelec 8331A Studio Monitor - Black Finish

  • Warranty:

    • 2-Year Warranty

  • GTIN:

    6438128124010
