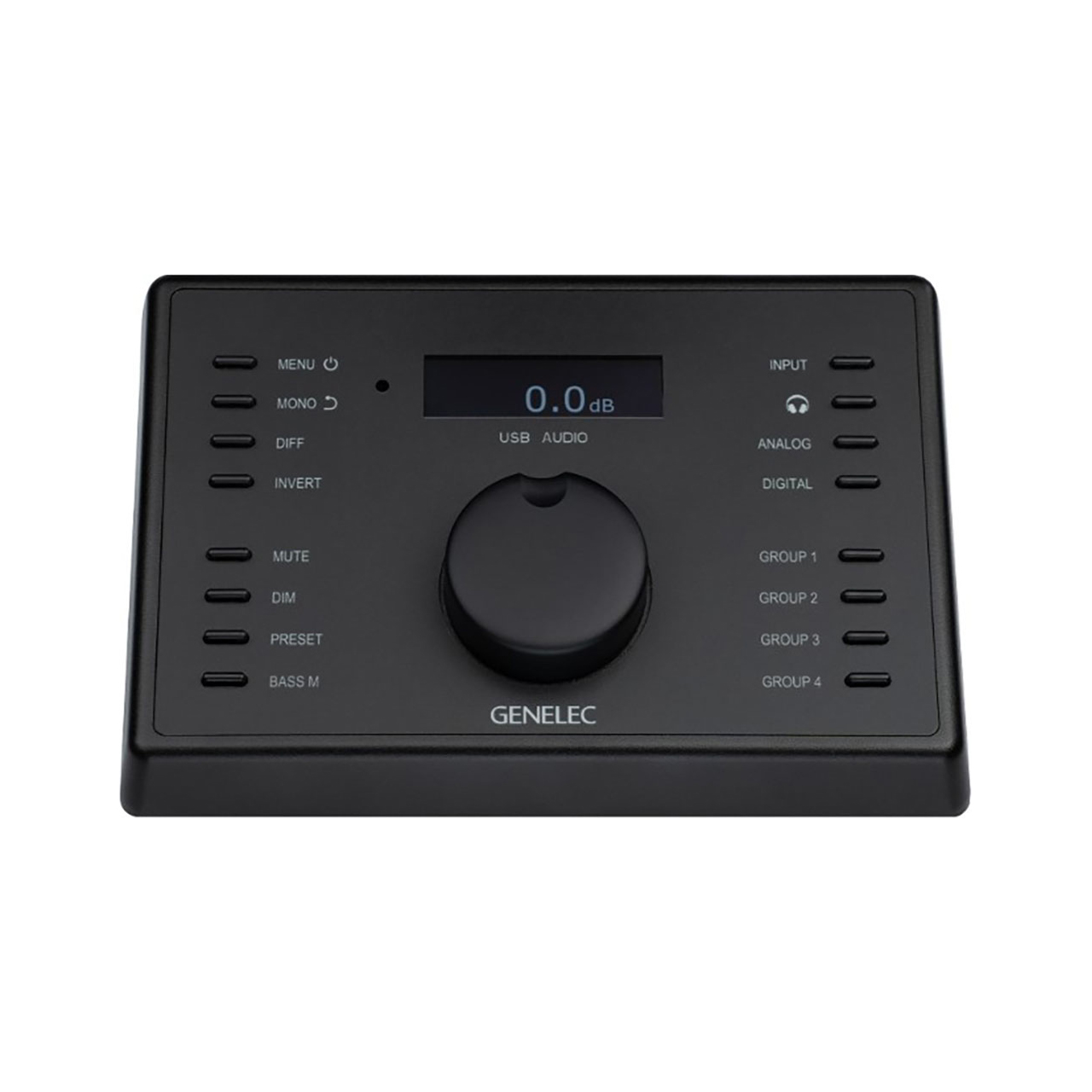

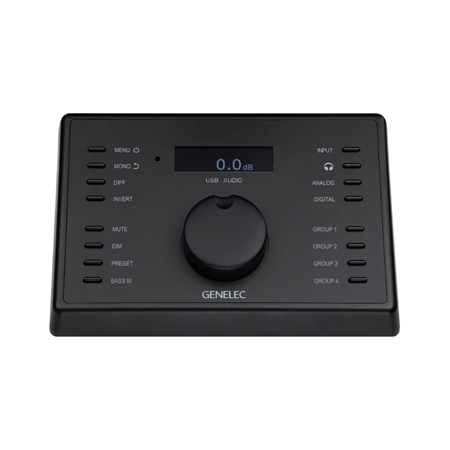

Genelec 9320A SAM Reference Controller with Measurement Microphone

ITEM #: GNC-9320A MFG #: 9320A

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$1,595.00

Our Price:

$1,395.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


9320A - Overview

Five audio tools in one - for a boosted workflow

As a professional monitor controller, calibration set, output interface, GLM remote and headphone amplifier, the Genelec 9320A integrates tightly with the UNIO Ecosystem to offer audio engineers seamless bridging of in-room and personal headphone monitoring - from stereo to immersive.

And now, with UNIO Personal Reference Monitoring (PRM), the 9320A can be combined with 8550A Professional Reference Headphones for total accuracy.

Working with any DAW and audio interface system, the 9320A puts flexible connectivity, a reference-grade headphone output and physical control of Genelec's Smart Active Monitoring (SAM), Genelec Loudspeaker Manager (GLM) and Aural ID Technology at your fingertips, so you can confidently access your studio reference anywhere, anytime - and rapidly create mixes that translate with maximal consistency.

How is the 9320A used?
The 9320A is the ideal audio monitoring multi-tool for engineers in stereo and immersive music studios, game audio studios, broadcasting, streaming and AV post-production.

Although at its best when used as part of the PRM solution alongside SAM Monitors and a computer running GLM and Aural ID software, the 9320A can also be used in independent mode without a computer - and provides support for all professional loudspeaker monitors and headphones.

Powered over its type-C USB data connection, the 9320A is compatible with any computer DAW. If power is not available from the computer, a separate USB type-C power input is available to use with a separate power source.

The audio bandwidth for all input/output combinations extends up to 46 kHz and offers a dynamic range exceeding 120 dB, THD+N lower than -110 dB and minimal input to output latency in the range 2 to 3.2 ms.

  • Features:

    • Quick control of SAM, GLM and Aural ID
    • Easy alignment of additional in-room monitoring
    • Seamless bridging to headphones
    • Reference-grade headphone output
    • UNIO Personal Reference Monitoring
    • Automatic GLM AutoCal 2 calibration
    • Take your reference beyond the studio
    • Versatile monitoring options
    • High-quality DAC conversion
    • Hearing health support during monitoring

  • Specifications:

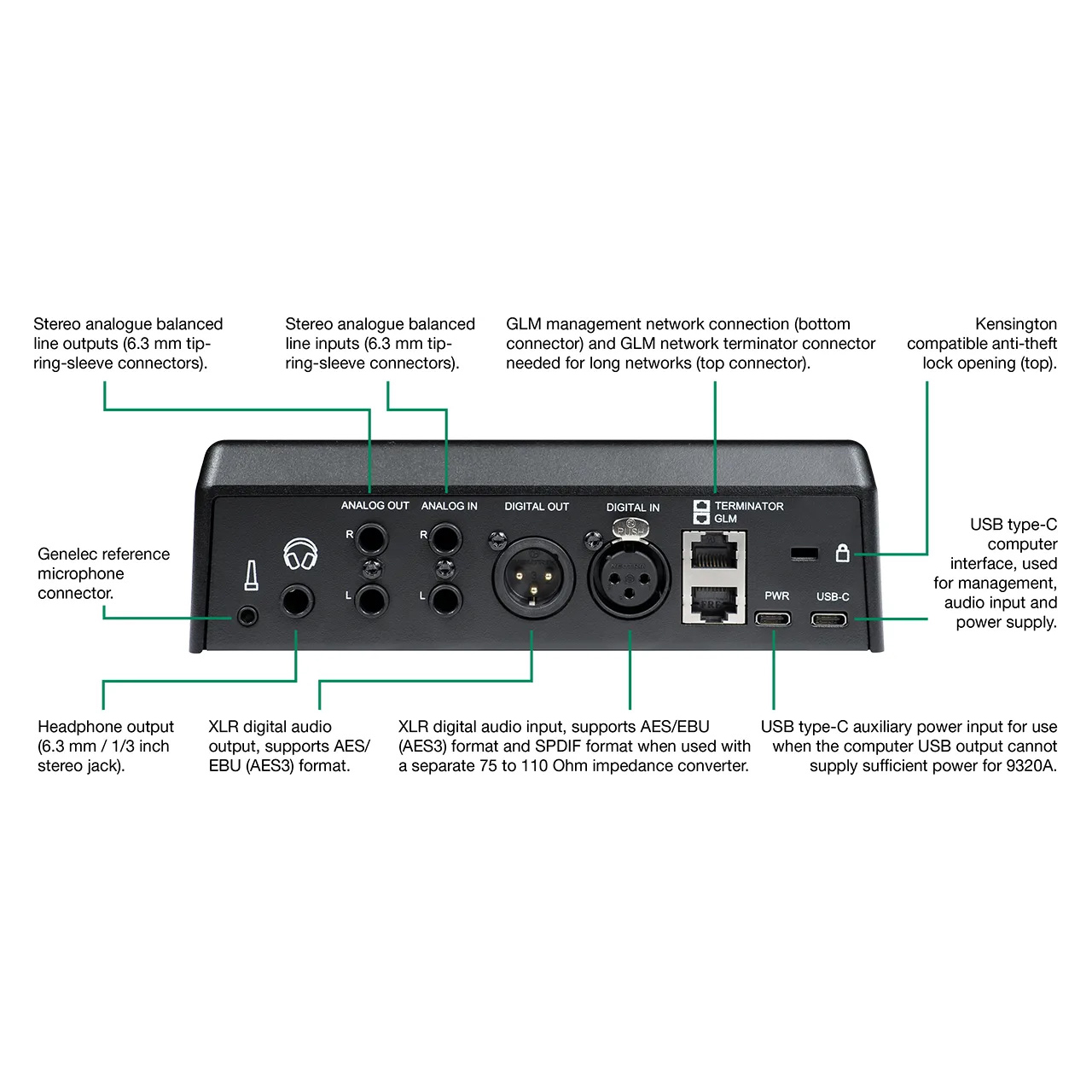

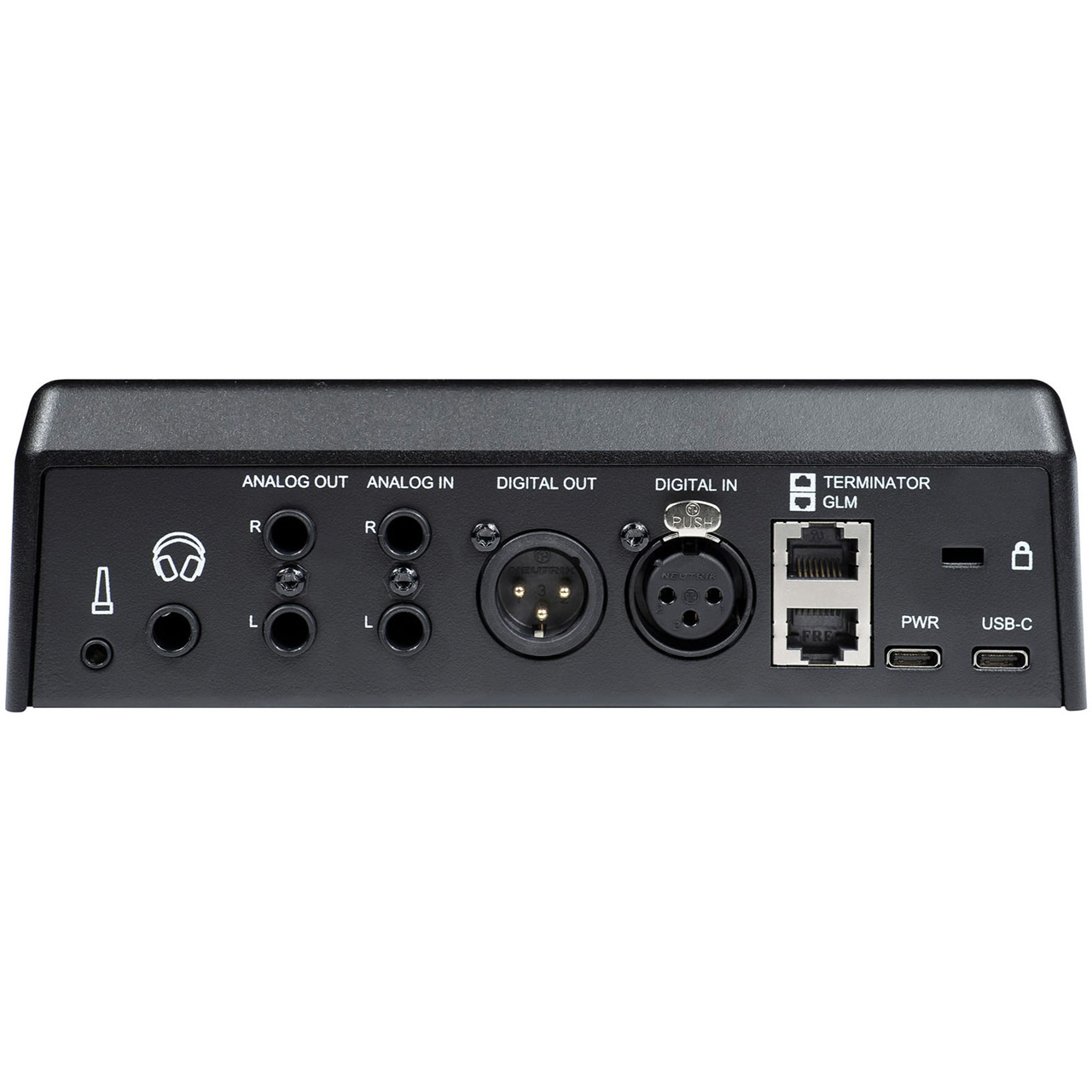

    • Analog Inputs: 2x 1/4" TRS
    • Analog Outputs: 2x 1/4" TRS
    • Digital Inputs: 1x XLR (AES/EBU)
    • Digital Outputs: 1x XLR (AES/EBU)
    • Headphones: 1x 1/4" TRS
    • Data I/O: 1x RJ45 (terminator), 1 x RJ45 (GLM)
    • USB: 2x Type C
    • Computer Connectivity: USB
    • Compatibility: Genelec UNIO Audio Monitoring
    • Form Factor: Desktop
    • Power Supply: USB Power
    • Height: 2.37" x 5.5" x 7.5"
    • Weight: 1.98 lbs

  • Item Includes:

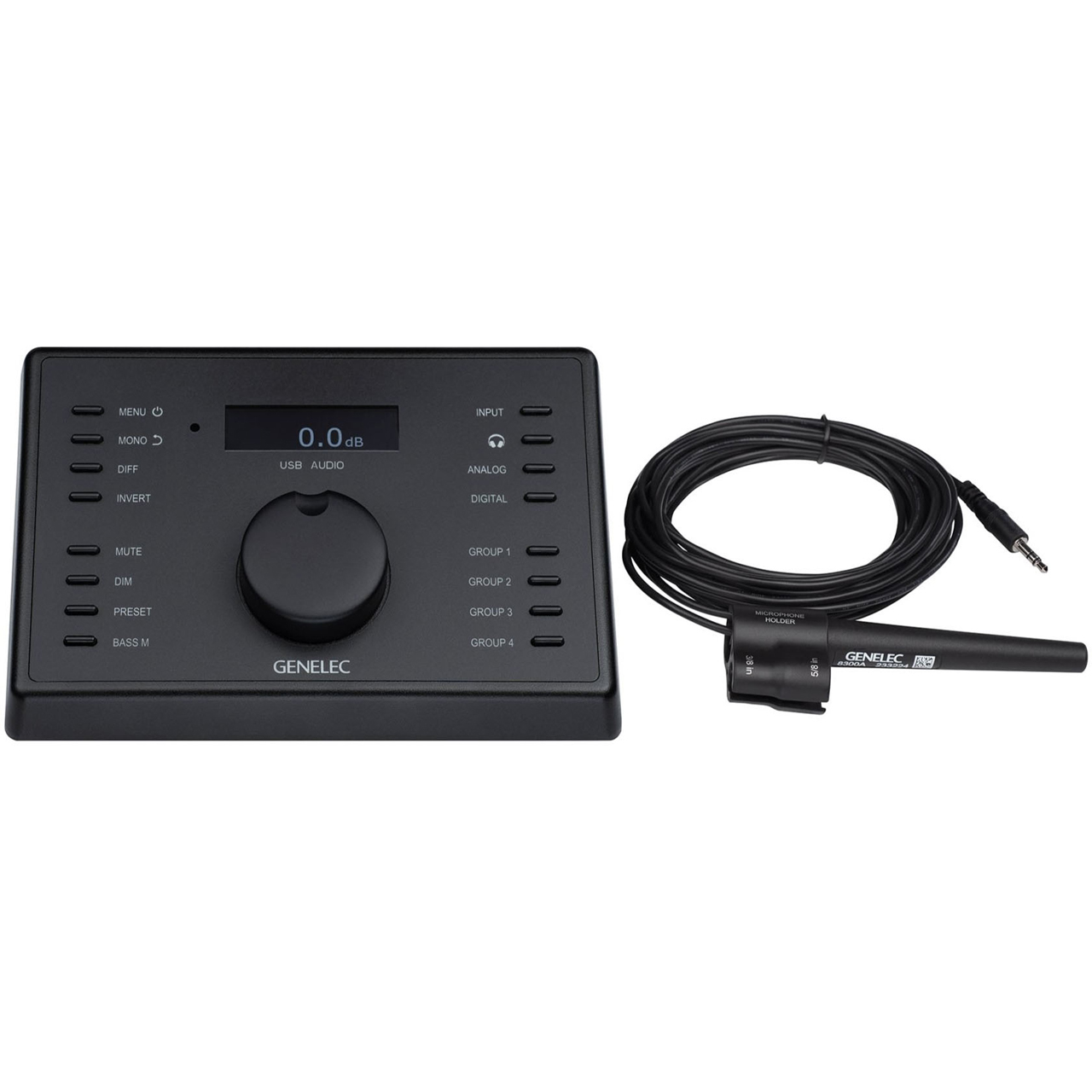

    • 1x Genelec 9320A SAM Reference Controller
    • 1x 6.5 Ft USB-C to USB-C cable and USB-A to USB-C adapter
    • 1x Genelec 8300A factory-calibrated reference microphone and holder

  • Warranty:

    • 2-Year Limited Warranty
