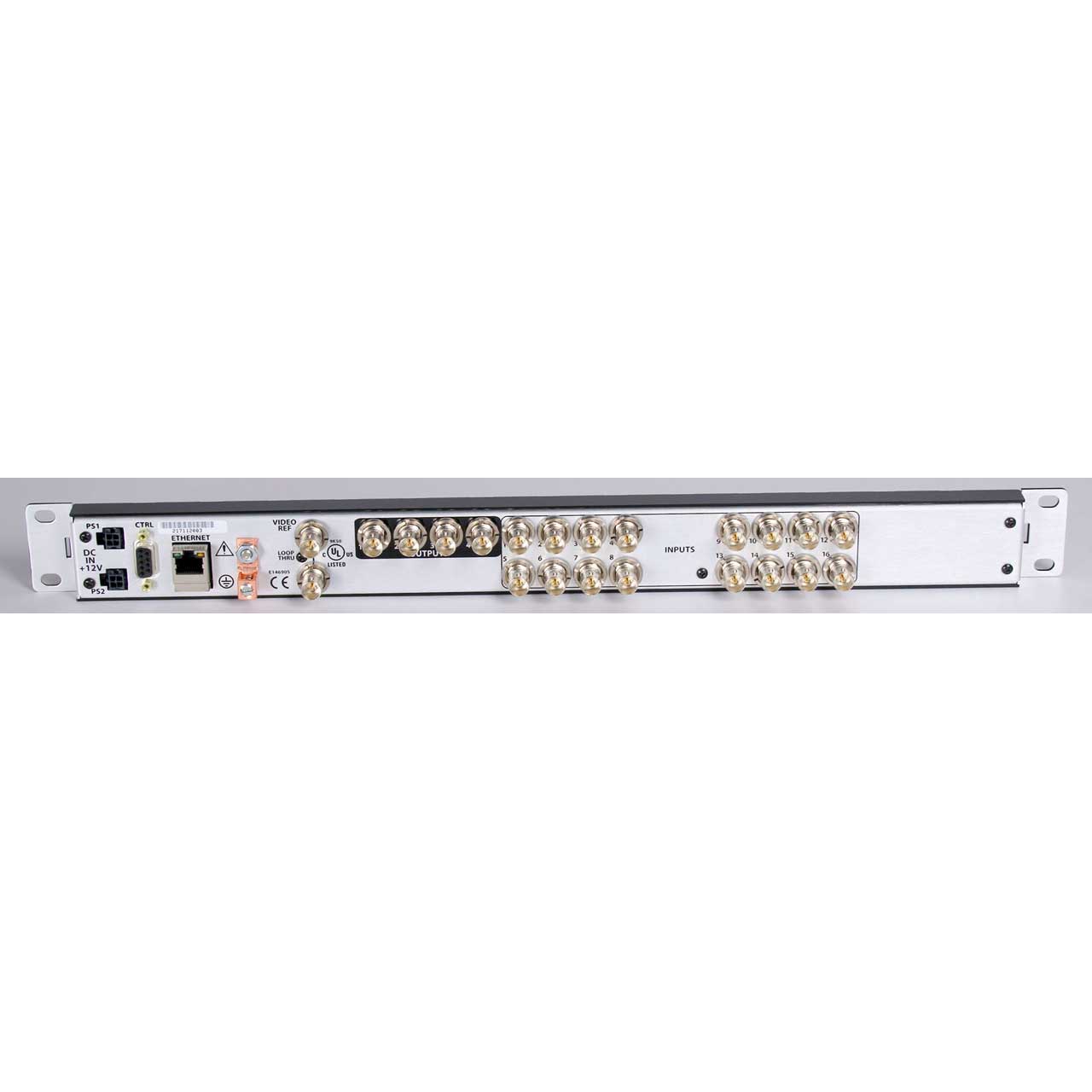

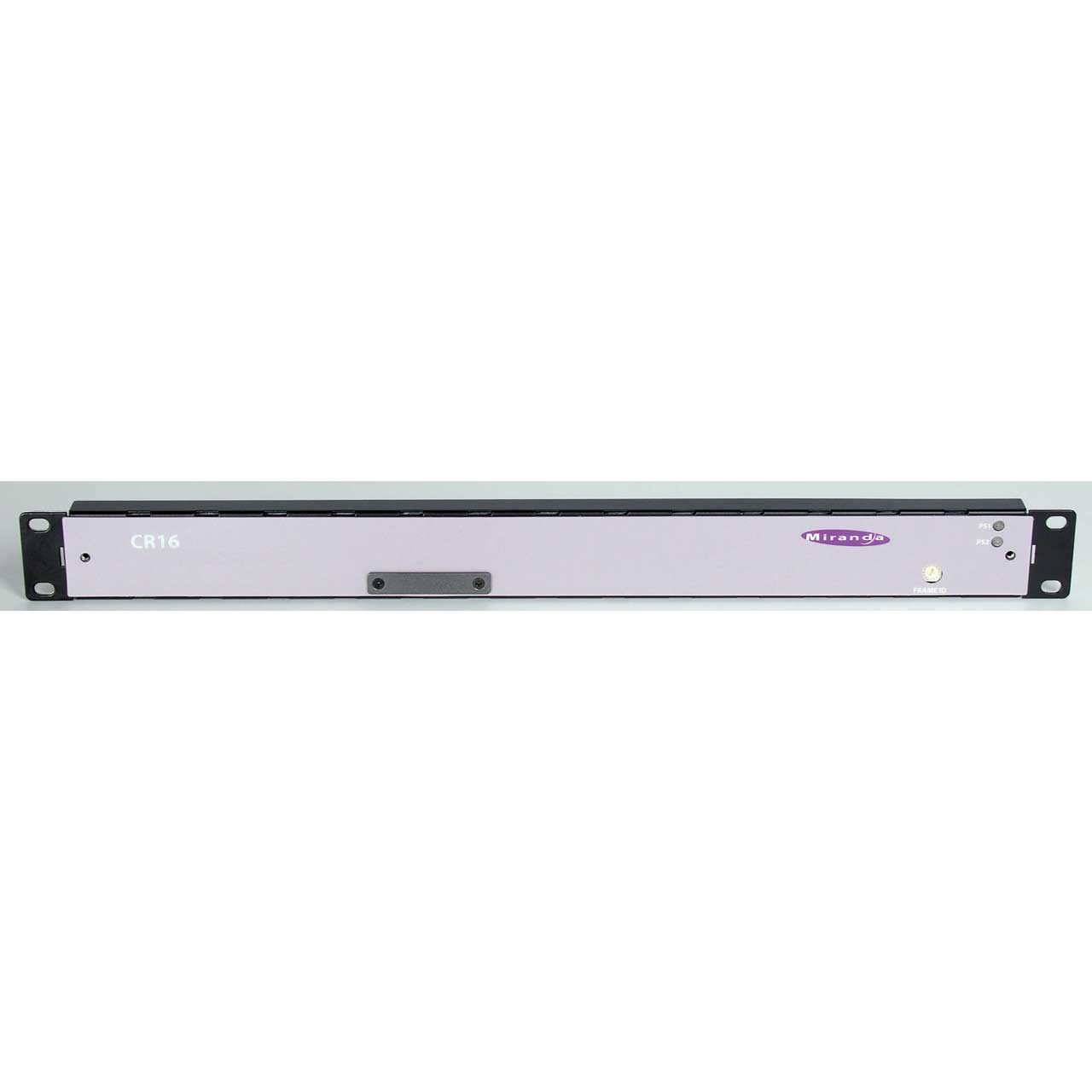

Grass Valley CR1604-3GIG NVISION 16x4 Single Link 3G/HD/SD Serial Digital Video Router 1 RU

ITEM #: GVLY-CR1604-3GIG MFG #: CR1604-3GIG

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Grass Valley
Free Shipping with $49 Minimum Order

List Price:

$4,277.00

Our Price:

$3,835.00

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

CR1604-3GIG - Overview

The NVISION Compact range is highly versatile, and ideally suited to utility routing applications. Triple rate 3G/HD/SD core format in matrix sizes from 8x8 to 32x32. The Compact Routers also have a built-in controller, eliminating the need for a costly external controller.

Triple Rate 3G/HD/SD
SMPTE 424M 3 Gb/s models operate error free, with automatic reclocking data paths for 270 Mb/s, 1.483 Gb/s, 1.485 Gb/s, 2.967 Gb/s and 2.970 Gb/s rates. The 3 Gb/s routers protects your small router investment well into the future, with 1080p 50/60 support and Dolby E and DVB-ASI compliance.

Machine Control
The NVISION range’s patented Dynamic Port Architecture simplifies machine control with configurable bidirectional data routing. Only NVISION port routers offer this bidirectional capability; other routing vendors require two ports to accomplish the same task. This saves power, rack space, and cabling.

  • Features:

    • Triple rate 3G/HD/SD
    • DVB-ASI compliant
    • Router partitioning
    • Scalable with the entire NVISION range of routers
    • Optional control panel
    • Robust design for rugged conditions
    • Range operates with the entire NVISION router range Powerful, free configuration tools
    • Compact Router System Configurator (CRSC) software provides easy configuration of routers, including salvos and partitioning
    • Software also allows programming of remote control panels, and configuration of network settings
    • Multiple control capabilities
    • Ethernet and serial control
    • Local button panel
    • Graphical User Interface (GUI) panels
    • Highly reliable power supply (over 500,000 hours MTBF)
    • Optional redundant power supply available
    • Optional control panel available


  • Specifications:

    • Type: High definition serial digital video
    • Standard: SMPTE 259M-C, 292M and 424M
    • Data rate: Auto reclocking at 270 Mb/s and 1.483, 1.485, 2.967, 2.970 Gb/s or auto bypass with pass-through from 19 Mb/s to 3 Gb/s
    • Note: Inputs do not reclock
    • Connector: BNC
    • Impedance: 75&omeg;
    • Cable equalization (for cables listed or equivalent cable): 400m (1,312 ft.) Belden 1694A, 250m (820 ft.) Belden 1855A at 270 Mb/s, 150m (492 ft.) Belden 1694A, 100m (328 ft.) Belden 1855A at 1.5 Gb/s, 100m (328 ft.) Belden 1694A, 45m (147 ft.) Belden 1855A at 3 Gb/s
    • Router path: Non-inverting
    • Output level: 800 mVp-p ±10 %
    • I/O return loss: >15 dB, 5 MHz to 1.5 GHz >10 dB, 1.5 GHz to 3 GHz
    • Output rise/fall time: ≤135 ps
    • Output overshoot: ≤10 % of amplitude max
    • Output alignment jitter: ≤0.3 UIpp from 100 kHz to 300 MHz
    • Output timing jitter: ≤2.0 UIpp from 10 Hz to 100 kHz
    • AC input: 90-250 VAC, 50/60 Hz, auto-ranging
    • AC connectors: 2, 12 VDC with external modules
    • AC power: PS0001-00, HB0321-00, 50 W, one IEC 320
    • Dimensions (W,H,D): 19 x 1.75 x 1.38
    • Weight: 2 lbs.
    • Mounting: EIA 310-C, 19 in (483 mm)
    • Grounding terminal: Cooper, accepts 14-6 AWG

      SERIAL CONTROL
    • Type: 1 Serial port
    • Standard: SMPTE 207M, EIA-422, configurable
    • Connector: 1, DE-9

      ETHERNET
    • Type: 10/100 Base T
    • Standard: IEEE 802.3
    • Protocol: NVISION Ethernet protocol
    • Connector: 1, RJ45
