Galaxy Audio AS-950-4 Four Person Band Pack Wireless Personal In-Ear Monitoring System - N Frequency Range - 518-542 MHz

ITEM #: GXY-AS-950-4N MFG #: AS-950-4N

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

List Price:

$944.99

Our Price:

$629.99

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


AS-950-4N - Overview

Affordable in-ear monitoring system

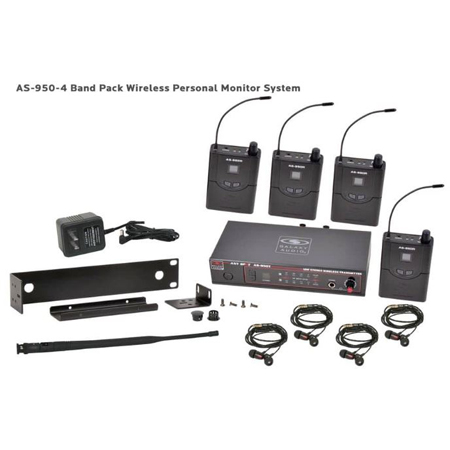

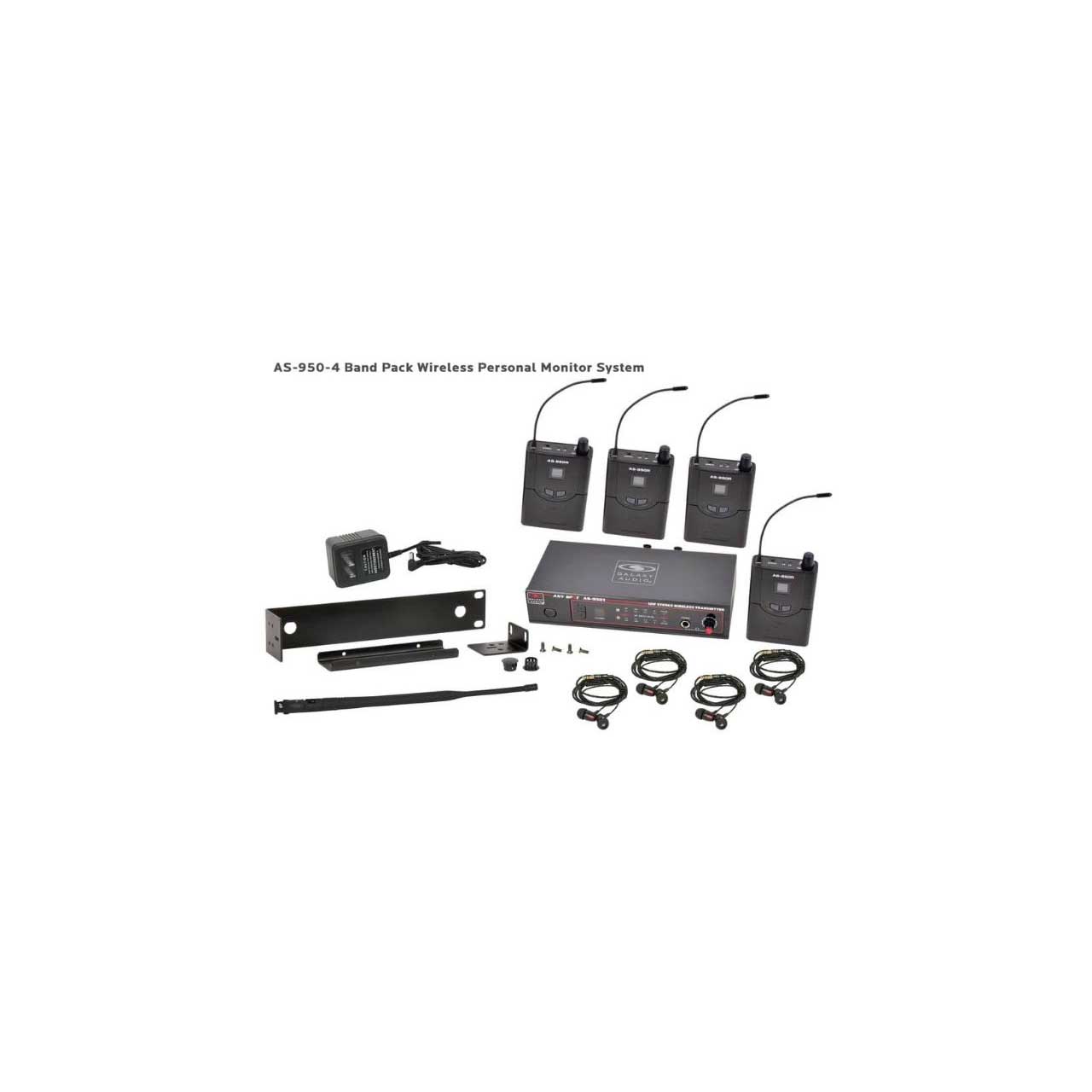

The Galaxy Audio AS-950-4 Band Pack provides four sets of affordable personal in-ear monitoring in one package! Galaxy means reliable quality and exceptional value for anyone needing to outfit a band or a theater group with an in-ear monitoring system. This package includes (1) AS-950T transmitter, (4) AS-950R receivers, (4) EB4 Single Titanium Driver Earbuds, a single/dual rack kit, antenna, and power supply.

The AS-950-4 Any Spot Band Pack System makes it easy for any band to Get Personal. With four receivers and one transmitter the Band Pack is designed to get the whole band wireless in one package. The AS950-4 will allow a band to send one stereo mix to 4 individuals. Add as many additional receivers as needed.

The wireless Galaxy Audio AS-950 in-ear monitor system offers reliable quality and exceptional value. The receiver features a 50mW x 2 output with RF and stereo indicator. The transmitter features L/R level display, channel LCD display with channel up and down select, stereo XLR / 1/4" inputs and a headphone output with volume control. The Galaxy Audio AS-950 In-Ear Monitor system also offers 16 selectable UHF frequencies. The Galaxy Audio EB4 ear buds feature titanium drivers, extended bass response, aluminum alloy construction and come standard with all WPM models. The Galaxy Audio AS-950 In-Ear Monitor system is perfect as an affordable in-ear monitor solution for the entry level user. It provides high quality sound for an economical price.

  • Features:

    • 16 Selectable UHF Frequencies
    • Stereo or Mono Transmission
    • Multiple Receivers can be used with 1 Transmitter
    • Single/Dual Rack Mount Kit Included
    • 200' Range
    • EB4 Ear Buds Included

  • Specifications:

    • AS-950 SYSTEM
    • Band: UHF
    • Frequency Range: CODE N 518 MHz - 542 MHz,
    • CODE P2: 470 MHz - 489 MHz
    • Frequencies: 16
    • Transmitter Output Level: 10 mW
    • Operating Range Under Typical Conditions: 200' (61m)*
    • *Note: Actual range depends on RF signal absorption, reflection, interference, and battery characteristics. Battery characteristics may limit this range.
    • Audio Frequency Response: +/-3dB 50Hz - 15kHz
    • Total Harmonic Distortion: <1% @ 1kHz
    • Signal to Noise: >80dBA
    • Maximum Deviation Range: +/-40kHz
    • Dynamic Range: >90dB A-weighted
    • Operating Temperature: Range 14§ F to 122§ F (-10§ C to 50§ C)

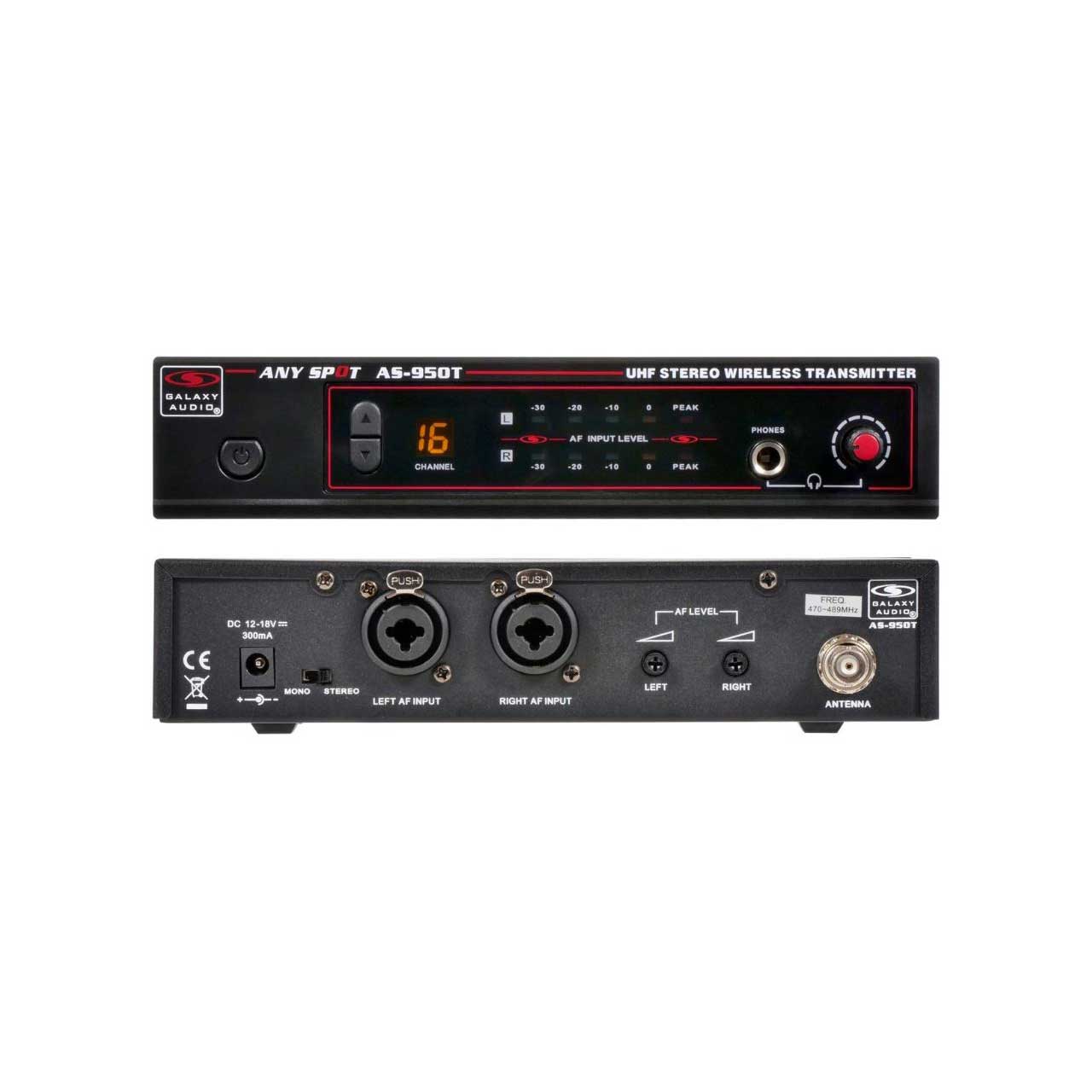

      AS-950T TRANSMITTER
    • Main Frame Size: EIA STANDARD 1/2 U
    • Modulation Mode: FM Stereo Modulation
    • RF Output: 10 mW
    • Max Audio Input Level: +6dBV
    • Gain Adjustment Range: 40dB
    • Controls: Headphone Volume, Channel Up/Down, and Power Button
    • Indicators: LCD Display, Input Level
    • Audio Input: Line Level X 2, XLR / 1/4" Combo Jack
    • XLR Input: Impedance balanced
    • Pin 1: Ground (cable shield)
    • Pin 2: Audio +
    • Pin 3: No Audio -
    • Transmitter Antenna: Detachable 1/2 Wave BNC Antenna
    • Dimensions: 1.73" x 8.34" x 3.77" (44 x 212 x 96 mm) (HxWxD)
    • Weight: 19.75 oz (1.23 pounds)
    • Power Requirements: 12-18 V DC at 300 mA, supplied by external power supply

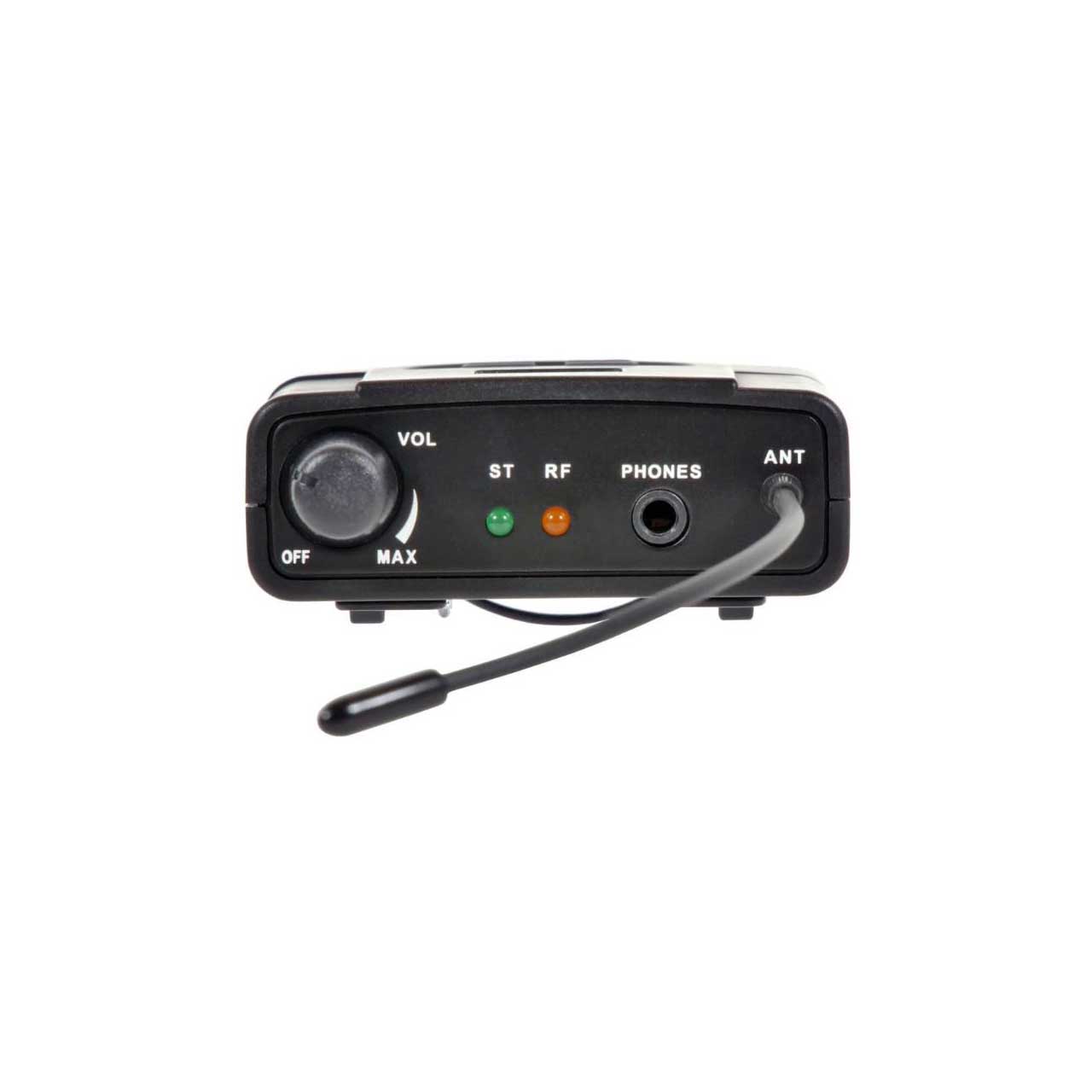

      AS-950R RECEIVER
    • Audio Output Level: 50 mW x 2 Earphone Out with Volume Control
    • Sensitivity: -94dBm for 30dB
    • Stereo Separation: 0dB (at 1kHz)
    • Output Connector: 1/8" (3.5 mm) Stereo Earphone Connector
    • Controls: Volume, Channel Up/Down
    • Indicators: LCD Display, Stereo LED, RF LED
    • Dimensions: 3.54" x 2.51" x 0.9" (90 x 64 x 23 mm)(HxWxD)
    • Weight: 0.20 pounds/3.35 oz (95 g) without batteries
    • Power Requirements: 2 "AA" size alkaline or rechargeable batteries
    • Battery Life: About 12 hours (alkaline)

  • Item Includes:

    • 1x AS-950T tramsmitter
    • 4x AS-950R receiver
    • 4x EB4 ear buds
    • 1x Single/dual rack mount kit
    • 1x Antenna
    • 1x Power supply
    • 1x Quick Start Guide

  • Warranty:

    • A limited THREE YEAR Warranty for ANY SPOT WIRELESS PERSONAL MONITORS & accessories (excludes earbuds)
    • A limited ONE YEAR Warranty applies to Galaxy Audio Ear Buds

  • GTIN:

    0190839773166
