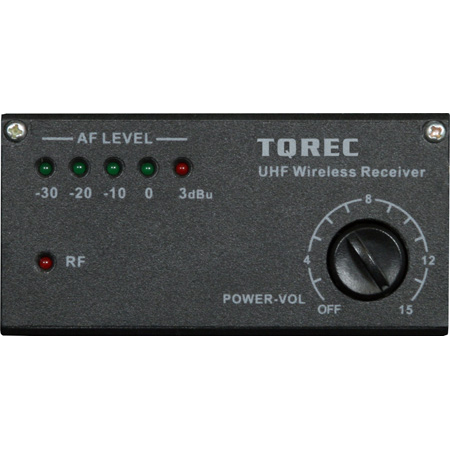

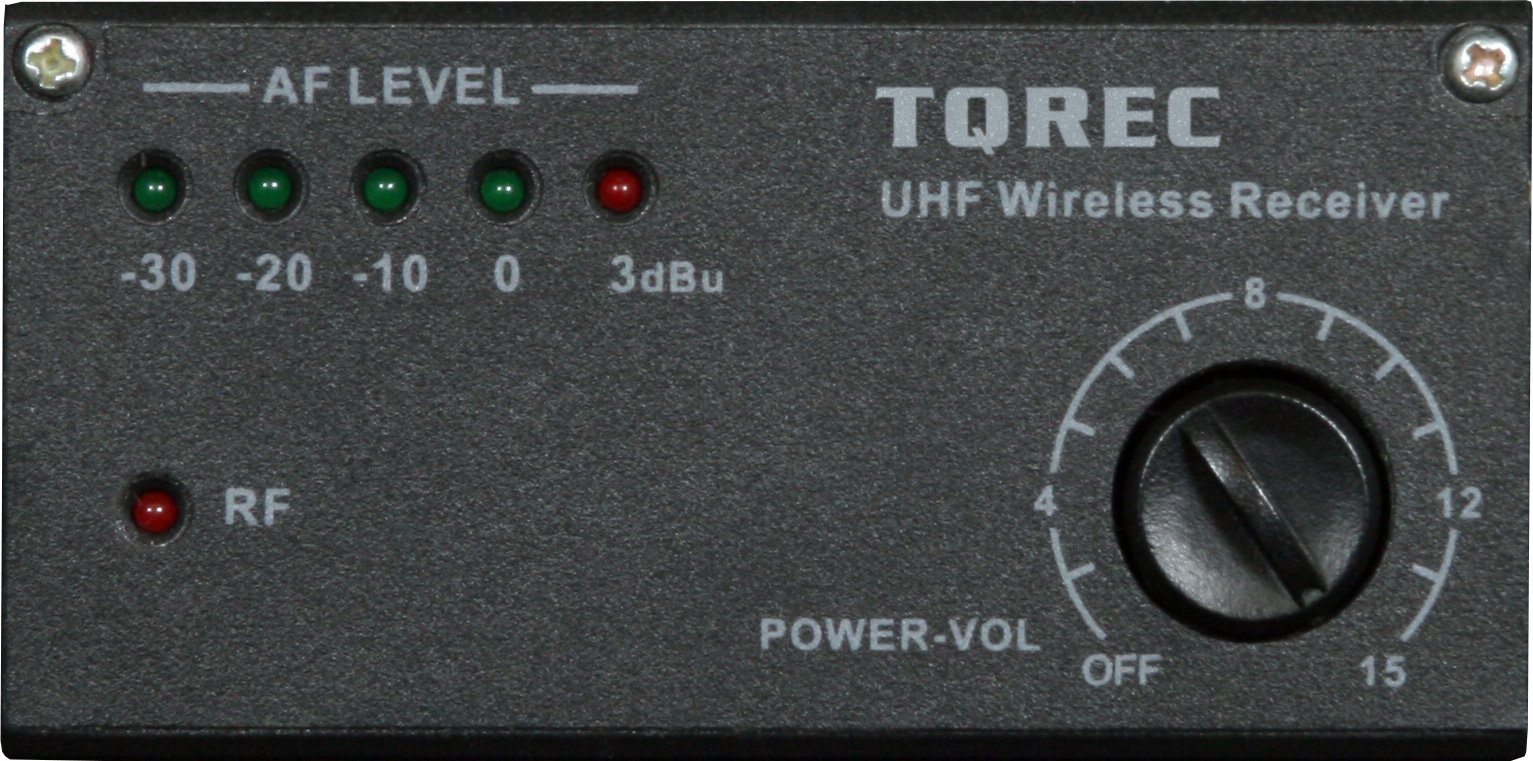

Galaxy Audio TQRECN2 Quest 8 UHF Receiver - Frequency N2: 517.55 MHz

ITEM #: GXY-TQRECN2 MFG #: TQRECN2

Primary Image

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the GXY-TQRECN2

TQRECN2 - Overview

Galaxy Audio’s Single Receiver for the Traveler Quest Portable PA Systems will allow you to use a wireless microphone with a receiver card. This now means, with the Single Channel Receiver loaded into your Traveler Quest System, you can operate a wireless microphone!

  • Features:

    • Single Receiver
    • TQREC Works with the TQ8 Model
    • RF and AF Indicator
    • Volume Control
    • Easy Aftermarket Installation


  • Specifications:

    • Frequencies: N2 517.550MHz
    • Oscillation Type: PLL synthesized control OSC
    • Frequency Range: 80Hz ~ 16kHz ±3 dB
    • Frequency: Channel Single Fixed Frequency
    • Operating Temperature: -10 ºC ~ 50 ºC
    • Power Requirement: 12V/0.5A
    • Display: LED AF/RF Indicators
    • Audio Output Level: +5dbV
    • Output Impedance: 3k Ohms
    • Controls: Volume
    • S/N Ratio: > 85dBA
    • Dynamic Range: > 83dB
    • T.H.D.: <0.5%
    • Operating Distance: 160' (Under Optimum Conditions)
    • RF Sensitivity: <-95dBm
    • Image Rejection: >50dB


  • GTIN:

    0691281007668
