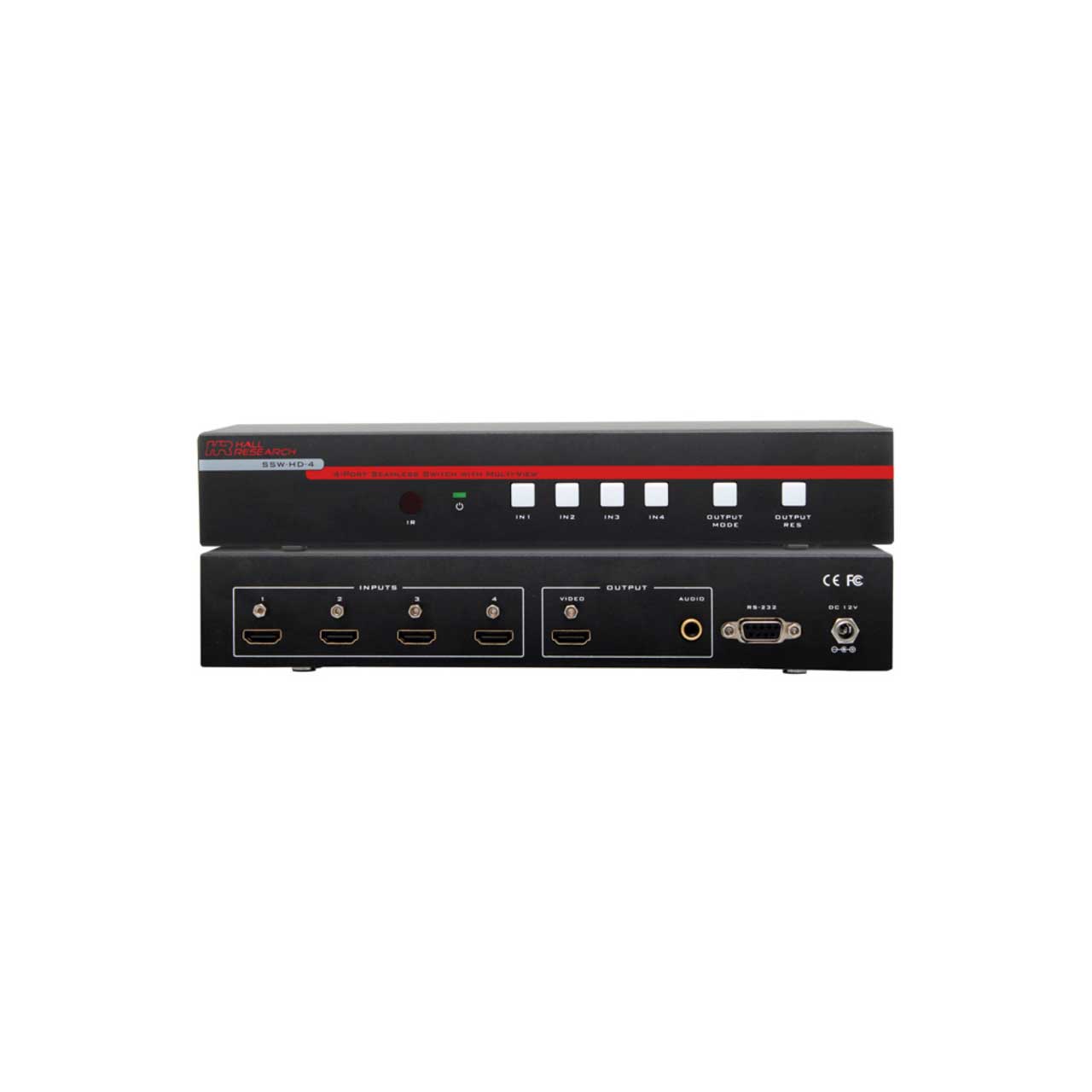

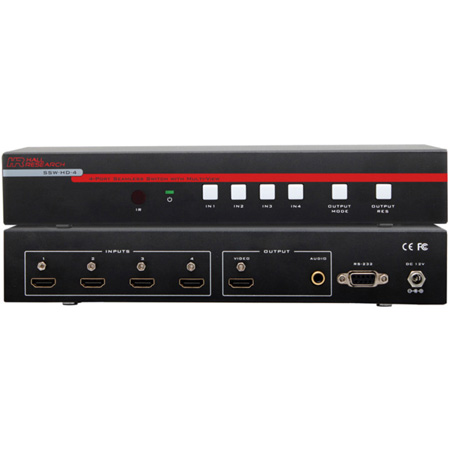

Hall Technologies SSW-HD-4 4-Input HDMI Seamless Switch with Real-time Multiview Modes

ITEM #: HRT-SSW-HD-4 MFG #: SSW-HD-4

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

List Price:

$840.95

Our Price:

$798.90

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


SSW-HD-4 - Overview

The Hall Technologies SSW-HD-4 is a 4-input HDMI seamless video switch with multi-view capabilities where all inputs can be simultaneously shown in real-time in a variety of window configurations. When only one input is shown, switching between different inputs is completely seamless with zero transition delay. The switcher supports various PC and HDTV resolutions; including 1080p Full HD on its input and produces a scaled Full HD video output.

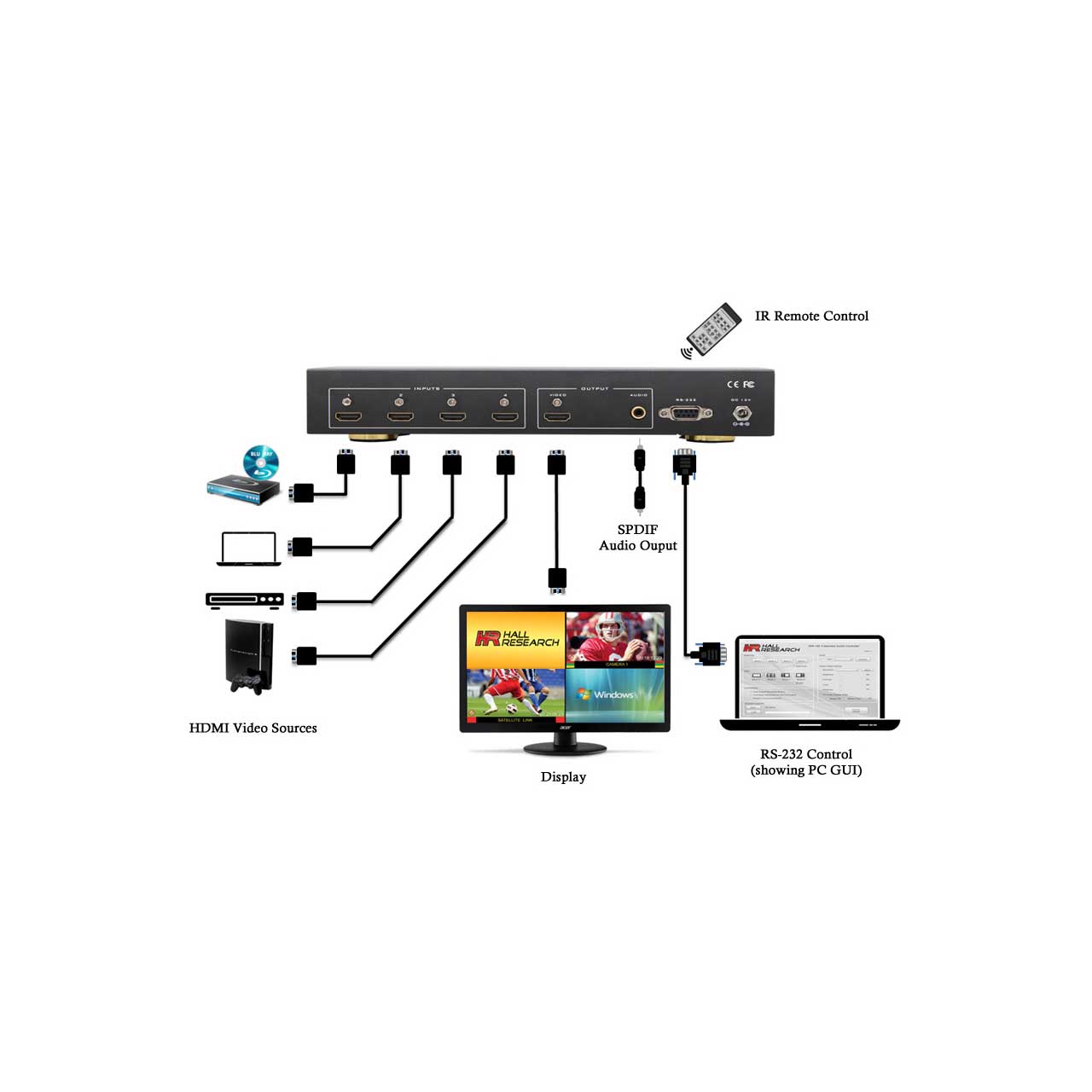

The SSW-HD-4 can display four Hi-definition sources on a single display and comes with several pre-configured multi-view layout modes. Individual buttons for each input allow quick selection from the front panel. Control of switching and multi-view window layouts can be accessed via Front panel buttons, IR remote control (included), RS-232, or with the free PC GUI that controls the device via RS-232. The product is shipped with rack ears for 1U rack mounting.

Advanced features include: Front panel lock modes, de-embedded S/PDIF audio output, and free Windows PC software for configuration and control.

  • Features:

    • Seamless Switching
    • Pre-configured Multi-view Layouts
    • Control via Front Panel, IR, PC-GUI and RS-232
    • Input and Output Resolutions up to 1080p Full HD
    • HDCP Compliant
    • Includes IR Remote Control
    • Includes Rack Mount Ears
    • De-embedded S/PDIF audio out with RCA Connector
    • Supports Locking HDMI Cables
    • Includes Universal Power Supply with Locking DC Connector

  • Specifications:

    • Video Resolution Output: 1080p@60Hz, 1080i@60Hz, 720p@60Hz, 1024x768@60Hz, 1360x768@60Hz
    • Video Resolution Input: 480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz, 1080p@24/30/50/60Hz, 800x600@60Hz, 1024x768@60, 1280x720@60Hz,1920x1080@60Hz
    • Video Bandwidth: Single-link to 165 MHz (4.95 Gbps)
    • Audio Standards: PCM [2/5.1/7.1]CH, Dolby Digital 2~5.1CH, DTS 2~5.1CH, Dolby True HD and DTS-HD Master Audio
    • Input Ports: 4 x HDMI Female with Locking Capability; 1 x RS-232
    • Output Ports: 1 x HDMI Female with Locking Capability; 1 x S/PDIF audio out with RCA Connector
    • Power Supply: 12 VDC @ 2.5A
    • ESD Protection: Human Body model: 8kV (air-gap discharge); 4kV (contact discharge)
    • Product Dimensions: 9.85" W x 4.65" D x 1.25" H
    • Shipping Dimensions: 11.50" x 7.50" x 3.00"
    • Product Weight: 1.8 lbs
    • Shipping Weight: 2.95 lbs
    • Enclosure: Metal
    • Storage Temperature: -4 to +140 °F
    • Operating Temperature: +32 to +122 °F
    • Humidity: 20% to 90% RH non-condensing

  • Item Includes:

    • 1x Hall Technologies SSW-HD-4 4-Input HDMI Seamless Switch with Real-time Multiview Modes

  • GTIN:

    0724696530220
