U2-160-4 - Overview

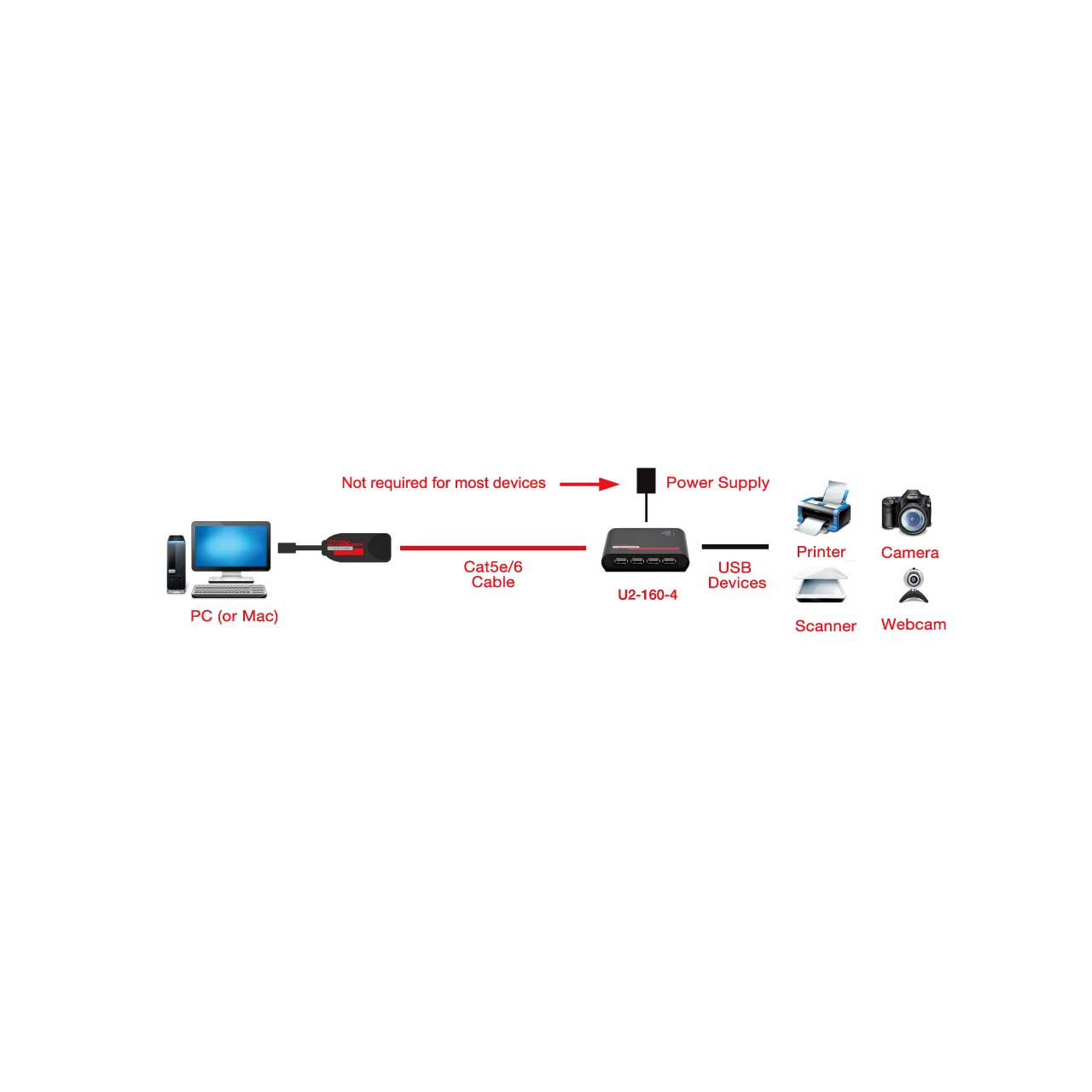

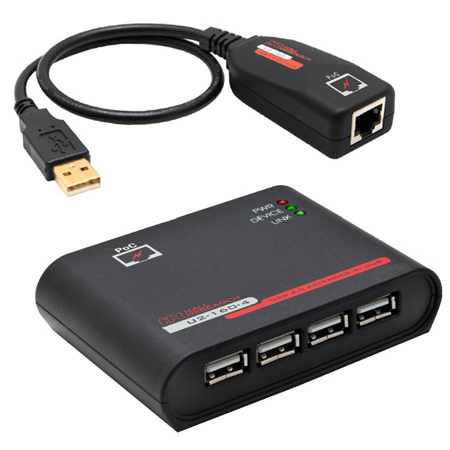

The Hall Technologies U2-160-4 is a USB 2.0 extender with built-in 4-Port Hub in the remote end for connection of up to 4 USB devices. The extender sends USB signals across a CAT5e/6 cable up to 50 meters at data rates to 480 Mbps. In most applications no additional power supply connection is needed as power is drawn from the host and sent through the CAT5e/6 cable. A universal power supply is included for use with power hungry USB devices.

  • Features:

    • Support for any high-speed (480 Mb/s) , full-speed (12 Mb/s) or low speed (1.5 Mb/s) USB device.
    • Allows a USB device to be remotely located by up to 50m (164 ft).
    • Supports Hot Plug/Unplug.
    • Economical.
    • No software driver required.
    • Power supply included


  • Specifications:

    • Local Unit
    • Upstream Port: USB type A Male
    • Downstream Port: RJ45 Jack
    • Power: Powered from remote end.

      Remote Unit
    • Upstream Port: USB Type A Female
    • Downstream Port: RJ45 Jack
    • Power: External +5V DC Supply.
    • Interconnect Cable: Standard category 5e/6 UTP or STP
    • Max Cable Length: 50 m (164 ft)
    • Operating Temperature: 32 to 150 °F (0 to 65 °C)


  • Item Includes:

    • 1x Transmitter Unit
    • 1x Receiver Unit
    • 1x User's Manual
    • 1x Power Adapter


  • GTIN:

    0722301541586
