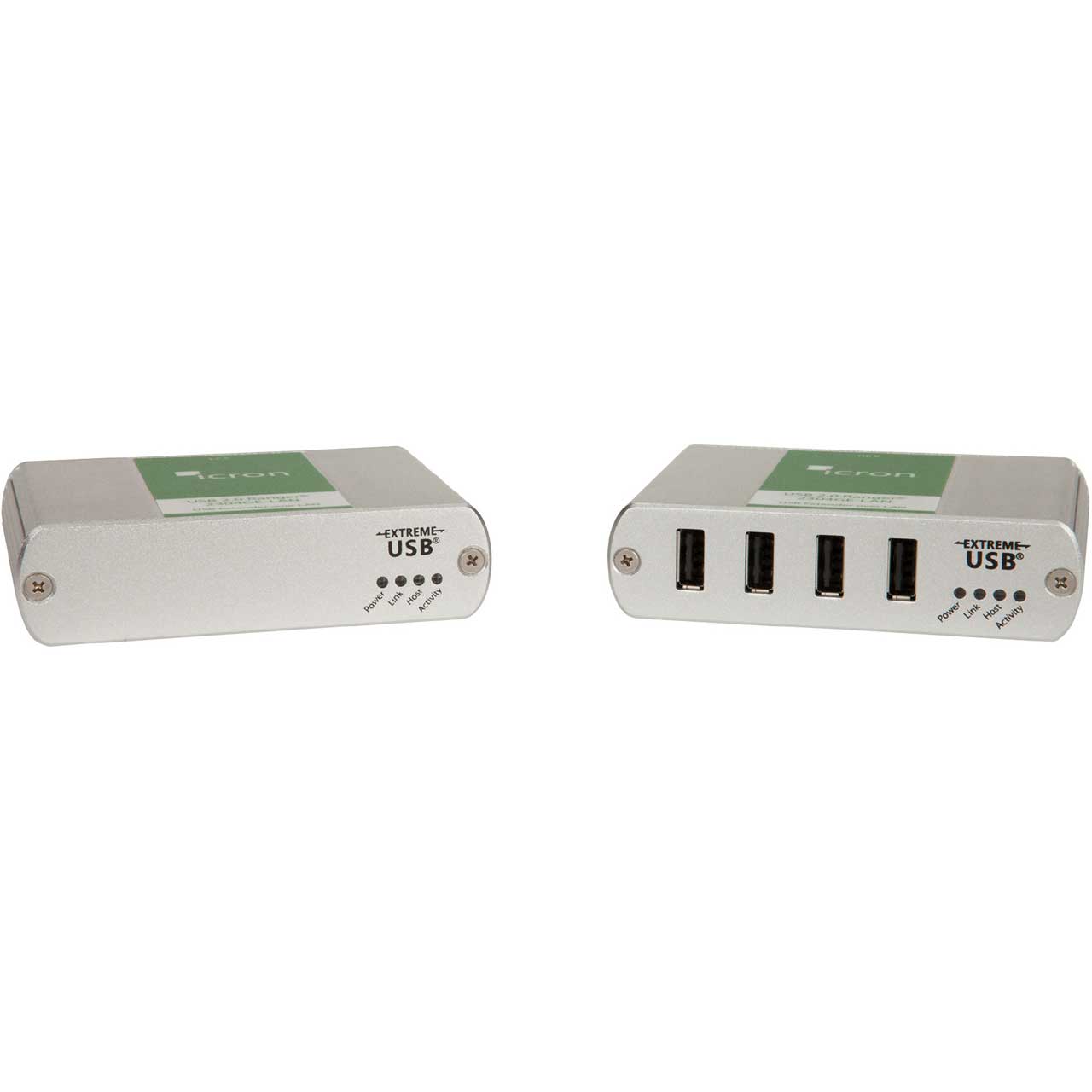

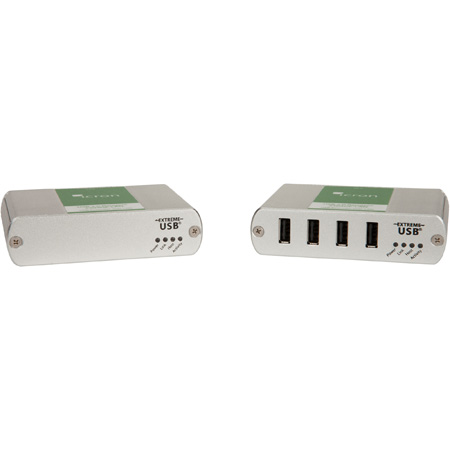

Icron 2304GE-LAN 4-port USB 2.0 Ethernet LAN Extender System

Name: Icron 2304GE-LAN 4-port USB 2.0 Ethernet LAN Extender System
Brand: Icron
SKU: ICR-2304GE-LAN
Price: 399.95 USD
Availability: InStock

ITEM #: ICR-2304GE-LAN MFG #: 2304GE-LAN

Icron

List Price:

$445.00

Our Price:

$399.95

Add to Wish List Leasing Options

Availability: In Stock

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

2304GE-LAN - Overview

The Icron USB 2.0 Ranger® 2304GE-LAN extends high-speed USB 2.0 connections up to 100m over a GigE Local Area Network (LAN) or directly connect over CAT 5e/6/7 cabling. This 4-port USB 2.0 LAN extender with ExtremeUSB® is perfect for: keyboards, mice, interactive white boards, flash drives, hard drives, audio devices, USB 2.0 web cameras and any other USB 2.0 or 1.1 device.

The USB 2.0 Ranger® 2304GE-LAN allows users to extend USB 2.0/1.1 connections over a GigE LAN or single CAT 5e/6/7 cable up to 100m in point-to-point fashion. Extending over LAN saves on installation time and provides IT visibility.

This 4-port USB 2.0 LAN extender supports data rates at up to 480 Mbps and is plug and play - no software drivers required - for all major operating systems: Windows®, macOS™, and Linux®

Additionally, this ExtremeUSB® based 4-port USB 2.0 LAN extender system is FCC/CE Class B certified and ideal for use with all USB peripherals including: keyboards, mice, interactive white boards, flash drives, hard drives, audio devices, web cameras and any other USB 2.0 or 1.1 device.

Applications:
Remote storage
Security and monitoring
Industrial Control
Keyboard and mouse

Features:
- Extends USB through 1000Mbps LANs
- USB 2.0 throughput up to 480Mbps*
- Pre-paired networked configuration** for simple installation
- Supplies up to 600mA to each USB port concurrently
- Includes the ExtremeUSB® suite of features:
  Transparent USB extension
  True plug and play; no software drivers required
  Works with all major operating systems: Windows®, macOS™, Linux® and Chrome OS™
- Zoom Rooms Compatible
Specifications:
- Range
- Direct Connect: Up to 100m (330 ft) over solid core CAT 5e/6/7
- Network Connect: Up to 100m (330 ft) between switches over solid core CAT 5e/6/7

  USB Device Support
- Network and Direct Connect: Up to 480Mbps*
- Traffic Types: All USB 2.0 Traffic Types
- Device Types: All USB 2.0 Device Types
- Maximum Number: Up to 30 devices

  Networking
- Standards: 1000BASE-T*
- Data Traffic: Layer 2

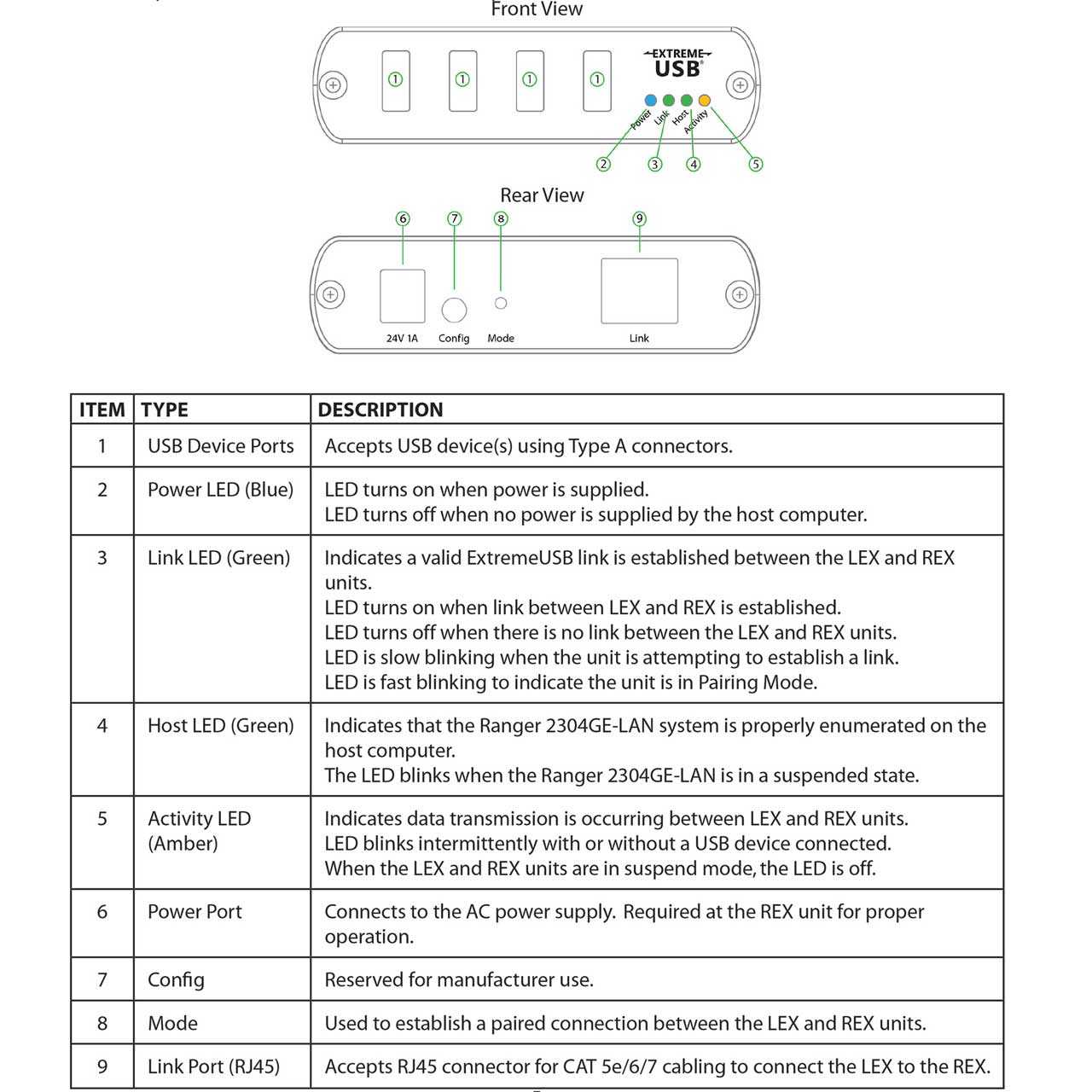

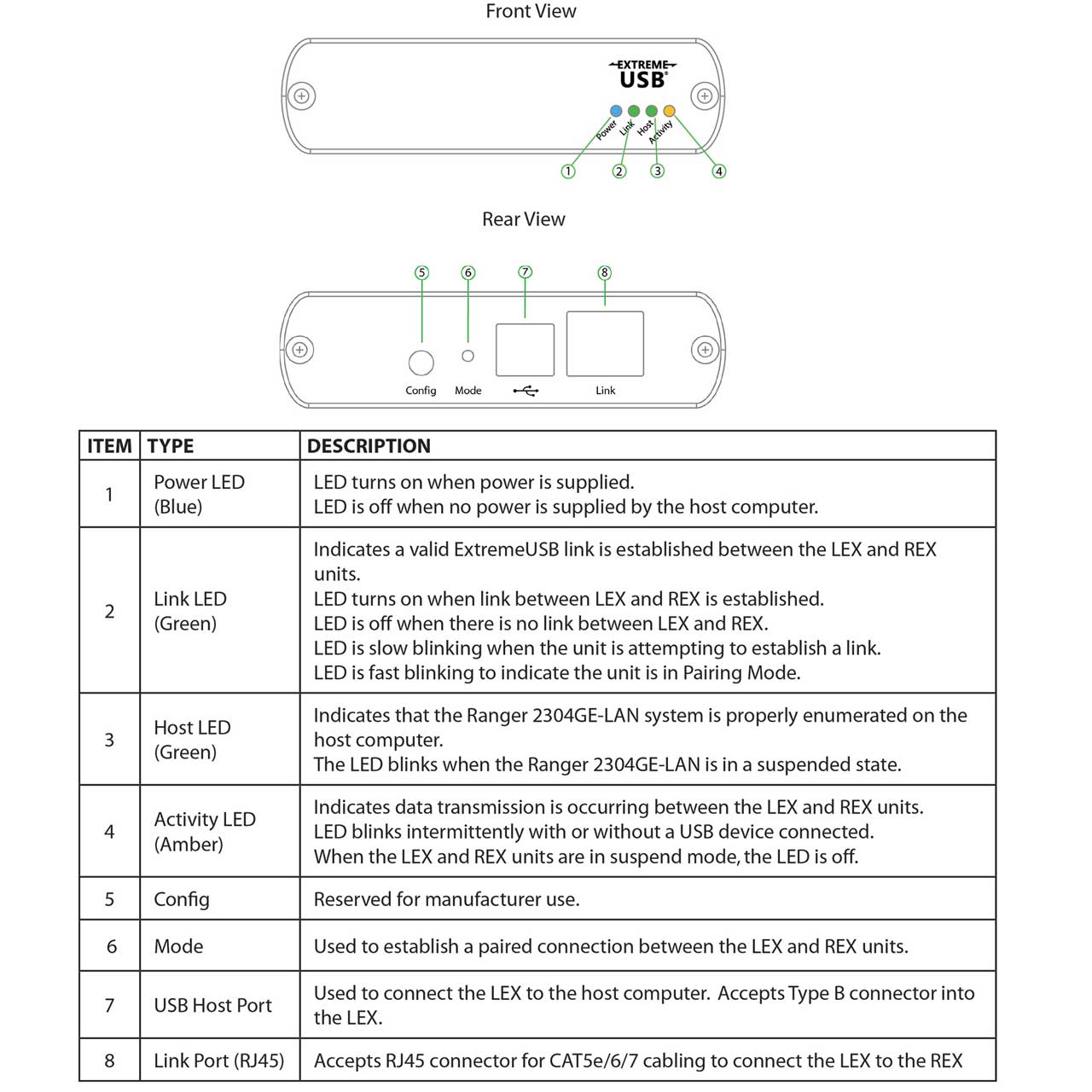

  LEX (Local Extender)
- USB Connector: 1x USB Type B Receptacle
- Link Connector: 1x RJ45
- Dimensions: 100 x 76 x 26mm (3.9 x 3.0 x 1.0")
- Enclosure Material: Silver Anodized Aluminum

  REX (Remote Extender)
- USB Connectors: 4x USB Type A Receptacles
- Link Connector: 1x RJ45
- Dimensions: 100 x 76 x 26mm (3.9 x 3.0 x 1.0")
- Enclosure Material: Silver Anodized Aluminum
- Available Current: Up to 600mA to each USB port concurrently
- Power Supply: 100-240V AC Input, 24V 1A DC Output

  Environmental
- Operating Temperature: 0°C to 50°C (32°F to 122°F)
- Storage Temperature: -20°C to 70°C (-4°F to 158°F)
- Operating Humidity: 20% to 80% relative humidity, non-condensing
- Storage Humidity: 10% to 90% relative humidity, non-condensing

  Compliance
- EMC: FCC (Class B), CE (Class B)
- Environmental: RoHS2 (CE)
Item Includes:
- Local Extender (LEX)
- Remote Extender (REX)
- AC power adapter
- 2 meter USB cable
- Quick Start Guide
- International power adapter with country specific cord (North America, EU, UK, Australia/NZ, or Japan)
Warranty:
- 2 Year Warranty
