3022 - Overview

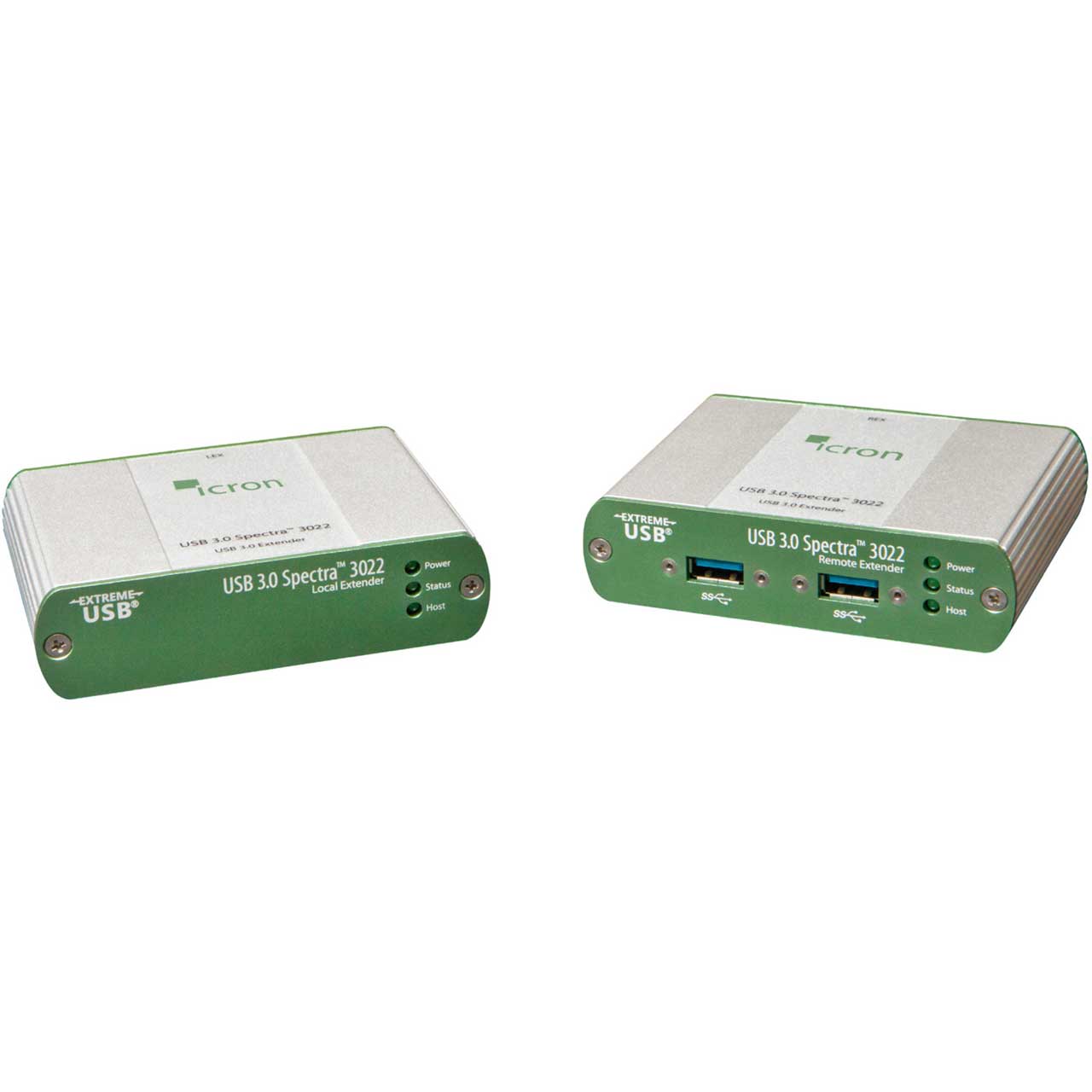

The Icron USB 3.0 Spectra™ 3022 is a two port USB 3.0 SuperSpeed extension solution, enabling USB 3.0 connections at up to 5 Gbps over 100m/330ft* of multimode fiber optic cable. The Spectra 3022 features two locking USB 3.0 ports delivering 900mA power to each port perfectly suited for USB3 Vision camera applications and includes a two-year warranty.

Note: backward compatibility to USB 2.0/1.1 is not supported.

USB 3.0's distance is specified at 3 meters. When greater distances are required, consider the USB 3.0 Spectra 3022 which supports USB 3.0 5 Gbps throughputs up to 100 meters over OM3 multimode fiber optic cabling. A true plug-and-play solution, the Spectra 3022 is compatible with all leading operating systems and features two locking USB ports and a locking power connector. The Spectra 3022 is warranted for 2 years from the date of purchase and is AIA USB3 Vision compliant. Backward compatibility to USB 2.0/1.1 is not supported by this particular extender.

Applications:

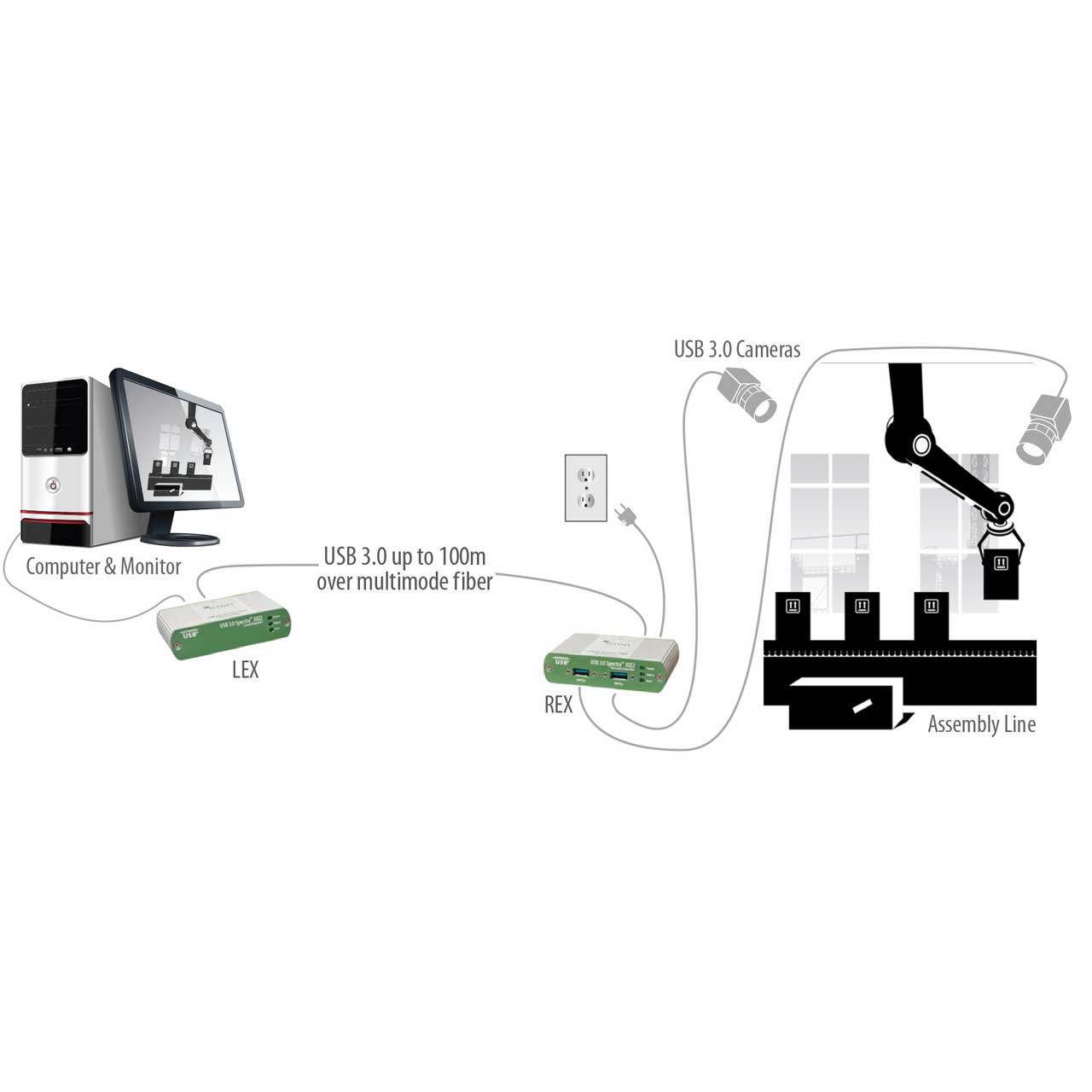

Machine Vision camera extension
Security camera extension
Post-production editing
Conferencing camera extension
Remote storage

  • Features:

    • USB 3.0 extension up to 100m
    • Delivers speed, isolation and security over multimode fiber
    • Supports USB 3.0 throughputs of up to 5Gbps
    • Integrated 2-port hub suitable for industrial environments
    • Rugged locking USB and power connectors
    • Enclosures with convenient pre-drilled holes for optional bracket mounting
    • Works with AIA USB3 Vision™ compliant devices
    • Includes the ExtremeUSB® suite of features:
      Transparent USB extension
      True plug and play; no software drivers required
      Works with all major operating systems: Windows®, macOS™, Linux® and Chrome OS™


  • Specifications:

    • Range*
    • OM2 Multimode Fiber: Up to 50m (165 ft)
    • OM3 Multimode Fiber: Up to 100m (330 ft)
    • * Up to 50m with USB 3.0 storage type devices; up to 100m or more is achievable when using USB 3.0 bulk traff ic cameras.

      Speeds
    • USB 3.0: Up to 5Gbps (Not backward compatible with USB 2.0/1.1)

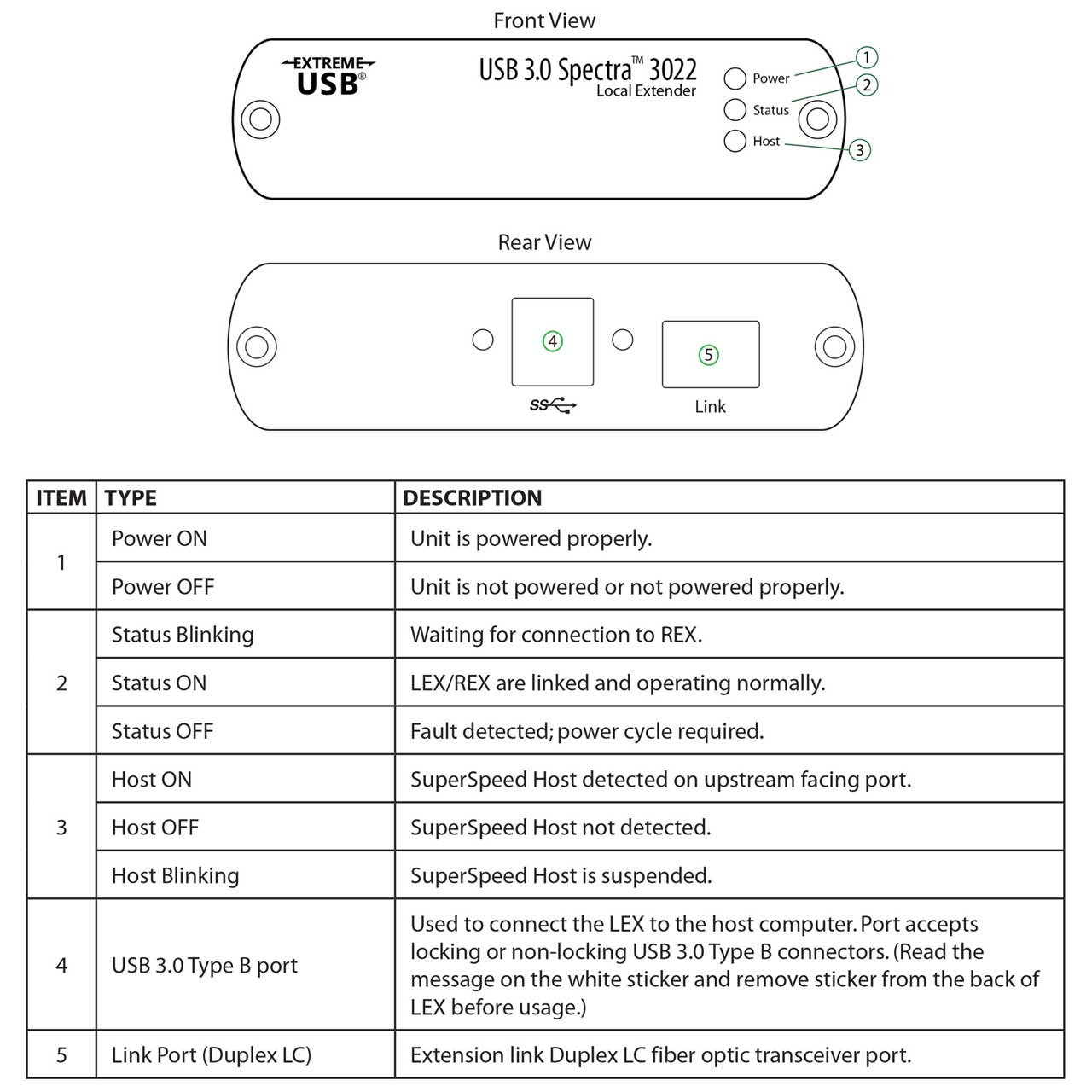

      LEX
    • USB Connector: 1x USB 3.0 Type B Locking Receptacle per AIA USB3 Vision™ specification
    • Link Connector: 1x Duplex LC Connector
    • Dimensions: 100 x 76 x 26mm (3.94 x 2.99 x 1.02")
    • Enclosure Material: Anodized Aluminum

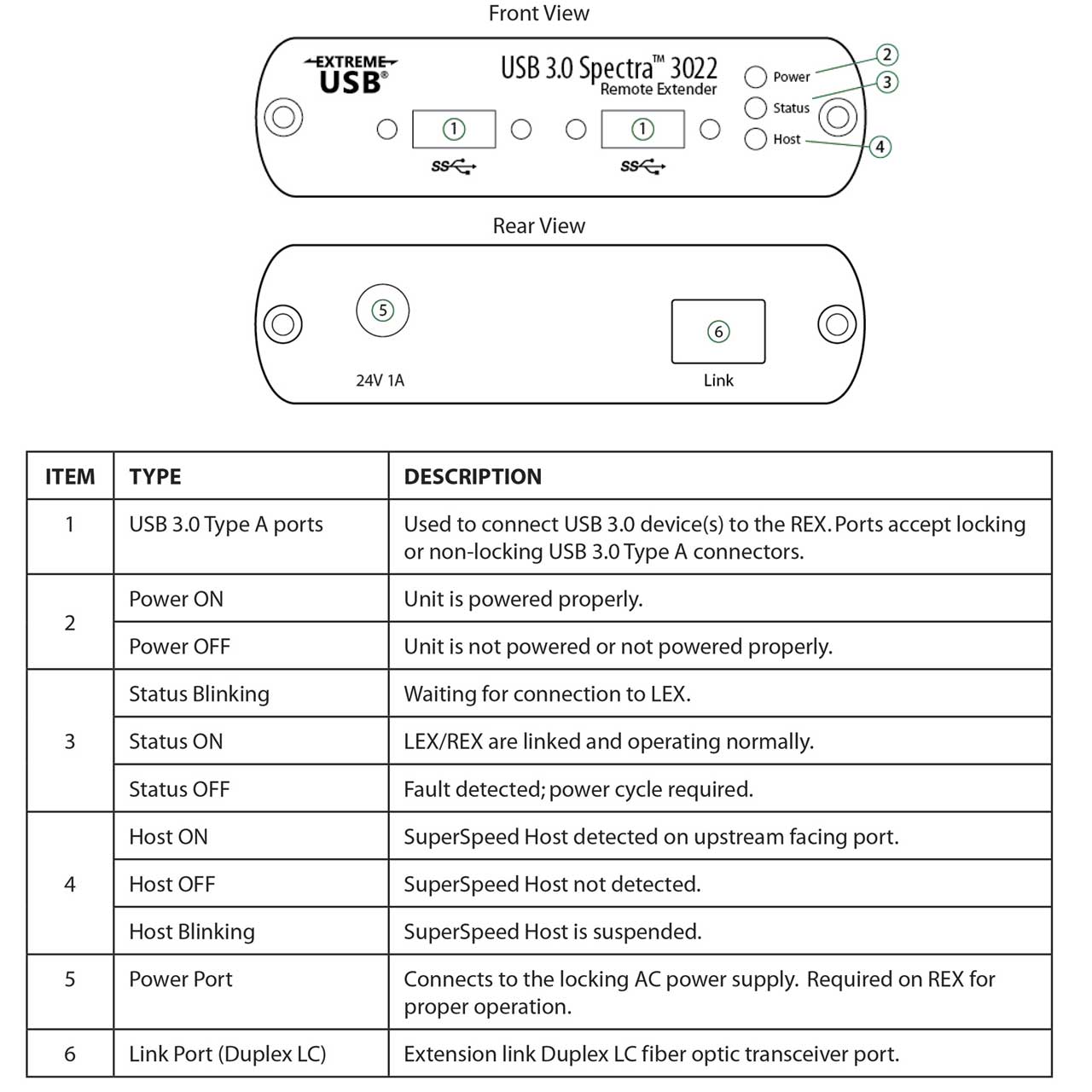

      REX
    • USB Connectors: 2x USB 3.0 Type A Locking Receptacles per AIA USB3 Vision™ specif ication
    • Link Connector: 1x Duplex LC Connector
    • Dimensions: 100 x 76 x 26mm (3.94 x 2.99 x 1.02")
    • Enclosure Material: Anodized Aluminum
    • Power Connector: 24V DC, 1A, Locking, 2.5 mm, center-positive
    • Available Current: 900mA for each USB Port
    • Power Supply: 100-240V AC Brick, Locking

      Environmental
    • Operating Temperature: 0°C to 50°C (32°F to 122°F)
    • Storage Temperature: -20°C to 70°C (-4°F to 158°F)
    • Operating Humidity: 20% to 80% relative humidity, non-condensing
    • Storage Humidity: 10% to 90% relative humidity, non-condensing

      Compliance
    • EMC: FCC (Class B), CE (Class B)
    • Environmental: RoHS2 (CE)
    • Machine Vision: Works with AIA USB3 Vision™ compliant devices


  • Item Includes:

    • Local Extender (LEX)
    • Remote Extender (REX)
    • SFP multimode transceiver modules
    • Locking Power Adapter
    • 3.0 USB Cable
    • Country Specific Power Cord (North America, EU, UK, Australia, or Japan)
    • Quick Start Guide


  • Warranty:

    • 2 Year Warranty
