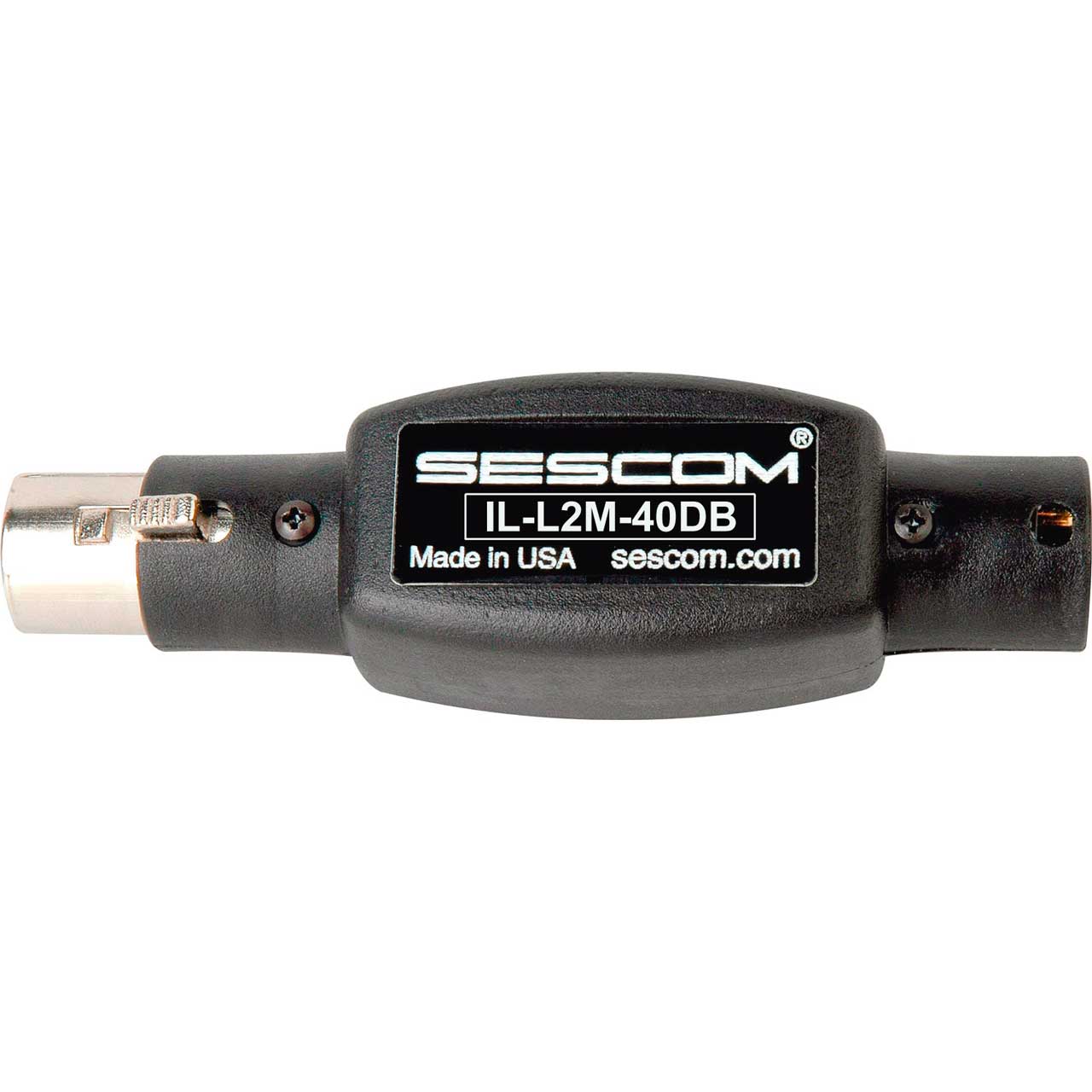

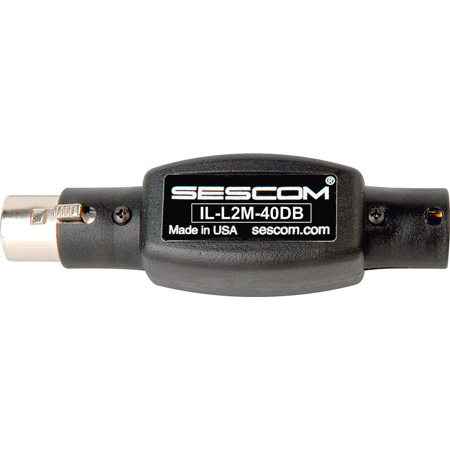

Sescom 40dB Inline Audio Pad - Line Level to Mic Level

ITEM #: IL-L2M-40DB MFG #: IL-L2M-40DB

Primary Image
Free Shipping with $49 Minimum Order

Our Price:

$23.49

Availability: In Stock
iAvailability Description Popup


IL-L2M-40DB - Overview

Stops overloading peaks and distortion - Provides totally Flat, Full-Bandwidth across the board level cut; lowering the signal to the level you need!
Inline design with Built-In Male and Female XLRs right in the housing: Plugs directly into equipment's inputs OR outputs - No additional cables or adapters needed
Can also be inserted in-between two XLR cables, no problem!
Extremely High Quality /Super Low Noise 1% metal film resistors for high performance
Assembled and Quality Controlled 100% in the USA
Impedance friendly design effectively lowers too-hot audio to proper levels to remove distortion
Can be used backwards if necessary, although designed to be used with signal to be cut going into the female side

  • Specifications:

    • Frequency Response Deviation (20Hz-20kHz): <0.1dB
    • Signal to Noise Ratio at 0dBFS, A-weighted: 55 dB
    • Total Harmonic Distortion at 1kHz, 0dBFS: <0.001%
    • Maximum Input Level: >24dB
    • Maximum Output Level: >-16dB
    • Dynamic Range: >79 dB
    • Gain: -44 dB
    • Common Mode Rejection: 58 dB
    • Input Impedance: 9.05k ohms
    • Phase Deviation: <.1deg
    • Product Dimensions: 3.75" x 1.06" x 1.13"

  • Warranty:

    • 1 Year
