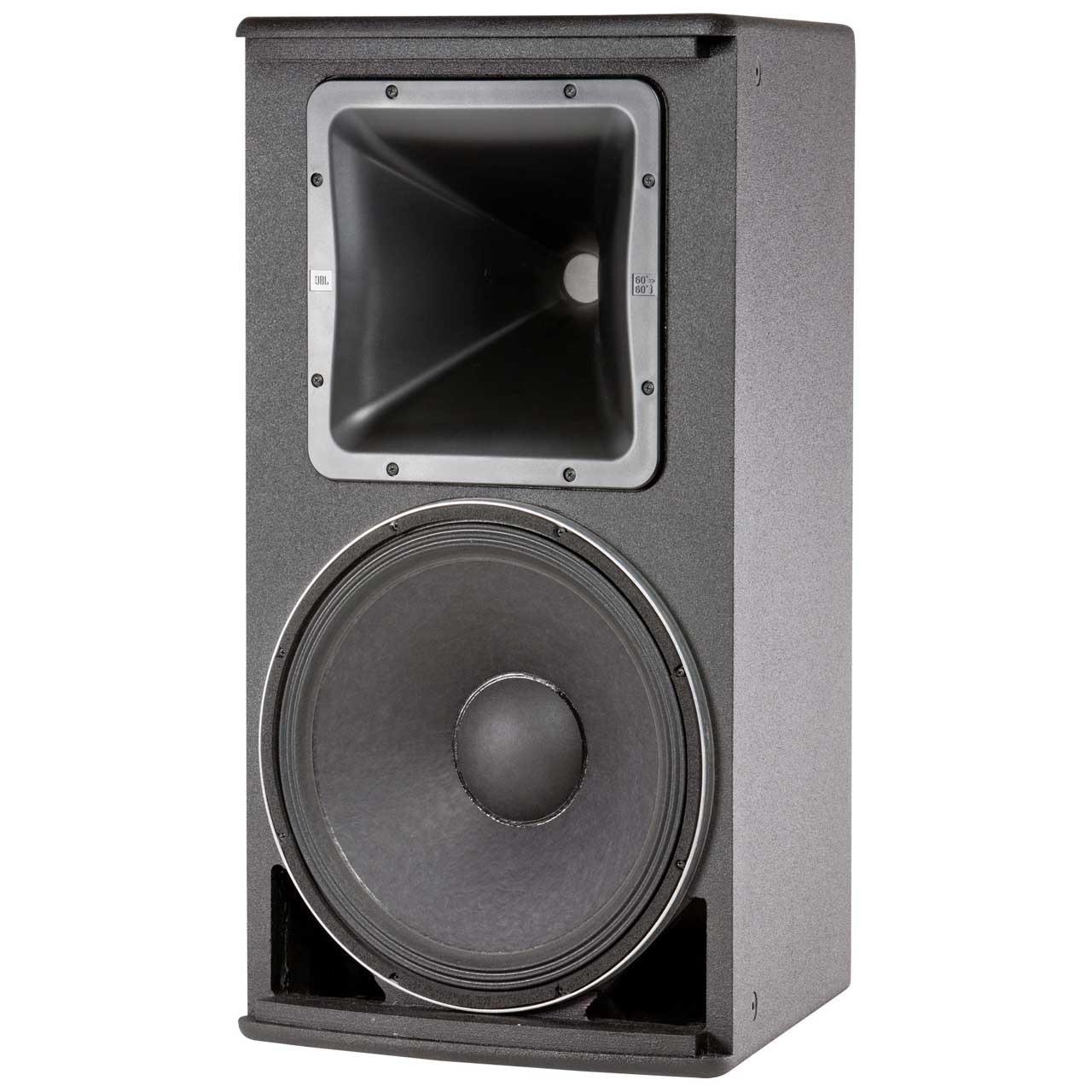

JBL AM5215/95 2-Way Loudspeaker System with 1 x 15 Inch Low Frequency Driver Black

ITEM #: JBL-AM5215-95 MFG #: AM5215/95

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
JBL Professional
Free Shipping with $49 Minimum Order

Our Price:

$2,470.00

Add to Wish ListLeasing Options
Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

AM5215/95 - Overview

2-Way Loudspeaker System with 1 x 15 Inch LF

The AM5215 is a medium power, lightweight, 2-way, full-range loudspeaker system comprised of the JBL Differential Drive dual voice coil and dual magnetic gap 265H-1 380 mm (15 in) low frequency driver and 2408H-1 high frequency 38 mm (1.5 in) exit, 38 mm (1.5 in) voice-coil compression driver. The large format PT Progressive Transition waveguide provides excellent coverage in a variety of patterns. The waveguide is rotatable so the loudspeaker system can be used in either the vertical or horizontal orientation. High-slope passive networks minimize band overlap. Well-controlled off-axis response enhances arrayability.

  • Features:

    • 265H-1 Differential Drive Low-Frequency Driver
    • 2408H-1 High-Frequency Compression Driver
    • Large PTT Progressive Transition waveguide for excellent pattern control and low distortion
    • Rotatable waveguide for vertical or horizontal orientation
    • Bi-Amp/Passive Switchable


  • Specifications:

    • Frequency Range (-10 dB) 35 Hz - 20 kHz
    • Frequency Response (±3 dB) 41 Hz - 18 kHz
    • Coverage Pattern /64: 60° x 40°
    • /66: 60° x 60°
    • /95: 90° x 50°
    • /26: 120° x 60°
    • Directivity Factor (Q) 14.5
    • Directivity Index (DI): 11.6 dB
    • Crossover Modes Bi-amp/Passive switchable
    • Passive Crossover Frequency 2 kHz
    • Transducer Power Rating (AES) LF: 500 W (2000 W peak), 2 hrs
    • 350 W (1400 W peak), 100 hrs
    • HF: 40 W (160 W peak), 2 hrs
    • Long-Term System Power Rating (IEC) Passive mode: 350 W (1400 W peak), 100 hrs
    • Maximum SPL Bi-amp mode:
    • LF: 125 dB-SPL cont avg
    • HF: 131 dB-SPL cont avg.
    • System Sensitivity (1W @ 1m) Passive mode: 98 dB SPL
    • Low Frequency Driver 1 x JBL 265H-1 380 mm (15 in) driver with 50.8 mm (2 in) dual voice coil
    • Nominal Impedance 8 ohms
    • Sensitivity (1W @ 1m, within operational band) 99 dB SPL
    • High Frequency Driver JBL 2408H-1, 38 mm (1.5 in) exit compression driver, 38 mm (1.5 in) voice coil
    • Nominal Impedance 8 ohms
    • Sensitivity (1W @ 1m) 115 dB SPL
    • Waveguide PT-H66HF-1
    • Enclosure Trapezoidal with 15 degree side angles, 16 mm (5/8 in) exterior grade 11-ply birch plywood
    • Suspension Attachment 15 points (4 top, 4 bottom, 2 each side, 3 rear), M10 threaded hardware
    • Finish Black DuraFlex finish. White available upon request.
    • Grille Powder coated 14 gauge perforated steel, with acoustically transparent black foam backing.
    • Input Connector NL4 Neutrik Speakon and CE-compliant covered barrier strip terminals. Barrier terminals accept up to 5.2 sq mm (10 AWG) wire or max width 9 mm (.375 in) spade lugs. Speakon in parallel with barrier strip for loop-through.
    • Environmental Specifications Mil-Std 810; IP-x3 per IEC529.
    • Dimensions (H x W x D in
    • vertical cabinet orientation) 783 x 422 x 504 mm
    • (30.8 x 16.6 x 19.85 in)
    • Net Weight 25.0 kg (55 lb)


  • GTIN:

    0691991011207
