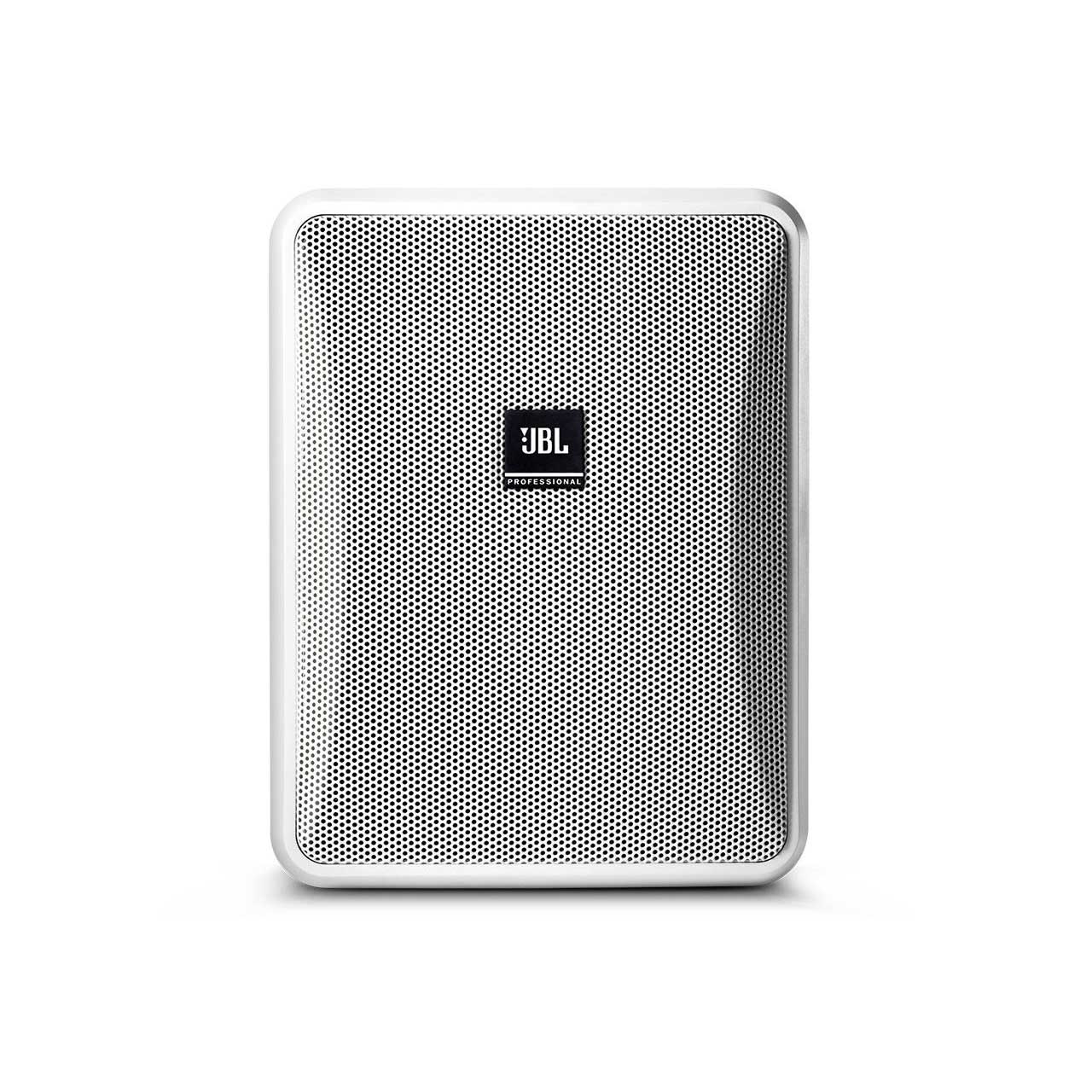

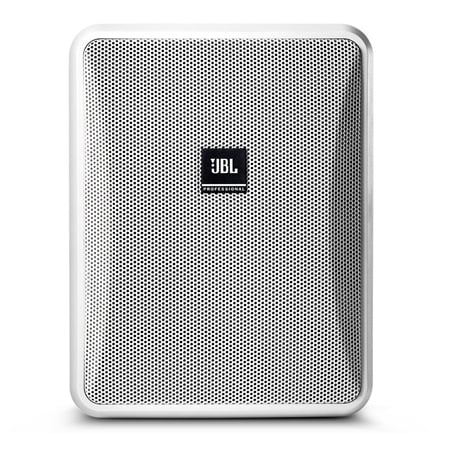

JBL CONTROL 25-1L-WH 5.25 Inch 2-Way Surface Mount Speaker - 8 Ohm - White - Pair

CONTROL 25-1L-WH - Overview

• Features:

  • 5-1/4" woofer with woven fiberglass cone
  • 3/4" PEI diaphragm tweeter with fluid cooling
  • Contemporary, high-design appearance
  • Built-in InvisiBall mounting hardware, plus available U-bracket
  • Weather resistant enclosure and transducers
  • Wide 100° x 100° coverage
  • 100 Watt power handling (200 Watt program)
  • High fidelity sound character with broad frequency response of 60 Hz - 20 kHz


• Specifications:

  • Frequency Range (-10 dB): 60 Hz to 20 kHz
  • Frequency Response (+/-3 dB): 85Hz - 17 kHz
  • Power Rating: 200 W Continuous Program (2 hrs)
  • Maximum Input Voltage: 25.3 V RMS (2 hrs), 50.6 V peak
  • Maximum SPL: 110 dB ave. Continuous Pink Noise (116 dB peak)
  • Sensitivity: 90 dB, 1W/1m (ave. 100 Hz - 10 kHz)
  • Coverage Angle: 100° x 100°
  • Directivity Factor (Q): 6.04 (averaged 1kHz - 16kHz)
  • Directivity Index (DI): 7.6dB (averaged 1kHz - 16kHz)
  • Nominal Impedance: 8 ohms
  • Crossover Type: 2nd order low-pass, 3rd order high-pass
  • Recommended Protective High-Pass: 60 Hz high-pass (24 dB/oct)
  • Low Frequency Driver: 135 mm (5.25 in), woven-fiberglass cone with pure butyl rubber surround with Weather-Edge frame protection, high-temp fiberglass voice coil former, high-temp voice coil wire, optimized cone geometry, linear suspension spider, and FEA optimized motor structure
  • High Frequency Driver: 19 mm (0.75 in) PEI diaphragm, low-viscosity ferro-magnetic fluid, and lightweight Kapton voice coil former
  • Enclosure Material: High Impact Polystyrene (HIPS), painted with highly-UV resistant paint on white (-WH) version for maximum UV fade resistance
  • Grille: Highly zinc-plated, finished in durable TGIC polyester powdercoating. MTC-25WMG-1 (&-WH) available with WeatherMax multi-layer foam and tight-weave mesh vapor barrier backing
  • Installation: InvisiBall wall-mounting system included. Two 6 mm attachment points (on top and bottom) for optional MTC-25UB-1 (&-WH) U-bracket. Secondary safety attachment loop point on back panel
  • Environmental: IP-44 per IEC529 (IP-55 when installed with the optional MTC-25WMG-1 WeatherMax grille and either MTC-PC2 or MTC-PC3 panel cover.) Exceeds MilSpec 810 for humidity, salt-spray, temperature & UV. Passes MilStd-202F for salt spray and ASTM G85 for acid-air plus salt spray. Optional MTC-25WMG-1 WeatherMax grille for breaking up driving rain and for especially difficult environments

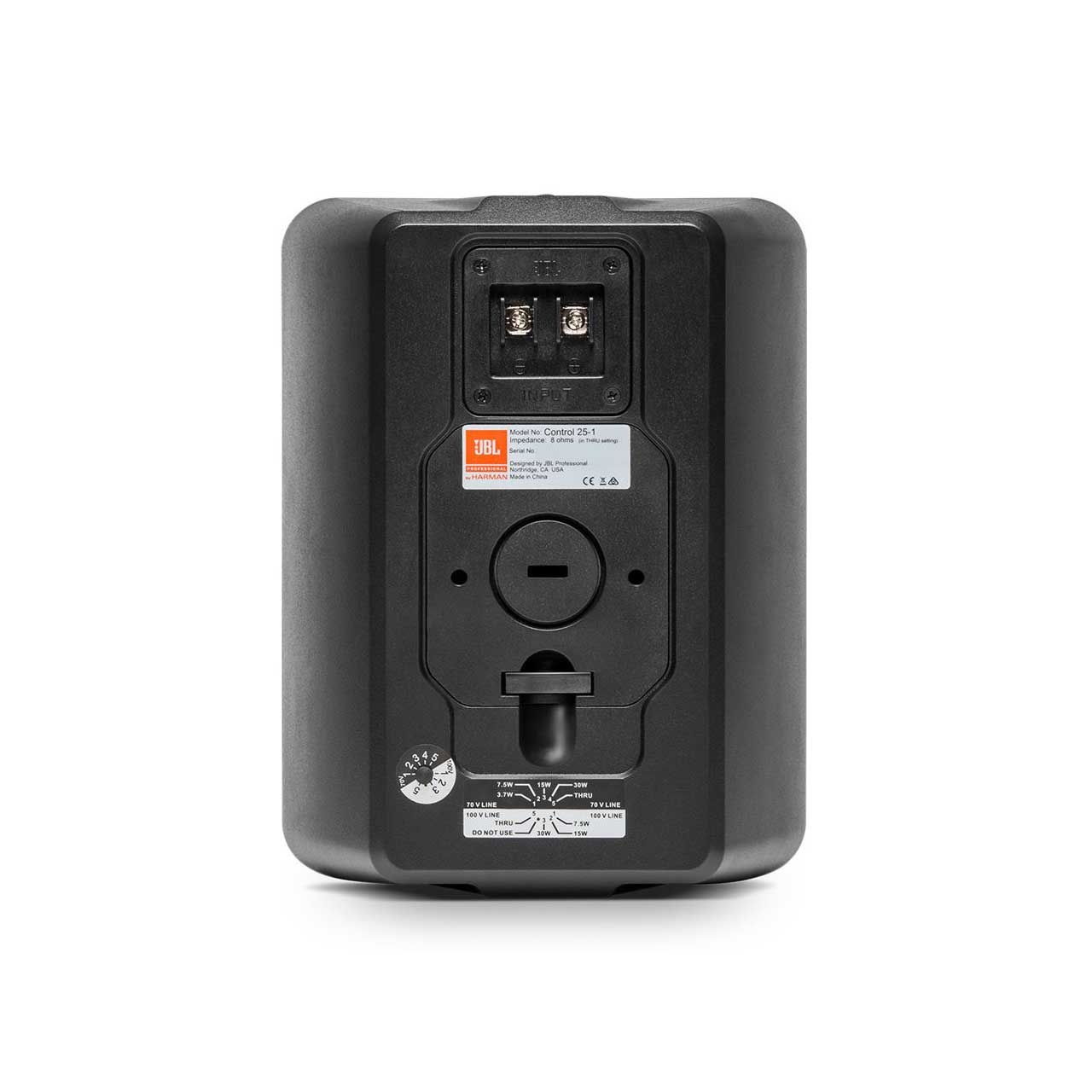

  • Termination: Screw-down terminal strip, zinc-plated copper based, nickel-plated metal screws and washers. Accepts up to 9 mm outside 4 mm inside open lugs (#6, #8, or #10 lug), plus bare wire (up to 12 AWG / 2.5 mm2). Optional MTC-PC2 and MTC-PC3 protective panel covers available to provide sealed entrance for additional weather protection
  • Agency Rating: ROHS-compliant
  • Colors: white
  • Dimensions (H x W x D): 243 x 188 x 145 mm (9.6 x 7.4 x 5.7 in); 203 mm (8.0 in) deep total when mounted on InvisiBall wall-mount bracket
  • Net Weight: 3.0 kg (6.7 lbs)


• Item Includes:

  • InvisiBall wall-mounting system
  • 6 mm x 100 mm hex key


• GTIN:

  0691991005121
