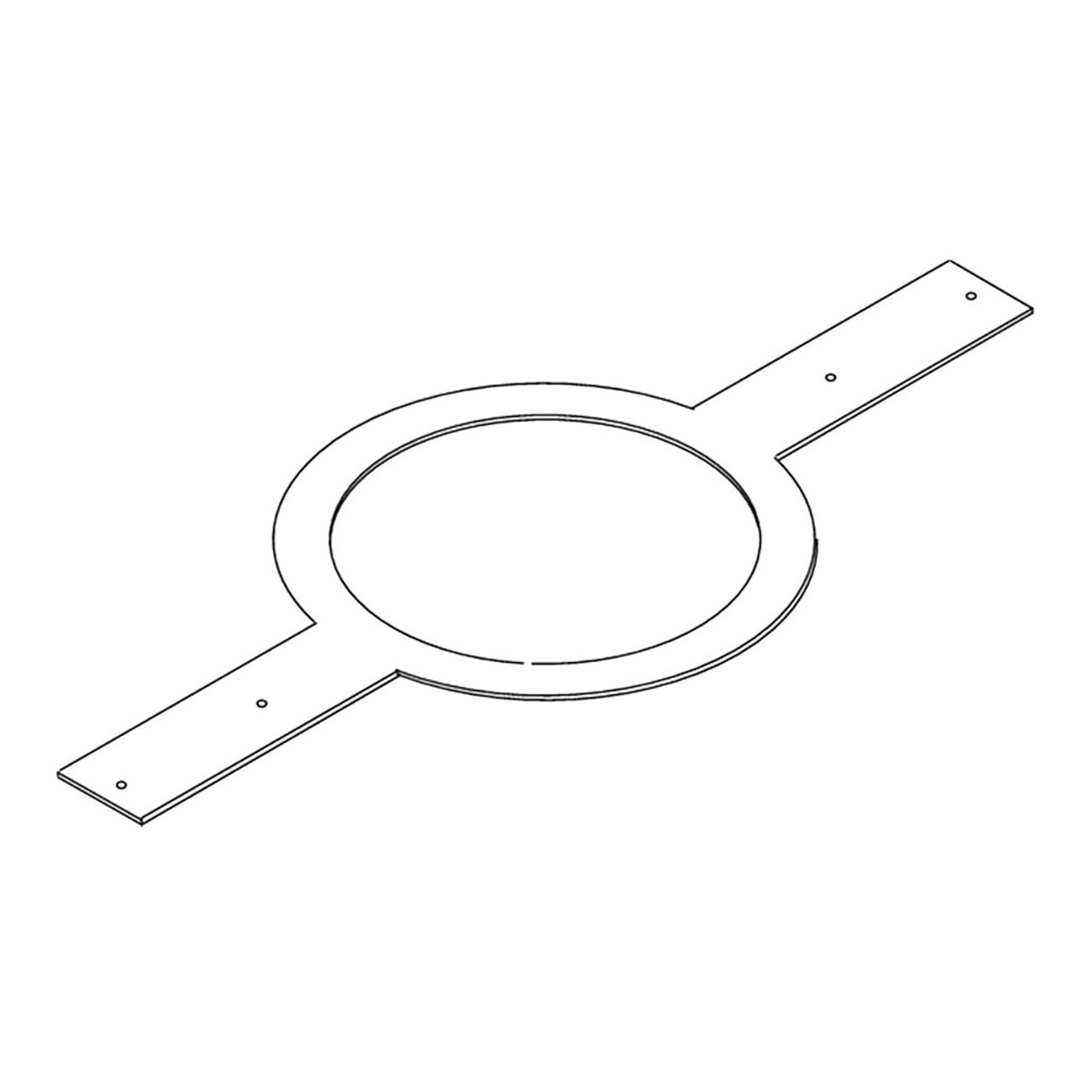

The JBL MTC-426NC NC NEW-CONSTRUCTION BRACKET is made of flat sheet metal, with wings to attach to the building structure. Holes are drilled for nails or screws at 16" (406mm) and 24" (610mm) on-center. Additional holes can be drilled by the installer at other spacings up to a maximum of 24-3/4" (630mm) apart. Sheetrock installs after the bracket gets installed, and the bracket provides a template for blind cutout of the hole in the sheetrock. For this process, the sheetrock is typically cut with a router-type cutting tool, using the bracket ring as a cutout guide.
This bracket will work for the Control 424LP, 426C/T, 426LP, and 426C/T-LS speakers.
