Juice Goose JG11.0-15A 19 Inch Rack Mounted Power Module - 11 Outlets/15A Capacity

ITEM #: JG-JG11-0-15A MFG #: JG11-0-15A

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

List Price:

$211.00

Our Price:

$179.00

Availability: In Stock
iAvailability Description Popup


JG11-0-15A - Overview

Power Distribution Center with 11 Outlets and 15 Amp Capacity
Fifteen Amp Connectivity with More Outlets: The 15 amp rating allows this unit to be plugged in anywhere. While the Juice Goose JG11.0-15A has less capacity than the stronger JG 11-20A, in many ways this unit is more versatile.

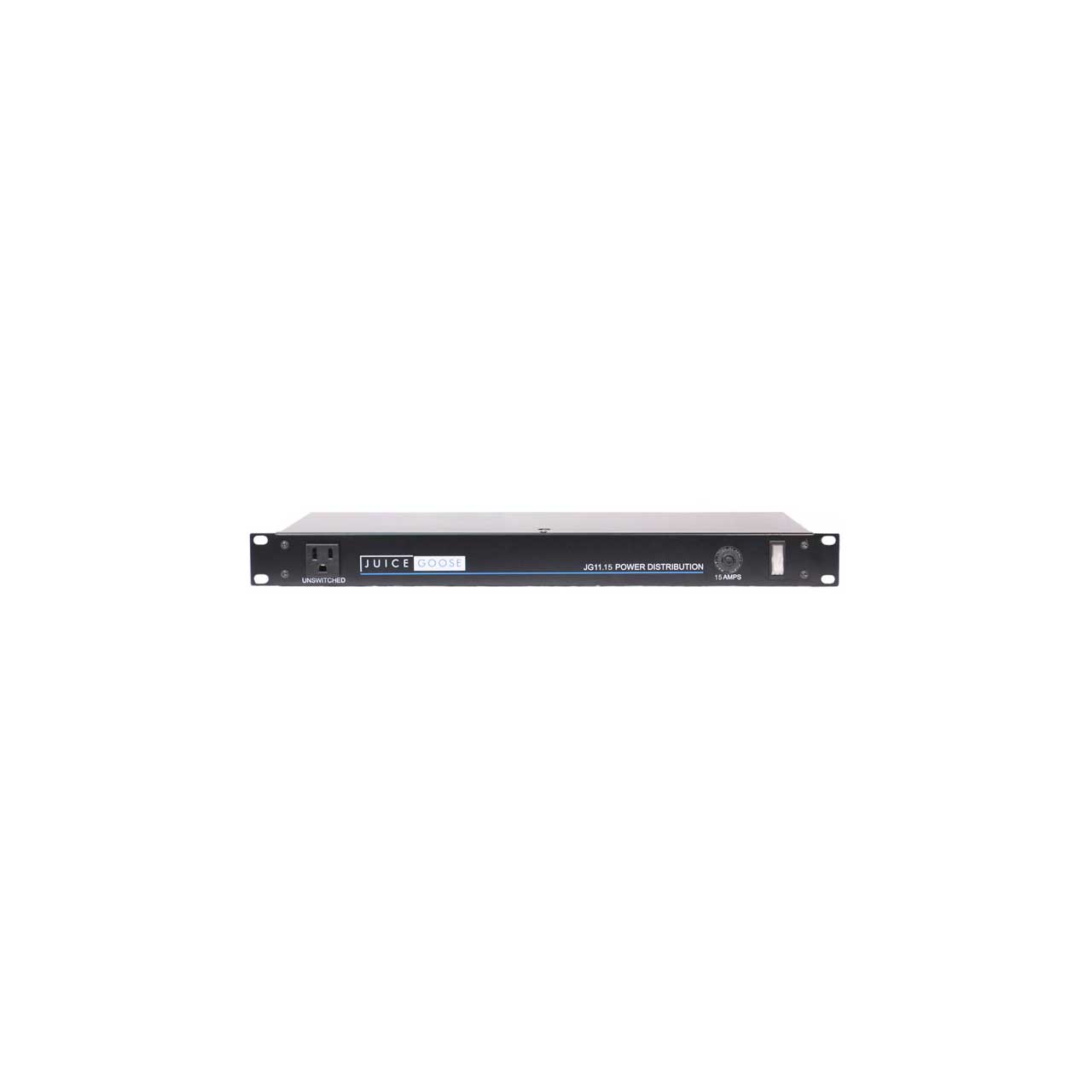

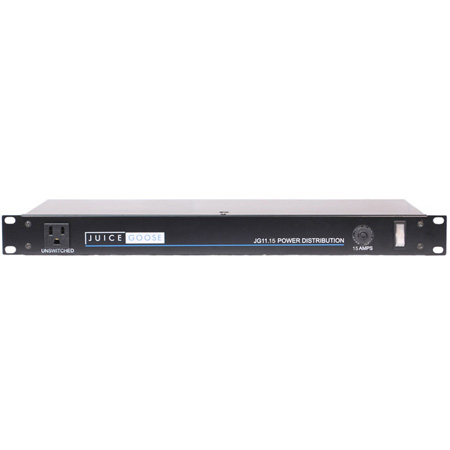

This very economical package has 11 AC receptacles with one unswitched on each the front and back. In addition, the JG 11-15A has a front mounted circuit breaker and a 15 foot long power cord to use in difficult to reach applications

JG SERIES (For Basic Requirements)
The JG Series family of power and light modules includes six high quality, economical models that are valuable accessories for any rack-mounted system. The switched outlets on the back of each unit provide power while the discreet components inside provide a basic level of protection to help clean up dirty and dangerous AC voltage.

The Basic power conditioning includes a fast-acting metal oxide varistor (MOV) installed to clamp voltage spikes running between the incoming line and neutral leads. This level of conditioning also includes a capacitor to reduce the level of AC line interference that may be transmitted between the line and neutral leads.

Please Note: The JG 11.0-20A and JG 11.0-15A (JG11) are designed to operate with 120VAC, 60 Hz. Operation with 220 or 240 volts will cause damage and possibly cause personal injury.

Made in America

  • Specifications:

    • Input voltage: 120vac, 60 Hz
    • Technical current capacity: 12 Amps
    • Current overload protection: 15 Amps
    • Power cord: 15 Amps, 15 foot 16/3 SJT with NEMA 5-15P Plug

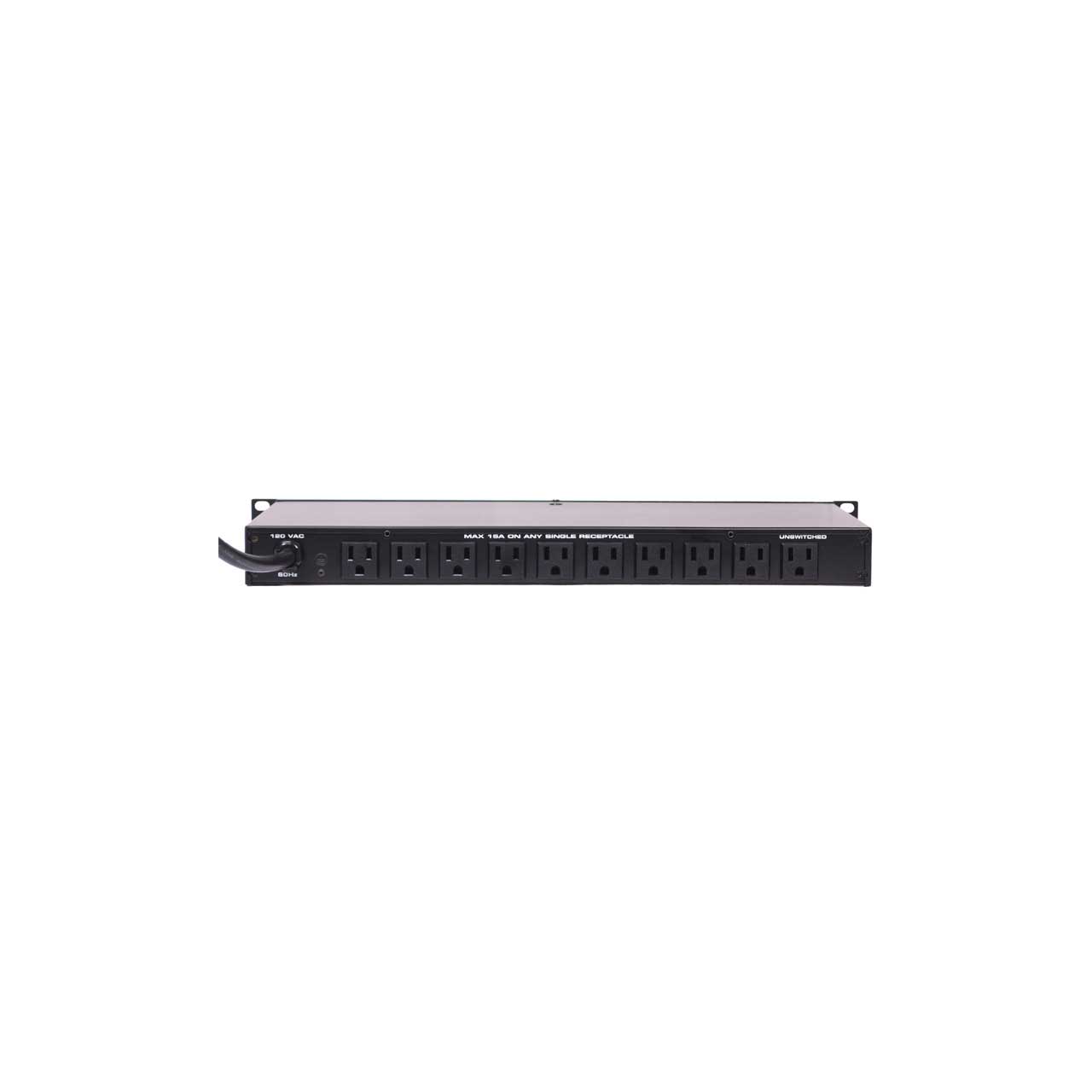

    • Power output receptacles: Nine NEMA 5-15 (back), one NEMA 5-15 (front)
    • AC line filtration: Line Capacitor (Line & Neutral)
    • Voltage spike protection: Metal Oxide Varistor (Line & Neutral)
    • Dimensions: 1.75H x 19W x 7D
    • Weight: 6.0 lbs

  • Warranty:

    • 3 Years

  • GTIN:

    0852560000354
