MultiDyne JUICE-48V External Power Supply with SMPTE-304M and two ST Connectors

ITEM #: JUICE-48VSPPST2F MFG #: JUICE-48V-SPPST2F

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

Our Price:

$2,495.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


JUICE-48V-SPPST2F - Overview

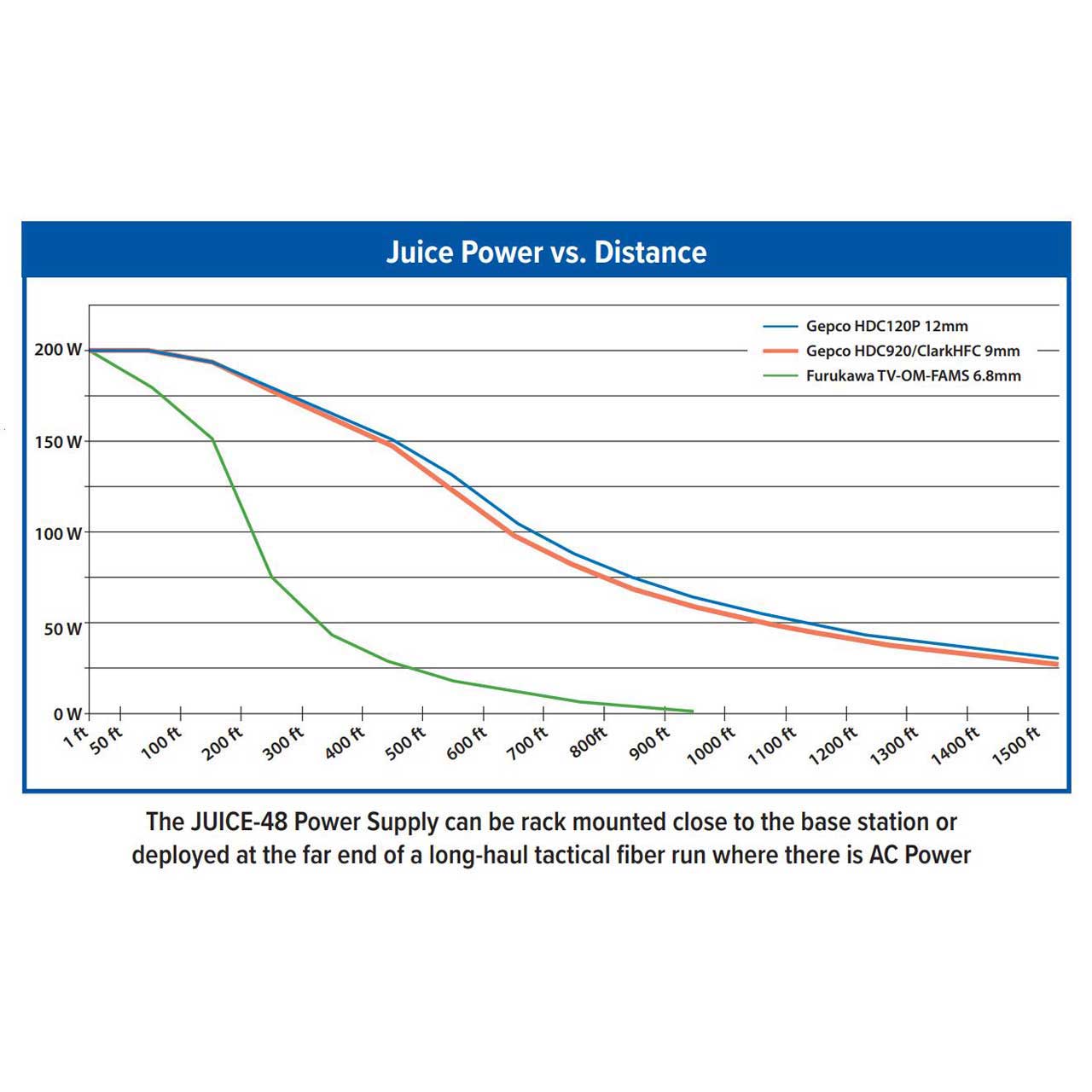

MultiDyne's JUICE-48 is a robust 48V portable power supply that allows users to send signals from a camera up to 300 meters without the need for local power or batteries.

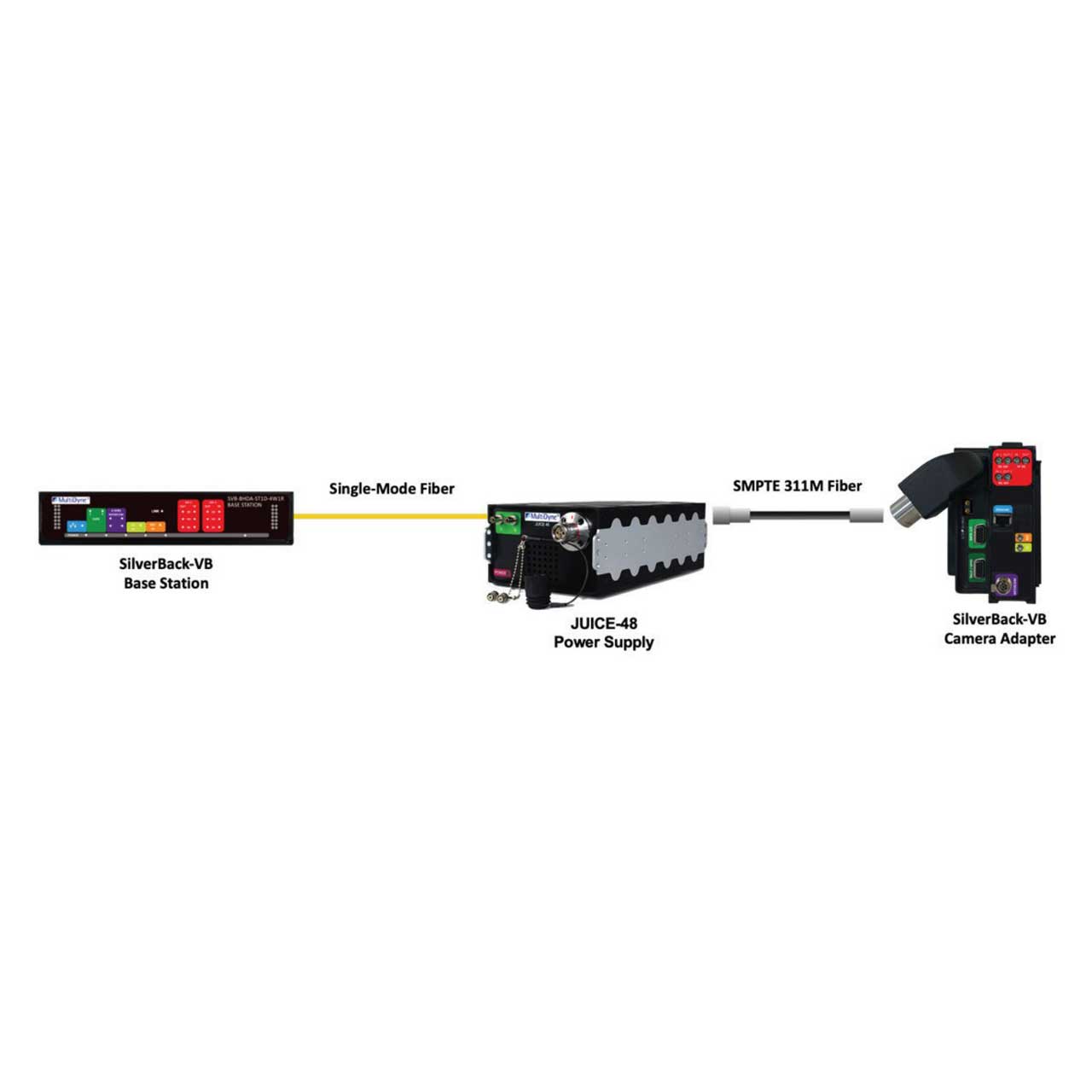

Pairing any of the MultiDyne SilverBack cameramounted transceiver products with a JUICE transmits any camera signal, including 12G-SDI video, audio, intercom, control data, GPIOs, tally, and power, making it the perfect solution for news, sports, ENG, D-SNG, OB, and multicamera studio applications.

Applications
Live Broadcast
Arenas and Stadiums
Shared Control Rooms
Campus Facilities


Please Note! Both the JUICE-48 and JUICE-60 are identical in form and function with the exception of the Power Output & DC Voltage difference.

  • Features:

    • Excellent Value
    • Compact Size
    • Rugged Aluminum Enclosure
    • Highest Quality Components

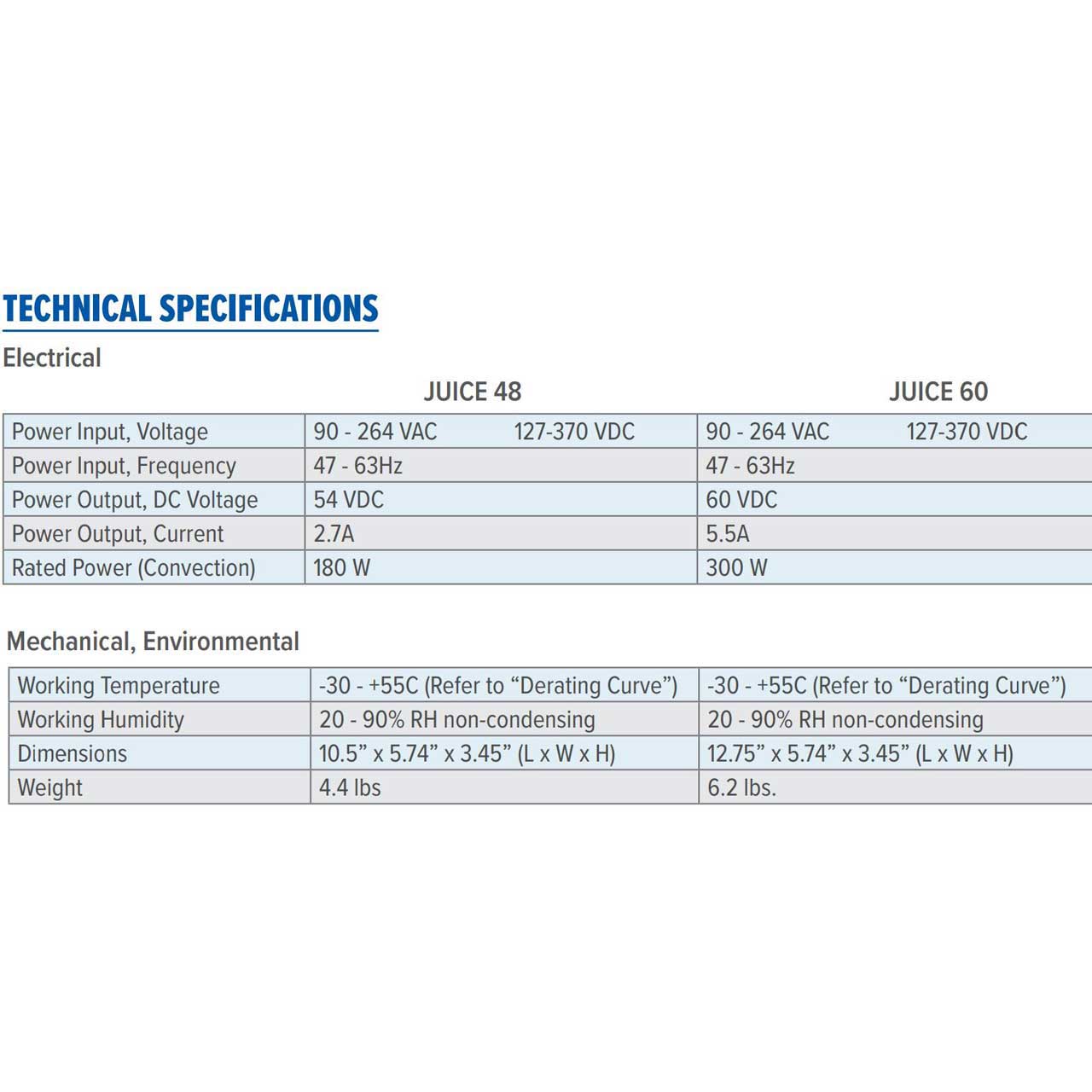

  • Specifications:

    • Power Input, Voltage: 90 - 264 VAC 127-370 VDC
    • Power Input, Frequency: 47 - 63Hz
    • Power Output, DC Voltage: 54 VDC
    • Power Output, Current: 2.7A
    • Rated Power (Convection): 180W
    • Working Temperature: -30 - +55C (Refer to "Derating Curve")
    • Working Humidity: 20 - 90% RH non-condensing 20 - 90% RH non-condensing
    • Dimensions: 10.5" x 5.74" x 3.45" (L x W x H)
    • Weight: 4.4 lbs

  • Item Includes:

    • 1x MultiDyne JUICE-48V External Power Supply with SMPTE-304M and two ST Connectors
