KanexPro EXT-USB3100M USB 3.0/HDBaseT Extender over CAT6 - 328 Feet / 100 Meter Transmission Distance

Name: KanexPro EXT-USB3100M USB 3.0/HDBaseT Extender over CAT6 - 328 Feet / 100 Meter Transmission Distance
Brand: KanexPro
SKU: KAN-EXT-USB3100M
Price: 399.95 USD
Availability: PreSale

ITEM #: KAN-EXT-USB3100M MFG #: EXT-USB3100M

KanexPro

Our Price:

$399.95

Add to Wish List Leasing Options

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

EXT-USB3100M - Overview

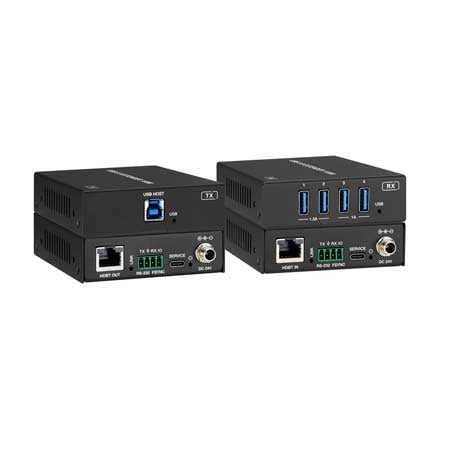

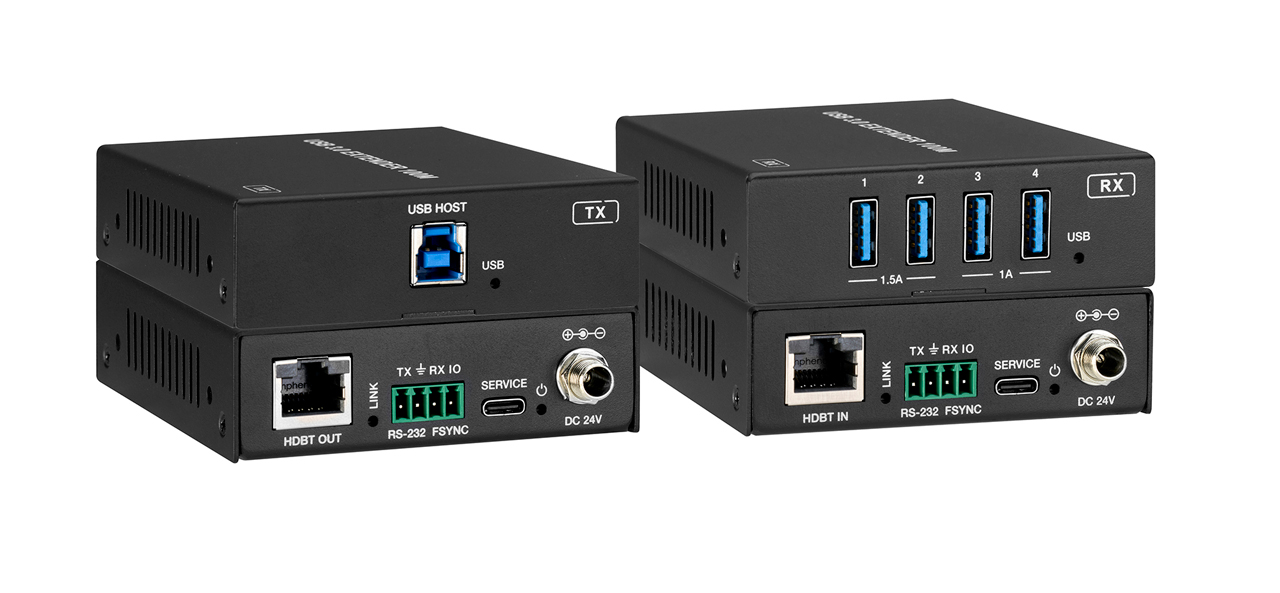

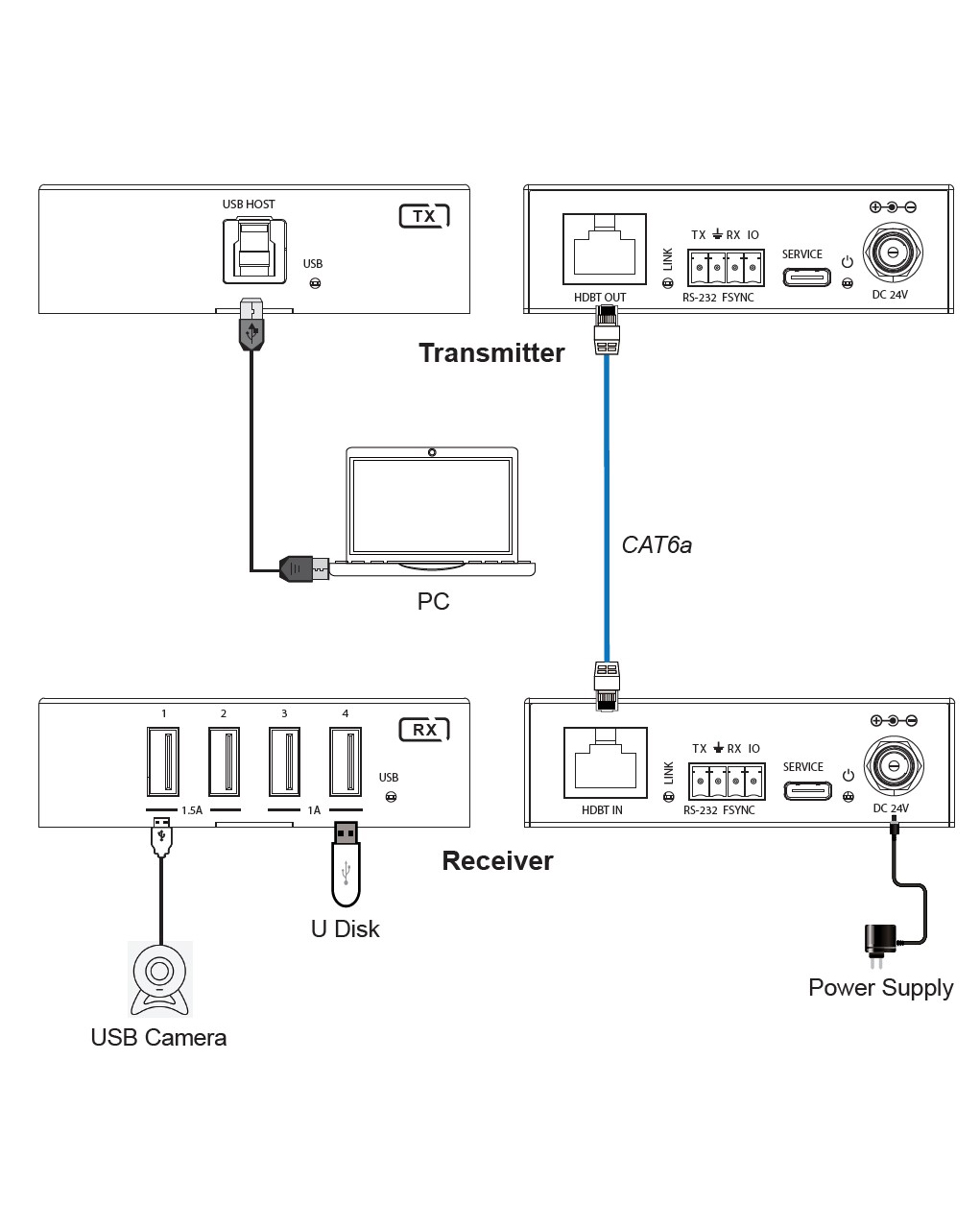

Unlock USB 3.0 potential with KanexPro's EXT-USB3100M USB 3.0/HDBaseT Extender. Stretch your connectivity up to 100m (about 328.08 ft) over CAT6a cable, with speeds reaching 5Gbps. Seamless backward compatibility with USB 2.0 and 1.1. Experience hassle-free plug-and-play setup-no drivers needed. The transmitter features one USB 3.0 Type B input, one FSYSNC GPIO input and one RS-232 pass-through. The receiver features four USB 3.0 Type A outputs, one FSYSNC GPIO output and one RS-232 pass-through. Bi-directional 24V PoC is also supported. It can be widely used for long distance signal transmission between a PC and USB devices.

Features:
- USB 3.0 connectivity with data transfer rate up to 5Gbps
- Backwards compatible with USB 2.0 and 1.1
- Hardware acceleration for isochronous and bulk transfer
- Extension of USB 3.0 up to 100m/328ft over CAT6a cable
- USB-A port 1 and 2 support 5V/1.5A, port 3 and 4 support 5V/1A on the Receiver
- Simple plug and play, no driver and setting installation needed
- Support RS-232 pass-through and FSYNC GPIO pass-through (for industry camera use)
- Support bi-directional 24V PoC (Power Over CAT)
- Simple plug and play, no driver and setting installation needed
Specifications:
- USB Protocol: USB3.0
- Transfer Rate: Up to 5Gbps
- Network Bandwidth: 10Gbps
- Transmission Distrance: 328ft (100m) over CAT6a (F/FTP) cable
- Transmitter:
  - Input: 1x USB HOST [USB-B, 9pin Female]
  - Output: 1x HDBT OUT [RJ45, Female]
  - Control: 1x RS-232 [3pin-3.5mm Phoenix Connector]
  - 1x FSYNC [1pin-3.5mm Phoenix Connector]
  - 1x SERVICE [USB-C, Update Port]
- Receiver:
  - Input: 1x HDBT IN [RJ45, Female]
  - Output: 4x USB Devices [USB-A, 9pin Female]
  - Control: 1x RS-232 [3pin-3.5mm Phoenix Connector]
  - 1x FSYNC [1pin-3.5mm Phoenix Connector]
  - 1x SERVICE [USB-C, Update Port]
- Housing: Metal Enclosure
- Color: Black
- Dimensions (WxDxH)(Tx/Rx): 3.34" x 3.93" x 1" (85mm x 100mm x 25.5mm)
- Weight:
  - Transmitter: 0.55lbs (253g)
  - Receiver: 0.57lbs (260g)
- Power Supply:
  - Input: AC 100-240V 50/60Hz
  - Output: DC 24V/2A
- Power Consumption: PoC Power Supply: 40W Max
- Operating Temperature: 32°F - 104°F (0°C - 40°C)
- Storage Temperature: -4°F - 140°F (-20°C - 60°C)
- Relative Humidity: 20% - 90% RH (non-condensing)
Item Includes:
- 1x USB 3.0 Extender (Transmitter)
- 1x USB 3.0 Extender (Receiver)
- 1x 24V/2A Locking Power Supply
- 2x 4pin-3.5mm Phoenix Connector (Male)
- 4x Mounting Ear
- 8x Machine Screw (KM3*4)
- 1x User Manual
Warranty:
- 3 Year Limited Warranty
