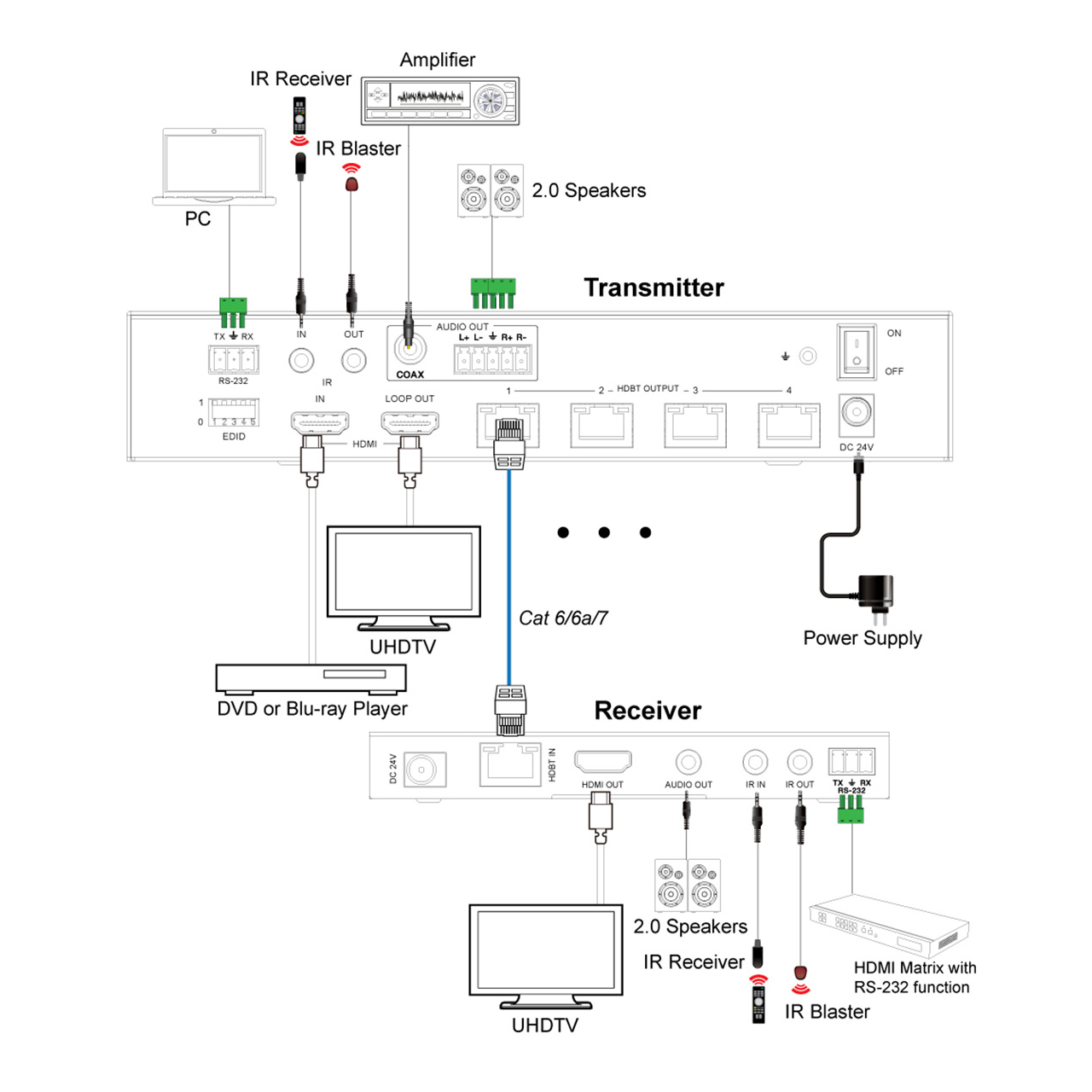

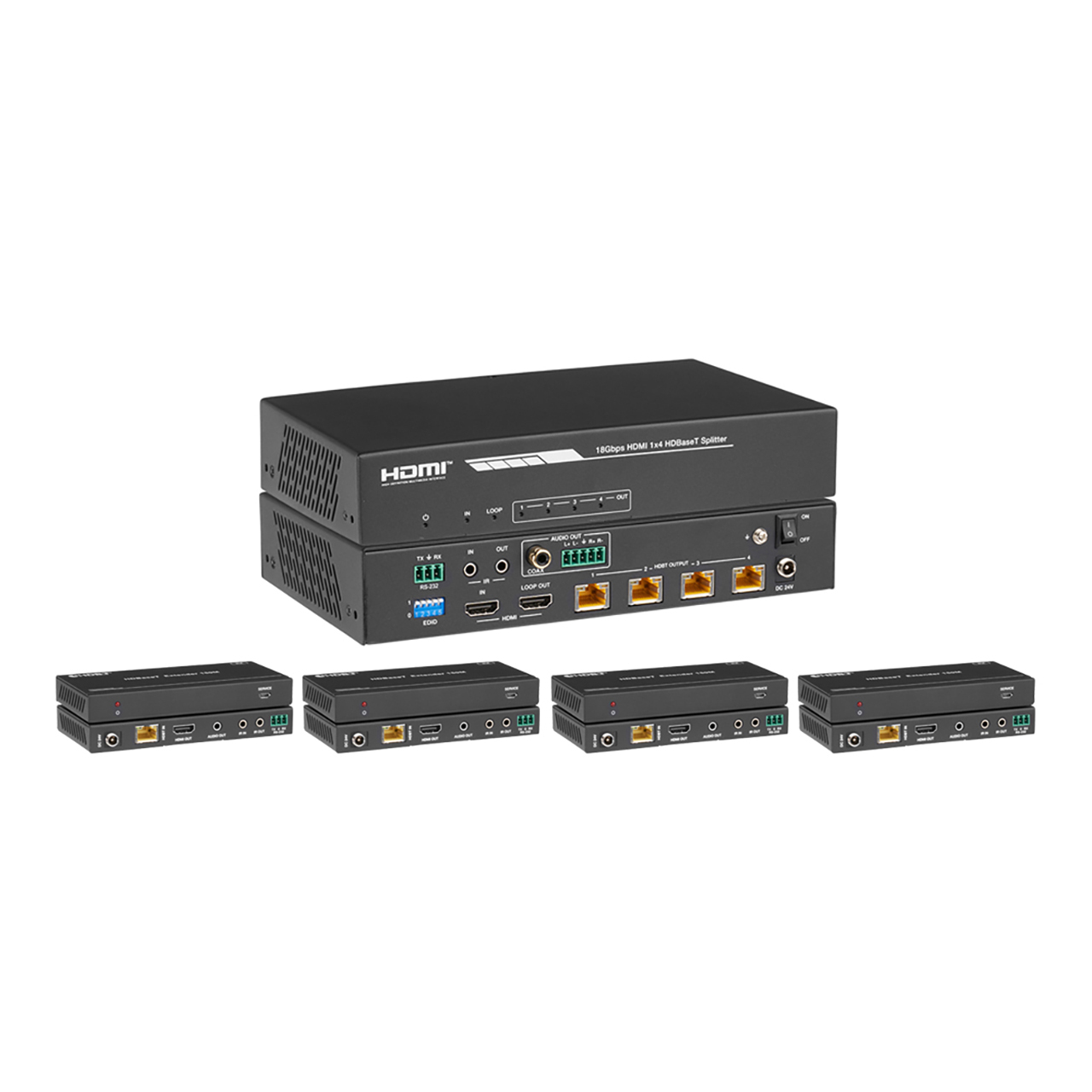

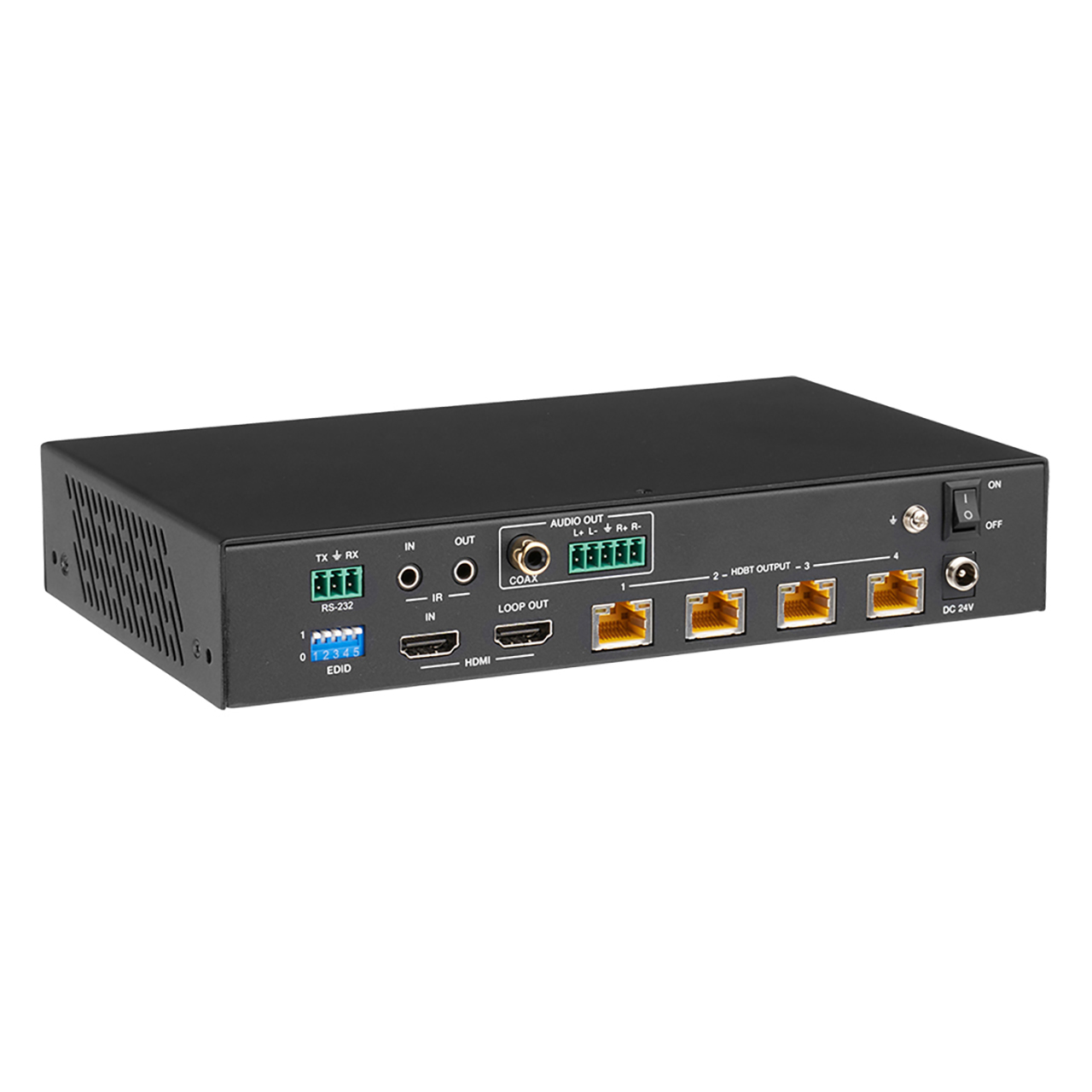

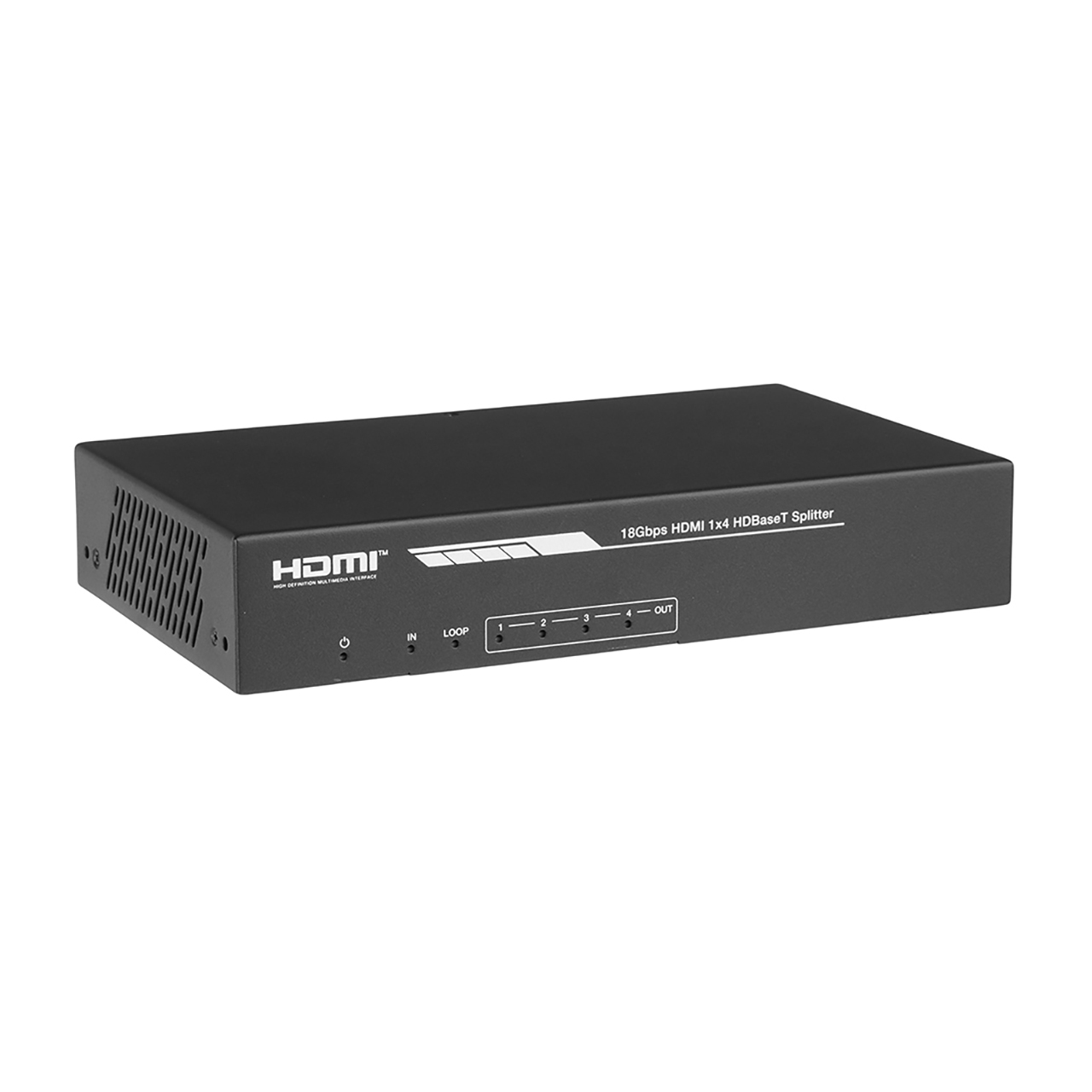

The KanexPro SP-1X4HD 18Gbps HDMI 1x4 Premium Extender Splitter can extend and distribute a single high definition video / audio source at distances up to 492ft / 150 meters between transmitter and up to four (4) receivers via a single CAT cable to any of the four (4) display devices. Support video resolution up to 4K2K@60Hz 4:4:4. It is designed with 1 HDMI loop output and 4 Cat5/6 outputs. The HDMI signal transmission distance can be extended up to 393ft / 120 meters at the resolution of 4K@60Hz, or 492ft / 150 meters at 1080P@60Hz via a single CAT6/ 6a/7 cable. The product supports IR and RS-232 signal pass-through, audio extract function and advanced EDID management. Receivers are remotely powered by the transmitter unit via POC (Power over Cable) technology.
Industry Standard HDCP 2.2 & 4K/60
HDCP 2.2 authentication is present always on KanexPro extenders ensuring proper handshake of the protected content. It also maintains resolutions up to 4K - 4096x2160@24, 30, 50 or 60Hz, 3840x2160@ 24, 25, 30, 50 or 60Hz and 2560x1080@60Hz displaying 21:9 aspect ratios. 1920 x 1200 or full HD 1080p/60 is a standard.
Applications:
Ideal for use with court rooms, classrooms, conference rooms or showrooms where audio-visual and control devices can be extended from a remotely located HDMI sources. With an 150m/492ft extender distance capability, this kit can extend at distances that are 50% longer than the leading industry (100m) extenders.
- Professional Performance: Built to commercial standards, KanexPro products offer premium features like locking power connectors, metal enclosures, and passive cooling designs which are a must for long term reliable and stable installations.
- Lecture hall installations: Connect HDMI computers or video processors to a transmitter and connect to an overhead projector or display that requires the cabling to run a very long distance or across rooms.
- House of Worship: The long distance extenders allow for audio video signals to be extended from the pulpit to the front of house which would require very long lengths of cabling.
- Reduce Complexity: Because the extender kit allows for transmission of Full HD video at distances up to 492ft, there is less need for video repeaters or additional equipment to make the long distance run to the display or sink device.
