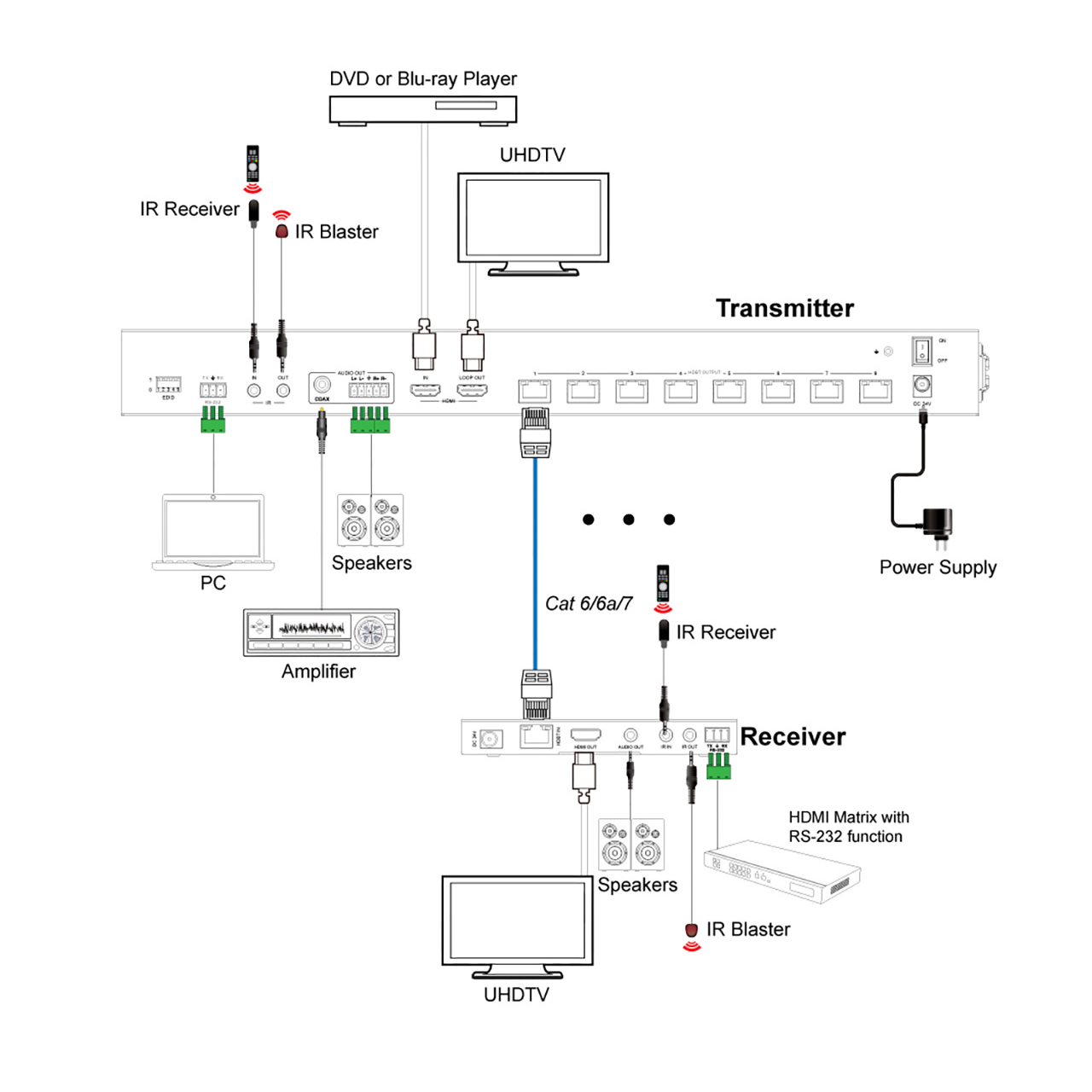

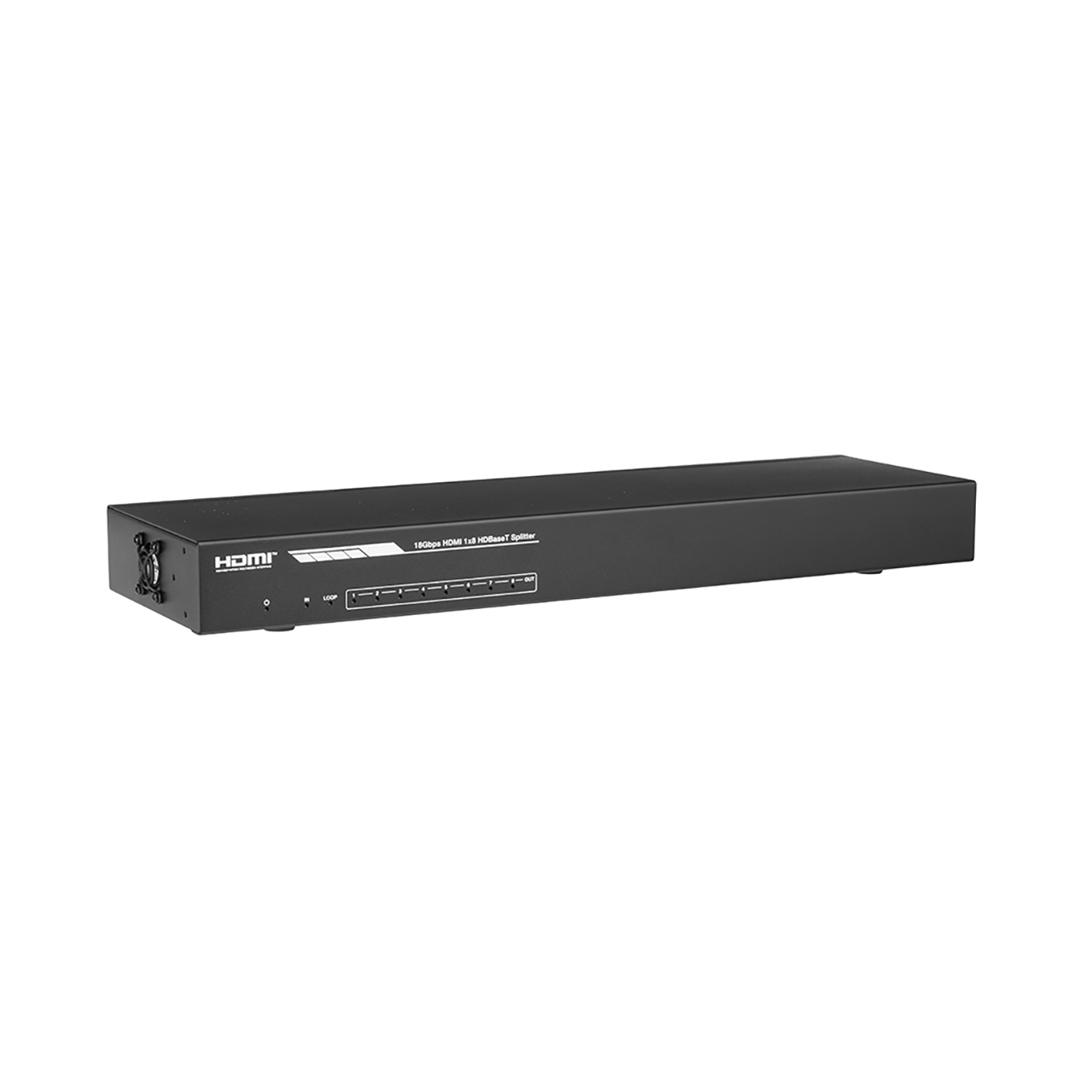

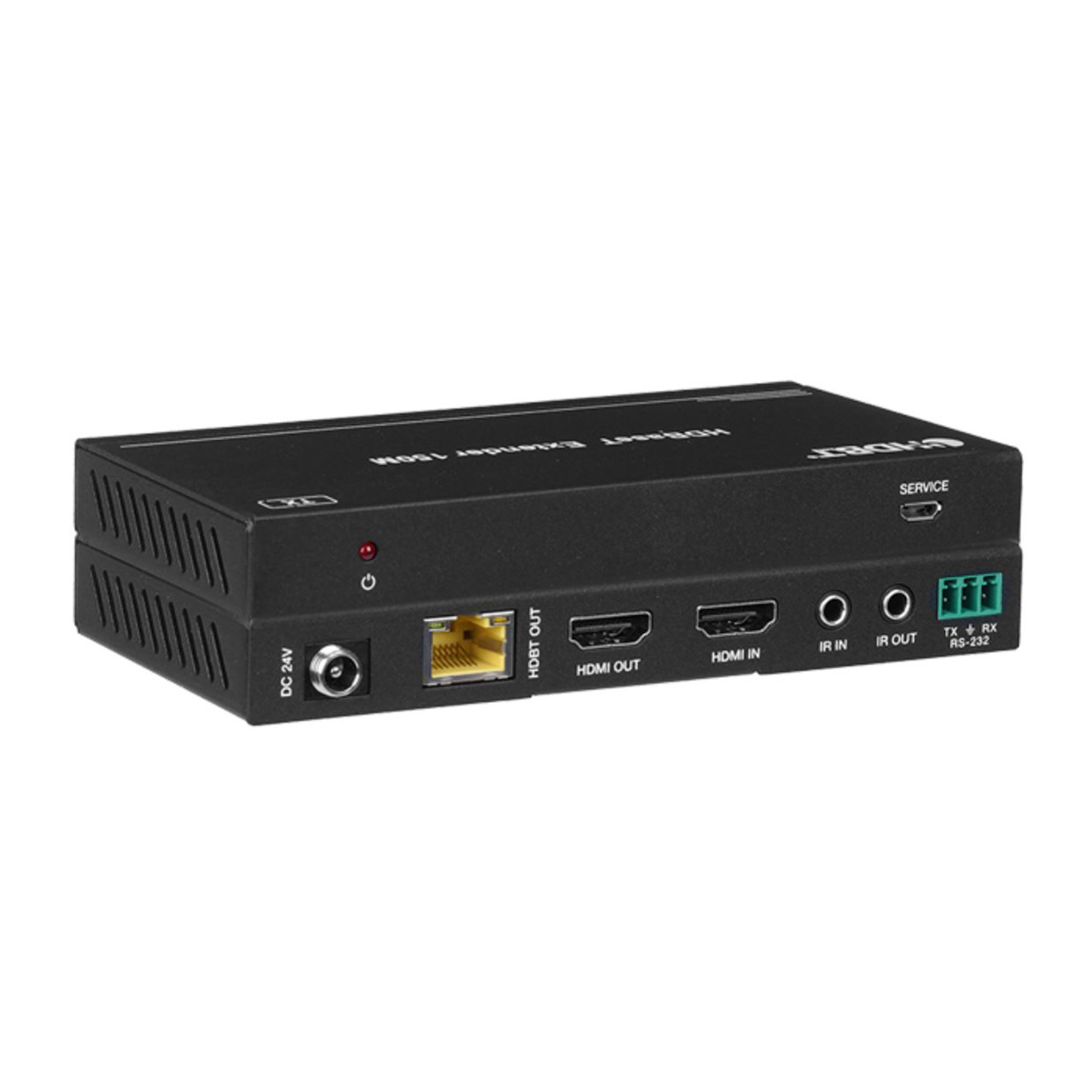

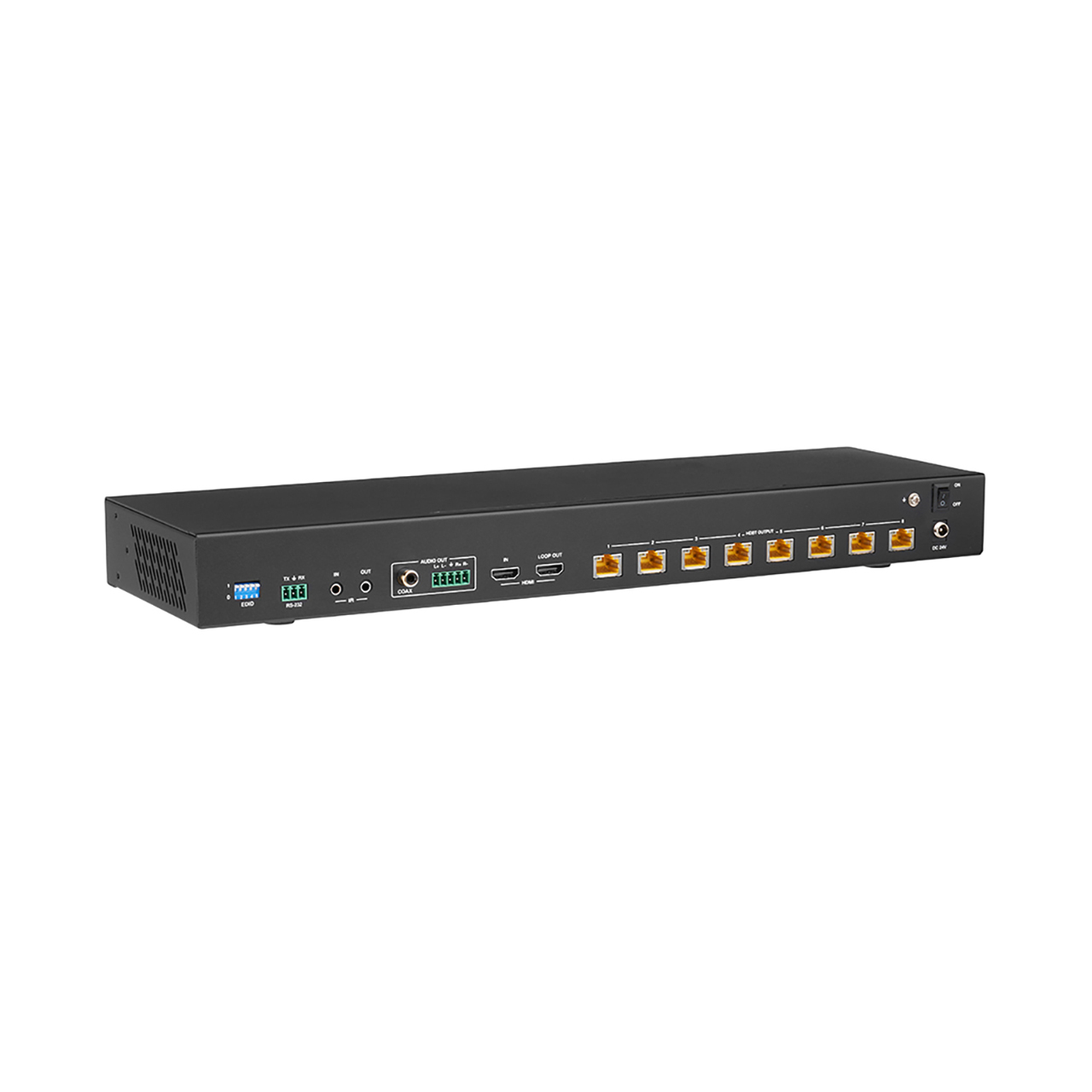

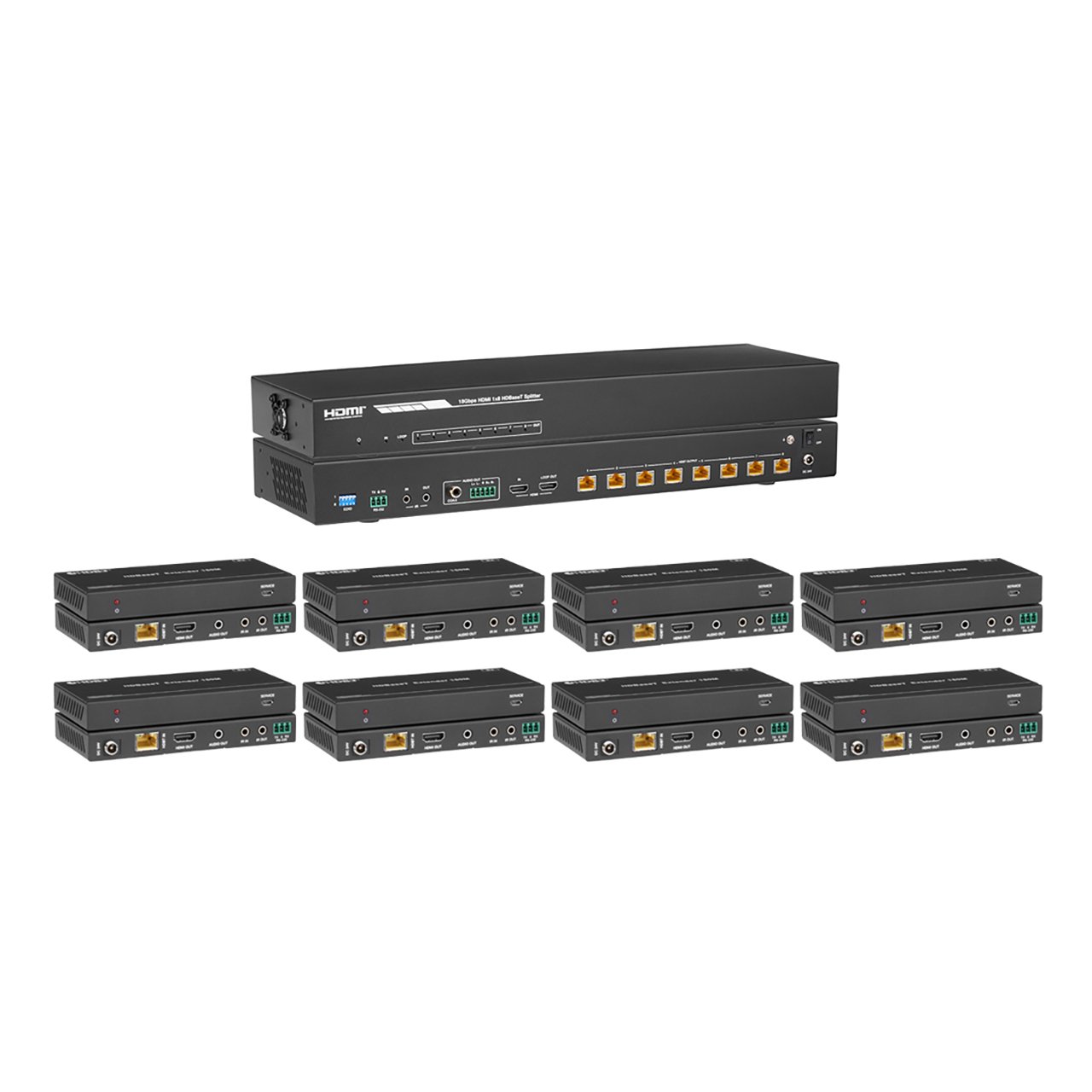

The KanexPro SP-1X8HD 18Gbps HDMI 1x8 Premium Extender Splitter can extend and distribute a single high definition video / audio source at distances up to 492ft between transmitter and up to eight (8) receivers via a single CAT cable to any of the eight (8) display devices. Support video resolution up to 4K2K@60Hz 4:4:4. It is designed with 1 HDMI loop output and 8 Cat5/6 outputs. The HDMI signal transmission distance can be extended up to 394ft at the resolution of 4K@60Hz, or 492ft meters at 1080P@60Hz via a single CAT6/ 6a/7 cable.
The product supports IR and RS-232 signal pass-through, audio extract function and advanced EDID management. Receivers are remotely powered by the transmitter unit via POC (Power over Cable) technology.
Industry Standard HDCP 2.2 & 4K/60
HDCP 2.2 authentication is present always on KanexPro extenders ensuring proper handshake of the protected content. It also maintains resolutions up to 4K- 4096x2160@24, 30, 50 or 60Hz, 3840x2160@24, 25,30, 50 or 60Hz and 2560x1080@60Hz displaying 21:9 aspect ratios. 1920 x 1200 or full HD 1080p/60 is a standard.
Applications:
Ideal for use with court rooms, classrooms, conference rooms or showrooms where audio-visual and control devices can be extended from a remotely located HDMI sources. With a 492ft extender distance capability, this kit can extend at distances that are 50% longer than the leading industry (328ft) extenders.
