SP-HD1X28K - Overview

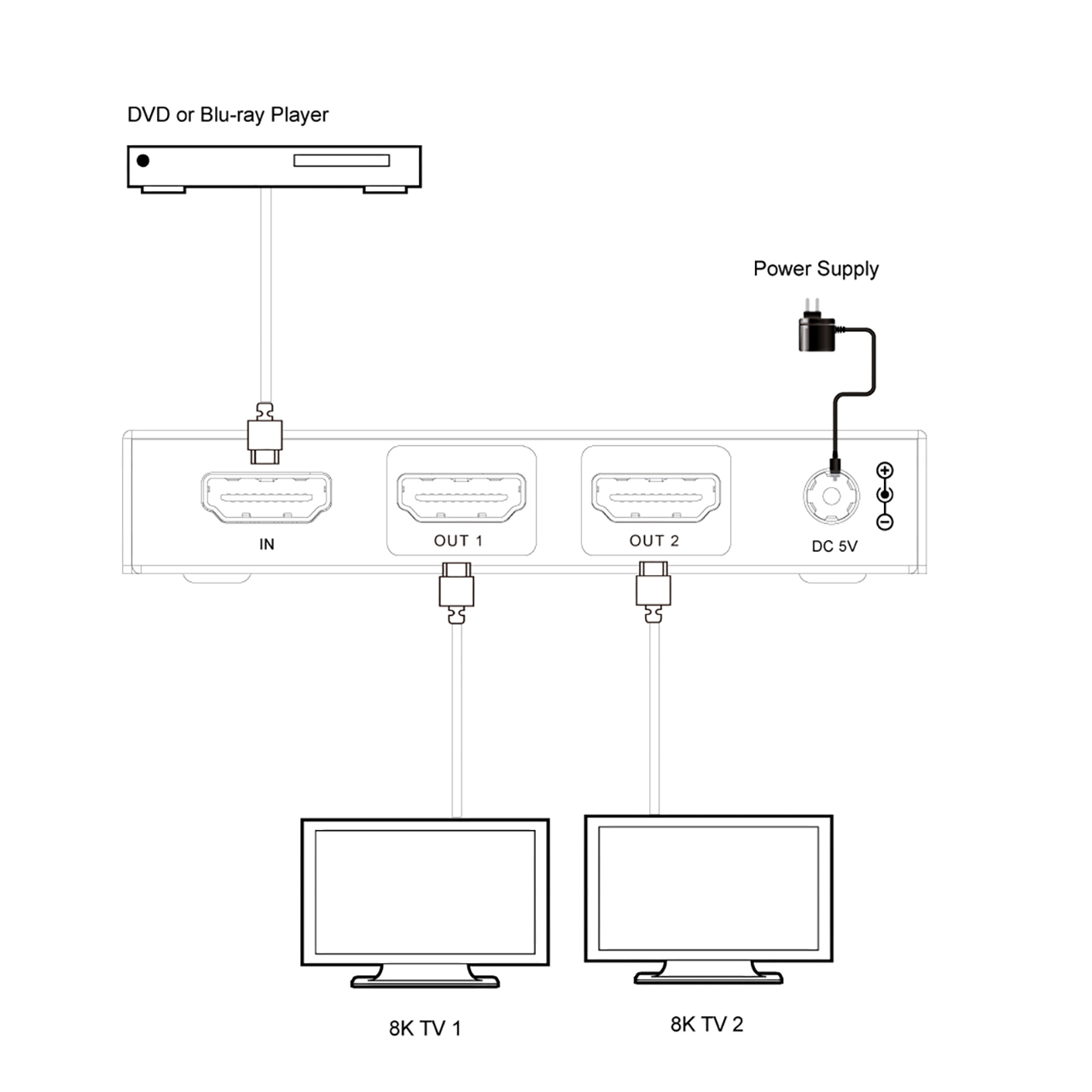

The KanexPro SP-HD1X28K 1x2 splitter is an advanced solution for splitting a single HDMI signal into 2 HDMI outputs synchronously, with video resolution up to 8K@60 4:2:0 12bit.

It supports data rates up to 48Gbps to comply with HDMI 2.1 and HDCP 2.3 requirements. It includes several features for ease of integration, including EDID management, cable equalization.

This multi-functional product can work well with xbox or PS5 to achieve 4K@120Hz on your TVs or relative monitors.

Elevate your viewing experience with KanexPro's 8K HDMI Splitter. From 8K@60Hz to 1080P, enjoy flexible resolutions with HDR pass-through and auto downscaling. Plus, advanced EDID management ensures best compatibility.

Applications:
- Home Theater Systems
- Gaming
- Professional AV Installations
- Broadcasting and Live Events
- Multi-Room AV Systems
- Education and Lecture Halls
- Corporate Events and Trade Shows
- Live Streaming Studios
- Retail Displays
- Testing and Evaluation

  • Features:

    • HDCP 2.3 compliant
    • Support 48Gbps FRL and 18Gbps TMDS video bandwidth
    • Support video resolution up to 8K@60Hz 4:2:0 12bit, 4K@120Hz 4:4:4 12bit, as specified in HDMI 2.1
    • HDMI 2.1 protocols: VRR, ALLM, QMS, QFT, SBTM are supported
    • Support HDR, HDR 10, HDR 10+, Dolby Vision, HLG pass-through
    • LPCM 7.1CH, Dolby TrueHD, Atmos and DTS-HD Master, DTS:X Audio pass-through

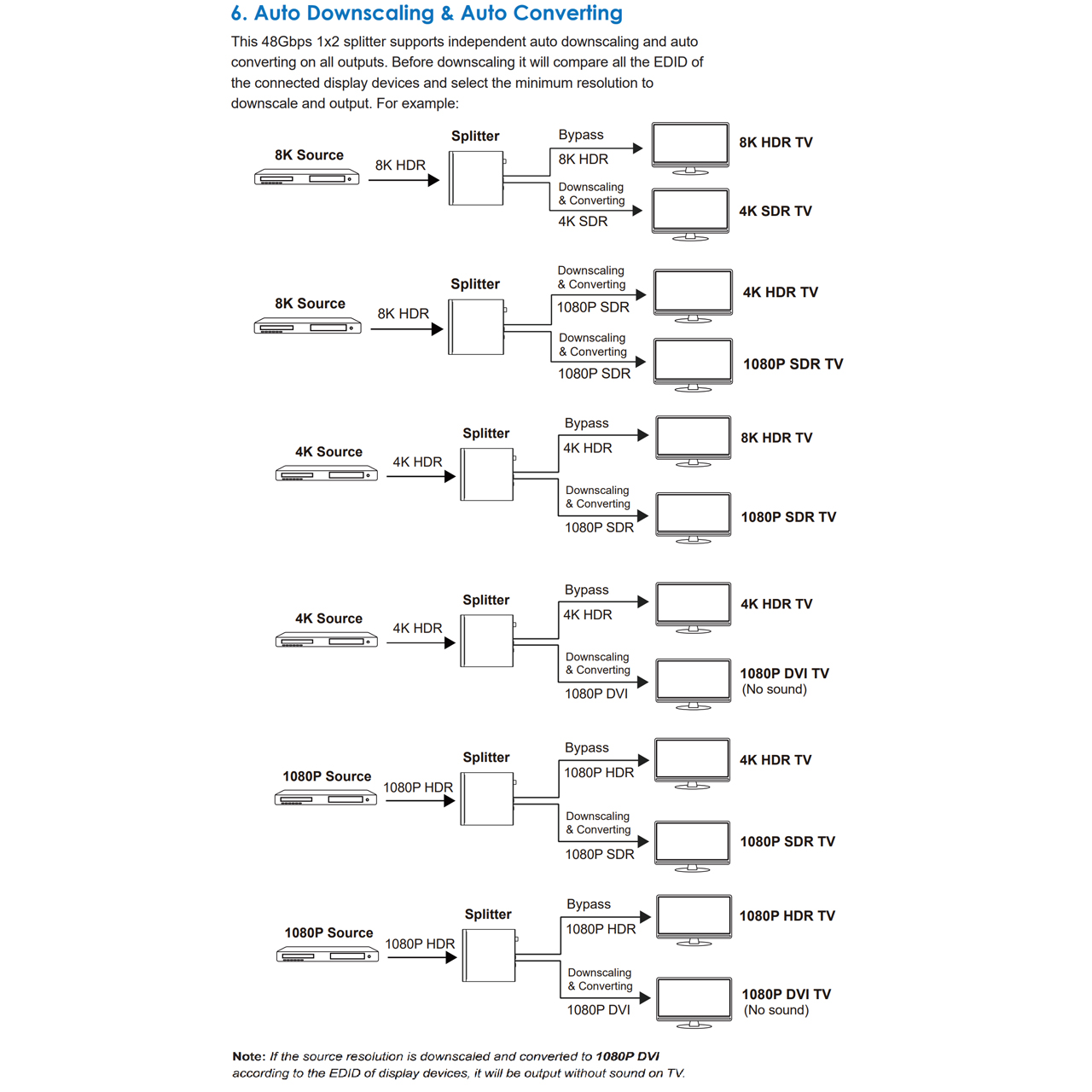

    • 8K to 4K or 8K/4K to 1080P auto downscaling on all outputs
    • HDR to SDR auto converting on all outputs
    • Advanced EDID management
    • Compact design for easy and flexible installation


  • Specifications:

    • HDMI Compliance: HDMI 2.1
    • HDCP Compliance: HDCP 2.3
    • Video Bandwidth: 48Gbps FRL and 18Gbps TMDS
    • Video Resolution: Up to 8K @ 60Hz 4:2:0 12bit, 4K @ 120Hz 4:4:4 12bit
    • Color Depth: 8/10/12-bit
    • Color Space: RGB, YCbCr_4:4:4, YCbCr_4:2:2, YCbCr_4:2:0
    • Audio Formats: HDMI input/output: LPCM, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
    • HDR: HDR, HDR10, HDR10+, Dolby Vision, HLG
    • ESD Protection: IEC 61000-4-2: ±8kV (Air-gap discharge) & ±4kV (Contact discharge)

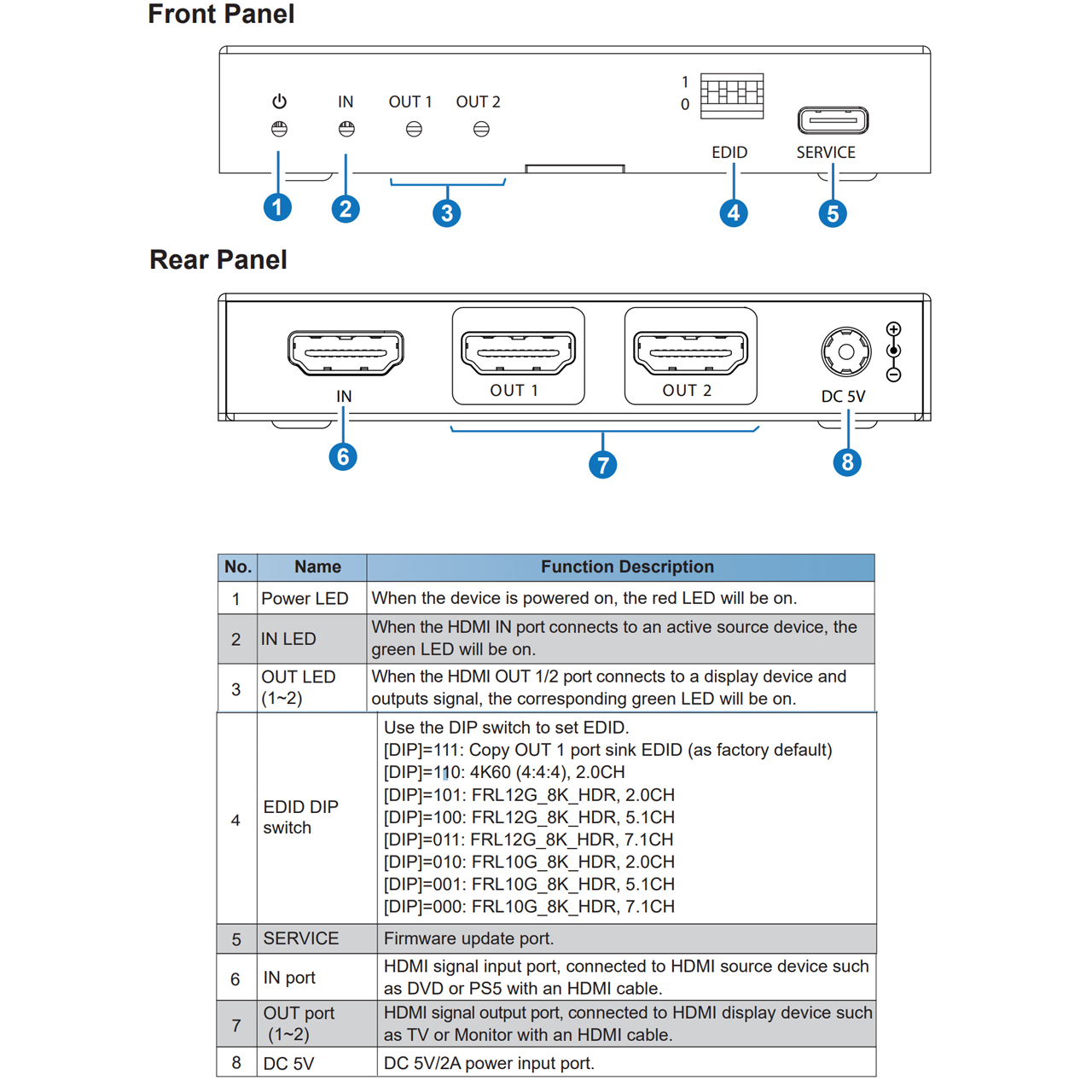

    • Input: 1x HDMI IN [Type A, 19-pin female]
    • Output: 2x HDMI OUT [Type A, 19-pin female]
    • Control: 1x SERVICE [USB Type C, Update port]
    • Housing: Metal Enclosure
    • Color: Black
    • Dimensions: 3.74" x 2.68" x 0.71" (95mm x 68mm x 18mm)
    • Weight: 0.39lbs (177g)
    • Power Supply:
      - Input: AC 100V - 240V 50/60Hz
      - Output: DC 5V/2A (US/EU standards, CE/FCC/UL certified)
    • Power Consumption: 4.3W Max
    • Operation Temperature: 32°F - 104°F (0°C - 40°C)
    • Storage Temperature: -4°F - 140°F (-20°C - 60°C)
    • Relative Humidity: 20% - 90% RH (non-condensing)


  • Item Includes:

    • 1x 48Gbps 1x2 Splitter
    • 1x 5V/2A Multinational Power Supply
    • 1x User Manual


  • GTIN:

    0813982023598
