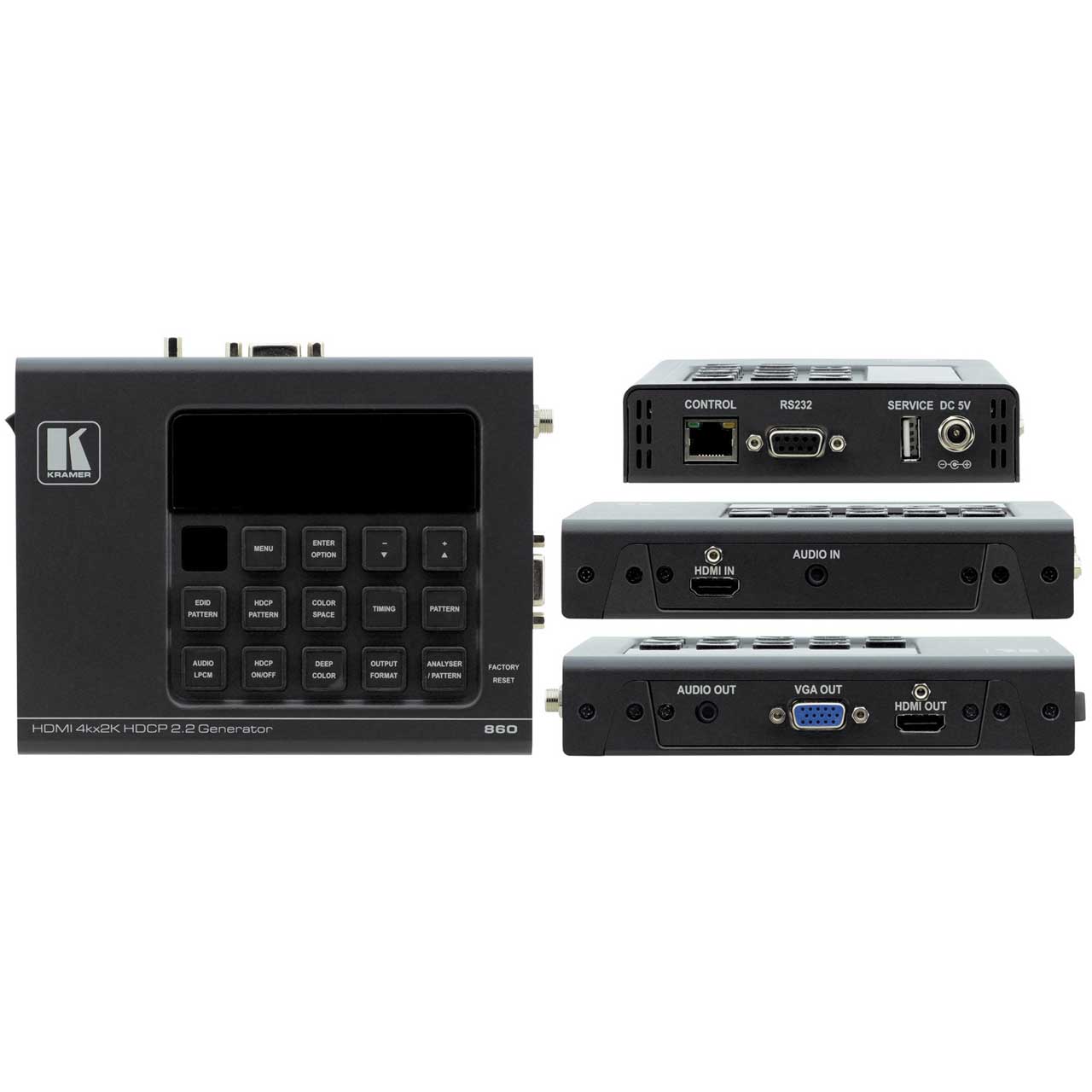

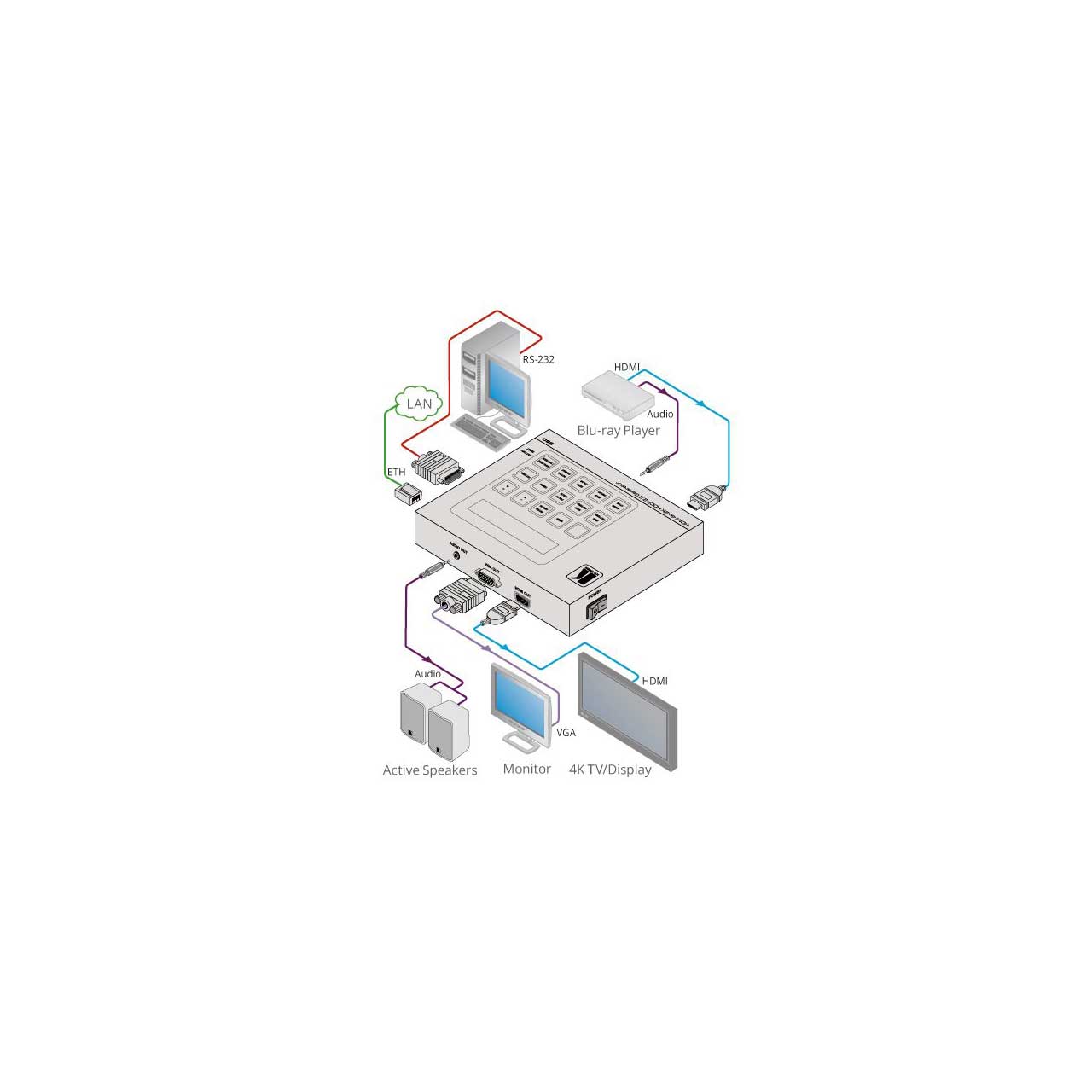

Kramer 860 18G 4K HDR Signal Generator & Analyzer

860 - Overview

• Features:

  • Max. Resolution - 4K@60Hz (4:4:4).
  • HDMI Support - HDR10 (on input), xvYCC color (on input), Dolby TureHD/DTS-HD Master Audio (by-pass), Dolby Vision (on input) as specified in HDMI 2.0.
  • Standards Compliance - DVI 1.0 and HDCP 1.4/2.2.
  • Data Path Analysis - Source and sink up to 18G HDMI signals (6G per graphic channel).
  • Analysis of HDMI Data Packet.
  • Analysis & Control of HDCP v1.4 and v2.2.
  • Analysis & Emulation of EDID Data - Including SCDC.
  • Analysis of Input Audio Signals.
  • HDR Bypass & Analysis Support.
  • HDMI Timing Generation - Up to 4096x2160 @60Hz (4:4:4), 8-bit.
  • Heavy-duty, waterproof, padded protective case included.
  • VGA Output Supports - 350p, 480p, 576p, 720p, 1080i, 1080p, 640x480, 800x600, 1024x768, 1280x1024, 1366x768, 1400x1050, 1440x900, 1600x900 (Reduced Blanking; RB), 1600x1200, 1680x1050, 1920x1200 (RB), 2048x1080p.
  • HDMI Output Supports - 350p, 480p, 576p, 720p, 1080i, 1080p, 640x480, 800x600, 1024x768, 1280x1024, 1366x768, 1400x1050, 1440x900, 1600x900 (RB), 1600x1200, 1680x1050, 1920x1200 (RB), 3G4K, 6G4K.
  • Custom User Test Patterns - 640x480 & 1920x1080.
  • External Stereo Audio Input & Output.
  • LPCM Sinewave Audio Generation - Up to 8 channels.
  • Control Options - Front-panel, RS-232, Telnet, and IR remote controls.
  • OLED Display - With rapid updates of current status information.
  • Detailed OSD - For settings and informational displays.
  • USB Firmware & Pattern Update.
  • Small & Portable Unit.


• Specifications:

  • INPUTS
  • 1 HDMI, 1 unbalanced stereo audio (2Vrms max. 20kΩ) on a 3.5mm jack, 1 RS-232 on a 9-pin D-sub connector, 1 Ethernet on an RJ-45 connector, 1 USB connector

    OUTPUTS
  • 1 HDMI, 1 VGA on a 15-pin HD connector, 1 unbalanced stereo audio (2Vrms max. 560Ω) on a 3.5mm jack

    COMPLIANCE WITH HDMI STANDARD
  • HDCP 2.2. HDR10 (on input), xvYCC color (on input), Dolby TureHD/DTS-HD Master Audio (by-pass), Dolby Vision (on input) as specified in HDMI 2.0

    CONTROLS
  • Panel buttons with OLED display, OSD, RS-232, IR, and Ethernet

    MAXIMUM DATA RATE
  • 18Gbps (6Gbps per graphic channel)

    ESD PROTECTION
  • Human body model: ±8 kV (air-gap discharge), ±4 kV (contact discharge)

    OPERATING TEMPERATURE
  • 0° to +40°C (32° to 104°F)

    STORAGE TEMPERATURE
  • -20° to +60°C (-4° to 140°F)

    HUMIDITY
  • 20% to 90%, RHL non-condensing

    POWER CONSUMPTION
  • 5V DC, 1.6A

    POWER SUPPLY
  • 5.2V/4A

    CHASSIS MATERIAL
  • Metal

    SAFETY REGULATORY COMPLIANCE
  • CE


• Item Includes:

  • 860 HDMI 18G Signal Generator & Analyzer
  • LR-40 Infrared Remote Control Transmitter with batteries
  • 5.2V/4A Power Adapter
  • Quick Start Guide
  • Padded, Waterproof Protective Case


• Warranty:

  • Limited 7 Year Warranty


• GTIN:

  7291063082284
