Kramer PT-572Plus HDMI HDCP 2.2 Compact Receiver over Long-Reach DGKat

PT-572+ - Overview

• Features:

  • Max. Data Rate - 4.95Gbps (1.65Gbps per graphic channel).
  • HDTV Compatible.
  • HDCP Compliant.
  • DGKat™ Signal Integration - Kramer's unique technology for converting TMDS as well as control and communication to signals that run over twisted pair cables.
  • HDMI Support.
  • 3D Pass-Through.
  • System Range - Up to 90m (295ft) at 1080i @60hz or up to 70m (230ft) at 1080p @ 60hz when using Kramer DGKat cables.
  • Note: Transmission range depends on the signal resolution, graphics card and display used. If using third-party shielded CAT cables, both ends of the shield must be soldered to the connectors for the products to function properly.
  • EDID PassThru - Passes EDID signals between the source and display.
  • Status LED - Lights red when receiving power only, orange when output and power are attached, and yellow when both an active input and output are attached.
  • Power Connect™ System - A single connection to the transmitter or the receiver powers the system when the devices are within 90m (295ft) of each other.

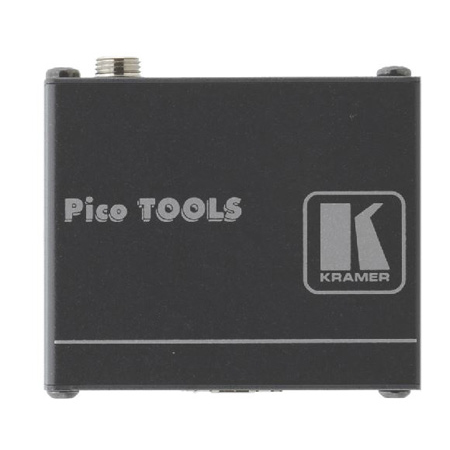

  • Ultra-Compact Pico TOOLS™ - 4 units can be rack mounted side-by-side in a 1U rack space with the recommended rack adapter.


• Specifications:

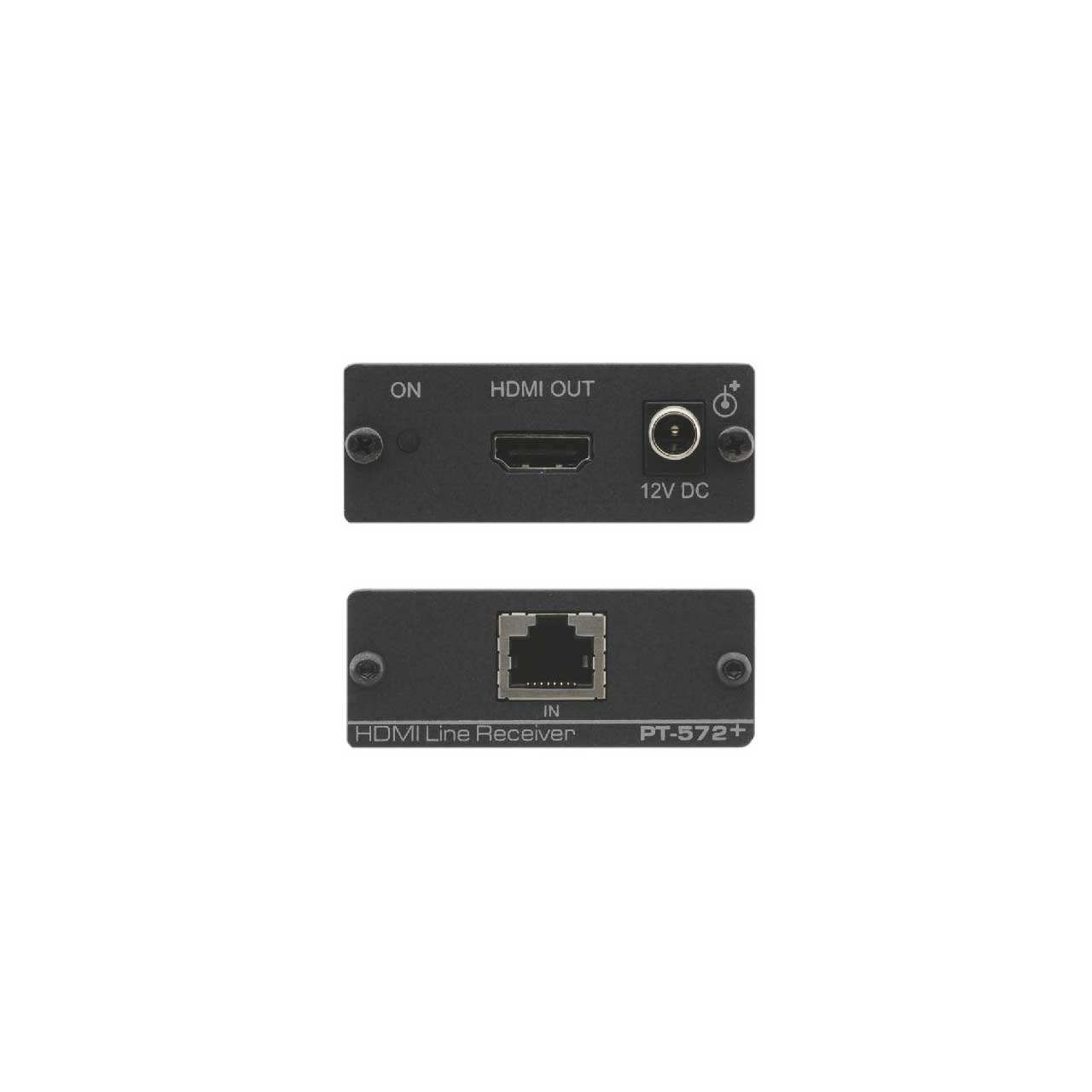

  • INPUTS
  • 1 RJ-45 connector


  • OUTPUTS
  • 1 HDMI connector


  • BANDWIDTH
  • 4.95Gbps (1.65Gbps per graphic channel)


  • COMPLIANCE WITH HDMI STANDARD
  • Supports HDMI and HDCP


  • POWER CONSUMPTION
  • 12V DC, 250mA


• Item Includes:

  • KR-PT-572-PLUS Receiver
  • Power Supply


• Warranty:

  • 7 Year Limited Warranty


• GTIN:

  7291063000141
