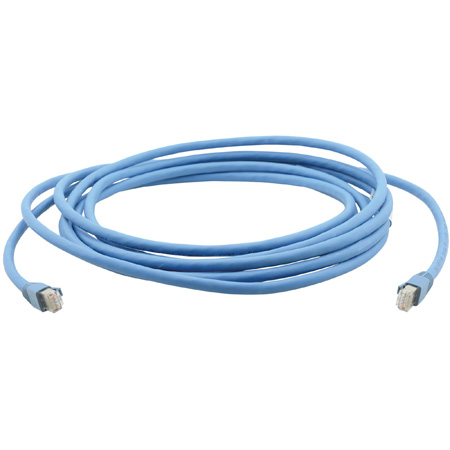

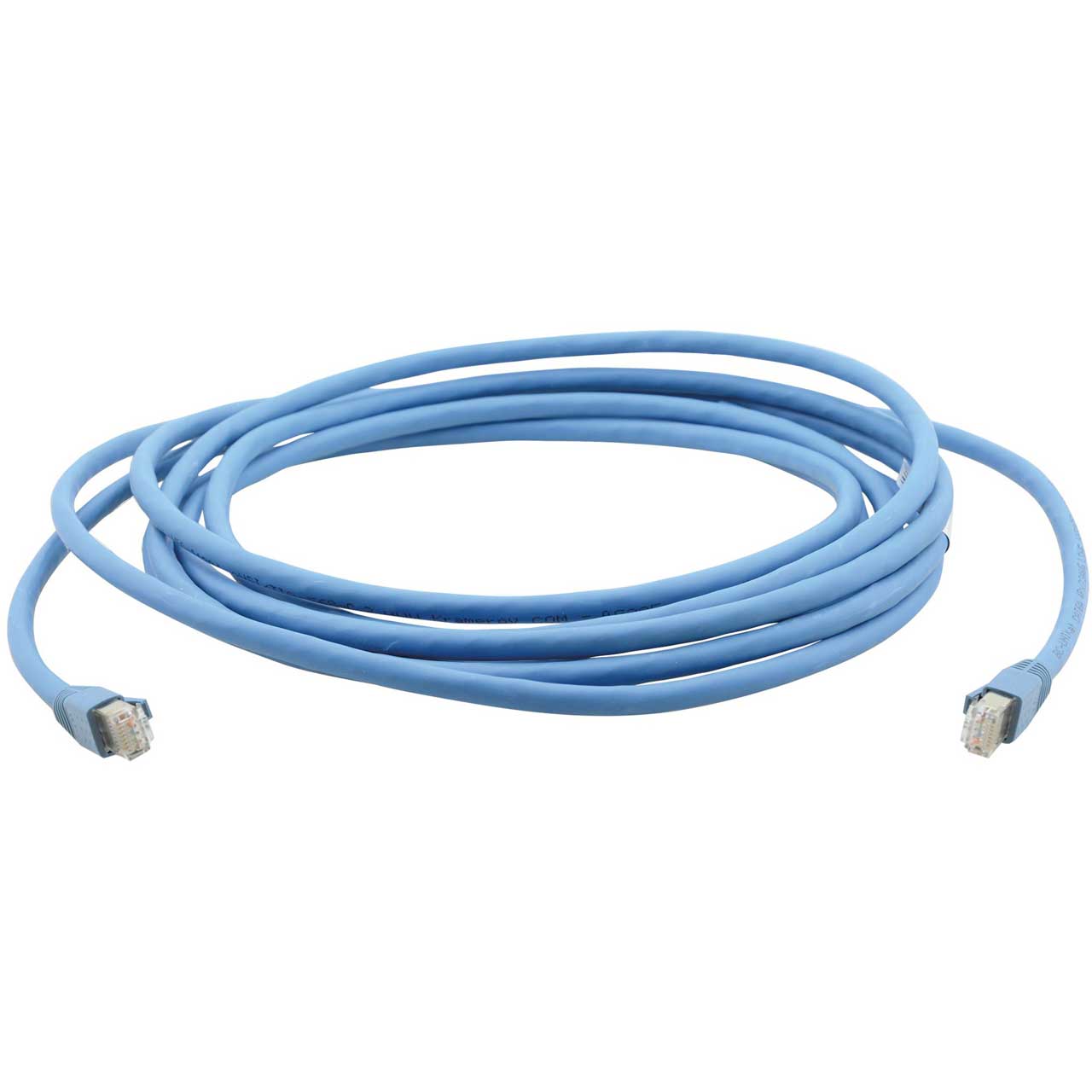

Kramer C-UNIKAT-10 Four-Pair CAT6A U/FTP 4x2x23AWG DGKat Cable - 10 Feet

99-3460010 - Overview

Low Smoke & Halogen Free

• Features:

  • Quality Construction - 4 shielded twisted pairs (U/FTP) of 23AWG solid copper conductors are cabled together in an unshielded outer jacket.
  • Optimized for Kramer Hardware - Use with any of Kramer's wide range of twisted pair digital transmitter-receiver sets (DGKat™ and HDBaseT).
  • High-Quality Shielded RJ-45 Connectors - 50u gold plated contacts.
  • Varied Selection of Length - 1.8 to 60m (6, 10, 15, 25, 35, 50, 75, 100, 125, 150, 164, 200ft).


• Specifications:

  • CONSTRUCTION
  • Conductors: 4 x 2 x 23AWG, annealed copper
  • Outer Diameter: 0.56± 0.01mm (0.022in)
  • Insulation Material: Skin/foam/skin HDPE
  • Outer diameter: 1.33 ± 0.10mm (0.052in)
  • Color: Per TIA/EIA 568-B
  • Screening: Alu/PET per pair (Alu side out)
  • Drain Wire: 90% tinned copper, outer diameter: 0.4 ± 0.01mm (0.016in)
  • Jacket: LSHF, blue RAL5012


  • THICKNESS
  • =0.5mm (0.020in)


  • DIAMETER
  • 7.2 ± 0.2mm (0.284in)


  • PHYSICAL
  • Maximum Pulling Tension: 100N
  • Bending Radius: Installation 60mm (2.36in), installed 50mm (1.97in)
  • Thermal Characteristics: Storage/transport/installation 0° to 50°C (32° to 122°F), operation - 20°to 60°C (-4° to 140°F)


  • REGULATORY
  • Electrical: EIA/TIA 568A, ISO/IEC 11801
  • Fire Performance: IEC 60332-1
  • Smoke Density: IEC 61034
  • Halogen Free: IEC 60754


  • ELECTRICAL
  • Impedance: 1-100MHz : 100 ± 15Ω
  • Impedance: 100-250MHz : 100 ± 20Ω
  • Impedance: 250-500MHz : 100 ± 50Ω
  • Propagation Velocity: 76%
  • Mutual Pair Capacitance: =42pF/m
  • Capacitance Unbalanced Pair/Ground: =1500pF/km
  • Max. Conductor DC Resistance: <79.8Ω/km
  • Pair Resistance Unbalance: DC <1.5%
  • Dielectric Strength: 2.5kV DC (2s)
  • Insulation Resistance: >5000MΩ/km
  • Voltage Rating: 30V


• Item Includes:

  • Kramer C-UNIKAT-3 Four-Pair CAT6A U/FTP 4x2x23AWG DGKat Cable - 10 Feet


• Warranty:

  • Lifetime Warranty


• GTIN:

  7291063081317
