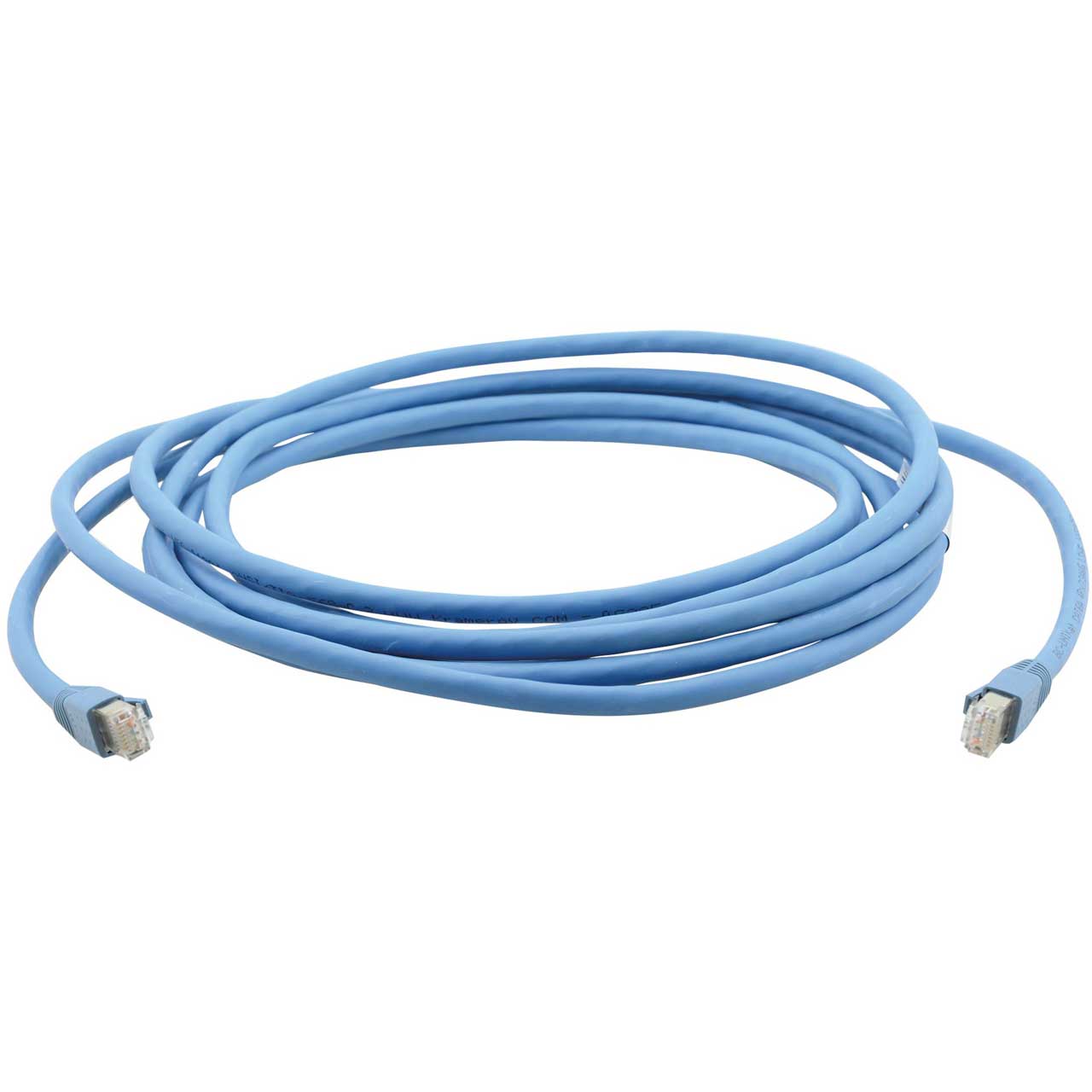

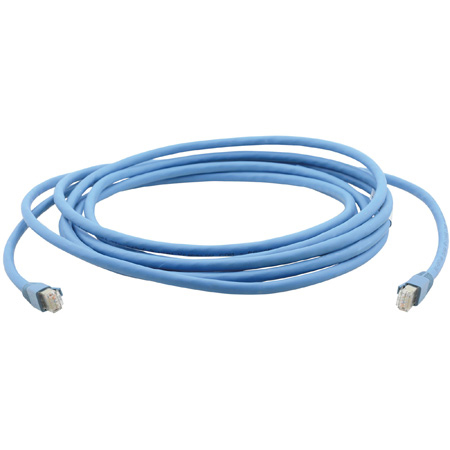

Kramer C-UNIKAT-3 Four-Pair CAT6A U/FTP 4x2x23AWG DGKat Cable - 3 Feet

ITEM #: KR-C-UNIKAT-3 MFG #: 99-3460003

Primary Image
Kramer
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$12.00

Our Price:

$9.60

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

99-3460003 - Overview

Low Smoke & Halogen Free

Kramer's C-UNIKAT cable is a unified CAT6a cable that handles all the latest technology signals. Over four individually screened twisted pairs, this U/FTP CAT6a cable runs Kramer's DGKat™ technology, 4K HDBaseT™ technology or LAN applications and ensures optimum signal performance.

  • Features:

    • Quality Construction - 4 shielded twisted pairs (U/FTP) of 23AWG solid copper conductors are cabled together in an unshielded outer jacket.
    • Optimized for Kramer Hardware - Use with any of Kramer's wide range of twisted pair digital transmitter-receiver sets (DGKat™ and HDBaseT).
    • High-Quality Shielded RJ-45 Connectors - 50u gold plated contacts.
    • Varied Selection of Length - 1.8 to 60m (6, 10, 15, 25, 35, 50, 75, 100, 125, 150, 164, 200ft).


  • Specifications:

    • CONSTRUCTION
    • Conductors: 4 x 2 x 23AWG, annealed copper
    • Outer Diameter: 0.56± 0.01mm (0.022in)
    • Insulation Material: Skin/foam/skin HDPE
    • Outer diameter: 1.33 ± 0.10mm (0.052in)
    • Color: Per TIA/EIA 568-B
    • Screening: Alu/PET per pair (Alu side out)
    • Drain Wire: 90% tinned copper, outer diameter: 0.4 ± 0.01mm (0.016in)
    • Jacket: LSHF, blue RAL5012

    • THICKNESS
    • =0.5mm (0.020in)

    • DIAMETER
    • 7.2 ± 0.2mm (0.284in)

    • PHYSICAL
    • Maximum Pulling Tension: 100N
    • Bending Radius: Installation 60mm (2.36in), installed 50mm (1.97in)
    • Thermal Characteristics: Storage/transport/installation 0° to 50°C (32° to 122°F), operation - 20°to 60°C (-4° to 140°F)

    • REGULATORY
    • Electrical: EIA/TIA 568A, ISO/IEC 11801
    • Fire Performance: IEC 60332-1
    • Smoke Density: IEC 61034
    • Halogen Free: IEC 60754

    • ELECTRICAL
    • Impedance: 1-100MHz : 100 ± 15Ω
    • Impedance: 100-250MHz : 100 ± 20Ω
    • Impedance: 250-500MHz : 100 ± 50Ω
    • Propagation Velocity: 76%
    • Mutual Pair Capacitance: =42pF/m
    • Capacitance Unbalanced Pair/Ground: =1500pF/km
    • Max. Conductor DC Resistance: <79.8Ω/km
    • Pair Resistance Unbalance: DC <1.5%
    • Dielectric Strength: 2.5kV DC (2s)
    • Insulation Resistance: >5000MΩ/km
    • Voltage Rating: 30V


  • Item Includes:

    • Kramer C-UNIKAT-3 Four-Pair CAT6A U/FTP 4x2x23AWG DGKat Cable - 3 Feet


  • Warranty:

    • Lifetime Warranty


  • GTIN:

    7291063082659
