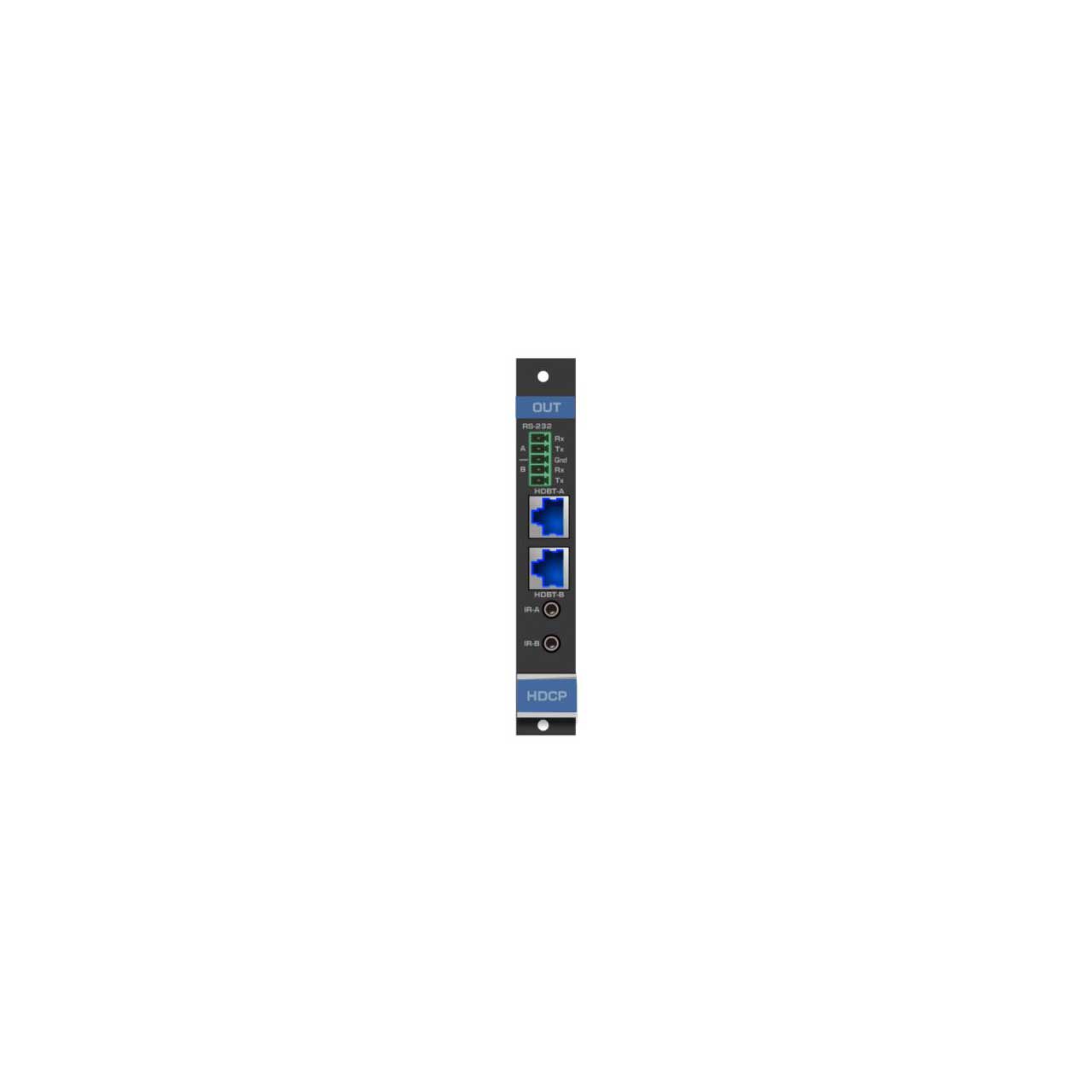

Kramer HDBT7-OUT2-F16 2-Channel 4K60 4:2:0 HDMI over Long Reach HDBaseT Output Card for VS-1616 Switchers

HDBT7-OUT2-F16(DT)/STANDALONE - Overview

For the VS-1616 Series Modular Multi-Format Digital Matrix Switchers

• Features:

  • Max. Data Rate - 10.2 Gbps (3.4 Gbps per graphic channel).
  • Max. Range - 40m (130ft) - 4K60 4:2:0 or 4K30 4:4:4; 70m (230ft) - 1080p 12bit (deep color). Note: When using Kramer HDBaseT cables.
  • HDTV Compatible.
  • HDCP Compliant.
  • 3D Pass-Through.
  • Bidirectional RS-232 and IR per Port.
  • Kramer Equalization and re-Klocking Technology.


• Specifications:

  • PORTS

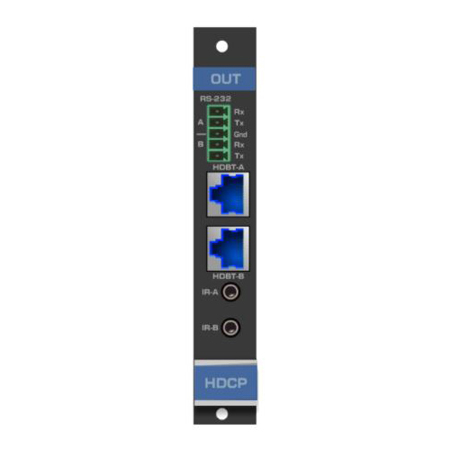

  • 2 HDBaseT TP on RJ45 connectors, 2 RS-232 Serial ports on a 5 pin terminal block, 2 IR ports on 3.5mm jacks


  • BANDWIDTH PER CHANNEL
  • Video: 3.4Gbps, serial data: 115200


  • TOTAL BANDWIDTH
  • Video: 10.2Gbps, serial data: 115200


  • MAXIMUM RANGE
  • 40m (130ft) - 4K@60Hz (4:2:0) or 4K@30Hz (4:4:4), 70m (230ft) - 1080p 12 bit (deep color)
  • Note: When using Kramer HDBaseT cables


  • 3D PASS THROUGH
  • Supported


  • EXTENDED RS-232
  • 300 to 115200 baud rate


  • POWER CONSUMPTION
  • 8W


  • OPERATING TEMPERATURE
  • 0° to +40°C (32° to 104°F)


  • STORAGE TEMPERATURE
  • -40° to +70°C (-40° to 158°F)


  • HUMIDITY
  • 10% to 90%, RHL non-condensing


  • STANDARD COMPLIANCE
  • HDCP 1.4, HDMI 1.3a, HDBaseT, HDTV compatible


  • SAFETY REGULATORY COMPLIANCE
  • CE


  • ENVIRONMENTAL REGULATORY COMPLIANCE
  • Complies with appropriate requirements of RoHs and WEEE


• Item Includes:

  • HDBT7-OUT2-F16 2-Channel 4K60 4:2:0 HDMI over Long Reach HDBaseT Output Card
  • Screwdriver (1)


• Warranty:

  • Limited 7 Year Warranty


• GTIN:

  7291063078607
