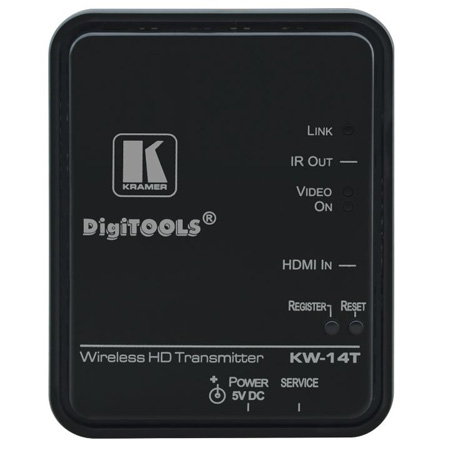

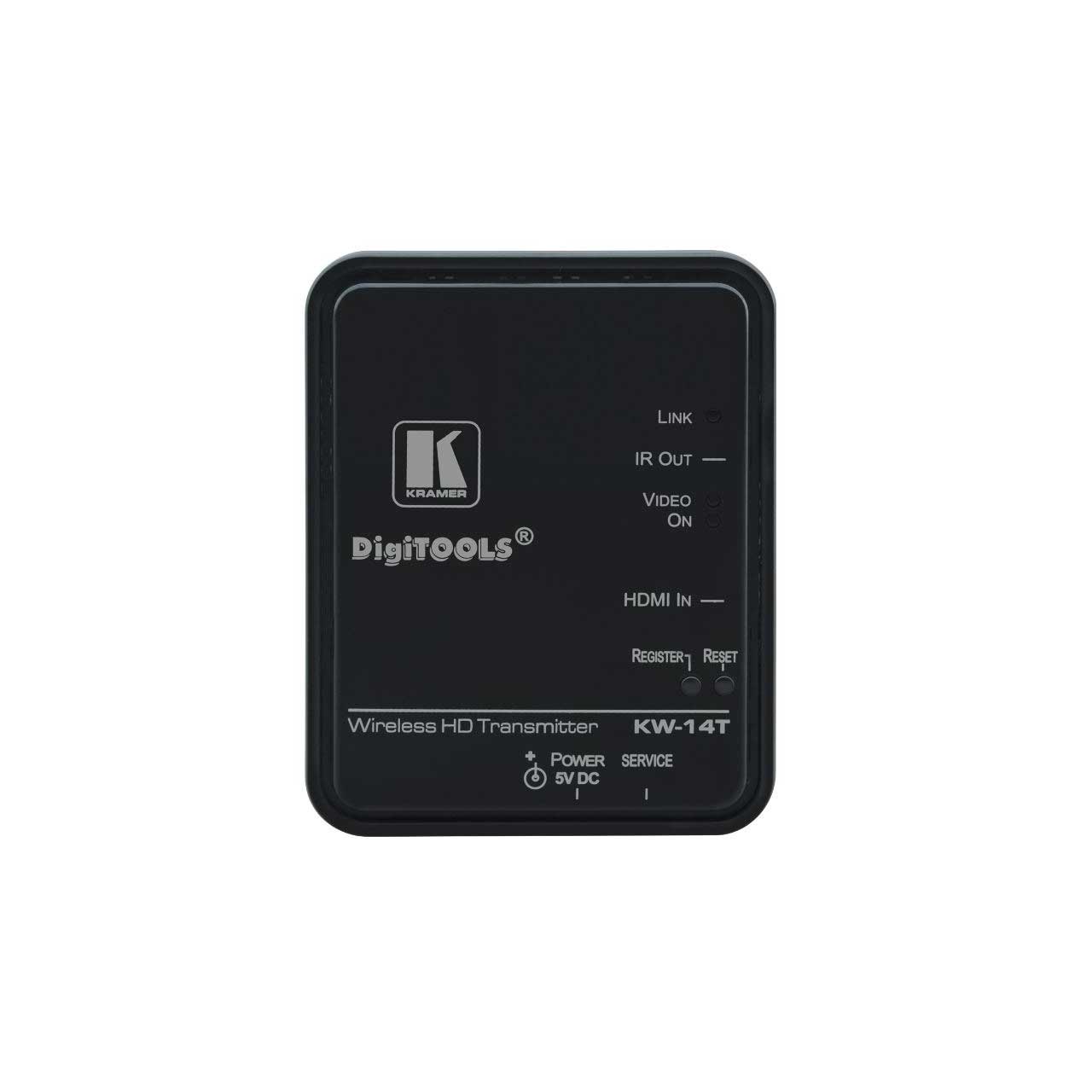

Kramer KW-14T High-Definition Wireless Transmitter

KW-14T - Overview

• Features:

  • Max. Data Rate - 6.75Gbps (2.25Gbps per graphic channel), Deep Color up to 12-bit.
  • Secure Link - Uses AES-128 bit encryption.
  • Connection Capacity - Up to four receivers can receive from one transmitter simultaneously; up to three transmitters associated with one receiver at any given time.
  • Transmission Range - Up to 30m (100ft) including through walls and furniture.
  • Automatic Frequency Selection - Selects the most suitable frequencies to prevent RF interference.
  • Auto EDID Adjustment - To allow multi-screen support.
  • IR Remote Control - Enables the OSD menu to be displayed on the output display.
  • OSD (On Screen Display) - For simplified setup and configuration.
  • HDCP Compliant - HDCP sources are supported only when all connected displays support HDCP.
  • Zero Latency.
  • Automatic Sleep Mode - After three minutes when no input or link is detected.


• Specifications:

  • INPUT
  • 1 HDMI connector


  • OUTPUT
  • 1 IR on a 3.5mm mini jack, internal antenna


  • VIDEO RESOLUTION
  • Up to 1080p @60Hz
  • 8, 10, or 12-bit color depth and VESA up to 1920 x 1080 @60Hz


  • FORMATS
  • RGB and YCbCr digital video


  • MAXIMUM DATA RATE
  • 6.75Gbps (2.25Gbps per channel)


  • MAXIMUM PIXEL CLOCK
  • 148.5MHz


  • AUDIO FORMATS
  • PCM, Dolby Digital 2/0, Dolby Digital 2/0 Surround, Dolby Digital 5.1, Dolby Digital Surround EX, DTS 2-channel, DTS Digital Surround 5.1, DTS 96/24


  • AUDIO RATE
  • Digital audio from the HDMI input up to 6Mbps


  • RF COMMUNICATION FREQUENCY
  • 5.19 to 5.795GHz (In Israel operation is limited to 5.15 to 5.35GHz)


  • TRANSMISSION POWER
  • <18dBm conducted (KW-14T), <12dBm per channel conducted (KW-14R)


  • RECEIVING SENSITIVITY
  • -75dBm (KW-14T), - 65dBm (KW-14R)


  • SYSTEM LATENCY
  • <1ms


  • STANDARDS
  • HDMI with Deep Color, x.v.Color™, 3D
  • HDCP 2.0-works with sources that support HDCP repeater mode, DVI 1.0


  • UNOBSTRUCTED TRANSMISSION RANGE
  • 30m (100ft)


  • POWER CONSUMPTION
  • 5V DC, 1A


  • OPERATING TEMPERATURE
  • 0° to +40°C (32° to 104°F)


  • STORAGE TEMPERATURE
  • -40° to +70°C (-40° to 158°F)


  • HUMIDITY
  • 10% to 90%, RHL non-condensing


  • COOLING
  • Convection, vented


  • ENCLOSURE TYPE
  • Plastic


  • ENVIRONMENTAL REGULATORY COMPLIANCE
  • Complies with appropriate requirements of RoHS and WEEE


  • VIBRATION
  • ISTA 1A in carton (International Safe Transit Association)


  • COMPLIANCE STANDARDS
  • CE, c-UL, UL


  • EMMISSION STANDARDS
  • CE, C-tick, FCC Class B, ICES, VCCI, KC


• Item Includes:

  • KR-14T Transmitter
  • Power supply 5V
  • 2 HDMI cables 0.9m (2.95ft)
  • 1 IR emitter cable


• Warranty:

  • Limited 7 Year Warranty


• GTIN:

  7291063077433
