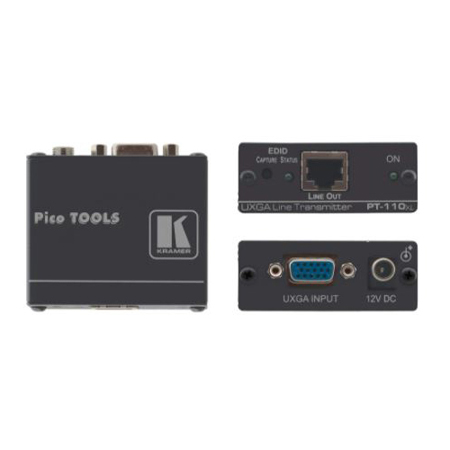

Kramer PT-110XL Computer Graphics Video over Twisted Pair Transmitter with EDID

PT-110XL - Overview

HDTV Compatible

• Features:

  • Resolution - Up to WUXGA & 1080p.
  • HDTV Compatible.
  • Power Connect™ System - A single connection to the transmitter or the receiver powers both units when the devices are within 150ft (50m) of each other.
  • Extended Transmission Range - Up to 250m (820ft) when used with Kramer's twisted pair xl receivers (such as PT-120xl, TP-122xl or TP-126xl).
  • EDID Capture - Copies and stores the EDID from a display device.
  • Increased Noise Immunity - An increased level of protection against noise, spikes and interference in adverse environments.


• Specifications:

  • INPUT
  • 1 VGA/UXGA on a 15-pin HD connector


  • OUTPUT
  • 1 twisted pair on an RJ-45 connector


  • RESOLUTION
  • Up to WUXGA, 1080p


  • RANGE
  • Up to 250m (820ft)


  • S/N RATIO
  • Paired with PT-120xl, better than 70dB (worst case)


  • COUPLING
  • AC


  • POWER CONSUMPTION
  • 12V DC, 285mA


  • OPERATING TEMPERATURE
  • 0° to +40°C (32° to 104°F)


  • STORAGE TEMPERATURE
  • -40° to +70°C (-40° to 158°F)


  • HUMIDITY
  • 10% to 90%, RHL non-condensing


• Item Includes:

  • PT-110xl transmitter
  • Power Supply


• Warranty:

  • Limited 7 Year Warranty


• GTIN:

  7291063063238
