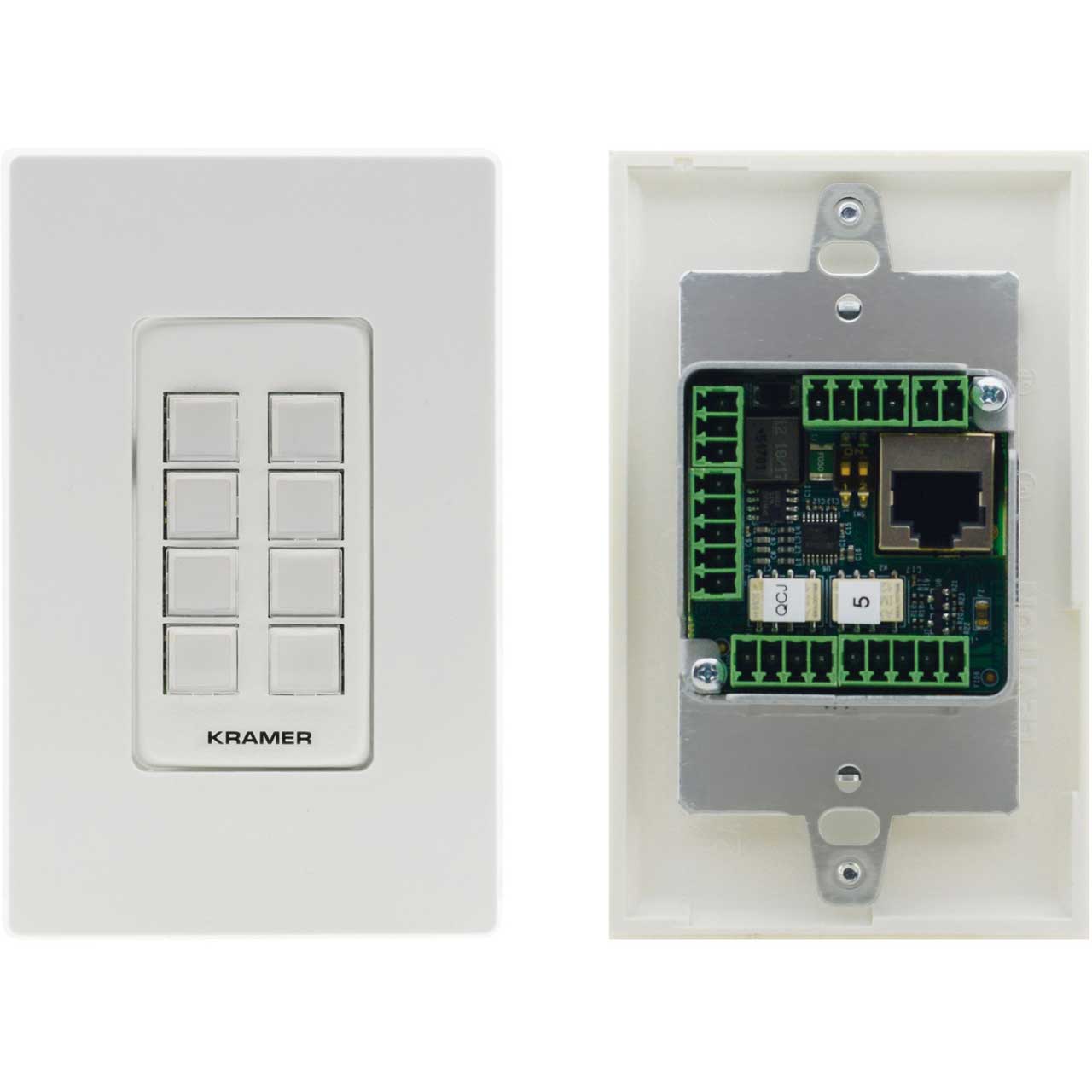

Kramer RC-308/US-D(W/B) D-size 8-Button PoE and I/O Control Keypad 1-Gang Control Keypad

RC-308/US-D(W/B) - Overview

1-Gang Control Keypad, with 1 White DECORA® Design Frame and Faceplate and 1 Black DECORA® Design Frame and Faceplate

• Features:

  • Clear and Customizable User Interface - RGB-color, tactile feedback, backlit buttons with custom labeled, removable button caps, allowing simple and intuitive end-user and guest control over facility deployed devices and systems.

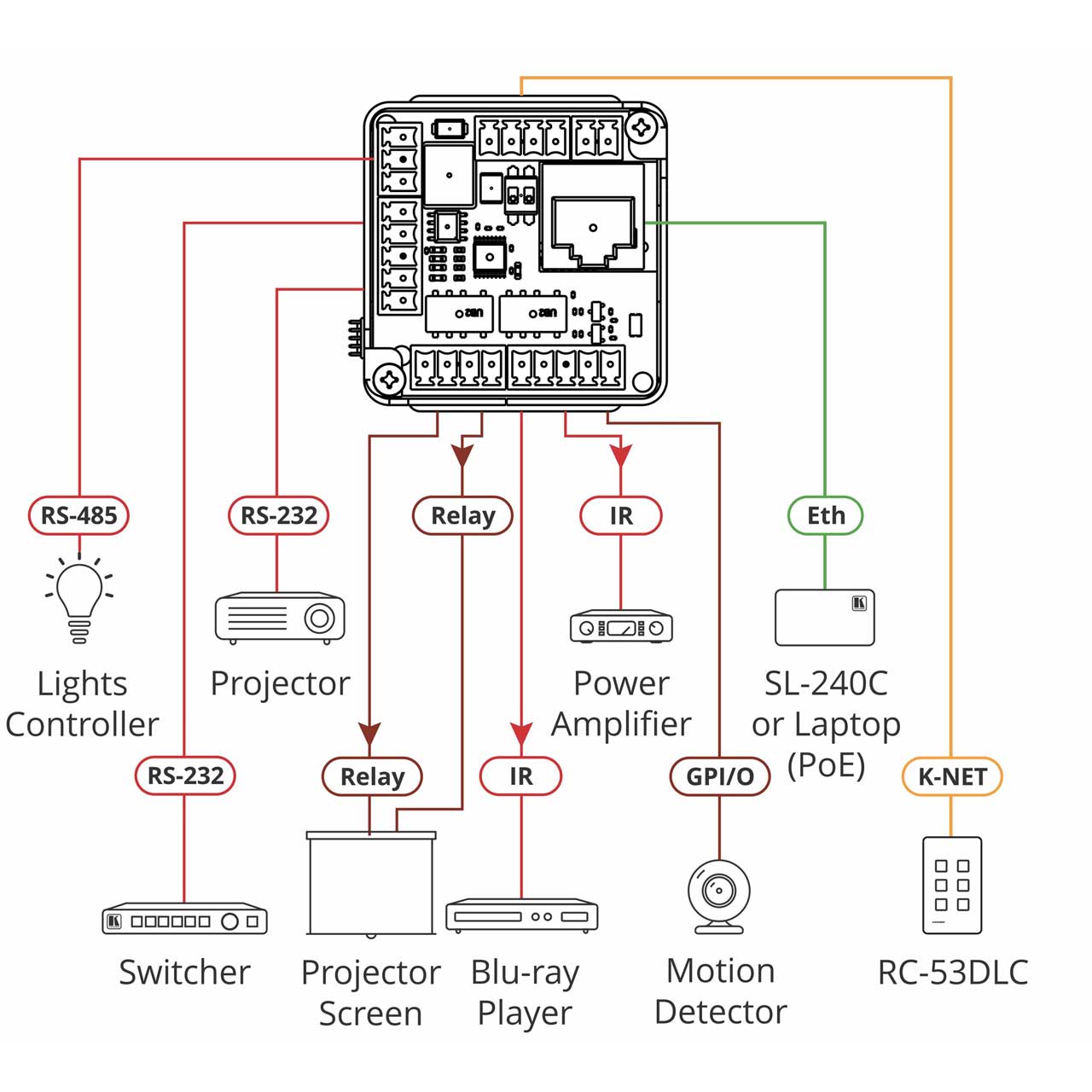

  • Flexible Room Control - Control any room device via LAN connections, multiple RS-232 and RS-485 serial ports, and various IR, relay and general purpose I/O built-in device ports. Connect the keypad to an IP network with additional control gateways interfacing with remote controlled devices, for extending control across large space facilities.
  • Expandable Control System - According to arising demands, easily expands to be part of a larger control system, or coupled-operation with auxiliary keypads, via either LAN or K-NET™single cable connection delivering both power and communication.
  • Simple Control Programming - Using K-Config software. Leverage the power of Kramer's highly customizable, flexible and user-friendly software, to easily program complex control scenarios of Pro-AV, Lighting, and other room and facility controlled devices.
  • Easy and Cost-effective Installation - Compactly fits into standard US, EU and UK 1-gang in-wall box size, allows decorative integration with room deployed user interfaces such as electrical switches. Keypad installation is fast and cost-effective via single LAN cable providing both power (PoE) and communication connections.


• Specifications:

  • INPUTS
  • 1 IR Sensor: For IR learning


  • OUTPUTS
  • 2 IR: On 2-pin terminal block connectors
  • 2 Relays: On 2-pin terminal block connectors (36V AC or DC, 2A, 60VAC maximum on non-inductive load)


  • PORTS
  • 1 Ethernet: On an RJ-45 female connector for PoE, device configuration, control and firmware upgrade
  • 2 RS-232: On 3-pin terminal block connectors
  • 1 RS-485: On a 3-pin terminal block connector
  • 1 K-NET: On a 4-pin terminal block connector
  • 2 Relays: On 2-pin terminal block connectors (30V DC, 1A)
  • 1 GPI/O: On a 2-pin terminal block connector
  • 1 Mini USB: On a female mini USB-B connector for configuration and firmware upgrade


  • GENERAL
  • Default IP Settings: DHCP Enabled


  • POWER
  • Source: PoE or 12V DC 2A power supply
  • Consumption: 12V DC, 780mA


  • ENVIRONMENTAL CONDITIONS
  • Operating Temperature: 0° to +40°C (32° to 104°F)
  • Storage Temperature: -40° to +70°C (-40° to 158°F)
  • Humidity: 10% to 90%, RHL non-condensing


  • REGULATORY
  • Safety: CE, UL
  • Environmental: RoHs, WEEE


  • ENCLOSURE
  • Size: 1-Gang wall-plate
  • Cooling: Convection ventilation


• Item Includes:

  • RC-308 Ethernet and K-NET Control Keypad
  • Button Label Sheets (1 set)
  • Power Adapter and cord (1)
  • Button CapTweezers (1)
  • Frame (or frame set) and faceplate
  • Button caps (8)
  • Installation accessories


• Warranty:

  • Limited 7 Year Warranty


• GTIN:

  7291063088613
