Kramer TBUS-10xl Table Mount Modular Multi-Connection Solution - Black Sand Blasted Top

TBUS-10XL(B) - Overview

Manually opens & closes

• Features:

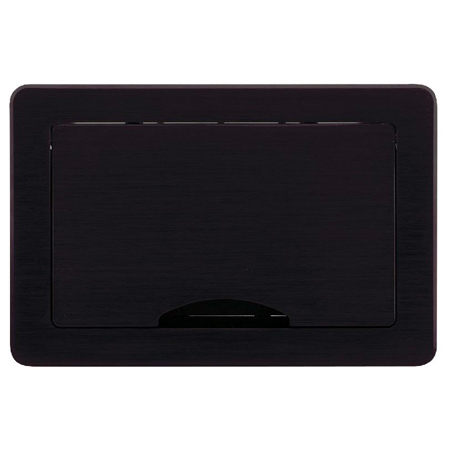

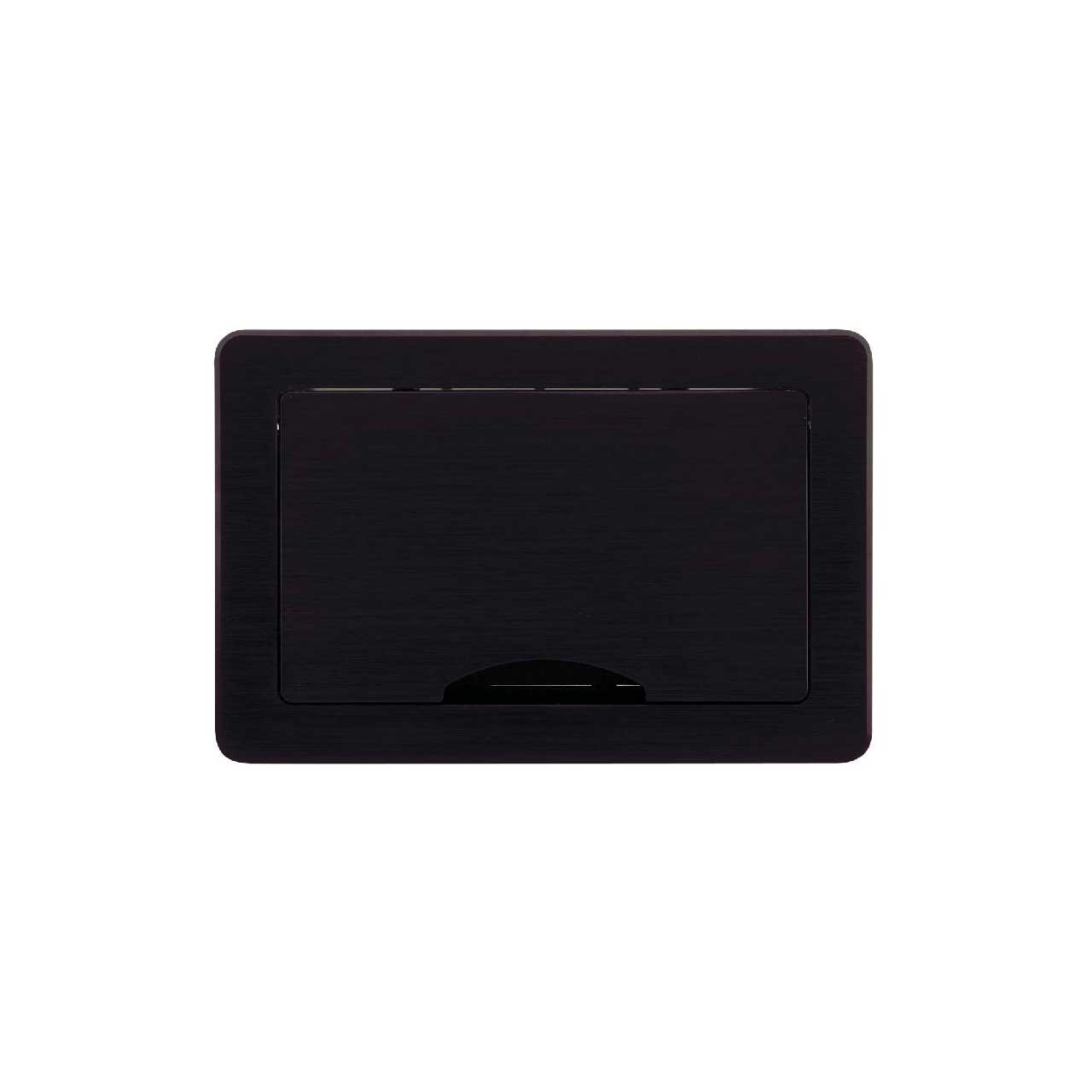

  • Cover - Manually opens & closes.

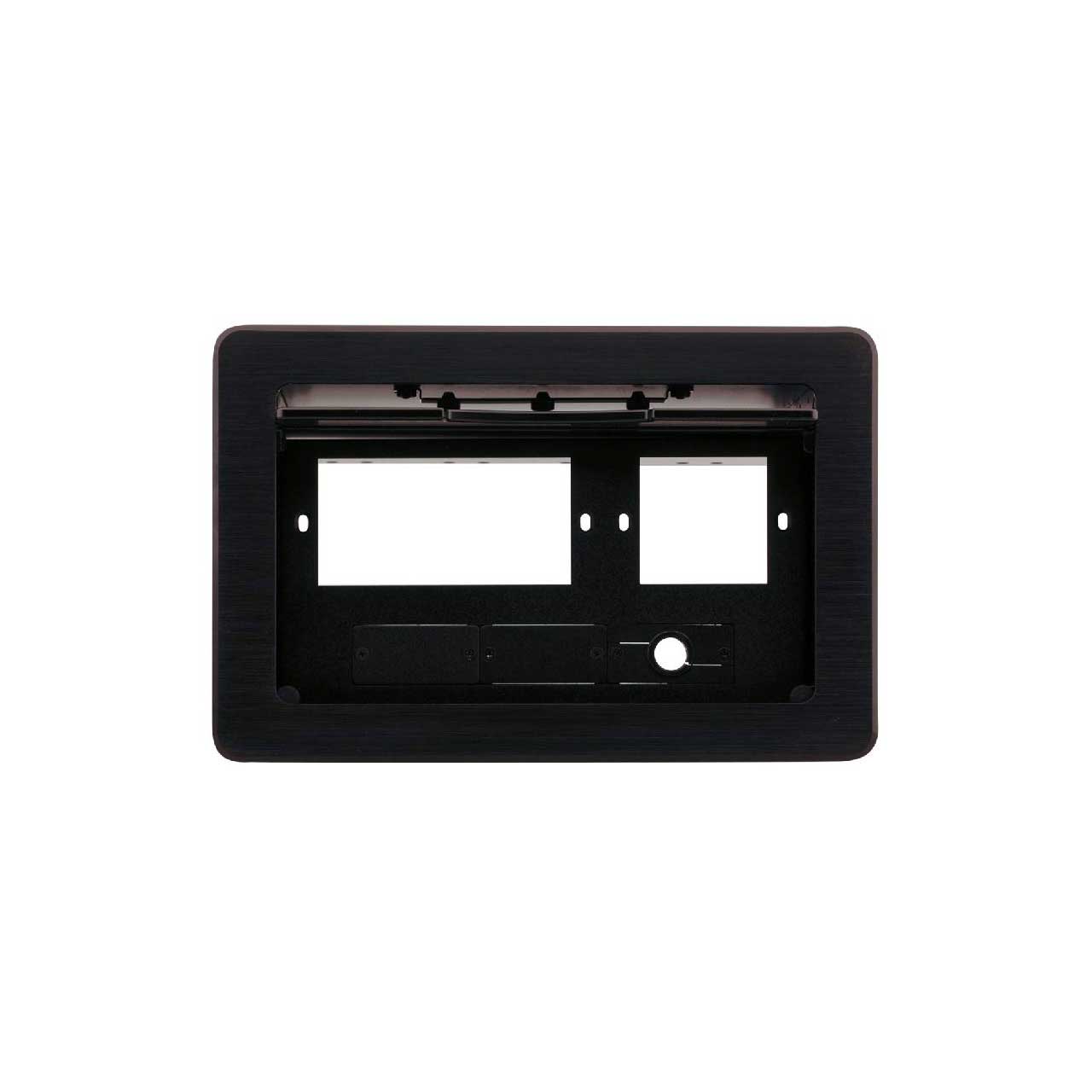

  • Inner Frames - T10F-22M can accommodate a combination of up to 2 power sockets, 2 inserts, 1 opening for a Kramer MegaTOOL SID-X1N; T10F-33 contains 3 power sockets and 3 inserts.
  • Power Sockets - 11 different "TS" single and 10 dual power socket options are available to accommodate the power requirements worldwide.
  • Power Cord - 8 different "C-AC" single power cords (and 3 "Y" power cords) for each power socket. UL and CE qualified.
  • Connector Depth - Adjustable.
  • Installation Requirement - Table cutout of 245mm x 154mm (9.65" x 6.07").
  • Accessories - TBUS clamps (part of the TBUS enclosure), cut-out template, template screws, self-locking ties.
  • Options - Inner frames, passive wall plates and interfaces, power socket kits, power cord, T-2INSERT kit, T-RC-8IR kit, T-RC-76 kit, T-RC-78 kit, Kramer K-Able Box (furniture-mounted cable extension).


• Specifications:

  • PHYSICAL
  • Cutout Size: 245mm x 154mm (9.65" x 6.07")


  • ACCESSORIES
  • Optional: Inner frames, passive wall plates and interfaces, power socket kits, power cord, inserts. (sold separately)


• Item Includes:

  • TBUS Enclosure
  • TBUS clamps (part of the TBUS enclosure)
  • Cut-out template
  • Template screws
  • Self-locking ties


• Warranty:

  • Limited 7 Year Warranty


• GTIN:

  7291063059705
