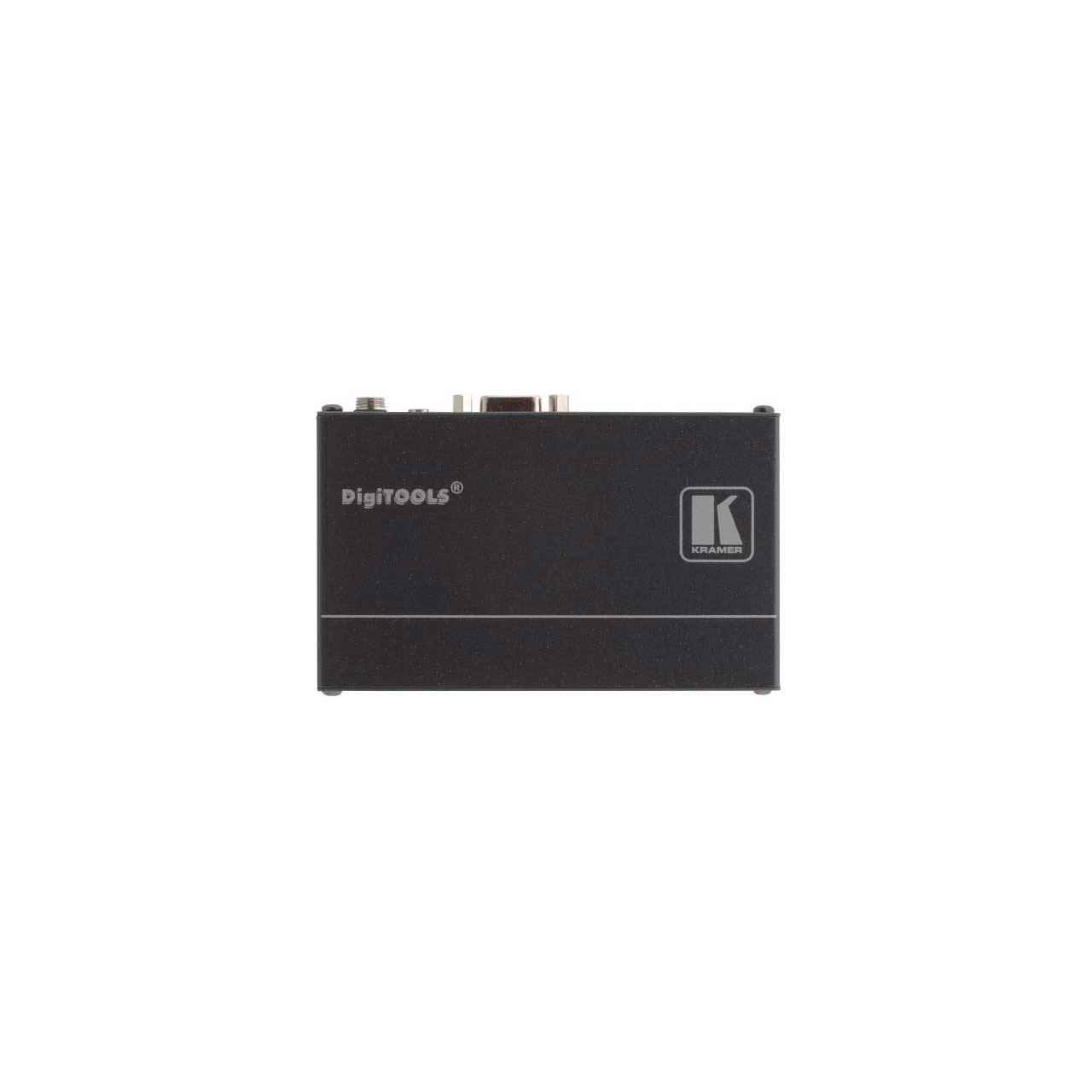

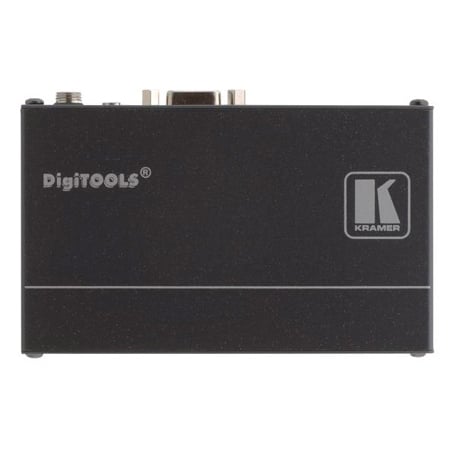

Kramer TP-580R 4K60 4:2:0 HDMI HDCP 2.2 Receiver with RS-232 & IR over Long-Reach HDBaseT

TP-580R - Overview

HDBaseT 1.0 receiver

• Features:

  • High Performance Standard Extender - Professional HDBaseT extender for providing long-reach signals over twisted-pair copper infrastructures. TP-580R is a standard extender that can be connected to any market-available HDBaseT-compliant extension product. For optimum extension reach and performance, use recommended Kramer cables.
  • HDMI Signal Extension - HDCP 2.2 compliant. Supports deep color, x.v.Color™, lip sync, HDMI uncompressed audio channels, Dolby TrueHD, DTS-HD, 2K, 4K, and 3D as specified in HDMI 2.0. EDID and CEC signals are passed through from the source to the display.
  • I-EDIDPro™ Kramer Intelligent EDID Processing™ - Intelligent EDID handling, processing and pass-through algorithm that ensures Plug and Play operation for HDMI source and display systems.
  • Multi-channel Audio Extension - Up to 32 channels of digital stereo uncompressed signals for supporting studio-grade surround sound.
  • Bidirectional RS-232 Extension - Serial interface data flows in both directions, allowing data transmission and device control.
  • Bidirectional Infrared Extension - IR interface data flows in both directions, allowing remote control of peripheral devices located at either end of the extended line.
  • Cost-effective Maintenance - Status LED indicators for HDMI and HDBT ports facilitate easy local maintenance and troubleshooting. Local firmware upgrade via RS-232 connection and the K-Upload tool ensures lasting, field-proven deployment.
  • Easy Installation - Compact DigiTOOLS® fan-less enclosure for dropped-ceiling mounting, or side-by-side mounting of 3 units in a 1U rack space with the recommended rack adapter.
  • Zoom Rooms Compatible


• Specifications:

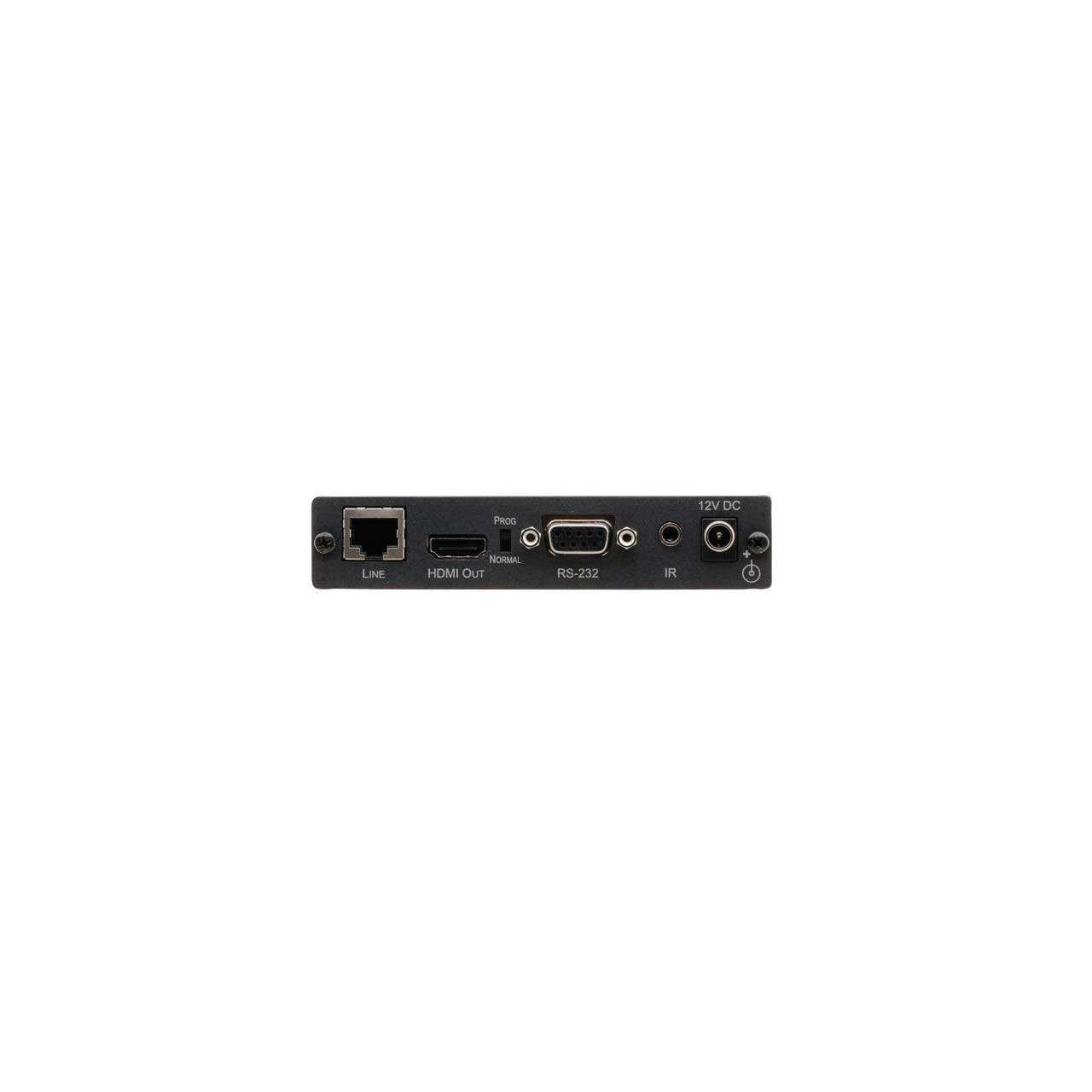

  Inputs:
  • 1 HDBT on an RJ-45 female connector

    Outputs:
  • 1 HDMI on an HDMI connector

    Ports:
  • 1 IR on a 3.5mm mini jack for IR link extension
  • 1 RS-232 on a 9-pin D-sub connector for serial link extension and device firmware upgrade

    Extension Line:
  • HDBaseT 1.0 compliant
  • Up to 40m (130ft) at 4K @60Hz (4:2:0)
  • Up to 70m (230ft) at full HD (1080p @60Hz 36bpp)
  • Note: When using Kramer HDBaseT cables

    Video:
  • Up to 10.2Gbps bandwidth (3.4Gbps per graphic channel)
  • Up to 4K UHD @60Hz (4:2:0) 24bpp resolution
  • HDCP 2.2 signal compliance
  • Supports deep color, x.v.Color™, lip sync, HDMI uncompressed audio channels, Dolby TrueHD, DTS-HD, 2K, 4K, and 3D as specified in HDMI 2.0

    Extended RS-232:
  • 300 to 115200 baud rate

    Control RS-232:
  • 115200 baud rate

    Power Source:
  • 12V DC, 2A

    Power Consumption:
  • 12V DC, 430mA

    Enclosure:
  • DigiTOOLS size, aluminum type

    Cooling:
  • Convection ventilation

    Operating Temperature:
  • 0° to 40°C (32° to 104°F)

    Storage Temperature:
  • -40° to +70°C (-40° to 158°F)

    Humidity:
  • 10% to 90%, RHL non-condensing


• Item Includes:

  • TP-580R Receiver ONLY
  • Power Supply


• Warranty:

  • Limited 7 Year Warranty


• Applications:

  • Long-distance AV signal extension for multi-room, large dividable auditoriums and lecture hall connectivity
  • AV extension in conference rooms, boardrooms, control rooms, hotels and large church facilities
