Kramer TP-580T 4K60 4:2:0 HDMI HDCP 2.2 Transmitter with RS-232 & IR over Long-Reach HDBaseT

ITEM #: KR-TP-580T MFG #: TP-580T

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$270.00

Our Price:

$216.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


    TP-580T - Overview

    HDBaseT 1.0 transmitter

    The Kramer TP-580T is a high-performance, long-reach HDBaseT transmitter for 4K60Hz (4:2:0) HDMI, RS-232 and IR signals over twisted pair that works with the TP-580R receiver (sold separately). TP-580T converts all input signals from into the transmitted HDBaseT signal. It extends video signals to up to 40m (130ft) over CAT copper cables at up to 4K@60Hz (4:2:0) 24bpp video resolution and provides even further reach for lower HD video resolutions.

    Perfect for:
    Long-distance AV signal extension for multi-room, large dividable auditoriums and lecture hall connectivity
    AV extension in conference rooms, boardrooms, control rooms, hotels and large church facilities

    • Features:

      • High Performance Standard Extender - Professional HDBaseT extender for providing long-reach signals over twisted-pair copper infrastructures. TP-580T is a standard extender that can be connected to any market-available HDBaseT-compliant extension product. For optimum extension reach and performance, use recommended Kramer cables.
      • HDMI Signal Extension - HDCP 2.2 compliant. Supports deep color, x.v.Color™, lip sync, HDMI uncompressed audio channels, Dolby TrueHD, DTS-HD, 2K, 4K, and 3D as specified in HDMI 2.0. EDID and CEC signals are passed through from the source to the display.
      • I-EDIDPro™ Kramer Intelligent EDID Processing™ - Intelligent EDID handling, processing and pass-through algorithm that ensures Plug and Play operation for HDMI source and display systems.
      • Multi-channel Audio Extension - Up to 32 channels of digital stereo uncompressed signals for supporting studio-grade surround sound.
      • Bidirectional RS-232 Extension - Serial interface data flows in both directions, allowing data transmission and device control.
      • Bidirectional Infrared Extension - IR interface data flows in both directions, allowing remote control of peripheral devices located at either end of the extended line.

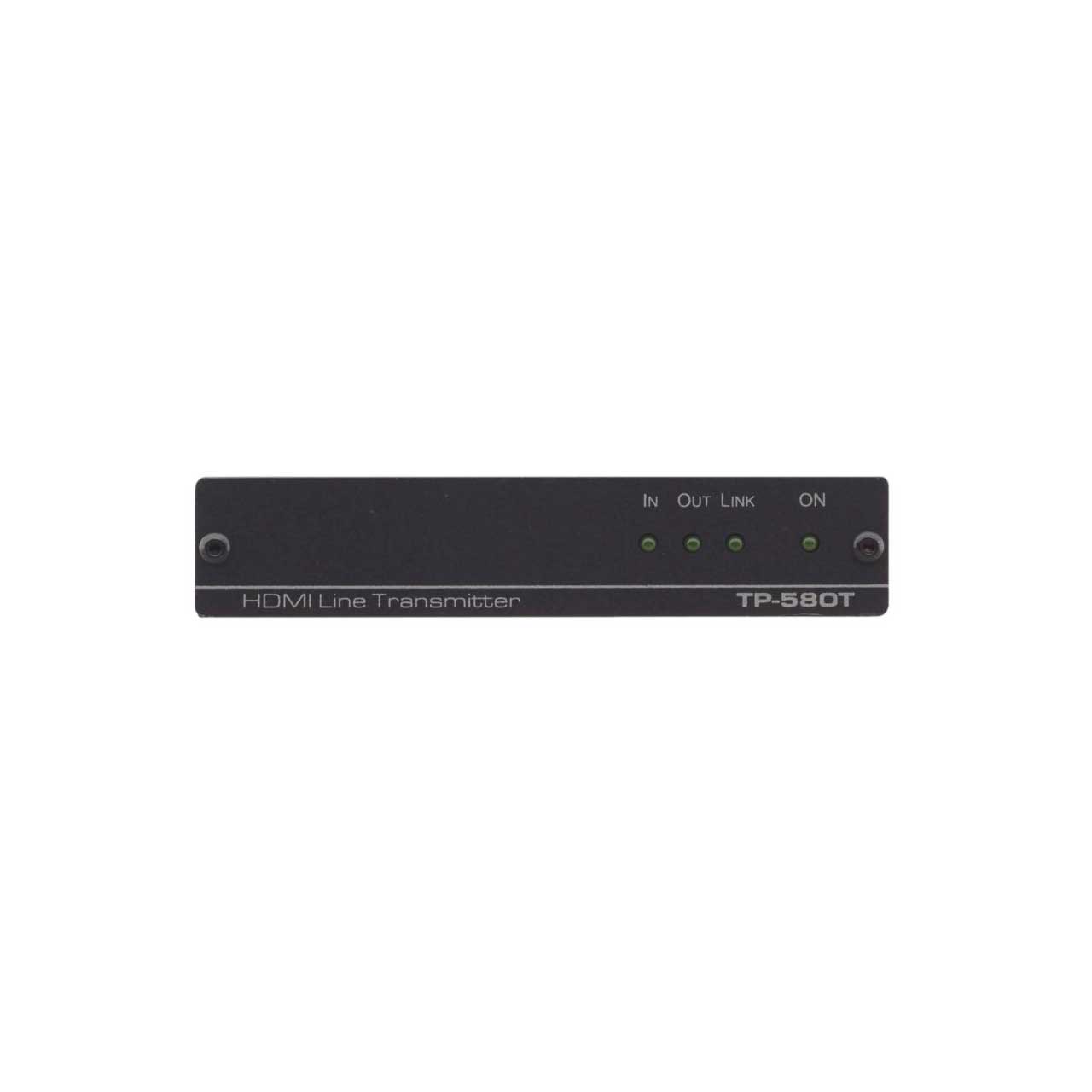

      • Cost-effective Maintenance - Status LED indicators for HDMI and HDBT ports facilitate easy local maintenance and troubleshooting. Local firmware upgrade via RS-232 connection and the K-Upload tool ensures lasting, field-proven deployment.

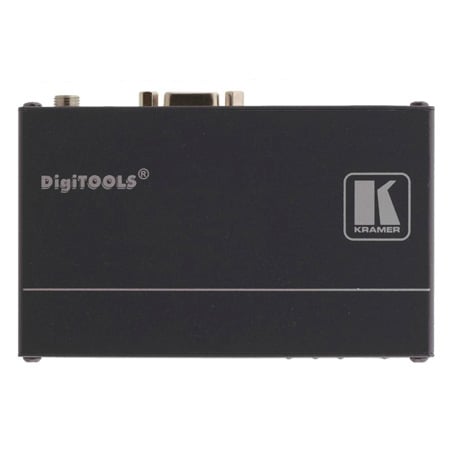

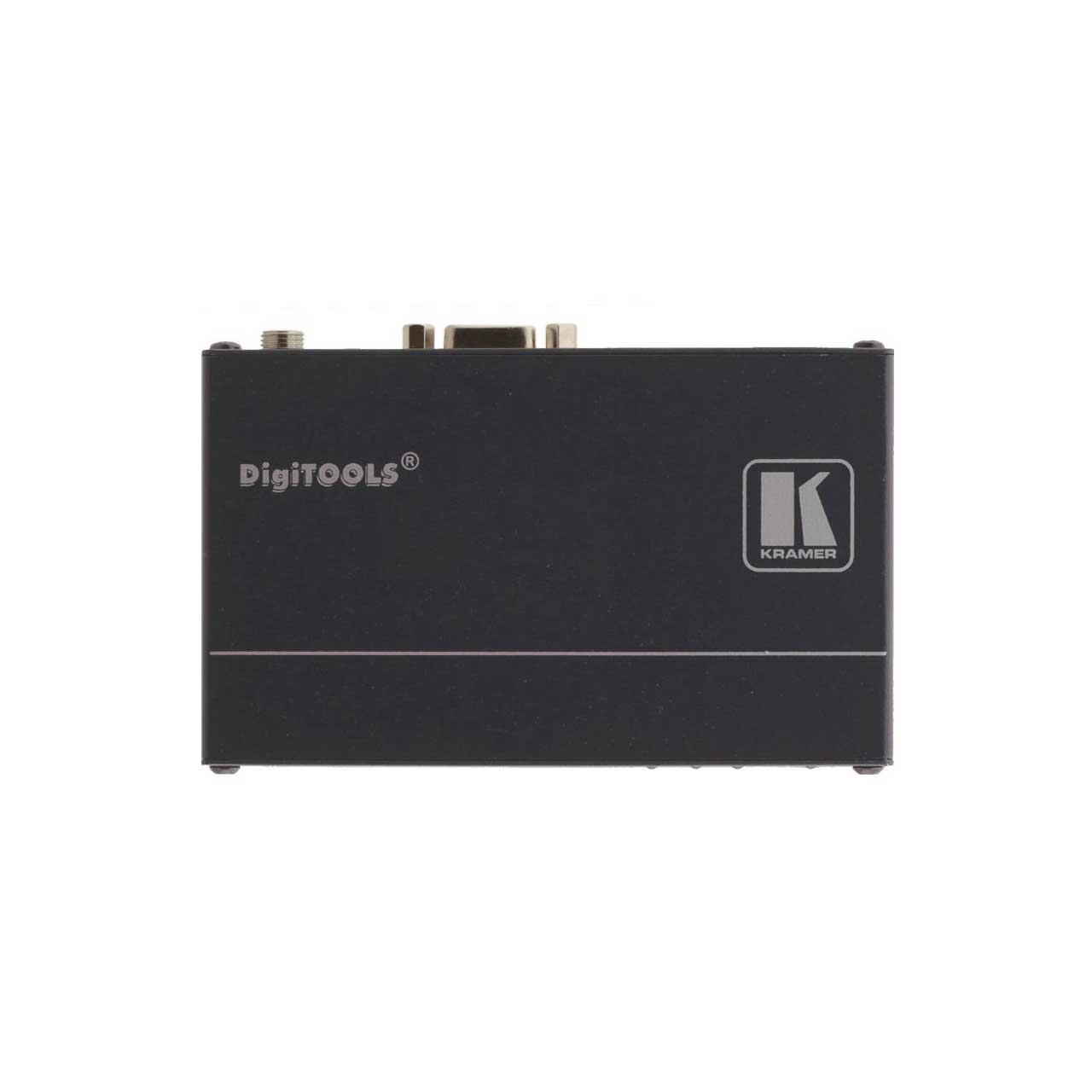

      • Easy Installation - Compact DigiTOOLS® fan-less enclosure for dropped-ceiling mounting, or side-by-side mounting of 3 units in a 1U rack space with the recommended rack adapter.
      • Zoom Rooms Compatible

    • Specifications:

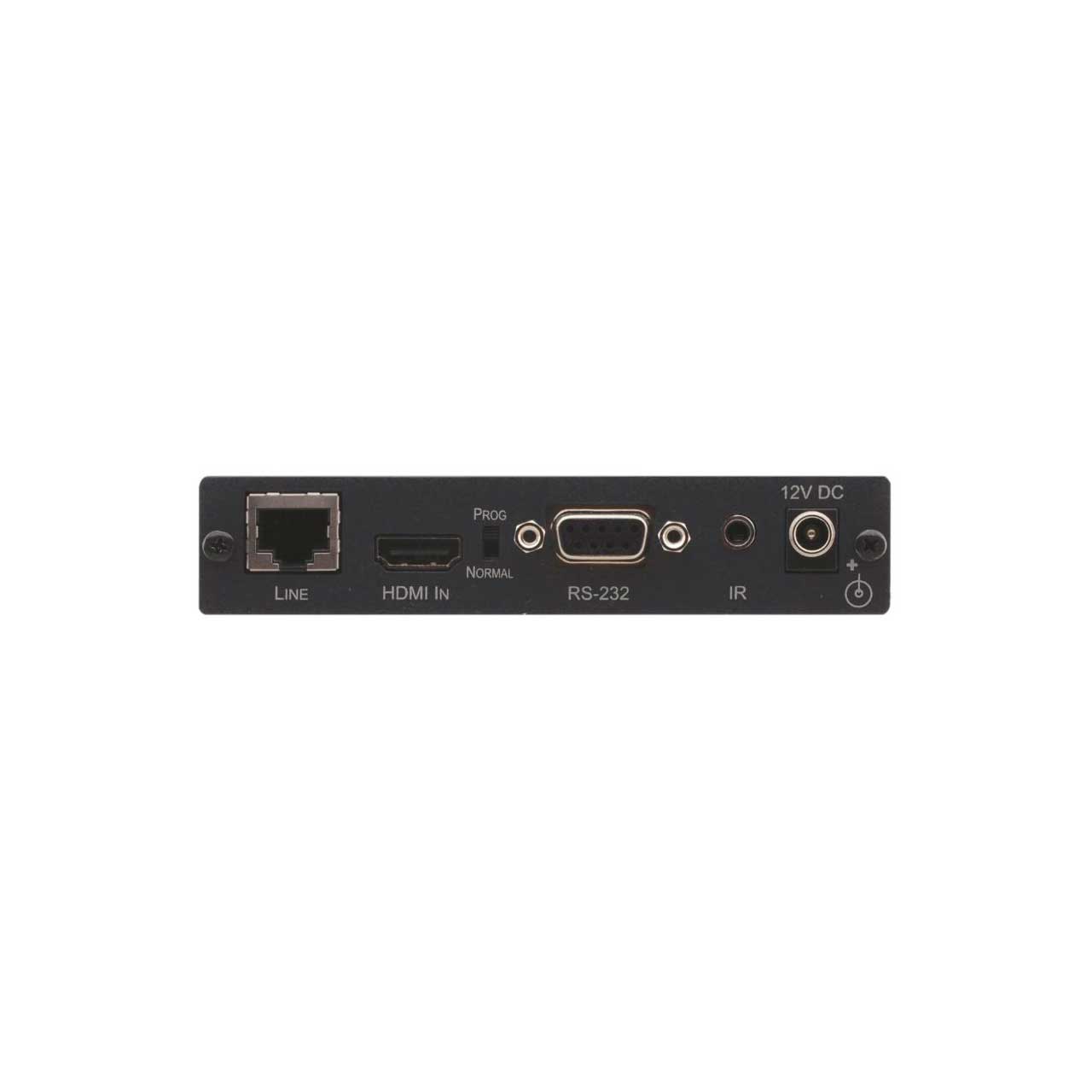

      • Inputs:
      • 1 HDMI on an HDMI connector

        Outputs:
      • 1 HDBT on an RJ-45 female connector

        Ports:
      • 1 IR on a 3.5mm mini jack for IR link extension
      • 1 RS-232 on a 9-pin D-sub connector for serial link extension and device firmware upgrade

        Extension Line:
      • HDBaseT 1.0 compliant
      • Up to 40m (130ft) at 4K @60Hz (4:2:0)
      • Up to 70m (230ft) at full HD (1080p @60Hz 36bpp)
      • Note: When using Kramer HDBaseT cables

        Video:
      • Up to 10.2Gbps bandwidth (3.4Gbps per graphic channel)
      • Up to 4K UHD @60Hz (4:2:0) 24bpp resolution
      • HDCP 2.2 signal compliance
      • Supports deep color, x.v.Color™, lip sync, HDMI uncompressed audio channels, Dolby TrueHD, DTS-HD, 2K, 4K, and 3D as specified in HDMI 2.0

        Extended RS-232:
      • 300 to 115200 baud rate

        Control RS-232:
      • 115200 baud rate

        Power Source:
      • 12V DC, 2A

        Power Consumption:
      • 12V DC, 275mA

        Enclosure:
      • DigiTOOLS size, aluminum type

        Cooling:
      • Convection ventilation

        Operating Temperature:
      • 0° to 40°C (32° to 104°F)

        Storage Temperature:
      • -40° to +70°C (-40° to 158°F)

        Humidity:
      • 10% to 90%, RHL non-condensing

    • Item Includes:

      • TP-580T Transmitter ONLY
      • Power Supply

    • Warranty:

      • Limited 7 Year Warranty

    • GTIN:

      7291063051631
