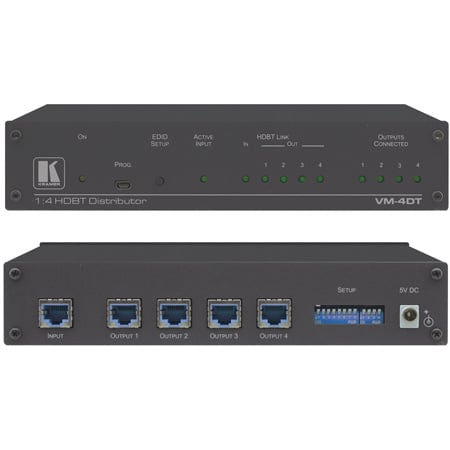

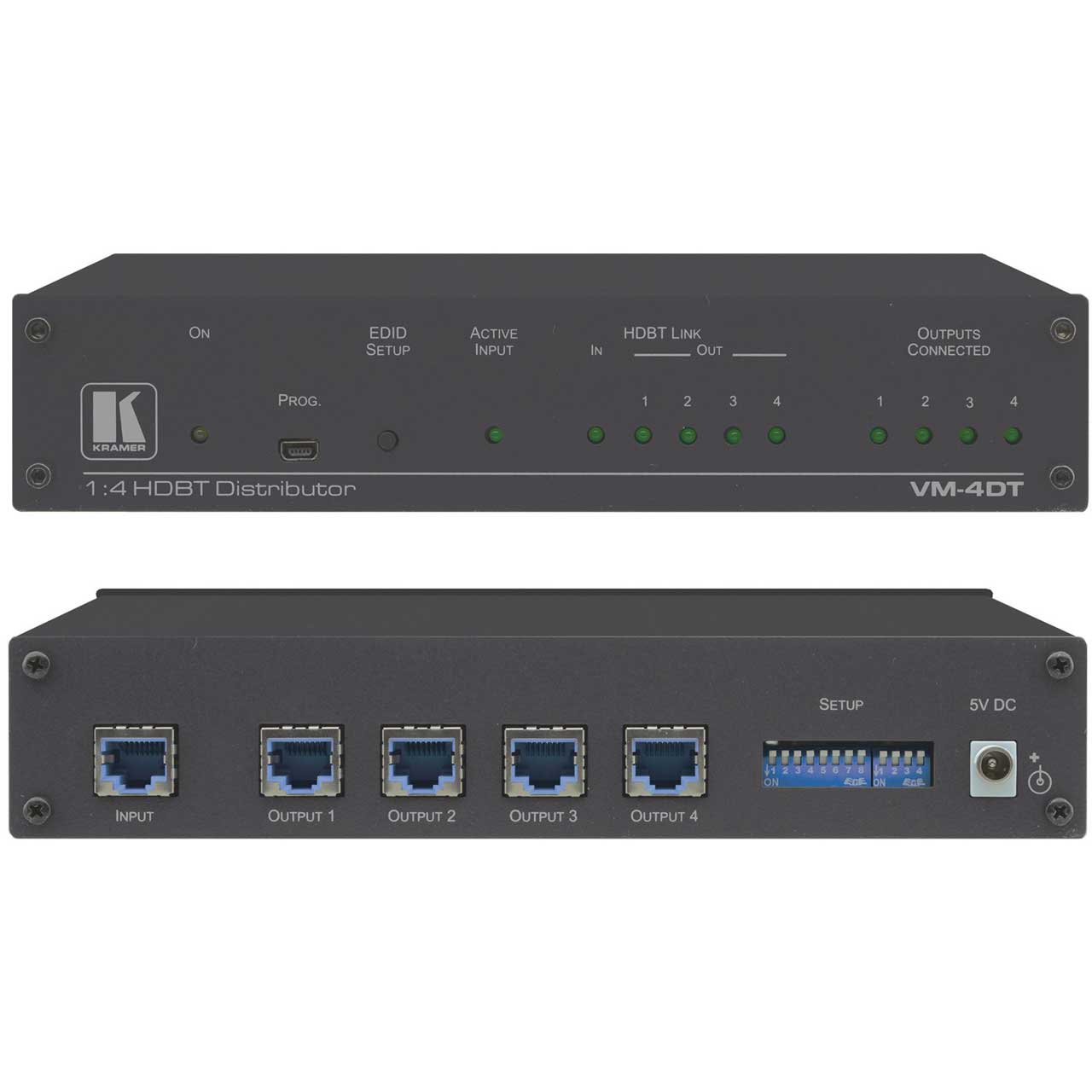

Kramer VM-4DT 4K (4:2:0) 1:4 Long-Reach HDBaseT Extender/Distribution Amplifier

VM-4DT - Overview

High Performance Distribution

• Features:

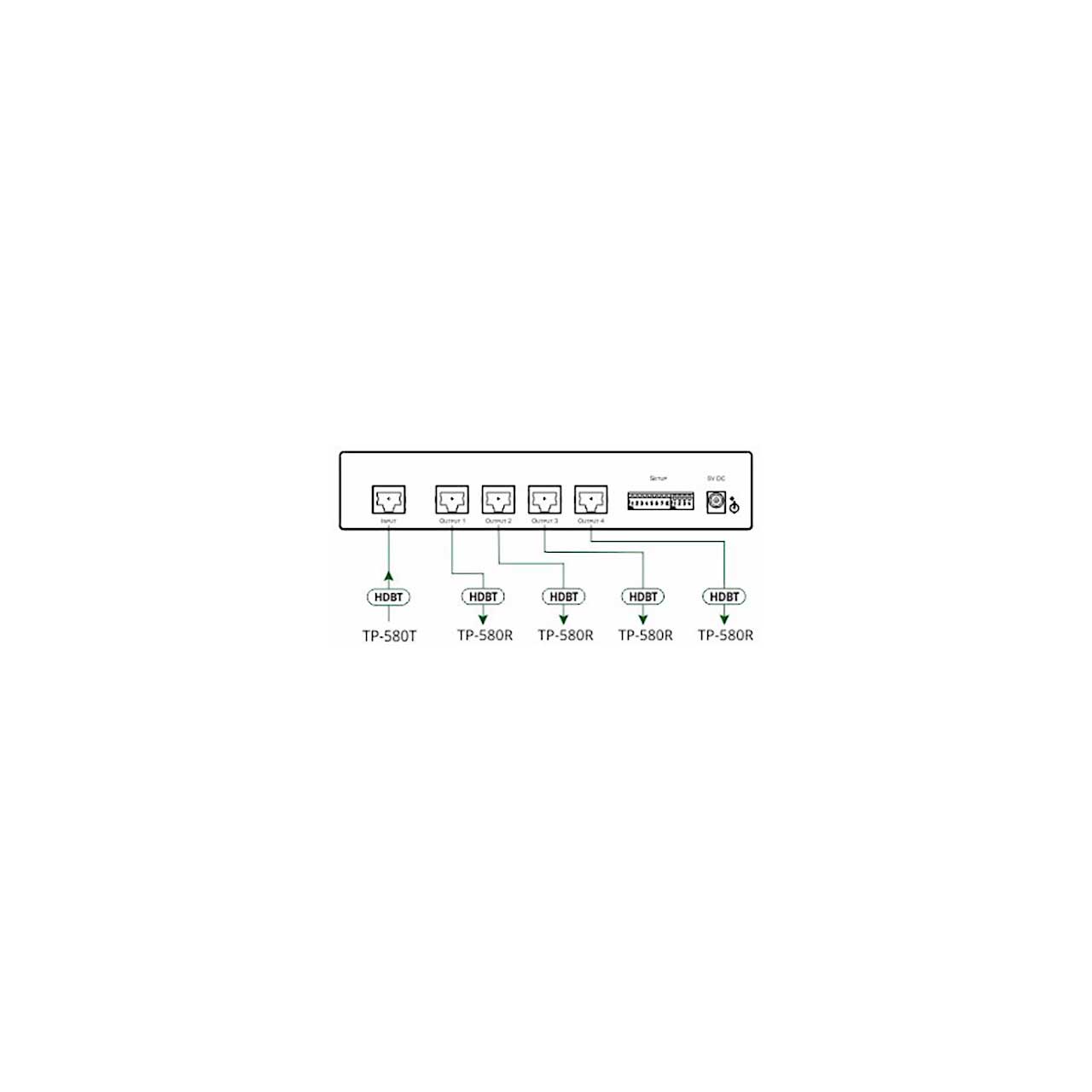

  • High Performance Distribution - Distributes one native, long-reach HDBaseT signal to three outputs with up to 4K video resolution, along with their re-extension over HDBaseT.
  • Dual-side Extension - Extends a 4K@60Hz (4:2:0) 24bpp (maximum) video signal to a distance of up to 40m (130ft) long-reach, and even further for lower video resolutions, when deployed mid-way between an AV source and multiple remote acceptors using CAT copper cable.
  • Standard Compatibility - Connects to any HDBaseT compliant extension product on the market.
  • HDMI Signal Transmission - HDMI 2.0 and HDCP 1.4 compliant signal, supporting deep color, x.v.Color™, lip sync, 7.1 PCM, Dolby TrueHD, DTS-HD, 2K, 4K, and 3D. EDID and CEC (OUT 1 only) signals are passed through from the source to the display.
  • I-EDIDPro™ Kramer Intelligent EDID Processing™ - An intelligent EDID handling, processing and pass-through algorithm that ensures Plug and Play operation for HDMI source and display systems.
  • LED Indicators - Status indicators for HDBaseT input/output connected signals and power for ease of maintenance and troubleshooting.
  • Easy Installation - Twisted-pair cables for HDBaseT signals wiring. Standard half-width 19" rack (1U) fan-less enclosure for side-by-side mounting of 2 units in a 1U rack space with included rack mounting-ears.


• Specifications:

  • INPUT
  • 1 HDBT on an RJ-45 female connector


  • OUTPUTS
  • 4 HDBT on RJ-45 female connectors


  • MAX. DATA RATE
  • 10.2Gbps (3.4Gbps per graphic channel)


  • RANGE EXTENSION (INPUT OR OUTPUT EACH SIDE)
  • Up to 40m (130ft) at 4K@60Hz (4:2:0),
  • Up to 70m (230ft) at full HD (1080p @60Hz 36bpp),
  • Note: When using Kramer HDBaseT cables


  • MAX. VIDEO RESOLUTION
  • 4K@60Hz (4:2:0) 24bpp


  • COMPLIANCE
  • Supports HDCP 1.4 and HDBaseT 1.0


  • HDMI SUPPORT
  • Deep color, x.v.Color™, lip sync, 7.1 PCM, Dolby TrueHD, DTS-HD, 2K, 4K, and 3D as specified in HDMI 2.0


  • CONTROLS
  • EDID setup button, indicator LEDS: OUTPUTS 1-4


  • LINK 1-4
  • active input, power on


  • OPERATING TEMPERATURE
  • 0° to +40°C (32° to 104°F)


  • STORAGE TEMPERATURE
  • -40° to +70°C (-40° to 158°F)


  • HUMIDITY
  • 10% to 90%, RHL non-condensing


  • POWER CONSUMPTION
  • Power source: 5.2V DC, 4A
  • power consumption: 5V DC, 3.5A


  • ENCLOSURE
  • Desktop size, Aluminum type


  • COOLING
  • Fan ventilation


• Item Includes:

  • VM-4DT Extender/DA
  • Power adapter and cord
  • Rubber Feet (4)


• Warranty:

  • Limited 7 Year Warranty


• GTIN:

  7291063083380
