Kramer TP-583RXR 4K60 4:2:0 HDMI HDCP 2.2 Receiver with RS 232 & IR over Extended Reach HDBaseT

TP-583RXR - Overview

HDBaseT 1.0 Receiver

• Features:

  • High Performance Standard Extender - Professional HDBaseT extender for providing long-reach signals over twisted-pair copper infrastructures. It employs low-level video compression technology that delivers visually lossless performance for 4K@60 (4:4:4) and HDR signals with near-zero latency. This high-quality compressed signal is extended to almost double the extension reach of the uncompressed signal.
  • Future-proof, Standard Extender - TP-583Rxr is a standard HDBaseT extender, backwards compatible with other standard HDBT extenders. It extends either compressed or uncompressed HDBaseT signal, by auto-adapting to the compression capabilities of its connected extender. This enables it to be connected to any market-available HDBaseT-compliant extension product.
  • Intelligent Compression Handling - Automatically detects a standard HDBaseT extender without compression and disables the compression to extend the signal in compliance with the detected extender.
  • HDMI Signal Extension - HDR HDCP 2.2 compliant. Supports deep color, x.v.Color™, lip sync, HDMI uncompressed audio channels, Dolby TrueHD, DTS-HD, 2K, 4K, and 3D as specified in HDMI 2.0. EDID and CEC signals are passed through from the source to the display.
  • I-EDIDPro™Kramer Intelligent EDID Processing™ - Intelligent EDID pass-through algorithm that ensures Plug and Play operation for HDMI source and display systems.
  • Multi-channel Audio Extension - Up to 32 channels of digital stereo uncompressed signals for supporting studio-grade surround sound.
  • Bidirectional RS-232 Extension - Serial interface data flows in both directions, allowing data transmission and device control.
  • Bidirectional Infrared Extension - IR interface data flows in both directions, allowing remote control of peripheral devices located at either end of the extended line.
  • Cost-Effective Maintenance - Status LED indicators for HDMI and HDBT ports facilitate easy local maintenance and troubleshooting. Local firmware upgrade via RS-232 connection ensures lasting, field-proven deployment.

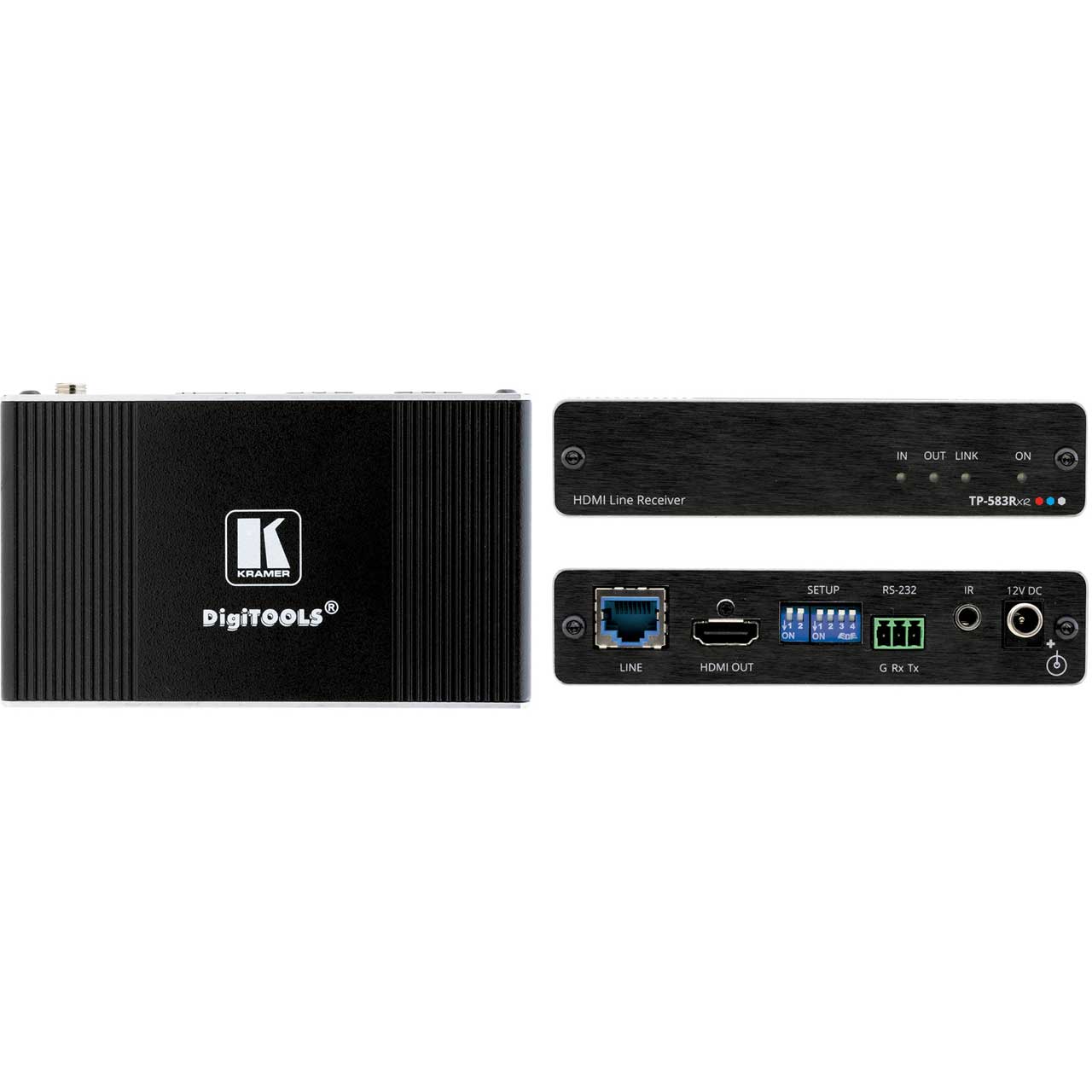

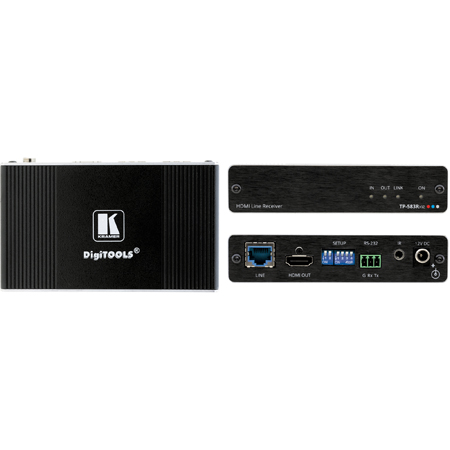

  • Easy Installation - Compact DigiTOOLS® fan-less enclosure for dropped-ceiling mounting, or side-by-side mounting of 3 units in a 1U rack space with the recommended rack adapter.


• Specifications:

  • INPUTS
  • 1 HDBT: On an RJ-45 connector


  • OUTPUTS
  • 1 HDMI: On a female HDMI connector
  • PORTS
  • 1 RS-232: On a 3-pin terminal block connector for serial link extension
  • 1 IR: On a 3.5mm mini jack connector


  • EXTENSION LINE
  • Standard Compression: Up to 100m (330ft) at 4K@60Hz (4:4:4), 4K@60Hz (4:2:0) or 4K@30Hz (4:4:4)
  • Up to 180m (590ft) at full HD (1080p @60Hz 24bpp)
  • High Compression: Up to 100m (330ft) at 4K@60Hz (4:4:4), or 4K@60Hz (4:2:0)
  • Up to 180m (590ft) at 4K@30Hz (4:4:4)
  • Up to 200m (650ft) at full HD (1080p @60Hz 24bpp)
  • No Compression: Up to 100m (330ft) at 4K@60Hz (4:2:0)
  • Up to 180m (590ft) at full HD (1080p @60Hz 24bpp)
  • Standards Compliance: HDBaseT 1.0
  • Note: When using recommended Kramer cables


  • VIDEO
  • Max Data Rate: Up to 18Gbps (6Gbps per graphic channel)
  • Standard Compression Max Resolution: 4096x2160@60Hz (4:4:4) 24bpp
  • High Compression Max Resolution: 3840x2160@60Hz (4:4:4) 24bpp
  • No-Compression Max Resolution: 4096x2160@60Hz (4:2:0) 24bpp
  • Compliance: HDCP 2.2, HDR 10
  • HDMI Support: Deep color, x.v.Color™, lip sync, HDMI uncompressed audio channels, Dolby TrueHD, DTS-HD, 2K, 4K, and 3D as specified in HDMI 2.0


  • EXTENDED BIDIRECTIONAL RS-232
  • 300 to 115200 baud rate


  • EXTENDED BIDIRECTIONAL IR
  • 20kHz to 100kHz frequency


  • USER INTERFACE
  • Indicators: IN, OUT, LINK and ON LEDs
  • Controls: DIP-switches


  • POWER
  • Source: 12V DC, 2A
  • Consumption: 600mA


  • ENVIRONMENTAL CONDITIONS
  • Operating Temperature: 0° to +40°C (32° to 104°F)
  • Storage Temperature: -40° to +70°C (-40° to 158°F)
  • Humidity: 10% to 90%, RHL non-condensing

    REGULATORY COMPLIANCE (STANDARDS COMPLIANCE)
  • Safety: CE, UL
  • Environmental: RoHs, WEEE


  • ENCLOSURE
  • Size: DigiTOOLS®
  • Type: Aluminum
  • Cooling: Convection ventilation


• Item Includes:

  • 1 x Power Adapter
  • 1 x Power Cord
  • 1 x Bracket Set


• Warranty:

  • Limited 7 Year Warranty
