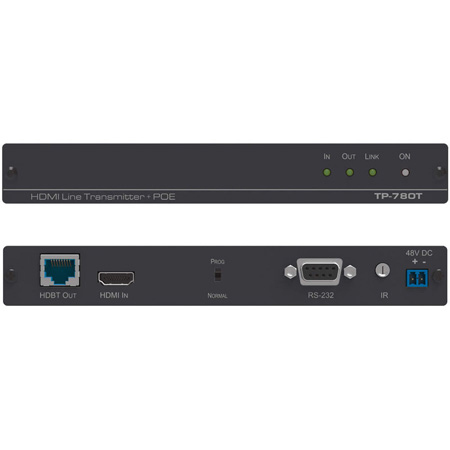

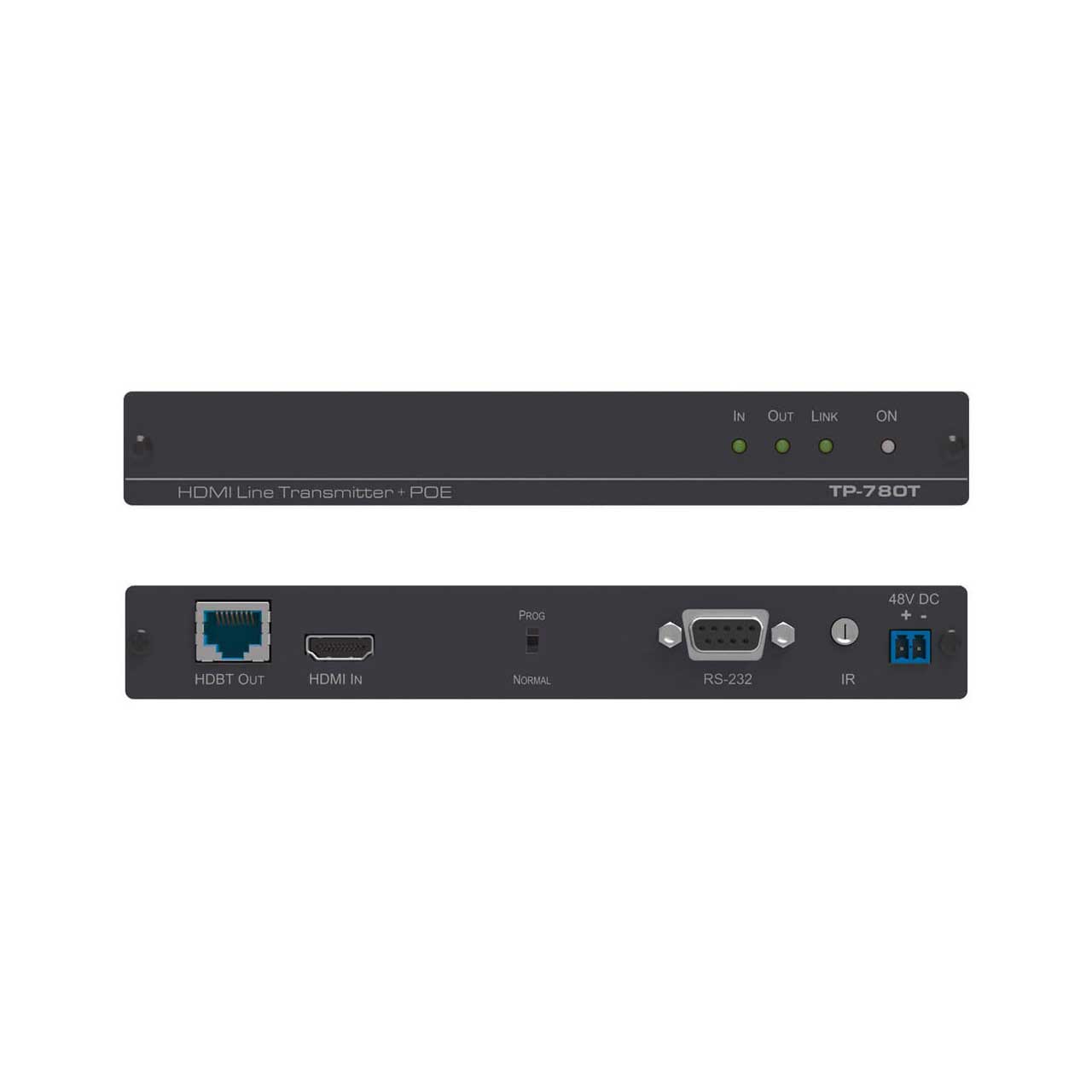

Kramer TP-780T 4K60 4:2:0 HDMI HDCP 2.2 PoE Transmitter with RS-232 & IR over HDBaseT

TP-780T - Overview

• Features:

  • High Performance Standard Extender - Professional HDBaseT extender for providing long-reach signals over twisted-pair copper infrastructures. TP-780T is a standard extender that can be connected to any market-available HDBaseT-compliant extension product. For optimum extension reach and performance, use recommended Kramer cables.
  • HDMI Signal Extension - HDCP 2.2 compliant. Supports deep color, x.v.Color™, lip sync, HDMI uncompressed audio channels, Dolby TrueHD, DTS-HD, 2K, 4K, and 3D as specified in HDMI 2.0. EDID and CEC signals are passed through from the source to the display.
  • I-EDIDPro™ Kramer Intelligent EDID Processing™ - Intelligent EDID handling, processing and pass-through algorithm that ensures Plug and Play operation for HDMI source and display systems.
  • Multi-channel Audio Extension - Up to 32 channels of digital stereo uncompressed signals for supporting studio-grade surround sound.
  • Bidirectional RS-232 Extension - Serial interface data flows in both directions, allowing data transmission and device control.
  • Bidirectional Infrared Extension - IR interface data flows in both directions, allowing remote control of peripheral devices located at either end of the extended line.
  • Cost-effective Maintenance - Status LED indicators for HDMI and HDBT ports facilitate easy local maintenance and troubleshooting. Local firmware upgrade via RS-232 connection and the K-Upload tool ensures lasting field-proven deployment.

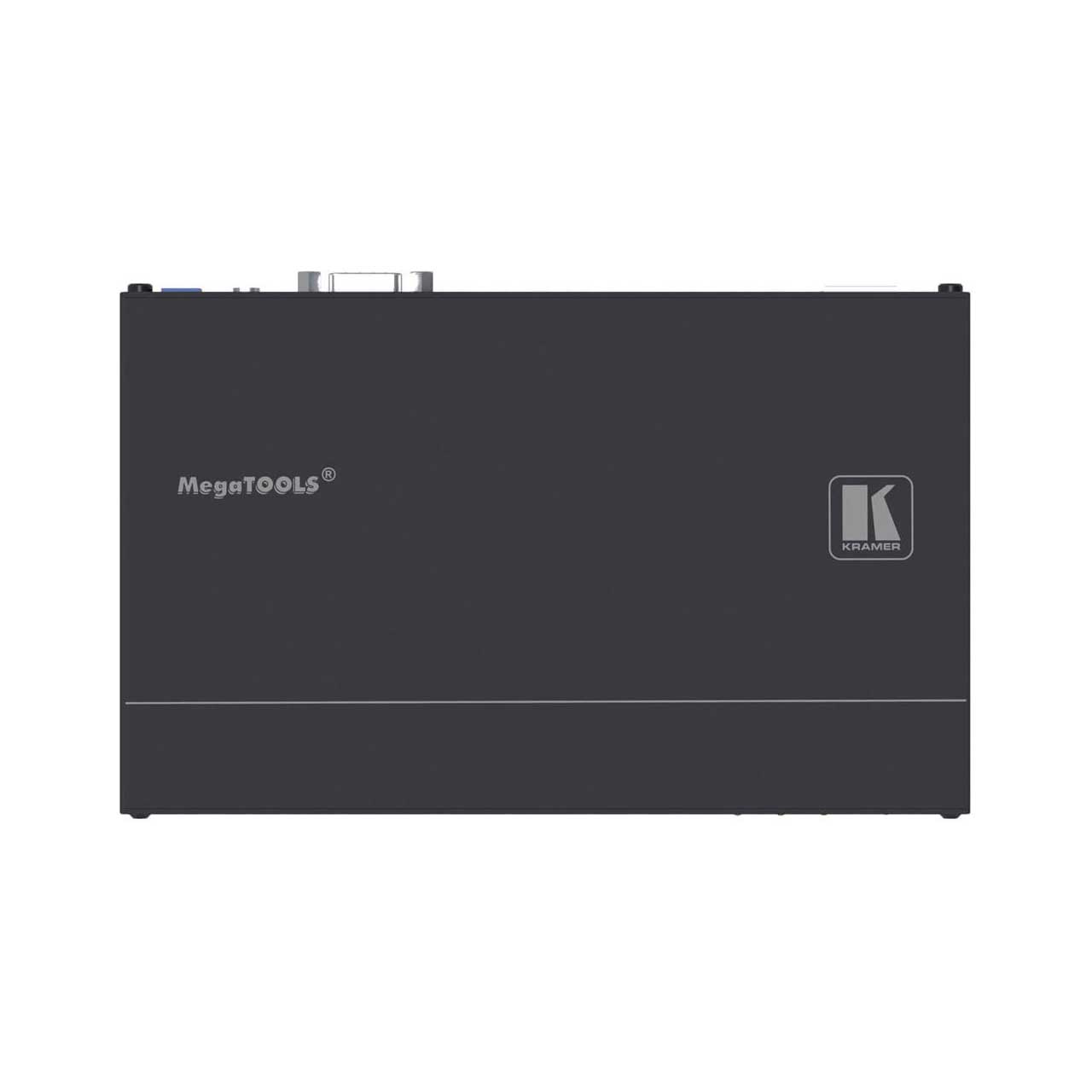

  • Easy and Elegant Installation - Single cable connectivity for both HDBaseT signals and power. Compact MegaTOOLS™ fan-less enclosure for dropped-ceiling mounting, or side-by-side mounting of 2 units in a 1U rack space with the recommended rack adapter.


• Specifications:

  • INPUTS
  • 1 HDMI on an HDMI connector


  • OUTPUTS
  • 1 HDBT on an RJ-45 female connector


  • PORTS
  • 1 IR on a 3.5mm mini jack for IR link extension,
  • 1 RS-232 on a 9-pin D-sub connector for serial link extension and device firmware upgrade


  • EXTENSION LINE
  • HDBaseT 1.0 compliant
  • Up to 40m (130ft) at 4K @60Hz (4:2:0)
  • Up to 70m (230ft) at full HD (1080p @60Hz 36bpp)
  • Note: When using Kramer HDBaseT cables


  • VIDEO
  • Up to 10.2Gbps bandwidth (3.4Gbps per graphic channel)
  • Up to 4K UHD @60Hz (4:2:0) 24bpp resolution
  • HDCP 2.2 signal compliance
  • Supports deep color, x.v.ColorT, lip sync, HDMI uncompressed audio channels, Dolby TrueHD, DTS-HD, 2K, 4K, and 3D as specified in HDMI 2.0


  • EXTENDED RS-232
  • 300 to 115200 baud rate


  • CONTROL RS-232
  • 115200 baud rate


  • POWER SOURCE
  • 48V DC, 1.36A


  • POWER CONSUMPTION
  • 48V DC, 240mA


  • ENCLOSURE
  • Mega Tools size, aluminum type


  • COOLING
  • Convection ventilation


  • OPERATING TEMPERATURE
  • 0° to 40°C (32° to 104°F)


  • STORAGE TEMPERATURE
  • -40° to +70°C (-40° to 158°F)


  • HUMIDITY
  • 10% to 90%, RHL non-condensing


• Item Includes:

  • TP-780T Transmitter
  • Power Supply


• Warranty:

  • Limited 7 Year Warranty


• GTIN:

  7291063077099
