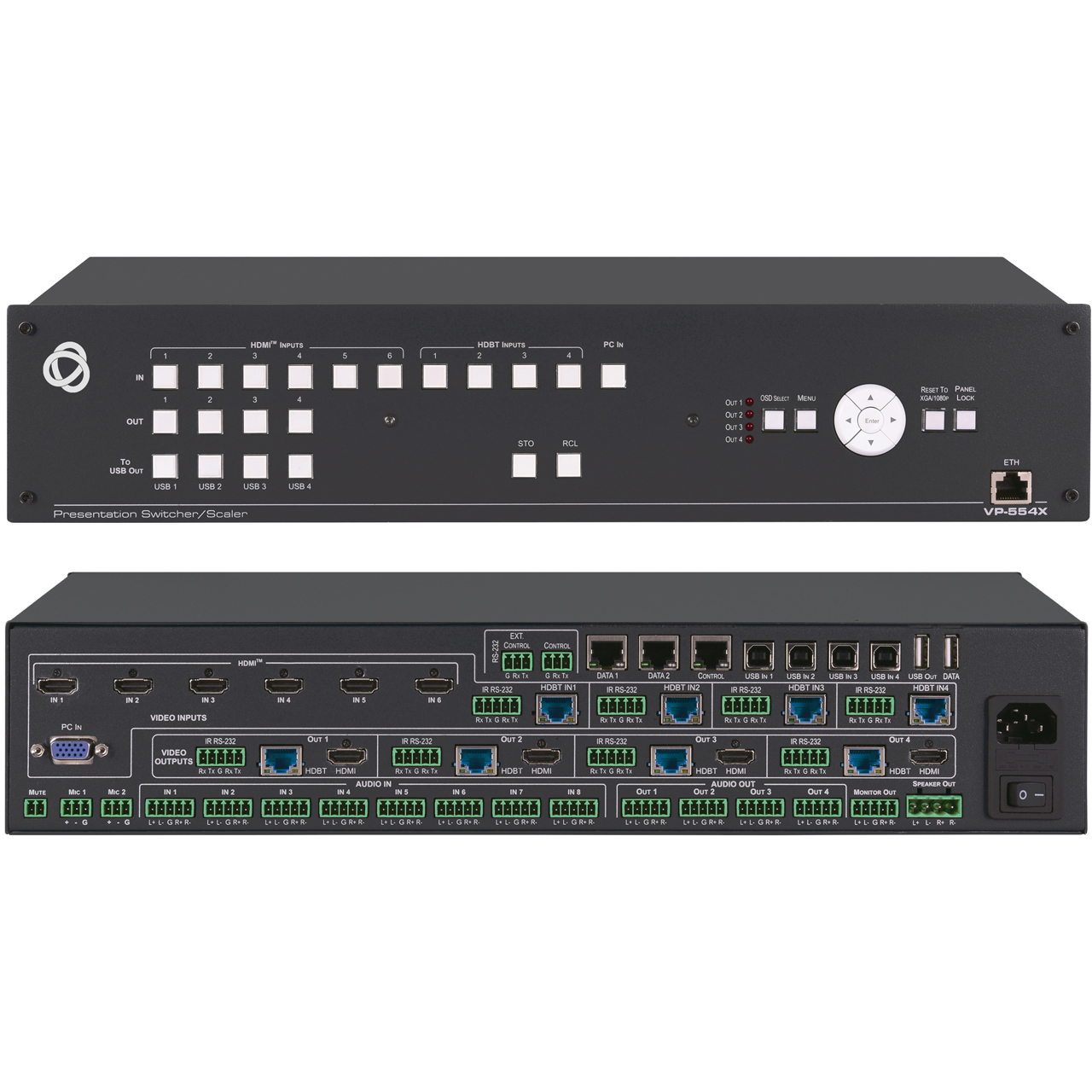

Kramer VP-554X 2RU 11x4:2 Presentation Boardroom Router/Scaler System - 330 Foot Range at 4K/60FPS via HDBaseT

VP-554X - Overview

• Features:

  • Pix-Perfect Scaling Technology - Kramer's precision pixel mapping and high-quality full up - and down-scaling technology.
  • High-Performance Switcher/Scaler - Scales the video and provides constant output sync to prevent signal disruption when switching between inputs and when no video is detected
  • HDCP 2.3 Compliance - The HDCP (High Definition Content Protection) license agreement allows copy-protected data on the HDMI input to pass to HDCP compliant outputs
  • Resolutions - Up to 4K60 4:4:4 on the HDMI ports; up to 4K60 4:2:0 on the HDBaseT ports; and up to 1080p60 on the VGA input
  • System Range for the HDBT inputs and outputs - Up to 100m for 4K; 180m for 1080p
  • 4x1 USB Switcher - Can be set to follow the switching of the video layer or as an independent switcher
  • Audio DSP Features, including input and output level adjustments, microphone talkover, mixing, and EQ
  • Analog & Embedded Audio Support
  • Built-in Power Amplifier - 2x20W
  • Built-in Video ProcAmp - Color, hue, sharpness, noise, contrast, and brightness
  • Option for video wall output mode
  • Multiple Control Options - Front panel buttons with OSD, RS-232, Ethernet and built-in Web pages
  • Includes numerous filters and algorithms for eliminating picture artifacts
  • Converts to 4K60 4:2:0 on HDBaseT outputs when its corresponding mirrored HDMI output resolution is 4K60 4:4:4 (similarly for 4K50)
  • HDMI Support - HDR10, CEC, xvYCC color (on input), Dolby TrueHD/DTS-HD Master Audio (by-pass), as specified in HDMI 2.0 as specified in HDMI 2.0
  • Multiple aspect ratio selections
  • Advanced EDID management per input
  • Includes non-volatile memory that retains the last settings, after switching the power off and then on again
  • STO and RCL buttons, a RESET TO XGA/1080P button (to hardware-reset the output resolution); and a PANEL LOCK button
  • Built-in video Proc-Amp - color, hue, sharpness, contrast, and brightness are set individually for each output
  • An OSD (On-Screen Display) - for making adjustments - that can be located anywhere on the screen
  • Efficient power-saving features
  • Advanced EDID management per input
  • Includes non-volatile memory that retains the last settings, after switching the power off and then on again
  • 11 input buttons for switching a selected input to an output
  • Scaled video outputs - 4 pairs of mirrored HDMI and HDBT outputs
  • Embedded audio on the HDMI and HDBT inputs and outputs
  • 11 input buttons for switching a selected input to an output
  • Embedded audio on the HDMI and HDBT inputs and outputs
  • Scaled video outputs - 4 pairs of mirrored HDMI and HDBT outputs


• Specifications:

  • Inputs
    - 6x HDMI: On female HDMI connectors
    - 1x PC: On a 15-pin HD connector
    - 4x HDBT: On RJ-45 female connectors
    - 8x Stereo Analog Balanced Audio: On 5-pin terminal block connectors
    - 2x Unbalanced Mono Audio: On 3-pin terminal block connectors
  • Outputs
    - 4x HDMI: On female HDMI connectors
    - 4x HDBT (mirrored with each HDMI output): On RJ-45 female connectors
    - 5x Balanced Stereo Audio: On 5-pin terminal block connectors
    - 1x Stereo Balanced Audio: On a 4-pin large terminal block

    Line Level Input
  • Impedance: 16.6kΩ
  • Maximum Level: +14.7dBu (4.2Vrms)
  • Sensitivity: Full power @ +8.7dBu (2.1Vrms) for OUT =1.9Vrms

    Microphone Level Input
  • Impedance: 47kΩ
  • Sensitivity: Full power @ - 37dBu (11mVrms) for OUT =1.9Vrms
  • Phantom Power: 48Vdc on/off per input

    Line Level Output
  • Impedance: 500Ω
  • Frequency Response: 20Hz - 20kHz @ +/-1dB
  • S/N Ratio: >75dB, 20Hz - 20kHz (unweighted),
  • S/N Ratio: >81dB, 20Hz - 20kHz (A-weighted)
  • Audio THD + Noise: <0.014%, 20Hz - 20kHz (unweighted),
  • Audio THD + Noise: <0.0092%, 20Hz-20kHz (A-weighted)
  • Crosstalk: <-93 dB, 20Hz to 20kHz

    Amplifier
  • Output Power: 2 x 20W into 4Ω
  • Amplifier Class: D
  • Maximum Voltage Gain: 26dB BTL
  • Dynamic Range: 103 dB A-Weighted
  • Frequency Response: 20Hz - 20kHz @ +/-1dB
  • S/N Ratio: >68 dB, 20Hz - 20kHz (unweighted)
  • Audio THD + Noise: <0.037%, 20Hz - 20kHz (unweighted)
  • Crosstalk: <-77 dB, 20Hz to 20kHz


  • Ports
    - 4x IR (for HDBT Outputs): On terminal block connectors for IR link extension
    - 4x IR (for HDBT Inputs): On terminal block connectors for IR link extension
    - 4x RS-232 (for HDBT Outputs): On terminal block connectors for serial link extension
    - 4x RS-232 (for HDBT Inputs): On terminal block connectors for serial link extension
    - 4x USB: Hosts on USB-B connectors
    - 1x USB: Client on a USB-A connector
    - 1x USB: On a USB-A connector for firmware upgrading
    - 2x RS-232: On 3-pin terminal block connectors
    - 4x 100BaseT Ethernet: On RJ-45 female connectors for device control and LAN extension


  • Video: Max Resolution: HDMI: 4K60 4:4:4, Max Resolution: HDBT: 4K60 4:2:0, Max Resolution: PC (VGA):1080p. Compliance: Up to HDMI 2.0 and HDCP 2.2
  • Extended Ethernet: Max Transmission Bandwidth: 100Mbps
  • Extended RS-232: Baud Rate: 300 to 115200
  • Control RS-232: Baud Rate: 115200
  • Power: Max, Power Consumption: 190VA, Storage Temperature: -40° to 158°F
  • Environmental Conditions: Operating Temperature: 32° to 104°F, Humidity: 10% to 90%, RHL non-condensing
  • Regulatory Compliance (Standards Compliance): Safety: CE, FCC
  • Environmental: RoHs, WEEE
  • Enclosure: Size: 19" 2RU, Type: Aluminum, Cooling: Fan ventilation
  • Product Dimensions: 17.20" x 9.29" x 3.46"
  • Product Weight: 11.0lbs approx.
  • Shipping Dimensions: 20.71" x 18.70" x 7.24"
  • Shipping Weight: 13.9lbs approx.


• Item Includes:

  • 1x VP-554X Presentation Switcher/Scaler
  • 1x Power adapter cord


• Warranty:

  • 7-Years Limited
