Canare L-5-5CUHWS 12G-SDI Mobile Flexible 75 Ohm Coaxial Cable - 984 Feet

ITEM #: L-5-5CUHWS MFG #: L-5-5CUHWS

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$1,995.00

Our Price:

$1,532.21

Availability: In Stock
iAvailability Description Popup


L-5-5CUHWS - Overview

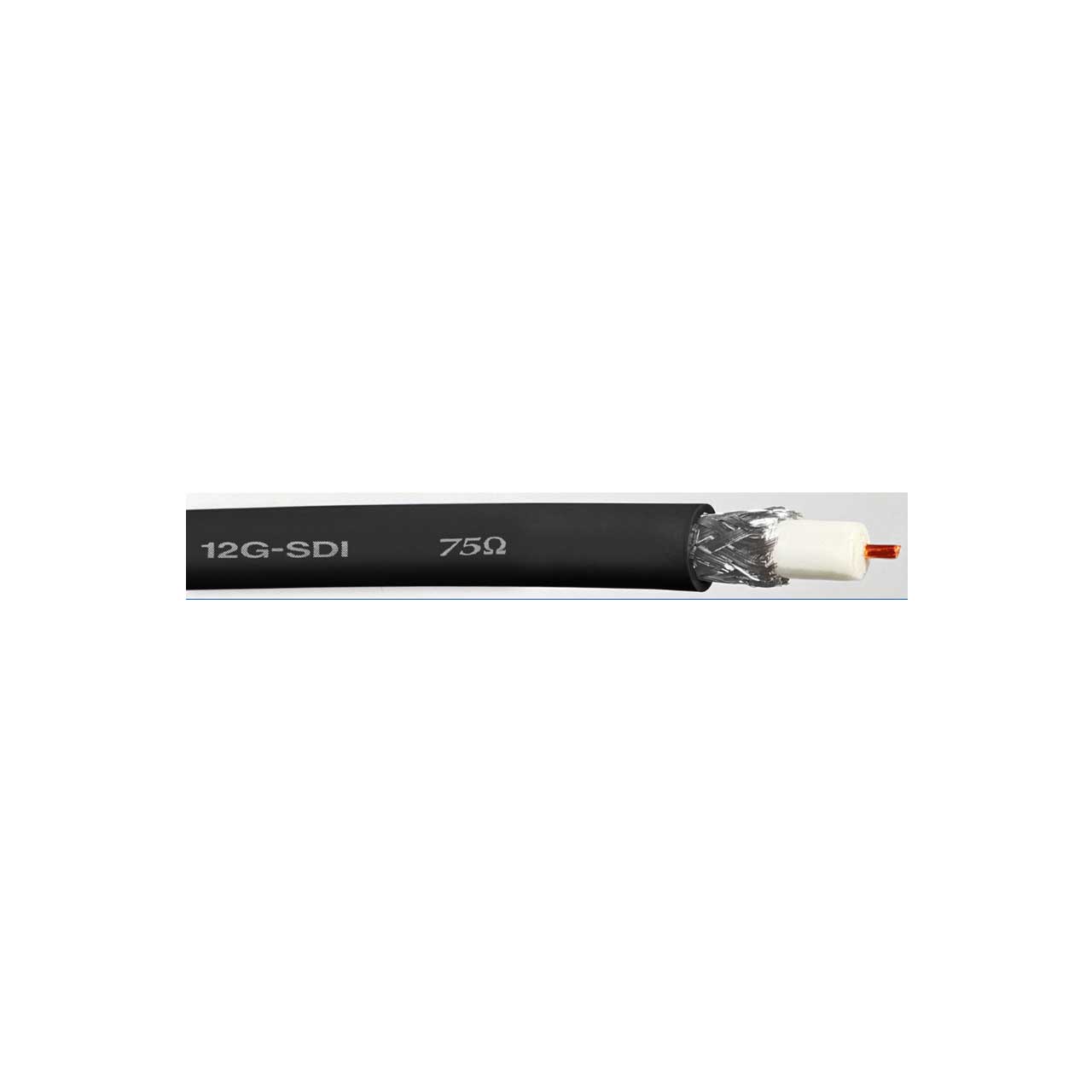

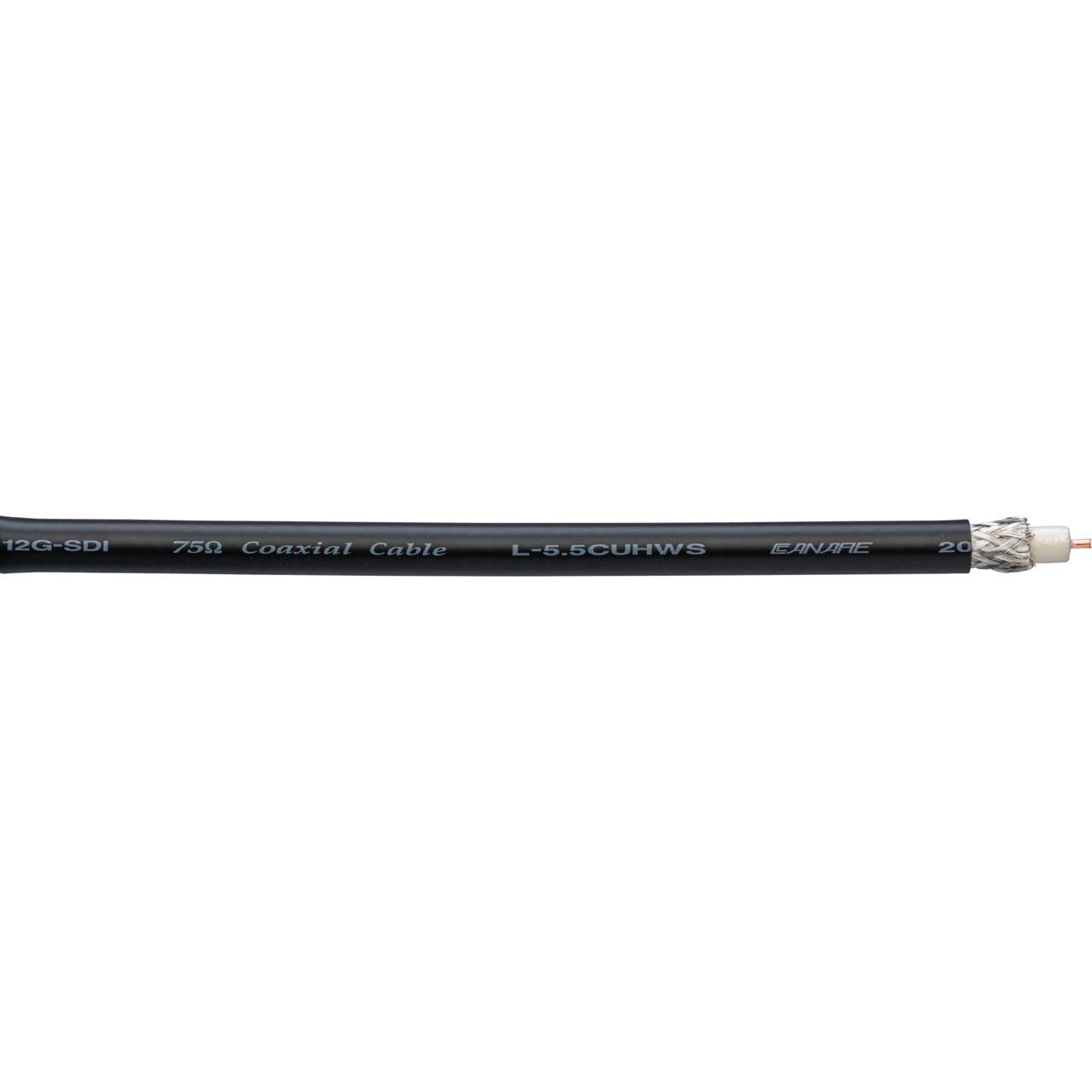

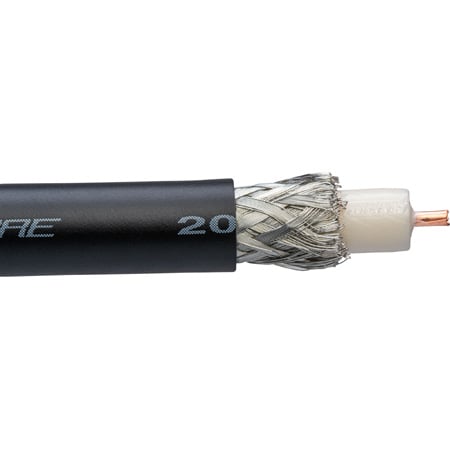

You may already be familiar with the Canare L-5.5CUHD 12G-SDI coaxial cable, but the Canare L-5.5CUHWS takes this coax to the next level of flexibility. The Canare L-5.5CUHWS is specifically designed for 12G-SDI mobile applications with an extra flexibility to simplify outside broadcast use in trucks or outdoor film sets. It features a revolutionary hybrid stranded and solid annealed copper center conductor that is compressed to transmit 12G 4K up to 100 feet.

Use the Canare BCP-D55UHW 12G-SDI BNC for L-5.5CUHWS as well as the CB055W strain relief boot to gives cable ends exceptional durability when constantly plugging and unplugging from equipment.

  • Features:

    • Specially designed for 12G-SDI mobile applications
    • Flexible and low loss structure
    • High-density double-braided shield
    • Highly-foamed PE insulation

  • Specifications:

    • Conductors:
    • Number of Conductors: 1
    • Inner Conductor:
      - Construction: 7/Compact Strand
      - Nom. Cross Section Area: 1.30mm
      - Outer Diameter: 1.30mm
    • Insulation:
      - Thickness: 2.13mm
      - Outer Diameter: 5.56mm
    • Outer Conductor 1:
      - Construction (carr/end): 24/10/0.10TA
      - Pitch: <= 42
      - Outer Diameter: 6.0mm
    • Outer Conductor 2:
      - Construction (carr/end): 24/10/0.10TA
      - Pitch: <= 38
      - Outer Diameter: 6.5mm
    • Sheath:
      - Thickness: 0.8mm
      - Outer Diameter: 8.1mm

      Electrical:
    • DC Resistance:
      - Inner Conductor: <= 14.0Ω/km (68°F/20°C) J
      - Outer Conductor: <= 5.8Ω/km (68°F/20°C) J
      - Insulation Resistance: >= 1000MΩ-km J
      - Voltage Proof: AC1000V 1 minute Not Breakdown
      - Characteristics Impendance: 75±3Ω (10MHz)
    • Nominal Capacitance: 54nF/km ( 1kHz)
    • Nominal Attenuation:
      - 10MHz: 1.7dB/100m
      - 30MHz: 3.1dB/100m
      - 72MHz: 4.8dB/100m
      - 88MHz: 5.3dB/100m
      - 135MHz: 6.7dB/100m
      - 180MHz: 7.7dB/100m
      - 270MHz: 9.6dB/100m
      - 750MHz: 16.7dB/100m
      - 1.3GHz: 22.7dB/100m
      - 1.5GHz: 24.6dB/100m
      - 2.0GHz: 29.0dB/100m
      - 2.5GHz: 33.0dB/100m
      - 3.0GHz: 36.7dB/100m
      - 6.0GHz: 56.0dB/100m

      Mechanical:
    • Tensile Properties of Sheath:
      - Strength: >= 14.0 MPa
      - Elongation: >= 230 %
      - Tension: <= 89 N
      - Bend Radius: More than 6 times of the cable O.D.

      Environmental:
    • Migration: No deformity, discoloration or other flaws must be found on ABS resin plates during visual inspection.
    • Flame Retardance: Flame must extinguish naturally within 60 seconds.

      Please Note: Testing must be performed under standard conditions set down in "JIS C 60068-1 General Environmental Testing Rules (Electric/Electronics)."
    • Standard Conditions: Unless otherwise specified, all tests and measurements should be performed within a normal temperature range of 59-95°F (15-35°C), a relative humidity of 25-75%, and an atmospheric pressure of 86-106kPa.

  • Warranty:

    • 1 Year Warranty
