LD Systems ICOA 12A - 12inch - Active 2-Way - Full Range Monitor with DSP

ITEM #: LDS-ICOA12A MFG #: LDS-ICOA12A

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Our Price:

$429.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


LDS-ICOA12A - Overview

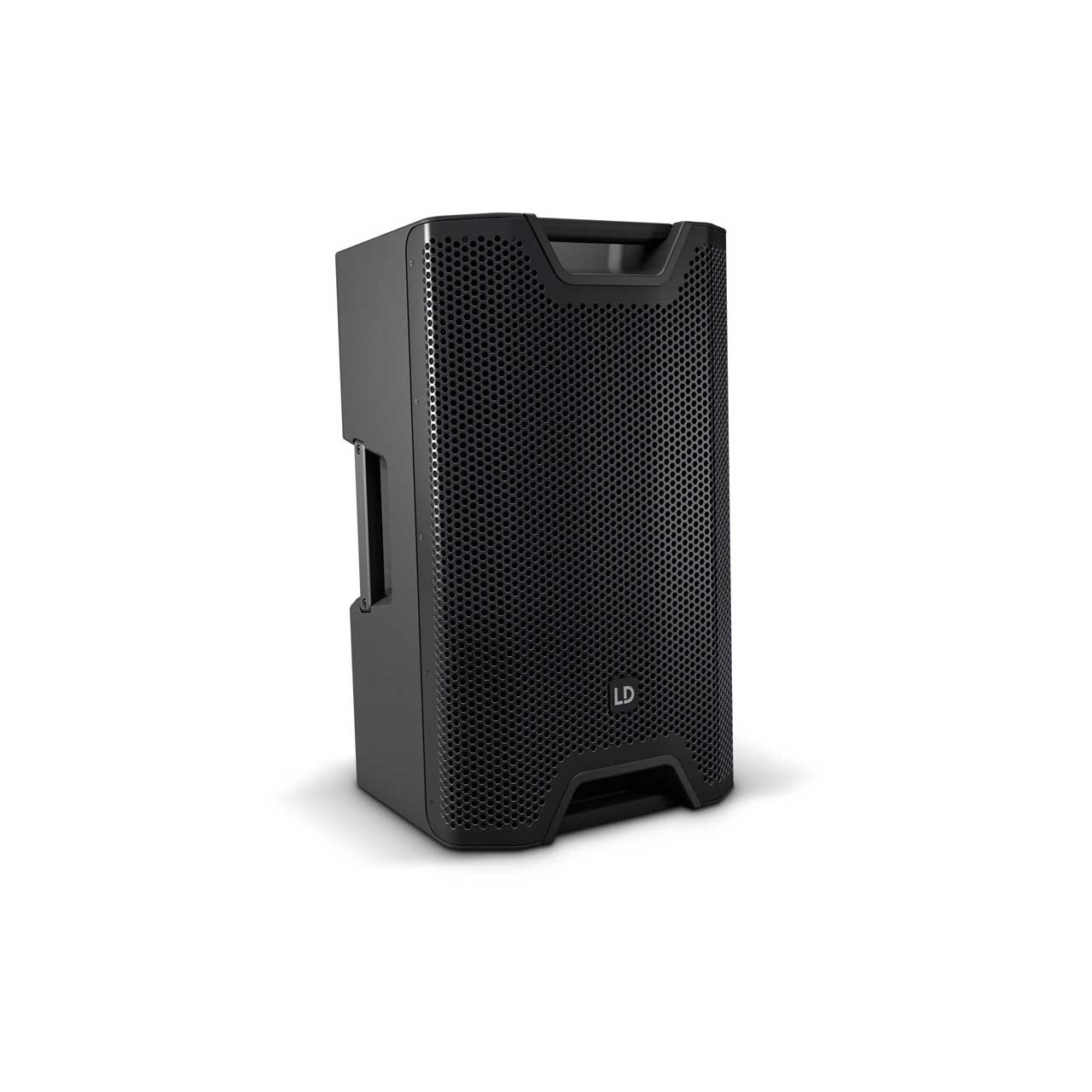

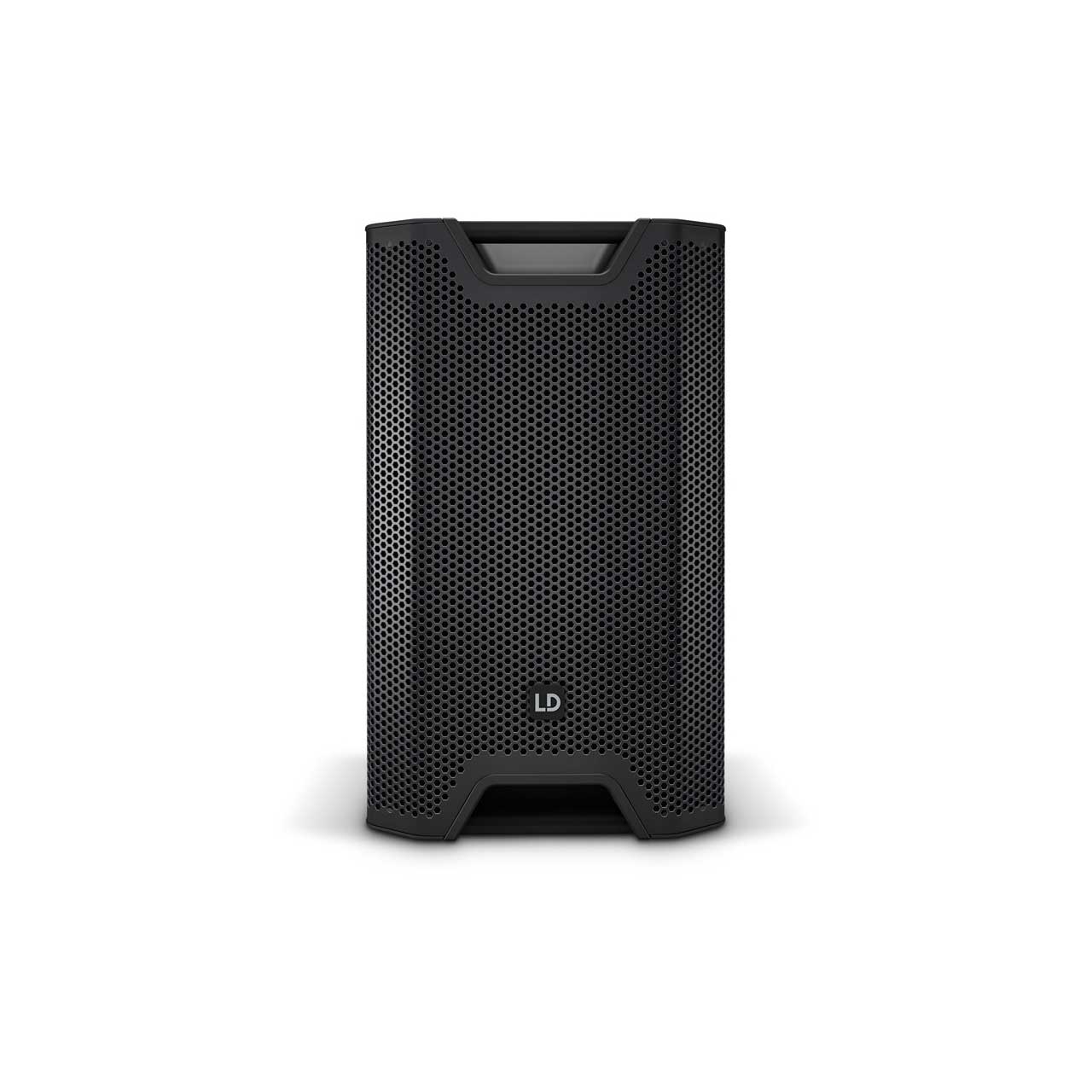

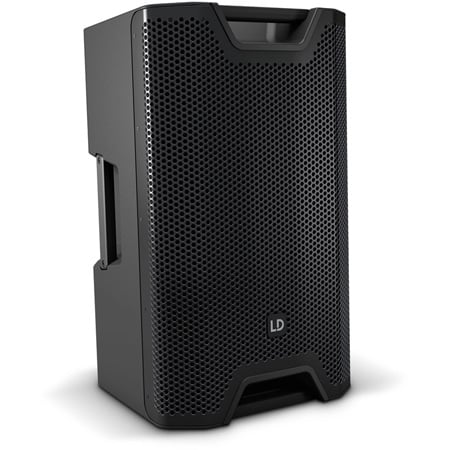

This full-range loudspeaker impresses with its outstanding sound, even at low frequencies. The ICOA 12 A by LD Systems is a genuine all-rounder that offers unparalleled features for its class. Its coaxial design, rotating, BEM-optimised CD horn and extensive and precisely calibrated DynX DSP presets make this active 12" loudspeaker exceptionally flexible.

The outstanding bass reproduction from the horn-loaded woofer makes the LD ICOA 12 A the ideal choice for musicians, bands, entertainers and dance schools. It also allows DJs to play sets without the need for a subwoofer. Deployed vertically, the speaker impresses as a satellite; horizontally, it's excellent in suspended systems or as a floor monitor. The efficient class-D power amplifier delivers 126 dB max. SPL and 300 Watt RMS performance.

Drawing on DynX DSP technology by LD Systems, the speaker delivers perfect performance with maximum clarity and power under all conditions. 4 presets, a 3-band EQ and a delay function facilitate optimal adjustment of the sound to the venue conditions. The 2 line/mic input channels with individual gain controllers, plus mono mix output, allow a variety of signal sources to be connected.

Thanks to its shock-resistant front grille and ideal 55° tilt angle, the LD ICOA 12 A is also outstanding as a floor monitor. Placed vertically, the 36 mm dual tilt stand attachment offers the choice of a 0° or 5° tilt angle for optimally adapting the system to the local acoustic environment.

Extensive and smart accessories for installation and transport are optionally available. 4 aluminium handles with an ergonomic rubber surface provide optimal grip when carrying the speaker.

  • Features:

    • A genuine all-rounder for full-range, satellite and monitor applications
    • 126 dB max. SPL and 1200 Watt peak power
    • Vertical and horizontal use thanks to coaxial design with rotating, BEM-optimised CD horn (Patent
      Pending)
    • Horn-loaded woofer
    • DynX DSP with 4 presets, 3-band EQ and delay function
    • 2 line/mic input channels with individual gain controllers plus mono mix output; Bluetooth®
      streaming with the BT model
    • 36 mm dual tilt stand attachment with 0° and 5° tilt angle, 55° monitor angle with
      sturdy stand
    • Shock-resistant front grille for optimal protection of the speaker
    • 4 aluminium grips with ergonomic, rubber surface
    • Extensive, optionally available accessories for installation and transport

  • Specifications:

    • Product Type: PA Loudspeaker
    • Type: Actives
    • Low/mid Driver Dimensions: 12 "
    • Woofer:
      Size: 12 inch
      Magnet: Ferrite
      Brand: Custom-made
    • Horn: BEM optimized CD Horn
    • HF Driver:
      Size: 1 inch
      Magnet: Ferrite
      Brand: Custom-made
      Voice Coil: 1 inch
    • Amplifier: Class D
    • Dispersion (H x V): 90° x 50°
    • RMS: 300 Watt
    • Peak Power: 1200 Watt
    • Frequency Response: 50 - 20000 Hz
    • Crossover Frequency kHz: 2 kHz
    • Max. SPL (peak): 126 dB, Multiband limiter

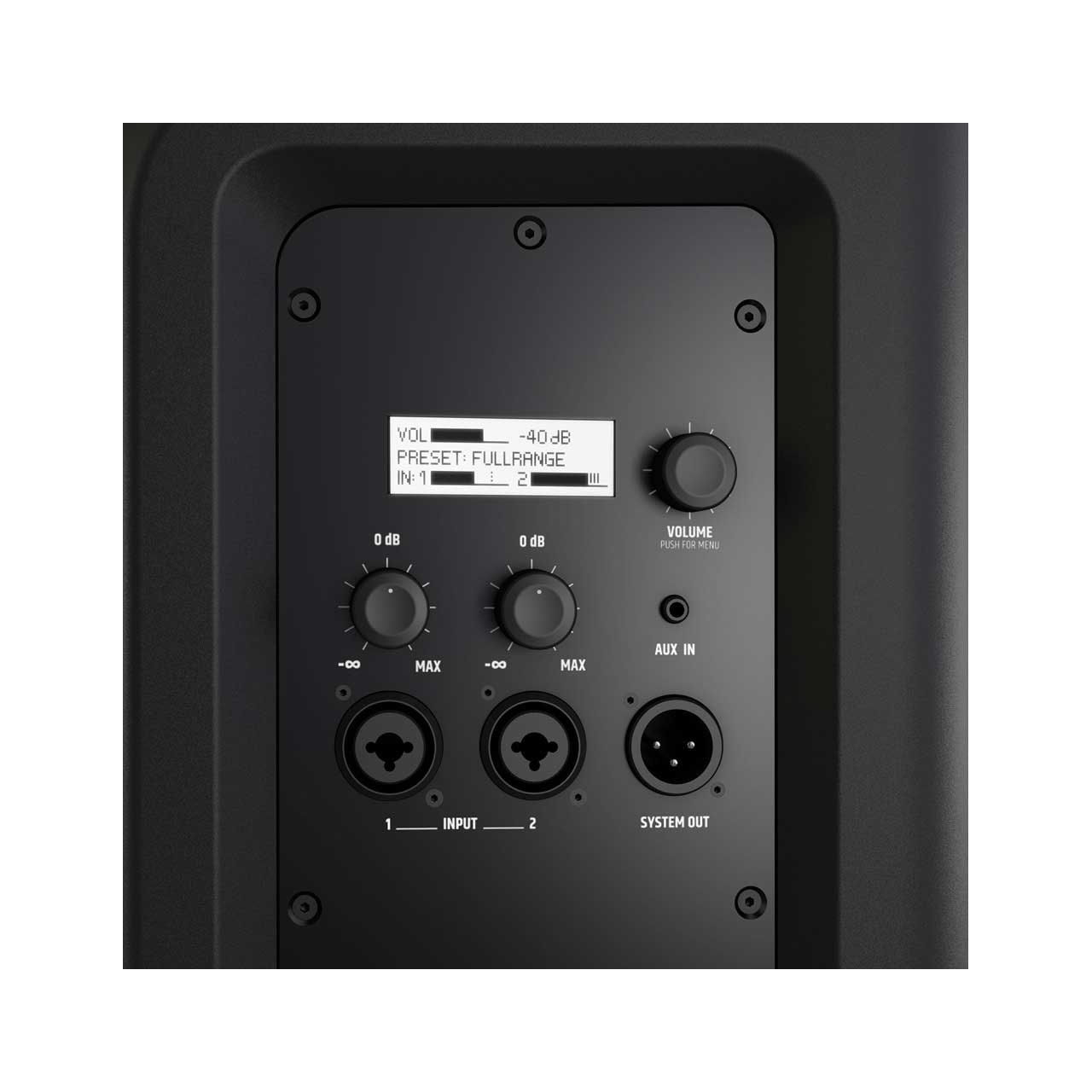

    • Protection Circuits: over voltage, over-current, thermal overload, 2 x gain
    • Controls: On / Off switch, Rotary/Push Encoder
    • Indicators: LC Display
    • Mic/ Line Inputs: 2
    • Line Inputs: 1
    • Line Outputs: 1
    • Operating Voltage: SMPS
    • Power Consumption: 150 Watt
    • Ambient Temperature (in operation): 32 - 104°F
    • Operating Voltage: 100 V - 240 V AC / 50 - 60 Hz
    • Relative Humidity: < 80 %, not condensing
    • Fuse: T4AL 250 V
    • Cabinet Material: Polypropylene
    • Cabinet Construction: Bass Reflex
    • Monitor Angle: 55°

  • Item Includes:

    • 1x LDS-ICOA12A
    • 1x Power Cord
