Lilliput RM1730S 17.3 Inch Full HD Pull-out Rack Monitor with Waveform and Vectorscope

ITEM #: LIL-RM1730S MFG #: LIL-RM1730S

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Our Price:

$1,399.00

Availability: In Stock
iAvailability Description Popup


LIL-RM1730S - Overview

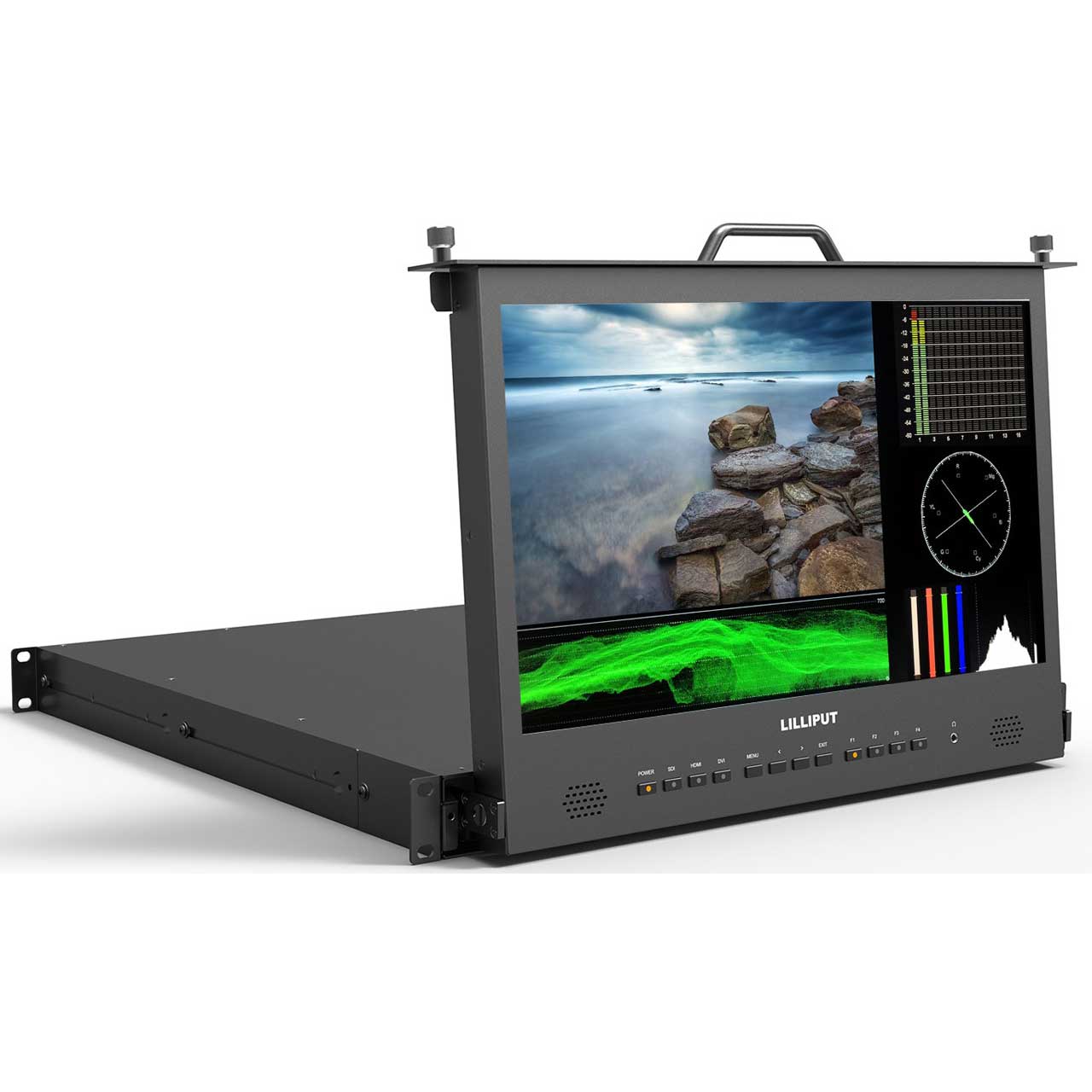

The Lilliput RM-1730S is a 17.3 inch, Full HD pull out rack mounted monitor with Waveform and Vectorscope. This 16:9 IPS panel features 1920x1080 full hd resolution, 700:1 high contrast, 300 cd/m2 high brightness and 178 degree viewing angles all in a unique 1RU pull out design. Super slim and light weight with metal housing for extra strength the RM-1730S is perfect for tight studios, Broadcast Vans, fly racks, anywhere space is at a premium. Intelligently designed RM-1730S has full HDMI/SDI cross conversion, Column YRGB Peak, Time Code, Waveform, Vectorscope, audio level metering and more. The Lilliput RM-1730S has all the tools needed for great results!

  • Features:

    • 1920x1080, Full HD resolution,
    • 300cd/m2 high brightness,
    • 700:1 high contrast,
    • 1RU pull-out drawer type,
    • 3G-SDI, HDMI, DVI, Audio & Tally inputs,
    • SDI and HDMI cross conversion,
    • Waveform PIP mode, vector,
    • Column (YRGB peak), time code

  • Specifications:

    • Display
    • Display Screen: 17.3" IPS
    • Physical Resolution: 1920 x1080
    • Aspect Ratio:16:9
    • Brightness: 300cd/m2
    • Contrast: 700:1
    • Viewing Angle: 178° / 178°(H/V)

      Input
    • 3G-SDI: 1
    • HDMI: 1
    • DVI: 1
    • Audio: 2 (L/R)
    • Tally: 1

      OUTPUT
    • 3G-SDI: 1
    • HDMI: 1
    • Audio: 2 Speaker, 1 Ear Phone Slot

      SDI Format
    • SMPTE-125M: 480i(59.94), 1080i(60/59.94/50), 1080p(30/29.97/25/24/24sF/23.98/23.98sF)
    • SMPTE-292M: 1080p(30/29.97/25/24/24sF/23.98/23.98sF)
    • SMPTE-296M: 720p(60/59.94/50/30/29/25/24/23.98)
    • SMPTE-372M: 720p(60/59.94/50), 1080i(29.97/25/24/23.98), 1080p(60/59.94/50/30/29.97/25/24/23.98)
    • SMPTE-425M-AB: Level A & Level B: 1080p(60/59.94/50), 1080i(60/59.94/50), 720p(60/59.94/50/30/29.97/25/24/23.98)
    • ITU-R BT.656: 576i(50)

      HDMI Format
    • Full HD ~ HD: 1080p, 1080i, 720p, 576p, 576i, 480p, 486i

      Power
    • Current: 2.8A
    • Input Voltage: DC 10-18V
    • Power Consumption:32W

  • GTIN:

    6950821601297
