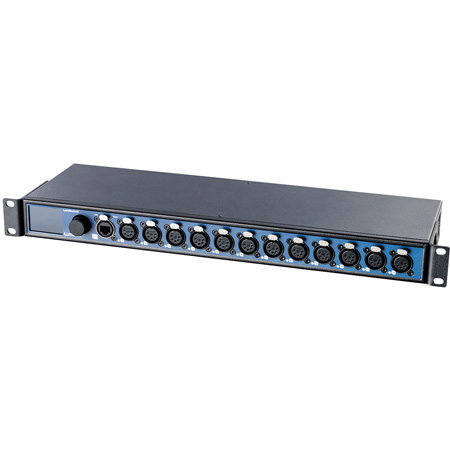

Luminex LU0100072 LumiNode 12 with 16 Processing Engines and 12 DMX Ports - 1RU

ITEM #: LMX-LU0100072 MFG #: LU0100072

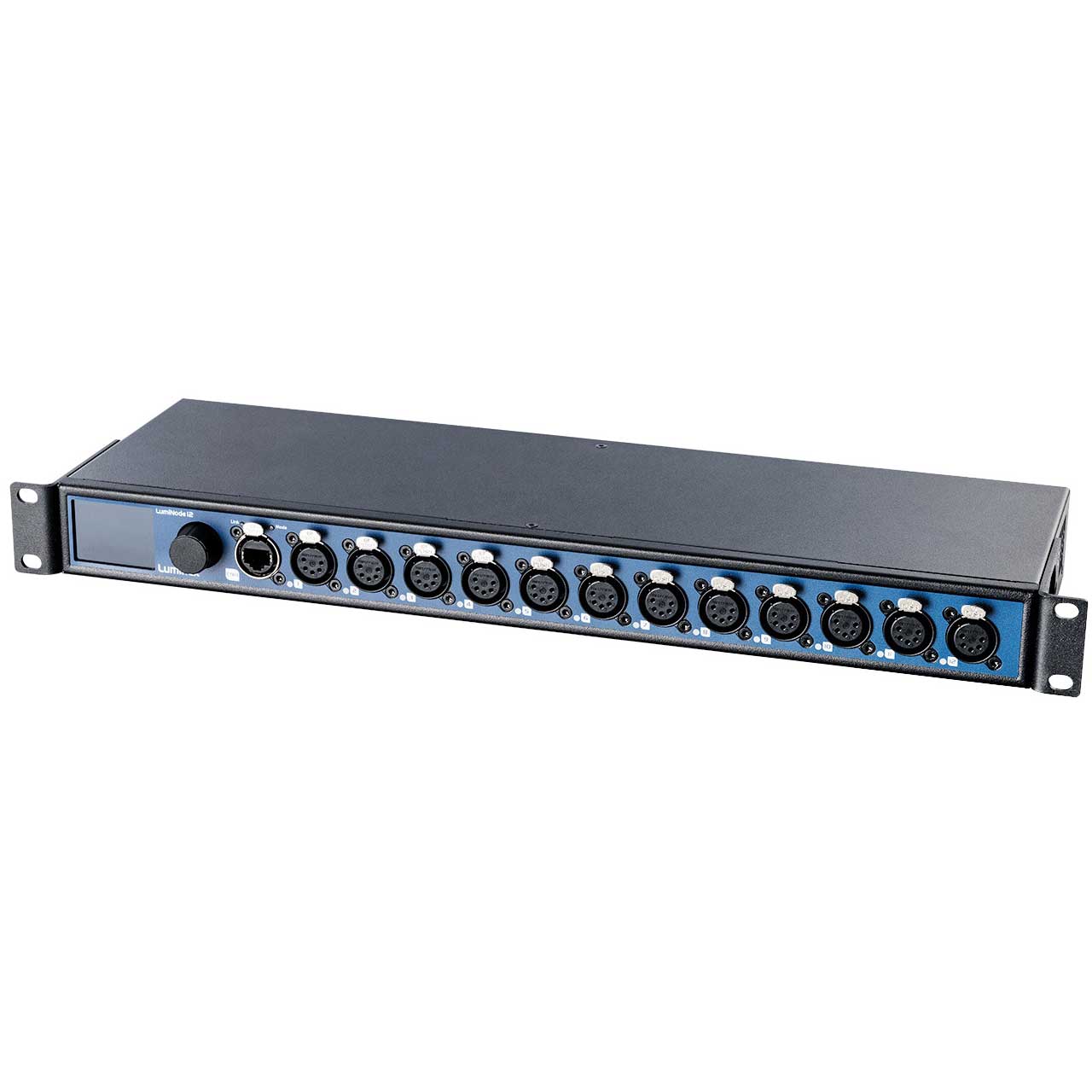

Primary Image

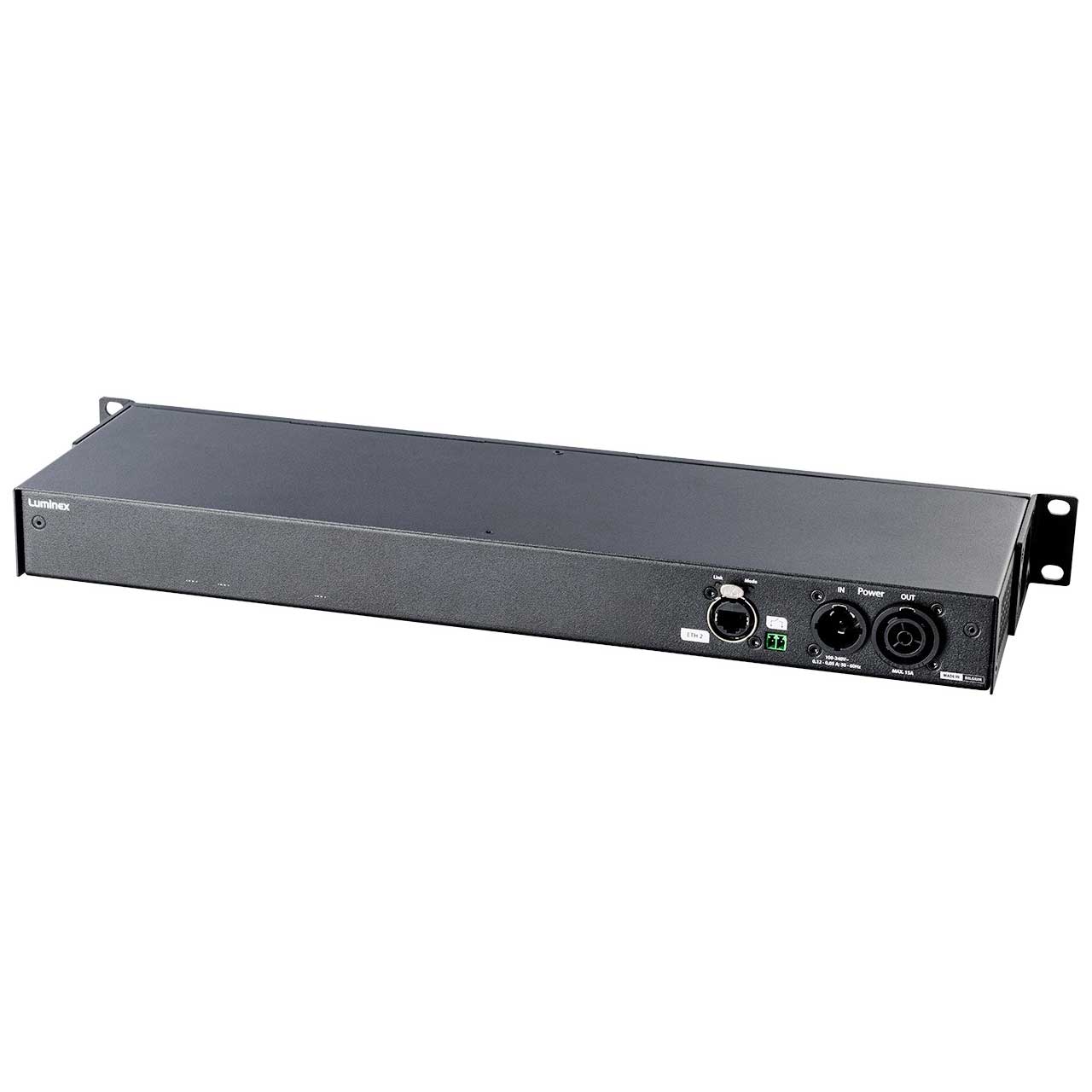

  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

List Price:

$2,795.00

Our Price:

$2,515.50

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


    LU0100072 - Overview

    Now is your chance to prepare for the future. On one hand the LumiNode converts Ethernet to DMX. And on the other hand, thanks to its processing engines, it is ready for that one special day when copper DMX cables are no longer employed in the entertainment lighting industry.

    The LumiNode series is a new range of network converter, inheriting more than a decade of experience from the Luminex Ethernet-DMX converter design and manufacturing. In the past, most of the people were designing their system according to the number of universes and DMX ports they would need on their lighting control system.

    But today, with the ever-increasing number of lighting-controlled devices fitted with an Ethernet port, there is a need for more processing power and data handling flexibility. This is where the LumiNode series steps in. Instead of assigning universes to a port, the user can now select any incoming data, handle it the way they need, and send it back to the network, or to a DMX port. All the data handling will be powered by process engines.

    The Luminex LU0100072 LumiNode 12 has 16 processing engines, 12 DMX ports and is the ideal full 19" rack unit that offers you the highest density of DMX/RDM ports on the market.

    • Features:

      • Full 19" high density rack unit
      • 12 x DMX/RDM 5-pin connector, fully isolated
      • 1 x RGB LED per DMX/RDM port for activity indication
      • 2 x EtherCon network port @ 1Gbps with integrated switch
      • Link/Speed LED indication per Ethernet port
      • RGB Mode LED indication per Ethernet port
      • Color display and control jog for fast configuration
      • Contact closure as trigger
      • PoE powered (IEEE 802.3af)
      • Internal universal power supply with Neutrik PowerCon True1
      • Robust steel enclosure with 2 rack ears

    • Specifications:

      • Connectivity
      • DMX: 12x shielded & gold plated Neutrik 5 pin XLR (female)
      • Network: 2x shielded Neutrik Ethercon connector
      • Contact closure: 1x terminal block
      • Power: 1x Neutrik PowerCon true one input & output
      • Mounting: Rack mount

        DMX Features
      • Supported protocols: DMX512 (1986 & 1990), DMX512-A, RDM ANSI E1.20
      • DMX Port direction: Input or output (configurable)
      • DMX Port isolation: Optic and galvanic isolation per port
      • DMX Timing: Framerate: 10/40fps, Break: 176-352 us

        Ethernet Features
      • Supported Protcols: Art-Net I, Art-Net II, Art-Net III, Art-Net IV, sACN (ANSI E1.31), RTTrPL (BlackTrax)
      • Port Speed: 10/100/1000 Mbps
      • Port sensing: Auto-negotiation, MDI/MDIX

        Additional Features
      • Processing Engine: Yes (16)
      • Merging: Yes (HTP, LTP, Xfade, Backup, Switch)

        Status Report
      • Graphic color: Display & Jog On the front of the unit
      • Ethernet Port Connection: Link and Activity LED, RGB Mode LED
      • DMX port: RGB LED indication for DMX / RDM

        Power Input
      • Power Input: 100-240VAC, 50-60Hz, PoE (802.3af )
      • Power Consumption Maximum: 20W
      • Fuse: 1A 250V Slow Blow

        Management
      • Configuration: Through the built-in web server, Through the front-end display & jog, Through documented web API

        Environmental
      • Operating Temperature: 0 to +50°C
      • Storage Temperature: -10 to +70°C
      • Humidity (non condensing): 5 to 95% RH

        Physical
      • Enclosure: Metal housing
      • Dimensions (W x D x H): 482 x 150 x 44mm / 19" x 5,90" x 1,73"
      • Weight: 4.32lb / 1,96 Kg

        Approvals - Electromagnetic emissions and immunity EN55032 class A
      • EN55035
      • EN61000-3-2
      • EN61000-3-3
      • EN61000-4-2
      • FCC Part 15 CFR 47 class A

        Safety Approvals
      • IEC 60950-1
      • EN 60950-1
      • UL 60950-1
      • CAN/CSA-C22.2 No. 60950-1
      • IEC 62368-1
      • EN 62368-1
      • UL 62368-1
      • CAN/CSA-C22.2 No. 62368-1
      • CE
      • Green: RoHS, Reach
