LYNX Technik HDR Evie+ is a self-contained solution with support for SDI I/O up to 12G (4k) UHD (3840x2160). The system includes an integrated frame synchronizer with full audio processing. This the world's first system that uses the advanced algorithm for sectional dynamic tone mapping which automatically analyzes 144 tiles of each frame in the HDR stream and applies optimal corrections on a frame by frame basis in real-time. This unique capability is unlike any other solution today and is the perfect real-time production tool for sports or any live broadcast event requiring high-quality real-time HDR to SDR conversions. HDR EVIE+ is best suited for a single native HDR workflow reducing cost on equipment and manual operations.

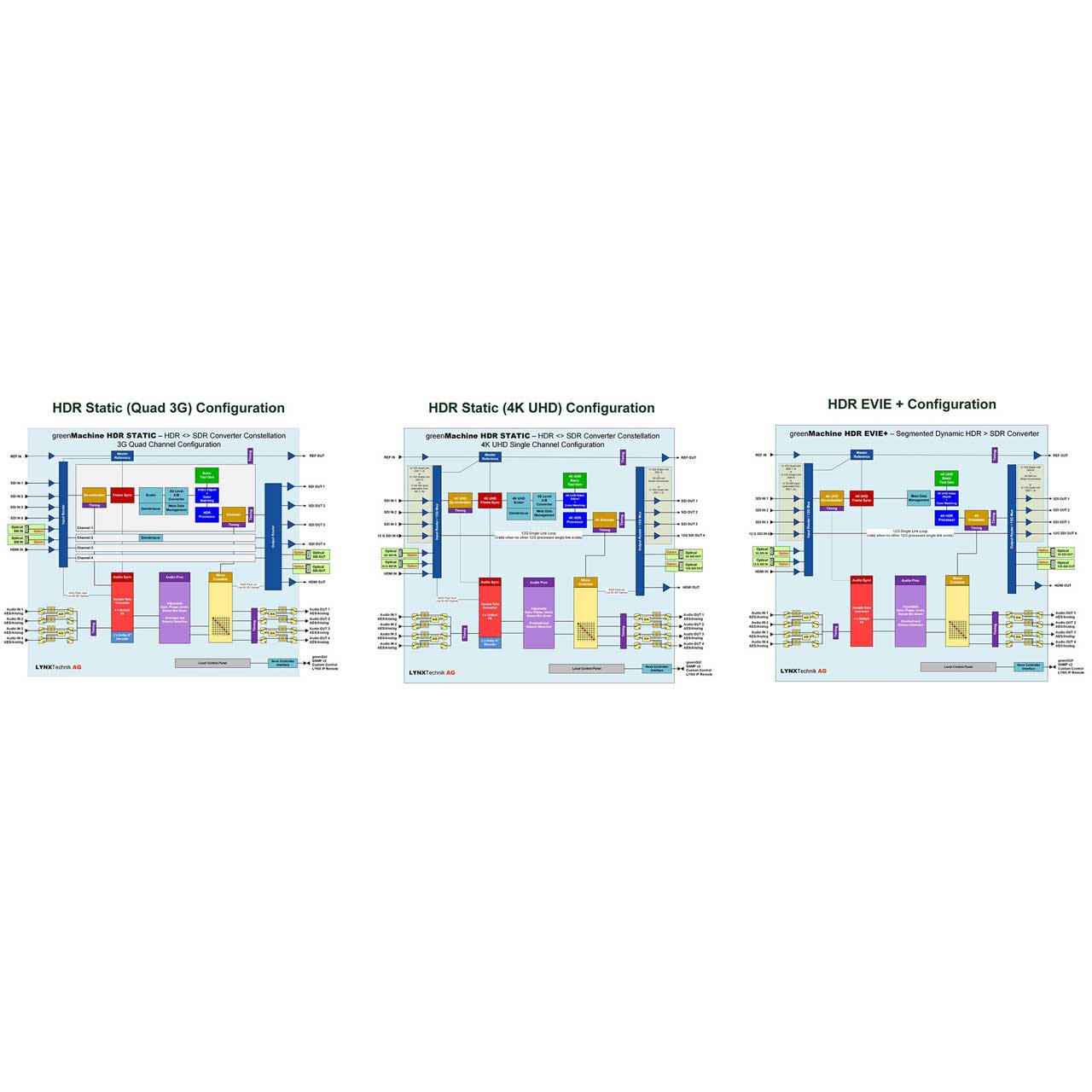

HDR EVIE+ provides 1x 4K/UHD processing channel supporting down-conversion from HDR transfer characteristics to SDR through appropriate sectional dynamic tone mapping. It also supports Wide Color Gamut (WCG) needs of broadcasters, and professional AV live events requirement. HDR Evie+ package also includes HDR Static configuration for Static HDR <> SDR conversions, which performs static tone mapping to realize UP/Down/Cross conversions between HDR and SDR, Static conversion are better suited for studios or environments where the light conditions do not change dynamically.

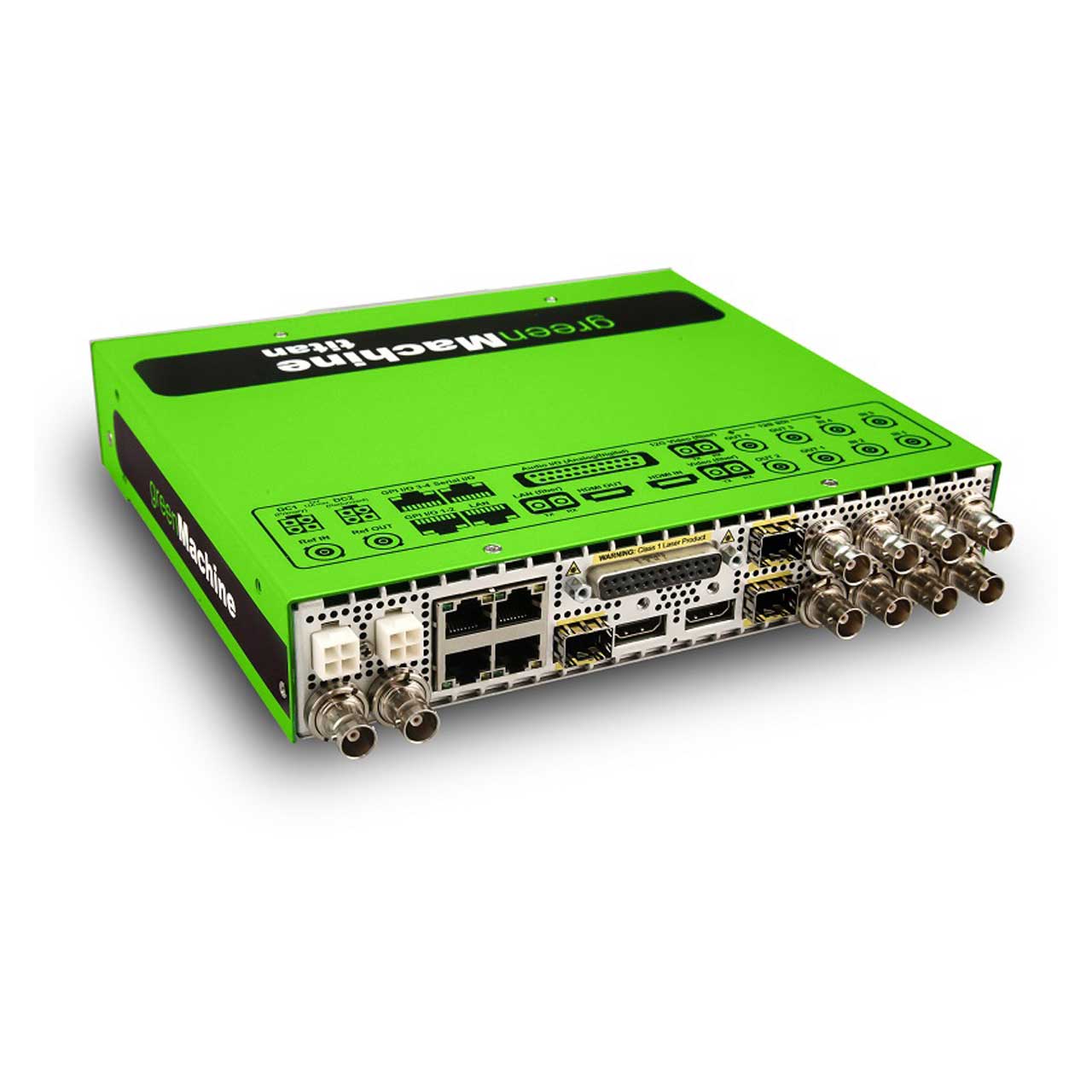

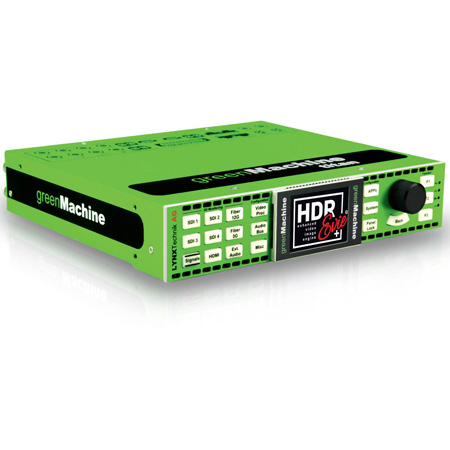

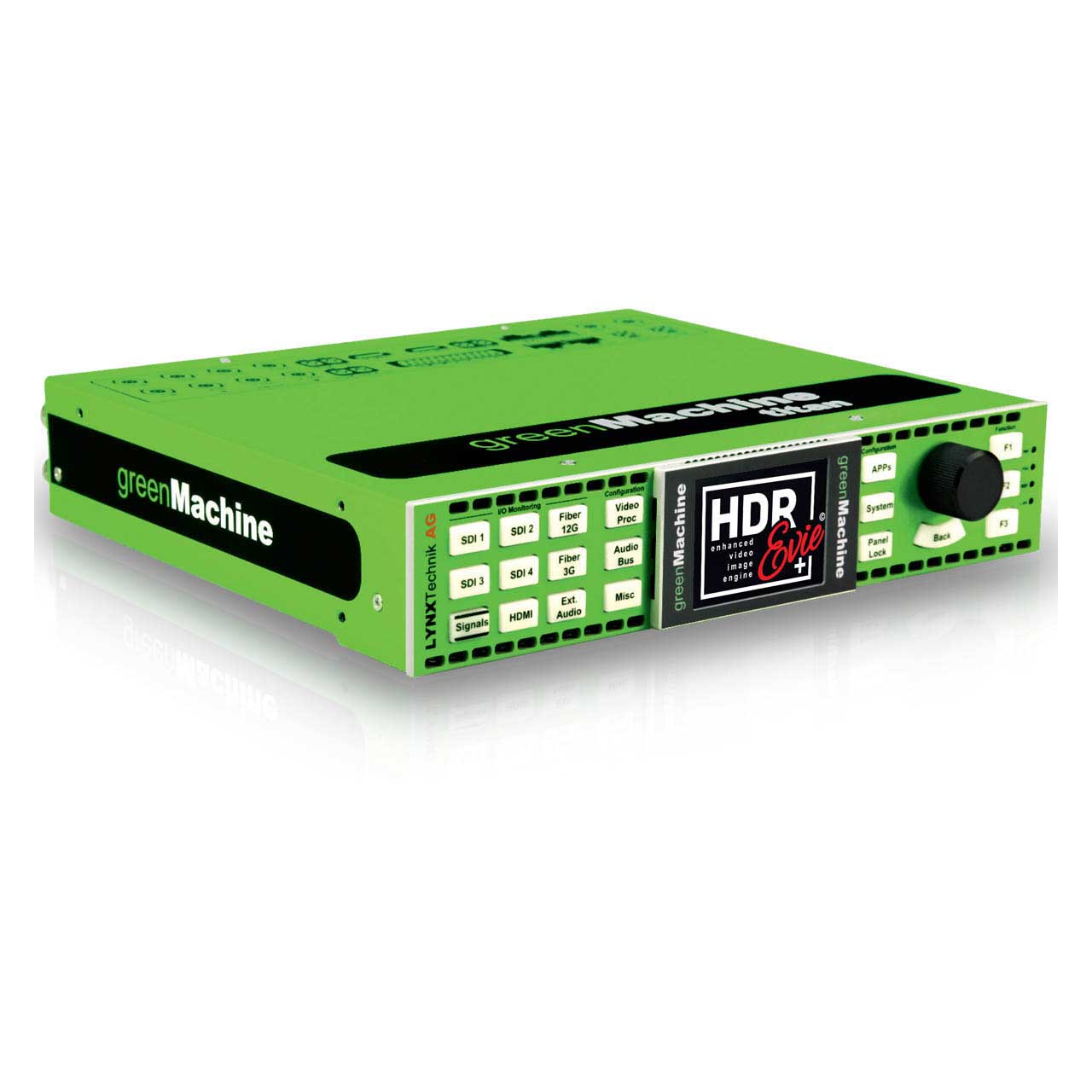

The greenMachine titan is equipped with a fully featured local control interface with an LCD which can display image previews and audio level meters of the processed video paths in addition to the graphical user interface.
Advanced configurations, monitoring and remote control is possible via the GreenGUI application (PC or MAC)
For more information please visit the Data Sheets Tab.
