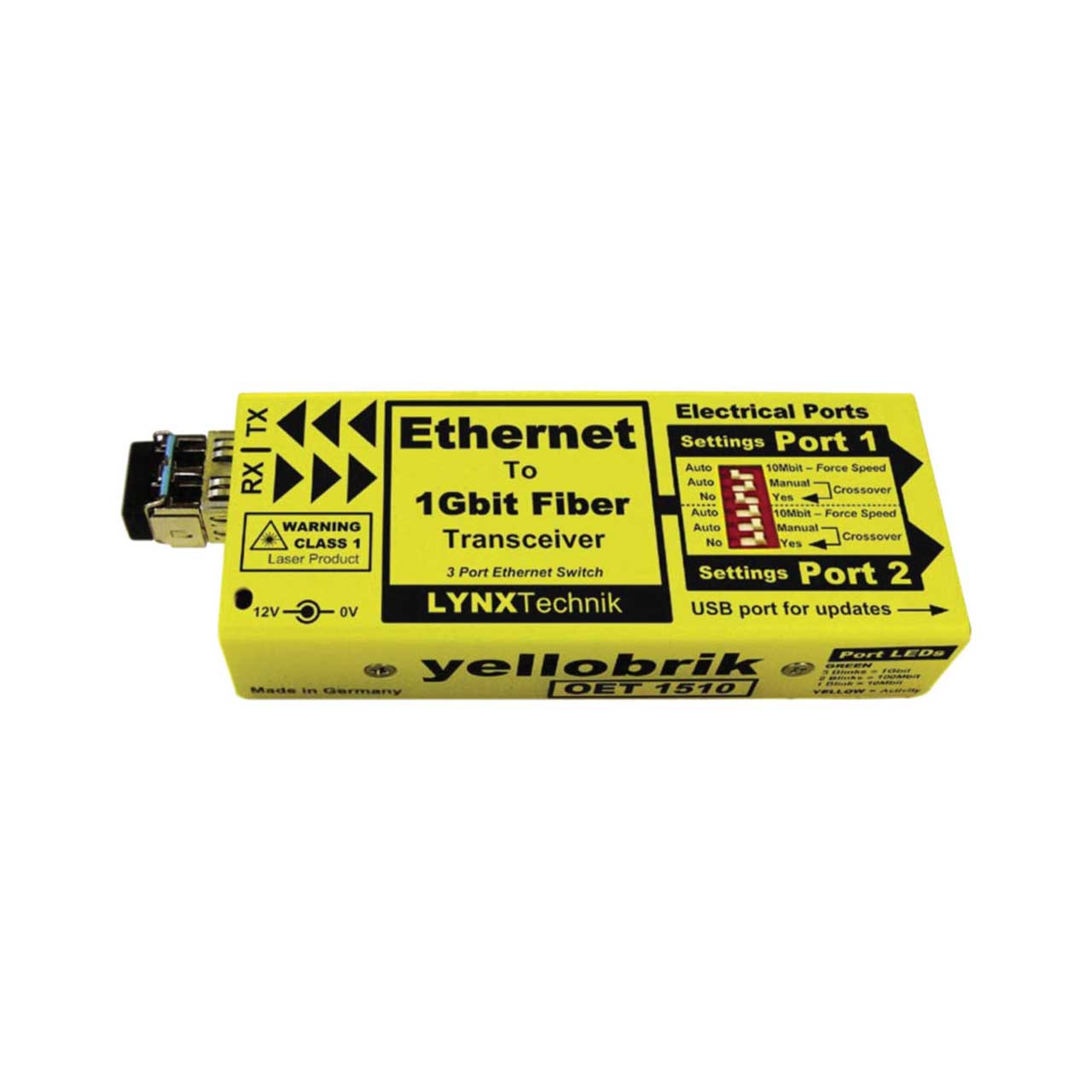

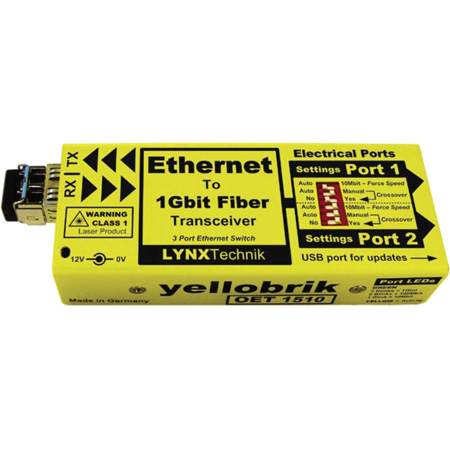

LYNX Technik Yellobrik O ET 1510 MM - Fiber to Ethernet Transceiver - Multimode - Fiber LC Connectors

O ET 1510 MM - Overview

• Features:

  • Supports standard Ethernet inputs up to 1 Gbit
  • 3 port Ethernet switch (1 fiber, 2 electrical)
  • Auto (10/100/1000) electrical port speed detection
  • Manually force 10Mbit electrical speed (if needed)
  • Fiber transceiver speed always 1 Gbit
  • Auto or manual electrical crossover selection
  • Singlemode fiber 1310nm up to 10km (6.2 miles)
  • Multimode fiber 850nm up to 550m (1,804 feet)
  • Duplex LC optical connections
  • Supports hot swapping and hot plugging


• Specifications:

  • Ethernet
  • 2 x Ethernet ports, RJ 45 Connectors.
  • 10 BaseTUTP category 3,4 or 5 cable up to 328ft/100m (2 pairs)
  • 100 BaseTXUTP category 5 cable up to 328ft/100m (2 pairs)
  • 1000 BaseTXUTP category 5 cable up to 328ft/100m (4 pairs)
  • Auto detect bit rate (10/100/1000), or force to 10Mbit for each port (selectable)
  • Automatic crossover detection or force manually for each port (selectable)

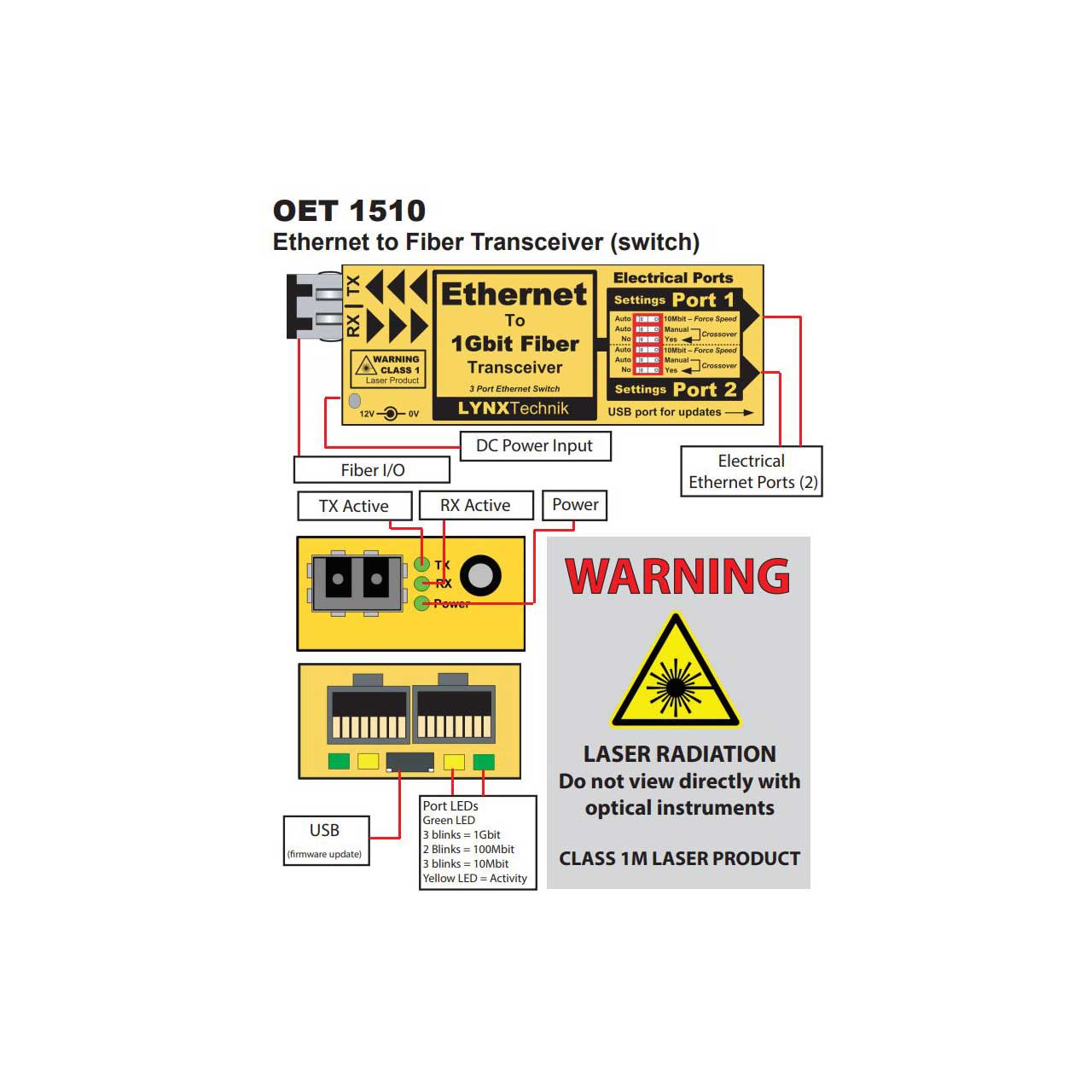

  • Port speed / activity LED indication (next to Ethernet port)

    Fiber Optic
  • 1 x fiber optic input (TX)
  • 1 x fiber optic output (RX)
  • Duplex using LC/PC Connections
  • IEEE 802.3z
  • (1000BASE-X Gbit/s Ethernet over Fiber at 1 Gbit/s (125 MB/s)
    Singlemode Version
  • TX wavelength 1310nm, power -3dBm
  • RX input range 1260nm to 1620nm, sensitivity -3dBm to -21dBm
  • Max distance 10km (6.2miles)
    Multimode Version
  • TX wavelength 850nm, power -2dBm to -7dBm
  • RX input 850nm sensitivity 0dBm to -15dBm
  • Max distance approx 550m (1804 feet)
  • Fiber TX active and RX active LEDs on side of module

    Physical
  • Power: +12VDC @ 2.2W nominal - ( supports 7 - 15VDC input range )
  • Size: 120 x 42 x 22mm (4.73 x 1.65 x 0.86") including connectors
  • Weight: 125g (4.4oz)
  • Ambient: 41 - 104°F 90% Humidity (non condensing)


• Item Includes:

  • Module
  • AC power supply


• GTIN:

  4250479321144
