LYNX Technik OH-RX-12-LC 12G SDI Single Optical Receiver (RX) SFP Module - 1260-1620nm - Fiber LC Connector

ITEM #: LNX-OH-RX-12-LC MFG #: OH-RX-12-LC

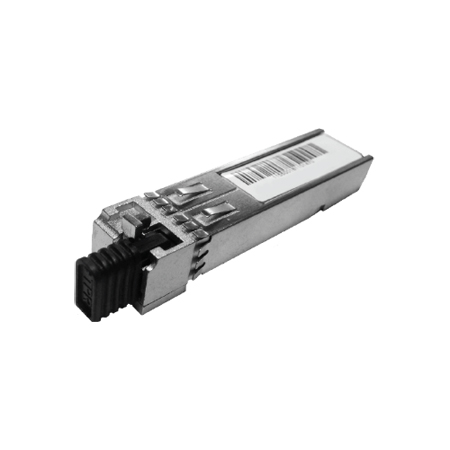

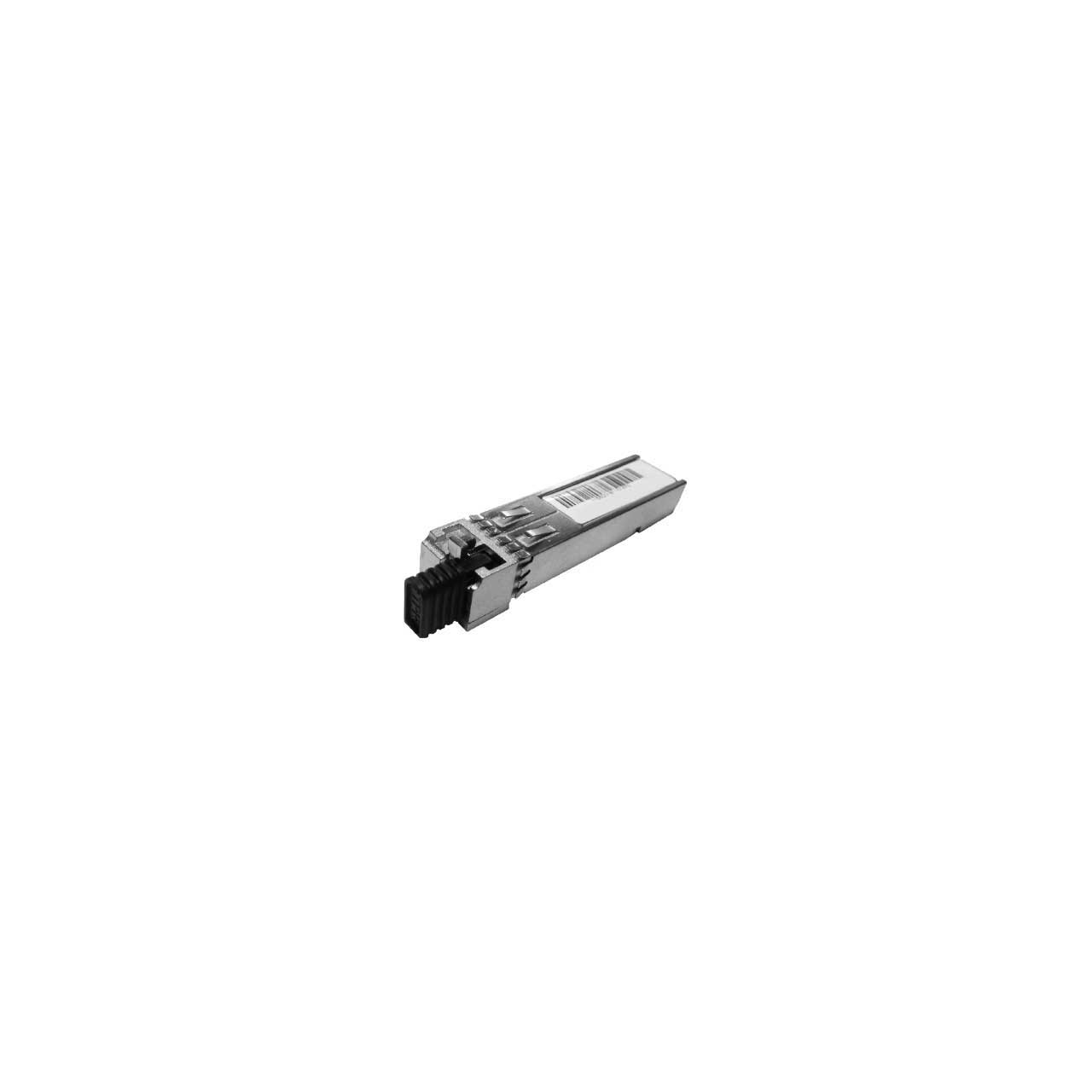

Primary Image
LYNX Technik Inc
Free Shipping with $49 Minimum Order

List Price:

$364.00

Our Price:

$345.80

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

OH-RX-12-LC - Overview

The OH-RX-12-LC SDI optical receiver is an integrated plug in option for select LYNX Technik products. This SFP module facilitates the conversion of a optical fiber SDI signal into an electrical SDI signal. Wavelength capture rage is between 1260nm and 1620nm. The module accommodates 12G, 6G, 3G and 1.5G SDI signals conforming to SMPTE 2082, 424M, 292M.

A socket, or "cage" is provided for the SFP in the supporting LYNX Technik product for easy installation or upgrade. The SFP is hot swappable.

  • Features:

    • SDI multi-rate fiber optic receiver for 12G-SDI, 6G-SDI, 3G-SDI and HD-SDI
    • Support for SMPTE 2082, SMPTE 424M, SMPTE 292M.
    • Supports 1260 to 1620nm wavelengths
    • For use with yellobrik and greenMachine product lines
    • Pluggable and hot swappable
    • LC connector (singlemode fiber only)
    • Lead free and RoHS compliant


  • Specifications:

    • Parameter
    • Receiver Sensitivity (Measured with pathological pattern)
    • 11.88 Gb/s Max: -10dBm
    • 5.94 Gbit/s Max: -14dBm
    • 2.97 Gbit/s Max: -14dBm
    • 1.485 Gbit/s Max: -16dBm
    • Wavelength: 1260nm to 1620nm
    • Overload -2dBm
    • Loss of Signal De Assert: -10dBm
    • Loss of Signal Assert: -30dBm
    • Optical Hysteresis: 0.5dB 2dB
    • Operating Temperature Range: 32° to 158°F (0° to 70°C)
    • Power Supply Voltage: Min: 3.1 VDC Typ: 3.3 VDC Max: 3.5 VDC
    • Power Consumption: Typ: 180mA Max: 200mA
    • Humidity (non-condensing): 90%

      Mechanical
    • Size (not including connector): 2.24 x 0.53 x 0.49" (57 x 13.4 x 12.4mm)
    • Weight: 0.11Lbs (50g)
    • SFP Connector pinning: MSA
    • Fiber connections: LC Simplex - single mode


  • GTIN:

    4250479325043
