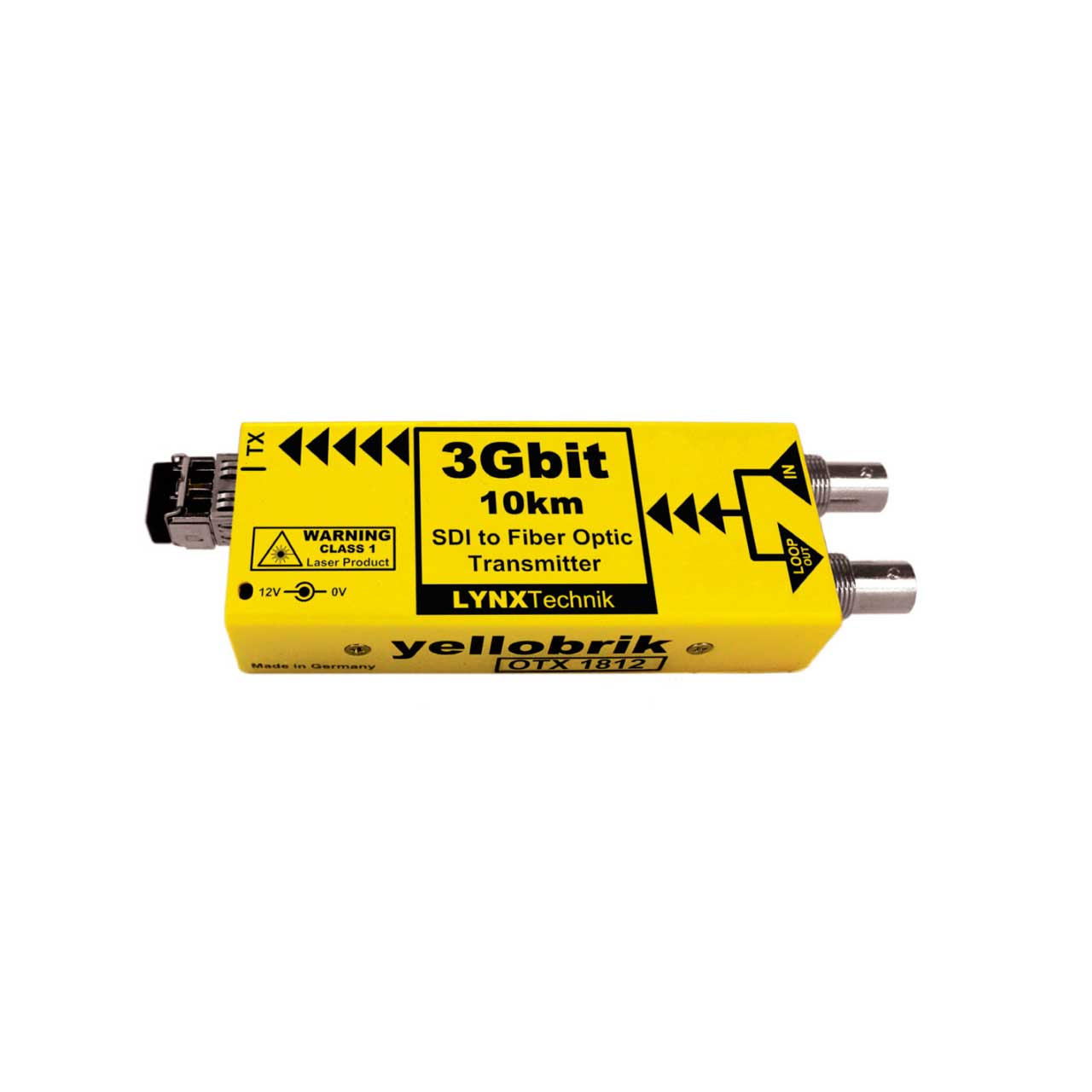

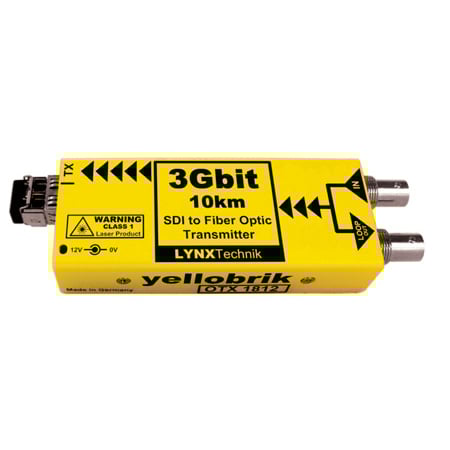

LYNX Technik O TX 1812 MM 3Gbit SDI to Fiber Optic Transmitter - Multimode Fiber - LC Connector

O TX 1812 MM - Overview

• Features:

  • Supports SDI video inputs up to 3Gbit/s (1080p60)
  • 3Gbit Level A and Level B support (all formats)
  • Auto reclocking 270Mbit / 1.5Gbit / 2.97Gbit
  • Error free optical transmission
  • Reclocked SDI loop out connection

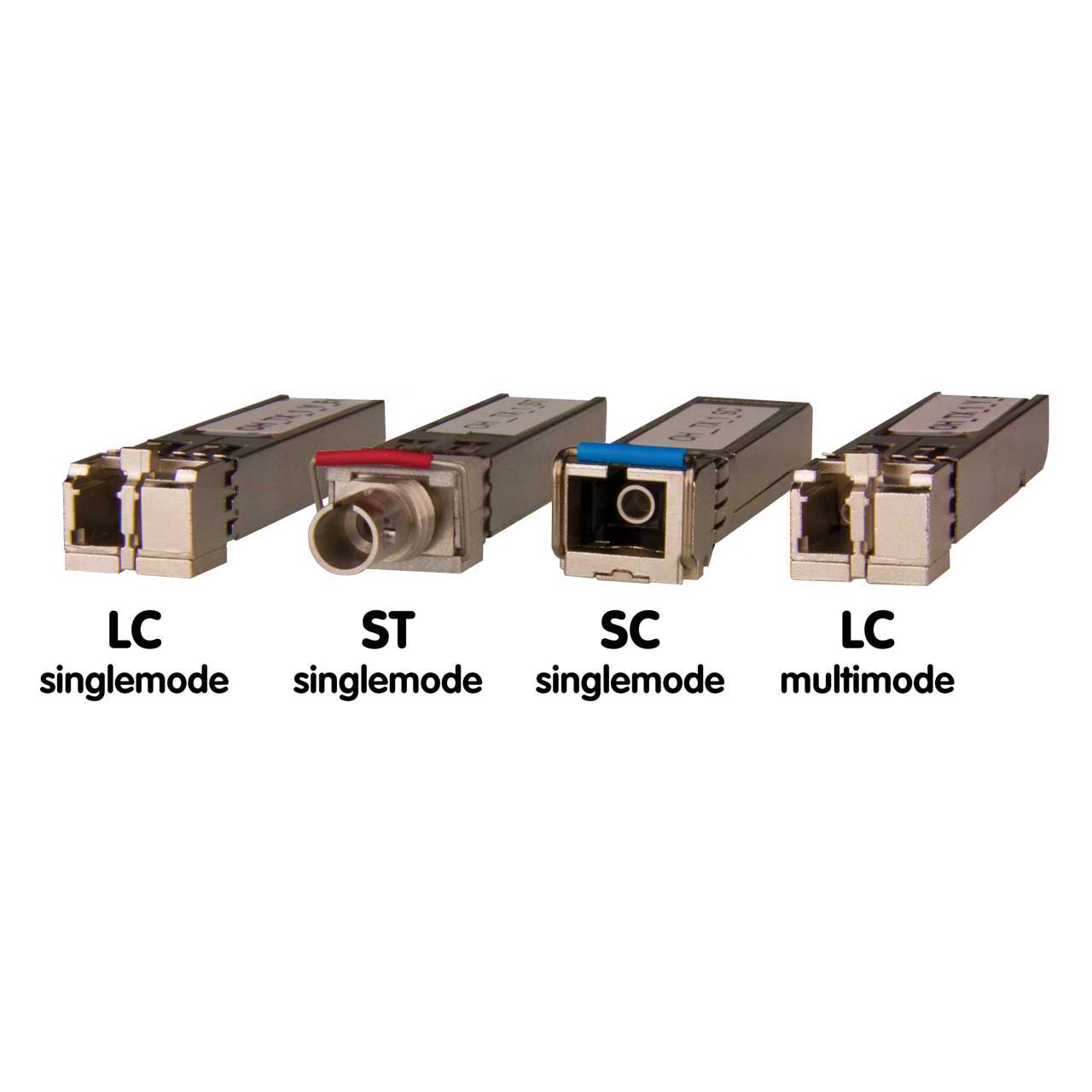

  • Versions for LC, ST or SC fiber connections
  • Multimode version available
  • Up to 10km (6.2 miles) @ 3Gbit/s (singlemode)
  • Up to 300m (984 feet) @ 3Gbit/s (multimode)
  • Supports hot swapping and hot plugging


• Specifications:

  • SDI Input
  • 1 x SDI video input and 1 x SDI reclocked loop output
  • 75 Ohm BNC connectors
  • SMPTE 424M, SMPTE 292M, SMPTE 259M, DVB-ASI
  • Multi-standard operation from 270Mbit/s to 3Gbit/s
  • Multi-rate reclocking : 270Mbit/s - 1.5Gbit/s - 3Gbit/s
  • Electrical Return Loss: >15dB from 5MHz to 1.5GHz, >10dB from 1.5GHz to 3GHz
  • Automatic cable EQ (Belden 1694A cable)
  • 340m @ 270Mbit/s, 150m @ 1.5Gbit/s, 120m @ 3Gbit/s

    Fiber out Singlemode
  • 1 x fiber optic singlemode output
  • LC, ST or SC connection
  • SMPTE 297M - 2006
  • Wavelength 1310nm, Optical power -5dBm
  • TX active LED on side of module
  • Max. distance approx. 10km (6.2 miles) @ 3Gbit/s (Singlemode)

    Fiber out Multimode
  • 1 x fiber optic multimode output.
  • LC connection
  • SMPTE 297M - 2006
  • Wavelength 850nm, Optical power -5dBm
  • TX active LED on side of module
  • Max. distance approx. 300m (984feet) @ 3Gbit/s (Multimode)

    Physical
  • Power: +12VDC @ 1.7W nominal - ( supports 7 - 16VDC input range )
  • Size: 140 x 42 x 22mm (5.51 x 1.65 x 0.86") including connectors
  • Weight: 125g (4.4oz)
  • Ambient: 41 - 104°F 90% Humidity (non condensing)


• Item Includes:

  • Module
  • AC power supply


• GTIN:

  4250479359673
