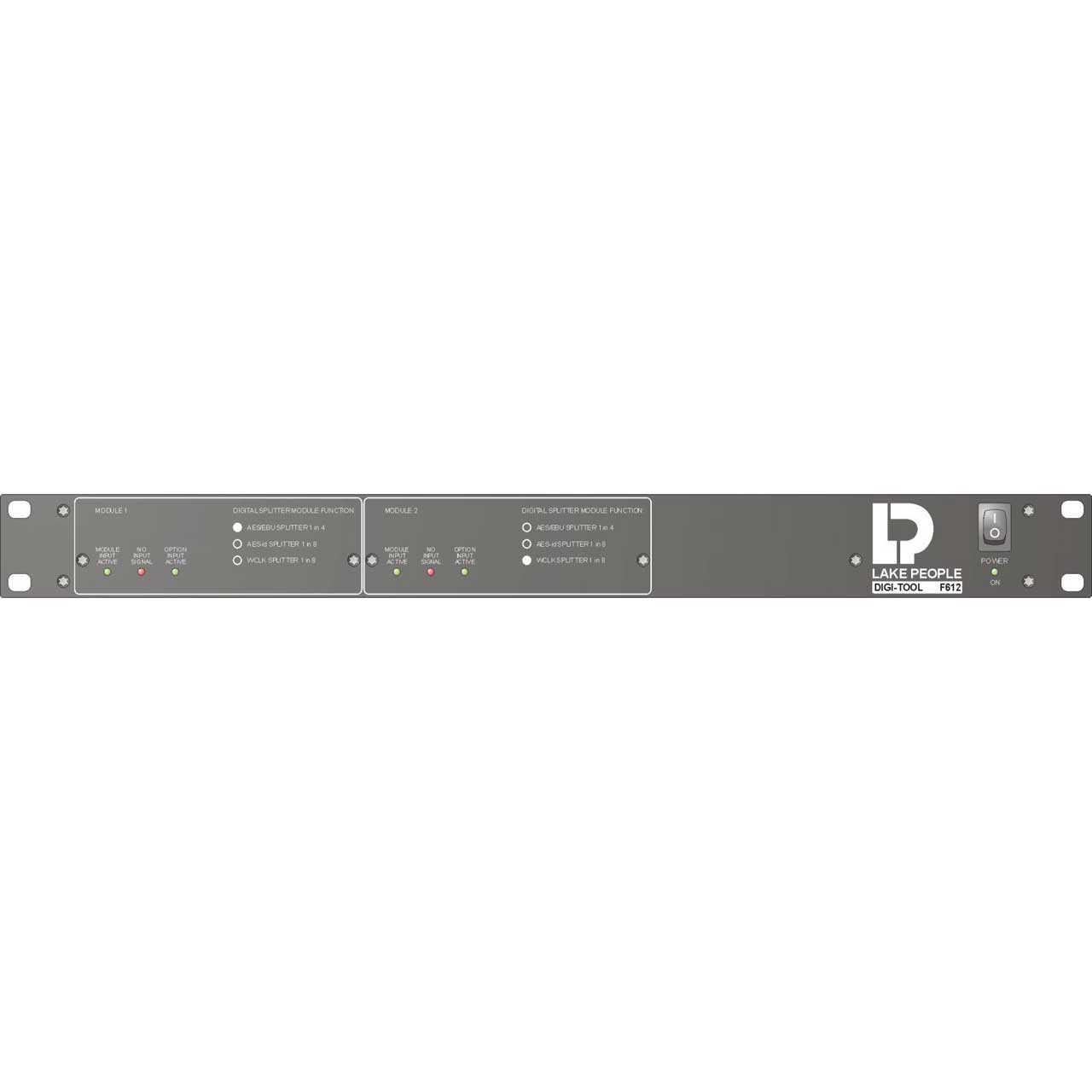

Lake People DIGI TOOL F612 is a digital distribution amplifier for AES/EBU, SPDIF and Wordclock signals with a total of 2 inputs and 4+8 outputs.
The device consists of two modules:
AES/EBU splitter with 1 input and 4 outputs:

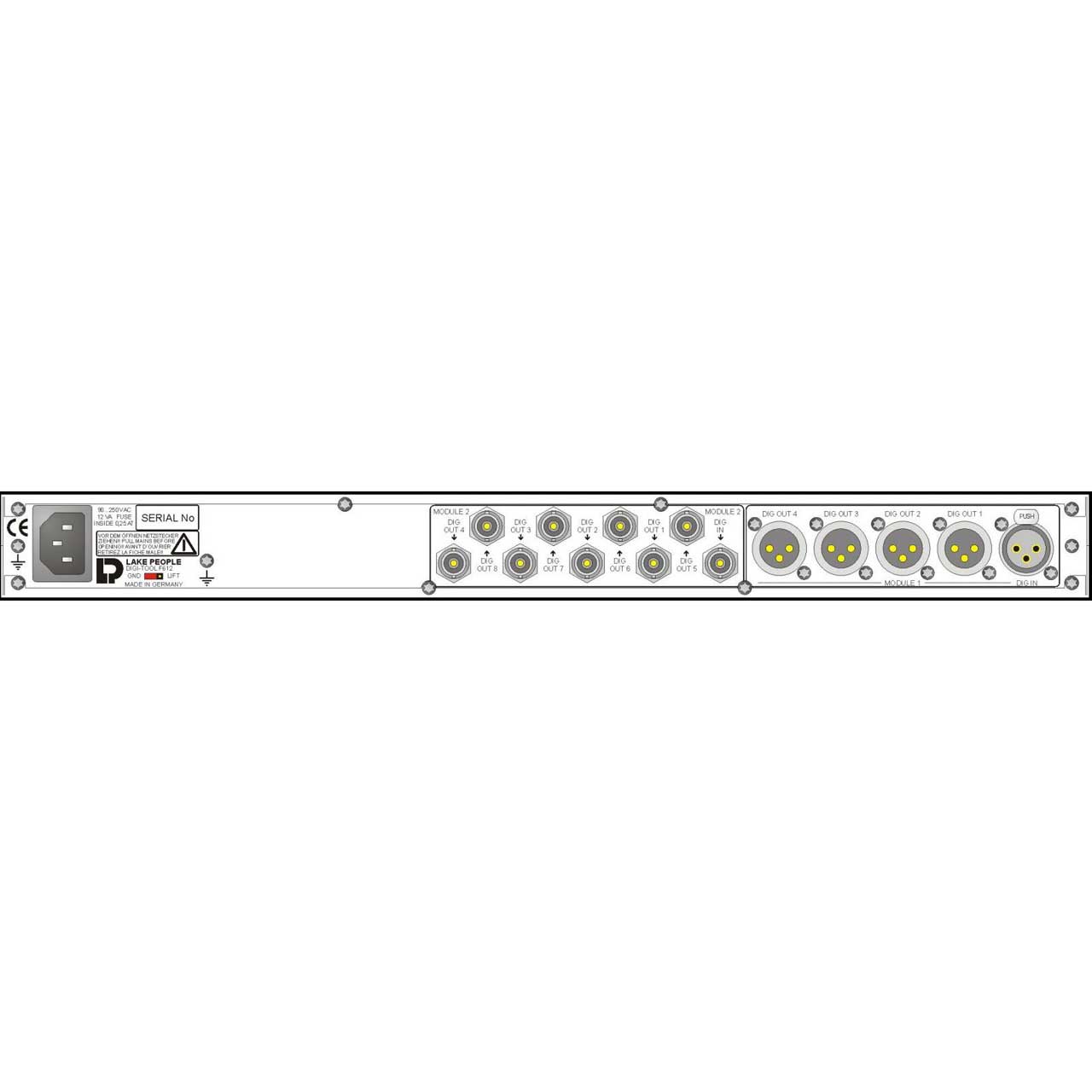

All inputs and outputs transformer-balanced, impedance 110 ohms, via gold-plated XLR sockets according to AES 3/11
Highly sensitive inputs to regenerate dirty and distorted signals
High output voltages to bridge large distances
WCLK or SPDIF splitter with 1 input and 8 outputs with the following features:
Inputs and outputs unbalanced, impedance 7 5 ohms via BNC sockets
Highly sensitive inputs to regenerate unclean and distorted signals
High output voltages for bridging large distances
Output impedance can be switched from 75 ohms to 50 ohms via jumpers to operate dirty WCLK inputs
Switchable to SPDIF via jumpers
Switchable to "Superclock 256 Fs" via jumpers
